Motor Driver TB6612FNG Module Performance Ultra Small Volume 3 PI Matching Performance Ultra L298N
1 Piece
$2.15Product information
High-quality Motor Driver TB6612FNG Module Performance Ultra Small Volume 3 PI Matching Performance Ultra L298N supplied by TECHNOBERRY. Bulk wholesale pricing is $2.15 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
No. Of Channels:
1
Continuous Current (A):
1.2
Output Current:
1.2a (average) / 3.2a (peak)
Operating Voltage (VDC):
15
Motor Supply Voltage Limit:
15vdc
Logic Supply Voltage Range:
2.7-5.5vdc
Peak Current (A):
3.2
Pin Configuration:
All Pins Broken Out To 0.1" Pitch Headers With Input Pins On One Side And Output Pins On The Other
Specifications
No. Of Channels:
1
Continuous Current (A):
1.2
Output Current:
1.2a (average) / 3.2a (peak)
Operating Voltage (VDC):
15
Motor Supply Voltage Limit:
15vdc
Logic Supply Voltage Range:
2.7-5.5vdc
Peak Current (A):
3.2
Pin Configuration:
All Pins Broken Out To 0.1" Pitch Headers With Input Pins On One Side And Output Pins On The Other
Motor Type:
Brushless DC Motors (BLDC)
Low Voltage Detection:
Built-in
Thermal Shutdown:
Built-in
Motor Control Modes:
Cw, Ccw, Short-brake, Stop
Standby Control:
Enabled By Pulling Stby Pin High
Decoupling Capacitors:
Included On Both Supply Lines
Polarity Protection:
No
Cooling Fan:
No
Arduino Sheild:
No- can be used with Wire connection
Driver Model:
TB6612FNG
Trade Term:
To be discussed
Payment Term:
To be discussed
Pwm Speed Control Frequency:
Up To 100khz
LED Indicator:
Yes
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2024
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
The Motor Driver TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop.
The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.
Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

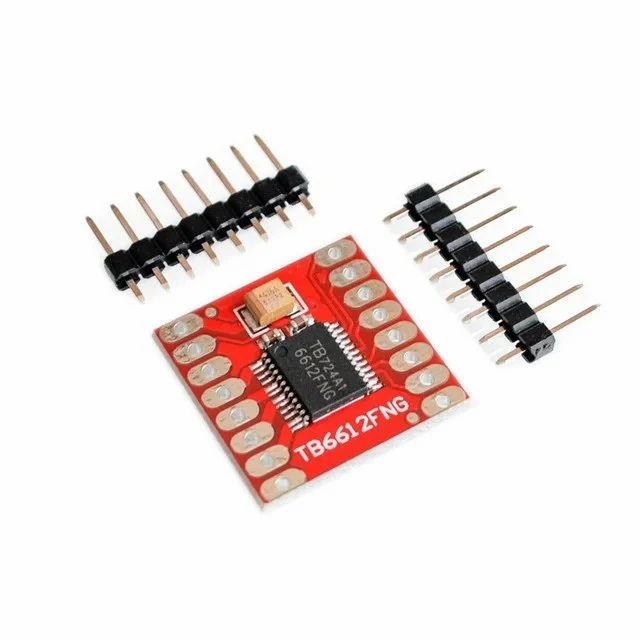

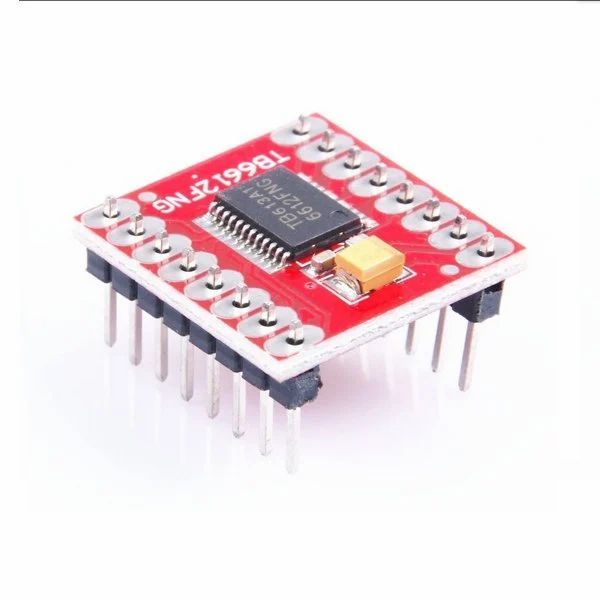

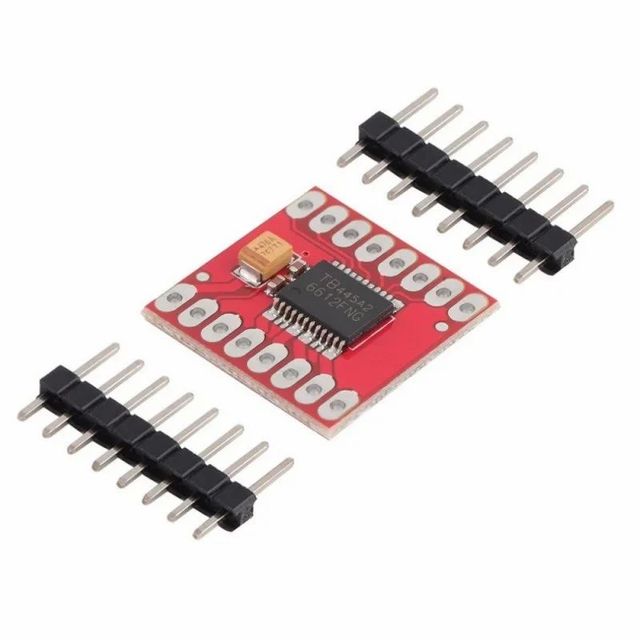

Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1″ pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.
Features :- Output current: Iout=1.2A(average) / 3.2A (peak)
- Standby control to save power
- CW/CCW/short break/stop motor control modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- All pins of the TB6612FNG broken out to 0.1″ spaced pins
- Filtering capacitors on both supply lines
