Motorcycle Parts Batch Tumble Belt Steel Shot Blasting Machine
1 Piece
$6,3501 Piece
$6,996Product information
High-quality Motorcycle Parts Batch Tumble Belt Steel Shot Blasting Machine supplied by Qingdao Qinggong Machinery Co., Ltd. Bulk wholesale pricing ranges from $6,350 to $6,996 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Max. Weight Of Cleaning:
10kgs
Package Size:
162.00cm * 160.00cm * 260.00cm
Package Gross Weight:
2000.000kg
Max. Weight Of Capacity:
200kgs
Production Capacity:
3600 Sets/Year
HS Code:
84798190
Opening Size:
900*800 Wxh
Abrator Type:
All-in-One
Specifications
Max. Weight Of Cleaning:
10kgs
Package Size:
162.00cm * 160.00cm * 260.00cm
Package Gross Weight:
2000.000kg
Max. Weight Of Capacity:
200kgs
Production Capacity:
3600 Sets/Year
HS Code:
84798190
Opening Size:
900*800 Wxh
Abrator Type:
All-in-One
Automation:
Automatic
Certification:
CE, ISO
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Type:
Crawler Abrator
Feature:
Critical Cleaning / Residue Free
Customized:
Customized
Fuel:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Cleanliness:
High Cleanliness
Payment Term:
LC, T/T, D/P
Application:
Machinery, Auto Industry
Condition:
New
Model NO.:
QGTB200
Trademark:
QINGGONG
Port Of Loading:
Qingdao Port
Rust Removal Grade:
SA2.5
Transport Package:
Seaworthy Packing
Abrasive:
Steel Shot
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-06-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
28
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Motorcycle Parts Batch Tumble Belt Steel Shot Blasting Machine
The tumble belt shot blasting machine are the ideal way to clean and strengthen the batches of of medium or small size castings, forge pieces and a variety of hardware without sharp corners. It is No-Pit ,easy for installation and operation.
Specification
Core Components
Shot blasting chamber
Blast wheel assembly
Abrasive cycle system
Dust treatment
The Motor,Engine,Gearbox
This Abrator Applications
Rust and heat scale removal
Paint stripping
Surface texturing
Preparation for painting
bonding and plating Deburring
Deflashing Cleaning
Cosmetic finishing
Technical Specifications
(Custom configurations available upon request.)*
Description | Unit | Parameters | |
Shot blasting chamber | Material of abrasion resistance guard plate of the chamber | mm | High Chrome wear resistant casting iron |
and natural rubber belt | |||
Service life of abrasion resistanc eguard plate of the chamber | hr | About 10000 | |
natural rubber belt | hr | about 8500 | |
Blast wheel assembly | Abrasive flow rate of each unit | kg/min | Max.200±20m/sec (adjustable) |
Shot Blasting Velocity | m/sec | Max.78m | |
Motor Power | kw | 7.5 | |
Q’ty | unit | 1 | |

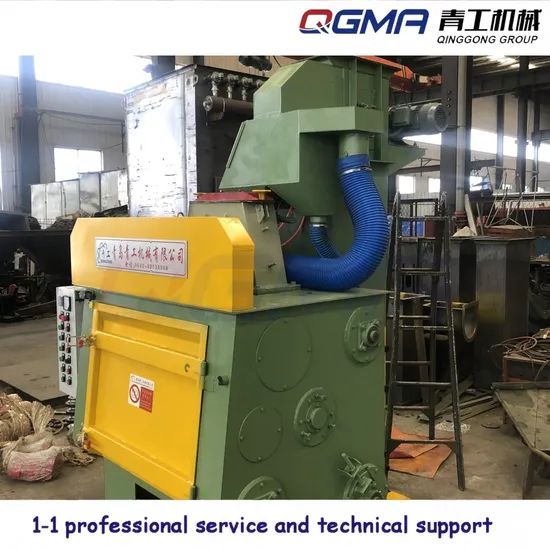

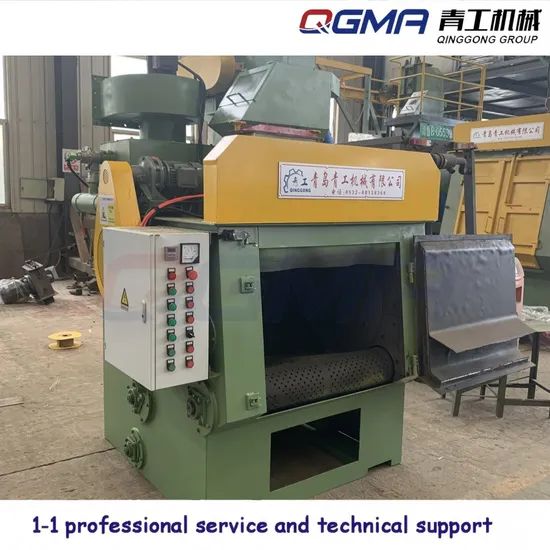

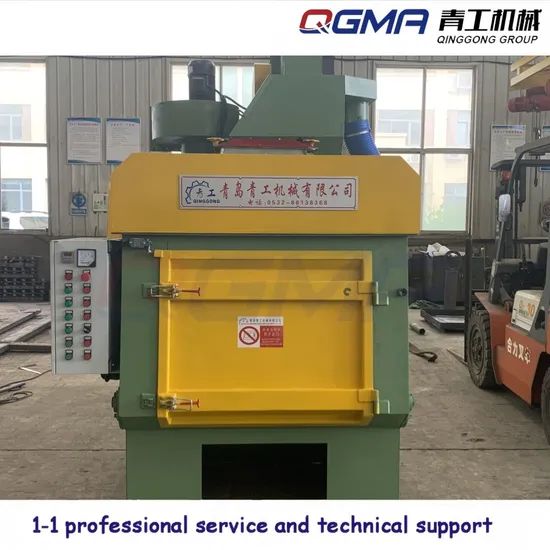

Front Side Abrator

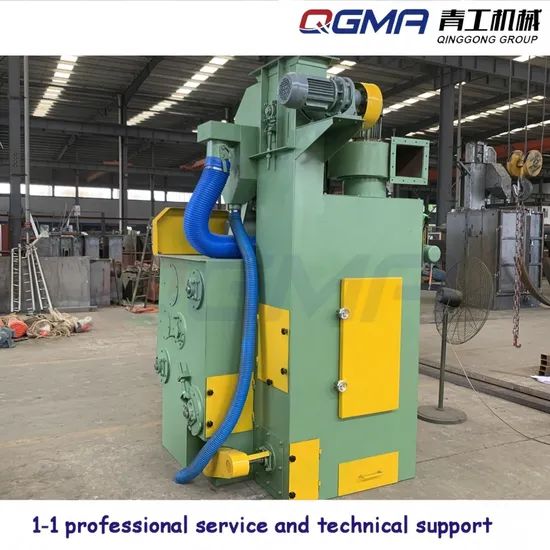

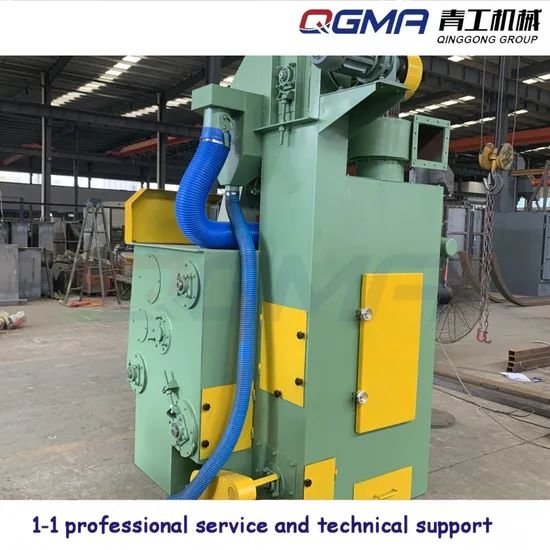

Right Side Abrator

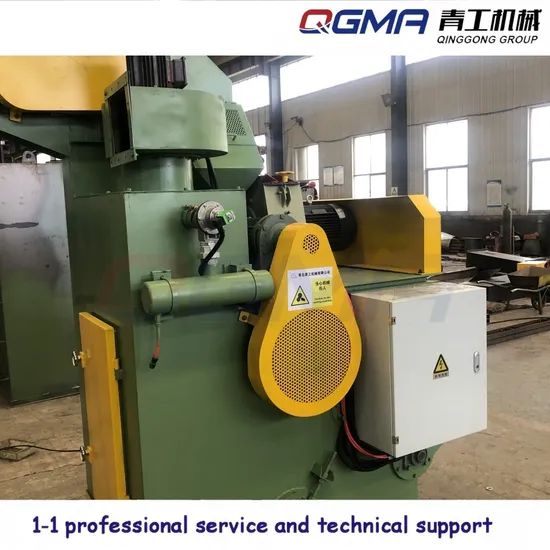

Left Side Abrator
Workpieces suitable for Tumble belt shot blasting machine | |||
List 1 | List 2 | List 3 | List 4 |
Metal valve plates | Perry | bolt | rivet |
bearing | bicycle pedal | gearwheel | blind rivet |
chain wheel | brake pedal | A hole opener | dowel |
Brake pump | Excavator chains | swing arm | stopcock |
Brake pads | cartridge | universal joint pin | hinge |
friction sheave | Three-edged blade | steering shaft | door bolt |
brake disc | revolving centre | bucket teeth | gate lock |
Release the brake fluid | turning attachment | toothholder | shake hands |
camshaft | spur rack | valve body | hinge |
caliper | core rod | union joint | Hang on |
brake drum | cross plate | flange | fastener |
brake shoe | The Balance Seat | nut | valve |
fuel spray nozzle | damper | nut bolt | Valve gate |
throttle valve | jacking | screw thread | rock drill |
sparking plug | Dumbbells | bar clasp | stabilizer rod |
Pump unit | spring exerciser | union | traction bar |
Metal reflective mirrors | Trench pipe fittings | anchor ear | bearing bush |
Motorcycle sprocket | Scaffolding jam | steel wire clamp | clutch |
Motorcycle muffler | universal joint | shackle | lead rail |
Metal buckles | fang bolt | torsional spring | Rome rod |
Tractor handle | setscrew | spring seat | piston rod |
crankshaft ASSY | U-bolts | motor drive shaft | door handle |
Transmission lever assembly | Tap tail self-tapping screws | spiale | spray nozzle |
spanner | anchor bolt | axle sleeve | bell |
tongs | Horse bolt | gearwheel | Raise the bar |
jacket | hexagon headed bolt | worm | disc brake |
hammer | bolt stud | worm gear | triantebrachia |
bolt driver | spring banger | plumbing arm | spring-loaded plunger |
boring crown | flange bolt | Car rocker arms | spade |
The Cleaning Effect Show
This Shot Blasting Equipment(Abrator ) has extensive applications across various industries, including foundries, bicycle component manufacturers, automotive parts factories, motorcycle parts plants, non-ferrous metal die-casting facilities, construction machinery components, and hardware tools.
How is it work for the Tumble belt Shot Blasting Machine
The working principle of the belt shot blasting machine is that after a specified number of workpieces are added into the cleaning chamber, the door is closed and the machine starts. The workpieces are driven by the drum and start to turn over. At the same time, the shot blasting device throws out the bullets at high speed to form a fan beam and hit the surface of the workpieces evenly, so as to achieve the purpose of cleaning.
The projectiles and sand particles thrown out flow through small holes on the track into the bottom screw conveyor, which then transports them into the elevator. The elevator lifts them to the separator for separation. The most advanced full curtain three-stage separation technology is adopted, and the projectiles after efficient separation are recycled.
The dust-containing gas is sucked into the dust collector by the fan and filtered to become clean air, which is discharged into the atmosphere. The dust falls into the dust collection box at the bottom of the dust collector by air reverse blow, and the user can remove it regularly.
Drawings & Dimensions
Following show the drawing with split type tumble belt shot blasting machine.
After Sales Service
1.Shot blasting machine adopts a double-disc direct-connected type, motor bearing has long service life and good stability;
2. The dust removal system is equipped with a pulse filter cartridge for dust removal, which has high dust removal efficiency and convenient installation and maintenance;
3. The wear-resistant alloy guard plate is laid in the shot blasting chamber, which is wear-resistant, impact-resistant and has a long service life;
4. The equipment work adopts manual control, which is convenient and quick;
5. The equipment is equipped with safety protection devices to ensure safe and effective work.
Company Profile
Qingdao Qinggong Seth Machinery
Established in 1975, QINGGONG MACHINERY is one of the earliest shot blasting manufacturers in China.
50 YEARS-- Established in 1975, QINGGONG MACHINERY is one of the earliest shot blasting manufacturers in China.
5000+ sets--- QINGGONG has produced more than 5000 sets of blasting machines all over the world.
30+ YEARS--- the average experience of our engineers in the shot blasting industry is 30+ years
1st--- Produced 1st set stone shot blasting machine in Asia.
Why Choose Us?
Other Products
1) 100% TRIAL RUN 100% pre-assemble and trial-run before delivery (depens on models)
2) 1-1 SERVICE 1-1 on site assistance & training by experienced engineer
3) 1-CLASS COMPONENTS Key parts like driving and control system all from 1-class brand: SIEMENS, OMRON, CHINT, etc.
