Multi-Formed Light Steel Frame Automatic Machine Sfs-Cc89-305 Steel Framing Machine
1 Piece
$170,0001 Piece
$110,000Product information
High-quality Multi-Formed Light Steel Frame Automatic Machine Sfs-Cc89-305 Steel Framing Machine supplied by Frametec (Xiamen) Building Technology Co., Ltd.. Bulk wholesale pricing ranges from $110,000 to $170,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Thickness:
1.0-2.5mm
Lips:
10-20mm
Package Gross Weight:
10000.000kg
Package Size:
12000.00cm * 4500.00cm * 3500.00cm
Width:
140-305mm
Yield Strength:
345-550MPa
Flange:
50mm
Production Capacity:
600 Sets/Year
Specifications
Thickness:
1.0-2.5mm
Lips:
10-20mm
Package Gross Weight:
10000.000kg
Package Size:
12000.00cm * 4500.00cm * 3500.00cm
Width:
140-305mm
Yield Strength:
345-550MPa
Flange:
50mm
Production Capacity:
600 Sets/Year
Support Table:
6m Length
HS Code:
8455221000
Automatic Grade:
Automatic
Certification:
CE, ISO9001
Control Type:
CNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cutter Material:
Cr12MOV, Heat Treatment
Customized:
Customized
Printing:
Double Sides
Trade Term:
FOB, EXW, CFR, CIF
Trademark:
FrameTec
Working Material:
Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO
Decoiler:
Hydraulic Automatic Decoiler
Payment Term:
LC, T/T
Applilcation:
Light Steel Frame House
Transport Package:
Naked
Condition:
New
Control System:
PLC
PLC Brand:
Panasonic
Cutting:
Post-Cut
Punching:
Pre-Punching
Model NO.:
SFS-CC89-305
Payment Methods:
Support payments in USD
Port Of Loading:
XIAMEN PORT
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-03-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
XIAMEN PORT
Certificates:
Qualification
Product descriptions from the supplier
Multi-formed LGS Multi-formed MF300 Steel Framing Machine

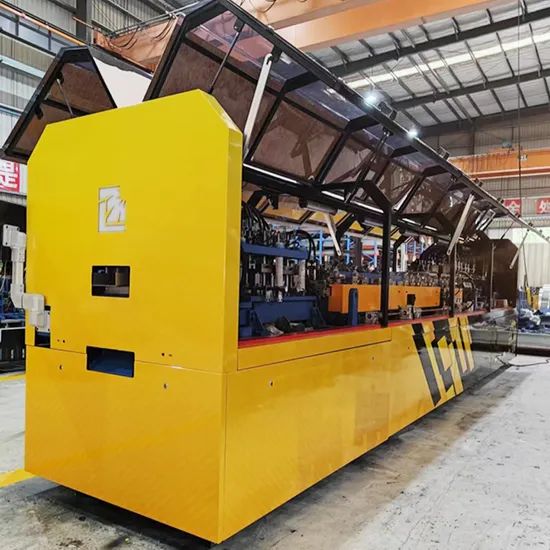

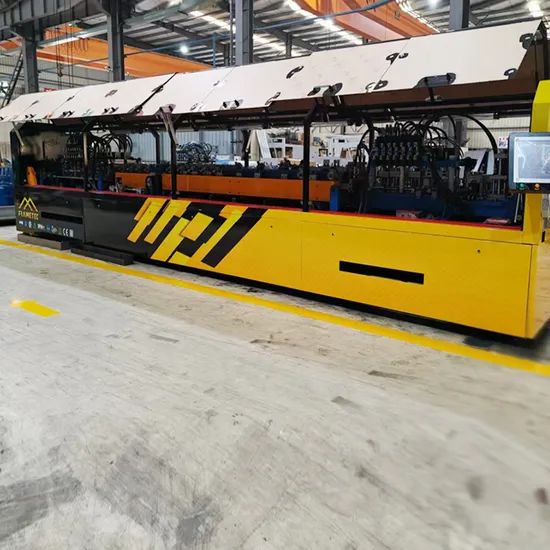

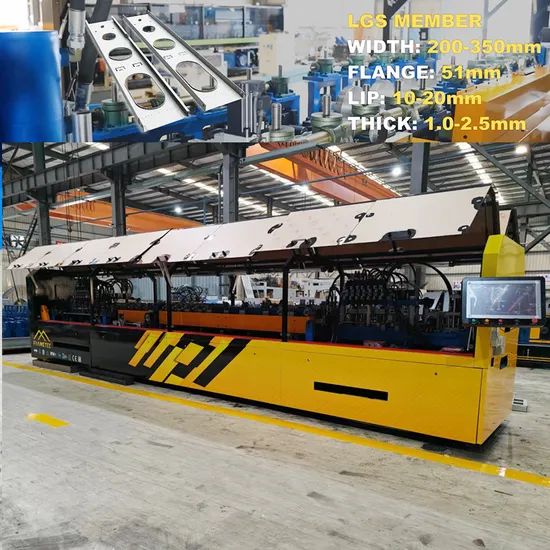

The SFS-CC89-305 Light gauge steel framing machine is a highly versatile member of the FrameTec manufacturing system. Designed to offer increased production speed, greater flexibility and increased reliability, theSFS-CC89-305 Light gauge steel framing machine is best suited for residential and light commercial projects. Producing profiles from 135mm to 305mm up to 2.50mm thickness.
SFS-CC89-305 Light gauge steel framing machine is suited to construct walls, floors and roofs for 1 - 6 level residential, modular and transportable units, and light commercial construction.
Machine Equipment
| Profile Shape | C, U and Sigma Shape |
| Profile Size | 135-305 mm |
| Material Thickness | 1-2.5 mm, G300-G450 Zinc-Alum Steel Coil |
| Operation System | 21 inches Touchable Screen |
| Production Control System | Self-devoloped FrameTec LGS machine Controlling Software |
| Design Software | Vertex BD from Finland |
| Comprehensive Machine Speed | Joists: 500 m/hr Walls: 800 m/hr |
| Max. Machine Speed | 2,150m/hr |
| Power Supplier | 380V, 50Hz, 3Phrases, can be customized |
| Hydraulic Coolant System | Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling |
| Punching, Cutting Mould | Fixing tabs, Web hole, Service Hole, Dimple, Web Notch |
| Hole Punching Accuracy | ± 0.5 mm |
| Decoiler | 5000 kgs,auto decoiling |
2. Machine Main Features
| Classical LGS machine models for 6+ years, very stable and with high speed production speed | The SFS-CC89-305 produces wall frames, trusses and joists for residential and light commercial building quickly economically |
| Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists | An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 1 -2.5mm |
| High line speed results in the accelerated cold formed steel framing and truss manufacturing output | Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency |
| High line speed results in the accelerated cold formed steel framing and truss manufacturing output | Self developing control system base on the market feedback that can meet your requirement well & with good after sales support |
Machine Details

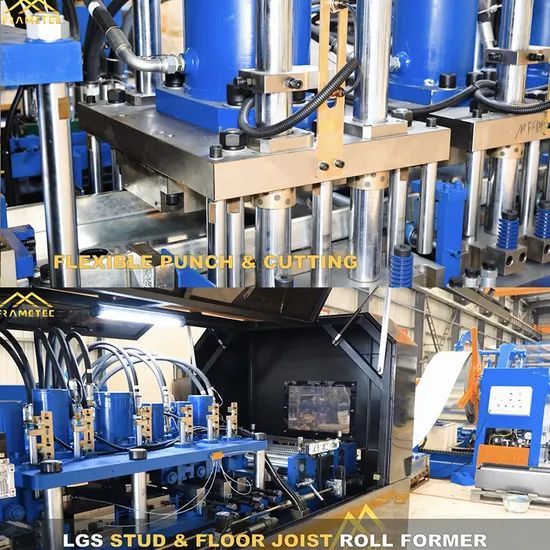

De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table
Machine details:

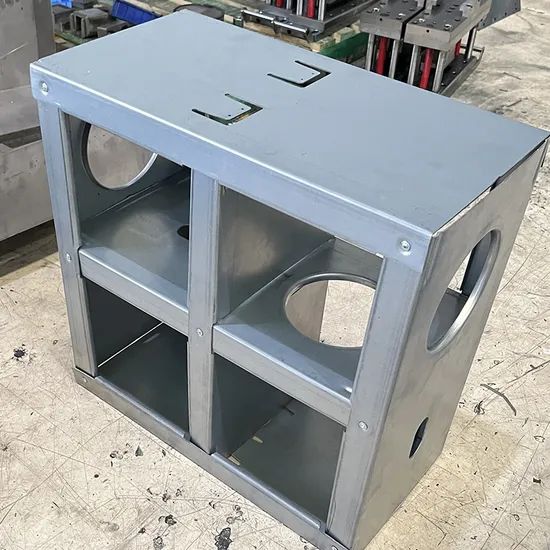

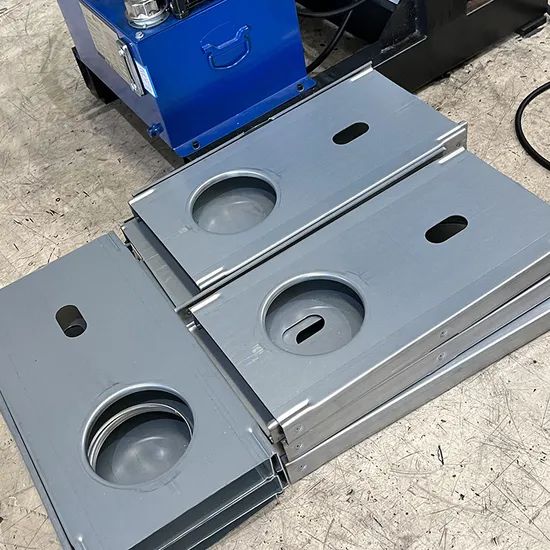

Profile Effect & Application
Design Software & Production System
(International leading brand for LGS construction design)
Our Factory
Why Choose FrameTec
For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All our machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses and Floor Joists in:
Residential and Commercial buildings
Steel framed systems for modular & prefabricated buildings
Walls framed for low and high rise buildings
Walling, floors, beams, roofing, kitchen & bathroom pods
Storage, recreational, transportable dwellings
