Multi-Function Glass Cutter with Laser Drilling, Loading, Cutting & Breaking Using Gantry Drive
1 SET
$115,9001 SET
$89,900Product information
High-quality Multi-Function Glass Cutter with Laser Drilling, Loading, Cutting & Breaking Using Gantry Drive supplied by Luoyang DISAI Mechanical Equipment Co., Ltd.. Bulk wholesale pricing ranges from $89,900 to $115,900 per SET with a minimum order of 1 SET. Inquiry for latest prices.
Vacuum Pressure:
-70~-99 Kpa
Production Capacity:
120
Package Size:
1203.00cm * 350.00cm * 269.00cm
Power:
13kw
Max. Cutting Speed:
180m/Min
Drilling Thickness:
2-10mm
Maximum Cutting Thickness:
20 mm
Power Supply:
380V 50Hz
Specifications
Vacuum Pressure:
-70~-99 Kpa
Production Capacity:
120
Package Size:
1203.00cm * 350.00cm * 269.00cm
Power:
13kw
Max. Cutting Speed:
180m/Min
Drilling Thickness:
2-10mm
Maximum Cutting Thickness:
20 mm
Power Supply:
380V 50Hz
Specification:
40HQ
Max. Loading/Cutting Glass Size:
4200×2800mm
Dimension:
4520mm X 3700mm X900±50mm
Package Gross Weight:
5000.000kg
HS Code:
8464901100
Origin:
China Luoyang
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
Container
Voltage/Frequency:
Customized
Trademark:
DISAI EQUIPMENT
Model NO.:
DS-CM4228-LD
Safety Features:
Emergency Stop Button, Overload Protection, Safety Sensor
Trade Term:
FOB, CIF, CFR, EXW
Machine Type:
Glass Cutting & Drilling Machine
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Drilling Method:
Laser
Port Of Loading:
Qingdao Port
Payment Methods:
Support payments in USD
Drilling Precision:
±0.1mm
Cutting Precision:
±0.2mm
Power Off Vacuum Hold Time:
≤15min
To Suck Glass Depth:
≤700mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-05-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier
SONA2024 2.2.1
Product Description

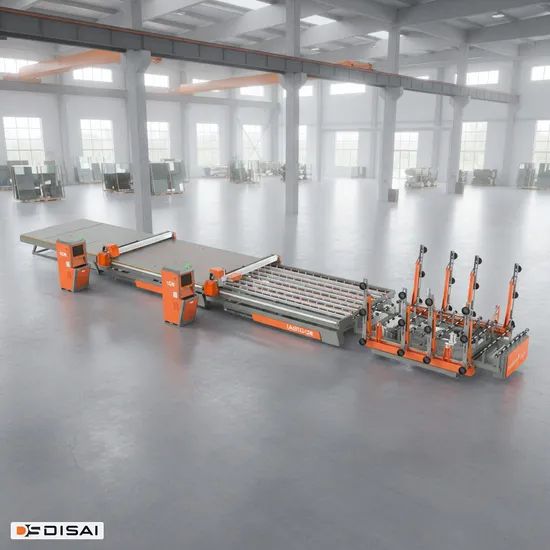

Precision Automatic Glass Cutting Machine with Integrated Laser Drill - DISAI Model DS-CM4228-LD
The DISAI DS-CM4228-LD is a precision automatic glass cutter with an integrated laser drill. This Four-Section line is designed for maximum efficiency, completing the "drill first, then cut" process in one go. By creating perfectly smooth holes, it eliminates the trouble of edge grinding, cleaning, and secondary processing, significantly lowering your costs.
This powerful cutting line processes large sheets up to 4200×2800mm with a thickness of 2-10mm. The 180m/min cutting speed, combined with the stable LongMen synchronous dual drive, delivers both high efficiency and reliable precision.
Key Features:
- Integrated Laser Drilling: Creates smooth, taper-free holes, eliminating secondary processing.
- Advanced LongMen Synchronous Dual Drive: Ensures extreme stability and high-speed performance.
- Servo Motor Direct Drive: Simple transmission for higher cutting precision.
- Higher Efficiency Bidirectional Cutting: Boosts overall throughput by reducing idle travel.
- Precision & Durability Engineering: Premium linear guide rails + helical racks for long-term accuracy.
- Stable & Reliable Components: Exclusively uses International well-known brand electrical components.
- Advanced LongMen Synchronous Dual Drive: Ensures extreme stability and high-speed performance.
- Servo Motor Direct Drive: Simple transmission for higher cutting precision.
- Higher Efficiency Bidirectional Cutting: Boosts overall throughput by reducing idle travel.
- Precision & Durability Engineering: Premium linear guide rails + helical racks for long-term accuracy.
- Stable & Reliable Components: Exclusively uses International well-known brand electrical components.
Technical Specifications:
- Model: DS-CM4228-LD
- Max Cutting Size: 4200×2800mm
- Cutting/Punching Thickness: 2-10mm
- Cutting Precision: ±0.2mm
- Drilling Precision: ±0.1mm
- Max Speed: 180m/min
- Max Cutting Size: 4200×2800mm
- Cutting/Punching Thickness: 2-10mm
- Cutting Precision: ±0.2mm
- Drilling Precision: ±0.1mm
- Max Speed: 180m/min
Upgrade your facility with the smart and cost-effective DS-CM4228-LD processing line.
Specification
Series: DS-CM-LD (Automatic Glass Cutting Line with Laser Drilling) | |||||
Models | Max Cutting Size | Cutting Precision | Drilling Precision | Cutting/Punching Thickness | Max Speed |
DS-CM2621-LD | 2600×2100mm | ±0.15mm | ±0.1mm | 2-10mm | 180m/min |
DS-CM3725-LD | 3700×2500mm | ±0.15mm | ±0.1mm | 2-10mm | 180m/min |
DS-CM4228-LD | 4200×2800mm | ±0.2mm | ±0.1mm | 2-10mm | 180m/min |
DS-CM5133-LD | 5100×3300mm | ±0.25mm | ±0.1mm | 3-10mm | 180m/min |
DS-CM6133-LD | 6100×3300mm | ±0.25mm | ±0.1mm | 3-10mm | 180m/min |
DS-CM7537-LD | 7500×3700mm | ±0.25mm | ±0.1mm | 5-10mm | 180m/min |
DS-CM10037-LD | 10000×3700mm | ±0.25mm | ±0.1mm | 5-10mm | 180m/min |
DS-CM12037-LD | 12000×3700mm | ±0.25mm | ±0.1mm | 5-10mm | 180m/min |
DS-CM16037-LD | 16000×3700mm | ±0.25mm | ±0.1mm | 5-10mm | 180m/min |
DS-CM18037-LD | 18000×3700mm | ±0.25mm | ±0.1mm | 5-10mm | 180m/min |
Company Profile
DISAI Equipment is ahigh-tech enterprisededicated to theresearch,development,and manufacturingof high-end intelligent equipment for theglass deep-processing industry. Since our founding, we have emerged as a leader in the field, driven by a commitment to innovation, quality, and service. Our advanced solutions, includingfully automatic glass cutting lines,laser marking machines, andintelligent factory management systems, are trusted by users and exported tocountries worldwide. At DISAI, our mission is simple: make glass processing easier and elevate glass quality to new heights.
The DISAI Advantage
World-Class Components
Advanced Direct-Drive System
Exclusive Bidirectional Cutting
We integrate premium, globally recognized brands into our machines, including Delta Tau (USA) motion controllers, Panasonic (Japan) servo motors, and Siemens (Germany) PLC, ensuring superior reliability and performance.
Our dual-drive linear rail and direct-drive motor replace traditional belt systems, eliminating transmission errors, increasing cutting speed, and enhancing precision.
This intelligent, proprietary technology minimizes empty travel distance by selecting the nearest cutting position, dramatically improving efficiency, increasing output, and saving costs.
Robust Industrial Controller
Intelligent Optimization Software
Precision Mechanical Design
Our machines are powered by EVOC industrial computers, built to withstand the harsh factory environment with superior resistance to electromagnetic interference, dust, and temperature extremes.
Equipped with industry-leading Italian optimization software (Optima & Perfect Cut), our machines generate the most efficient cutting layouts, significantly improving glass utilization and reducing material waste.

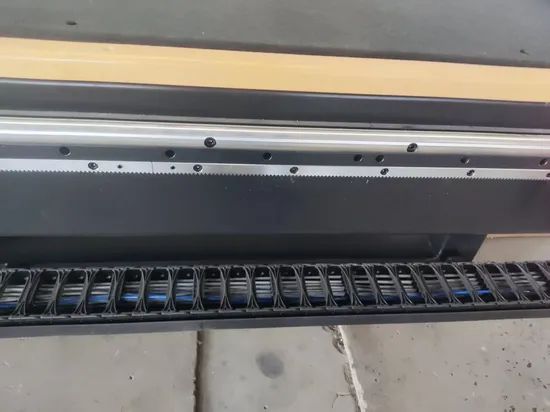

The use of helical gears and racks greatly reduces wear, extends service life, increases transmission efficiency, and significantly lowers operational noise for a smoother, faster, and more accurate cut.
Brand and Origin of Key Components | ||
Name | Brand | Country |
Multi-axis motion controller | Delta tau (PMAC) | USA |
Monitor | Dell | USA |
Synchronous | Barbieri | Italy |
Servo motor | Panasonic | Japan |
Servo drive | Panasonic | Japan |
Scanning fiber | Panasonic | Japan |
Photoelectric switch | OMRON | Japan |
Limit Switch | OMRON | Japan |
Proportional valve kit | CKD | Japan |
Drag chain | IGUS | Germany |
Cable | IGUS | Germany |
Frequency converter | Siemens | Germany |
Thermal relay | Siemens | Germany |
Contactor | Siemens | Germany |
Connector | Guler | Germany |
Plastic knife holder | Bohle | Germany |
Linear guide rail | HIWIN/SHAC | China(Taiwan) |
Helical rack | J&T/Wolfer | China(Taiwan) |
Industrial PC | EVOC | China |
Global Presence
At DISAI, our pursuit of innovation knows no borders. From our manufacturing hub in Luoyang, DISAI's intelligent solutions have traveled across continents to become a trusted name on the global glass processing landscape. Our international presence is more than just business expansion; it's a testament to the trust and recognition we've earned from clients worldwide.
Technology Proven on a Global Stage
Our equipment operates reliably in over 80 countries, thriving in diverse industrial environments, climates, and production standards. This means every DISAI machine you receive is embedded with our extensive experience in overcoming global challenges. Whether facing rigorous production demands or complex international logistics, we have proven solutions to ensure a smooth deployment in your factory.
The Shared Trust of a Massive User Base
More than 2,000 glass processing companies around the world have chosen DISAI as their partner. This number represents over two thousand success stories and is a powerful testament to our reliability in daily production. When you partner with DISAI, you are not just buying a machine; you are joining a global network of industry pioneers dedicated to advancing efficiency and quality.
Certifications
CE Certification
We are proud to announce that Luoyang DISAI Mechanical Equipment Co., Ltd.'s Automatic Glass Cutting Line has successfully passed theEuropean Union's most rigorous assessments, officially obtaining theCE Machinery Directive (2006/42/EC) Attestation of Conformity. This achievement signifies that DISAI's product design, manufacturing, and safety performance have reached a leading international standard.
This certificate is not just a golden key for DISAI to enter the high-end global market; it is a profound guarantee of confidence when you choose us. It proves to you that:
1. Comprehensive Safety Assurance. Our equipment strictly complies with EN ISO 12100 (Safety of machinery by design) and EN 60204-1 (Electrical safety). From risk assessment of the mechanical structure to the stability and reliability of the electrical system, we provide the most robust safety protection for you and your team.
2. World-Class Quality Benchmark. Our equipment strictly complies with EN ISO 12100 (Safety of machinery by design) and EN 60204-1 (Electrical safety). From risk assessment of the mechanical structure to the stability and reliability of the electrical system, we provide the most robust safety protection for you and your team.
3. Hassle-Free Global Partnership. For our international clients, especially partners in the European region, the CE mark ensures a seamless customs clearance process and full market compliance. This eliminates complex regulatory hurdles, making your procurement process simple and efficient.
Patent Certificates
Our commitment to innovation and quality is recognized by leading authorities and protected by numerous patents. Each certificate represents DISAI's relentless pursuit of excellence. Our extensive patents not only showcase our R&D capabilities but also guarantee our commitment to delivering sustained value to our clients. To partner with DISAI is to embrace the power of technology.
Choosing DISAI means selecting a partner that has embedded safety and quality into its DNA. This CE certification is a powerful testament to our commitment to excellence.
Application Scenarios
Glass is the silent, essential canvas of modern innovation-shaping our architectural marvels, harnessing sustainable energy, defining next-generation mobility, and bringing sophisticated design into our lives.DISAI's intelligent solutionsare the critical tool for industry leaders who demand perfection. We deliver the unparalleled precision and reliability required to transform ambitious visions into flawless reality, from the grandest structures to the most intricate components.
Architectural & Facade Glass Solutions
Achieving flawless edges and superior precision on large-format glass.
Photovoltaic & Technical Glass for High-Tech Industries
Delivering ultra-high accuracy for the most demanding technical applications.
Advanced Glazing for the Automotive Industry
Mastering complex shapes and ensuring perfect consistency for automotive standards.
Interior Glass for Furniture & Decorative Applications
Unlocking creative freedom with precise cutting for bespoke interior designs.
FAQ
1. What types of glass can your machine cut?
2. What is the maximum sheet size it can handle?
Our machines are engineered to cut awide varietyof glass, including float, Low-E, coated, and mirrored glass, in thicknesses rangingfrom 2mm to 25mm. For advanced processing needs, an optional edge deletion module is also available.
We offer a range of models, including jumbo-size tables to fit any production scale. Our standard models handle sheets up to 4200mm x 2800mm, while our custom solutions offer an unparalleled capacity, processing immense18-meter glass sheetsup to 18000mm x 3700mm to match your specific workflow.
3. How accurate is the cutting?
4. Is the machine difficult to operate?
We guarantee a cutting accuracy of±0.15 mm. This level of precision ensures flawless edges, making them perfectly prepared for demanding downstream processes like tempering, laminating, or IGU production.
Not at all. The machine is designed forsimplicity and easeof use. It features an intuitive touchscreen interface, supports directCAD/CAM file imports, and includes intelligent automatic nesting software tooptimize material usage. We also provide comprehensive training to ensure your team can operate it with complete confidence.
5. How long does installation and training take?
6. What certifications does your equipment have?
Our expert engineers ensure a swift and efficient setup. A standard installation is typically completed injust 2-3 days, followed by1-2 days of comprehensive operator training. We provide full support through both on-site visits and online services.
Quality is our top priority. All our machines areCE certified, and our manufacturing processes areISO 9001 certified. For complete peace of mind, officialSGS inspection reportsare also available upon request.
7. What if the machine breaks down?
8. Can I add more functions later?
We are committed to maximizing your uptime. Our24/7 after-sales supportincludes advanced remote diagnostics, allowing our team to resolve most issues online within hours. For hardware needs, we maintain a full inventory of spare parts ready forimmediate shipment.
Absolutely. Our systems arefully modular, allowing you to future-proof your investment. You caneasily add componentslike an edge deletion module, barcode labelers, or breaking tables as your business grows and your needs evolve.
9. What kind of return on investment (ROI) can I expect?
10. Can I see the machine in action before buying?
Our customers typically achieve a full ROI within just6-9 months. This rapid return is driven by significant gains in output, reduced labor costs, and minimized material waste, thanks to ourintelligent nesting software.
Of course. We encourage you to see the machine's performance firsthand. We offerlive virtual demos, welcomefactory visits, and can even process asample part from your own design filesto demonstrate its real-world precision and quality.
