Multi-Section Heat Exchangers for Pasteurization HS Code 84195000 Model NO. AK, AR Style Plate Type Warranty 12 Months Payment Terms: T/T
1 set
$3001 set
$2,000Product information
High-quality Multi-Section Heat Exchangers for Pasteurization HS Code 84195000 Model NO. AK, AR Style Plate Type Warranty 12 Months Payment Terms: T/T supplied by KDP Machinery Jiangsu Co., Ltd.. Bulk wholesale pricing ranges from $300 to $2,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Warranty:
12 Months
Production Capacity::
3000-5000sets/Year
Specification:
5M2, 10M2, 15M2
HS Code:
84195000
Model NO.:
AK, AR
Certification:
CE, ISO
Trade Term:
FOB, EXW, CFR, CIF
Application:
Heater, Cooler, Vaporizer, Condenser
Specifications
Warranty:
12 Months
Production Capacity::
3000-5000sets/Year
Specification:
5M2, 10M2, 15M2
HS Code:
84195000
Model NO.:
AK, AR
Certification:
CE, ISO
Trade Term:
FOB, EXW, CFR, CIF
Application:
Heater, Cooler, Vaporizer, Condenser
Origin:
Jiangsu, China
Trademark:
King DuPont
Principle:
Mixing Heat Exchanger
Style:
Plate Type
Transport Package:
Plywood Case
Plate Material:
SS304, SS316, Titanium, Asmo254, Hastelloy C-276
Port Of Loading:
Shanghai
Port::
Shanghai, China
Material:
Stainless Steel
Payment Terms::
T/T
Payment Term:
T/T, Western Union
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-04-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Shanghai
Certificates:
A heating heat exchange unit with energy-saving structure, Annular plate heat exchanger, CE, ISO 9001, Removable plate heat exchanger, Sealing gasket for seed plate heat exchanger
Product descriptions from the supplier
Product Description
Production Description:

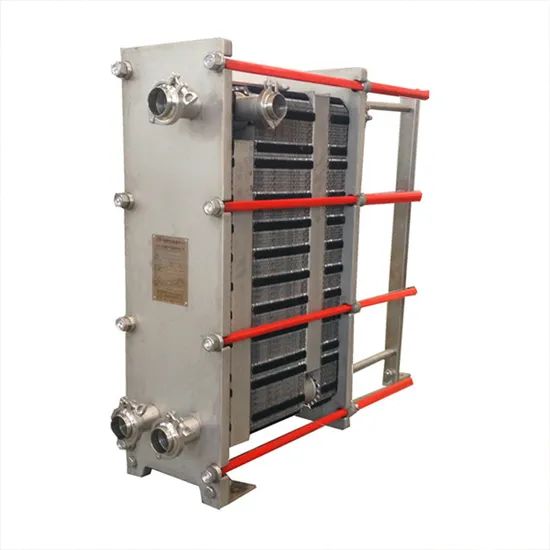

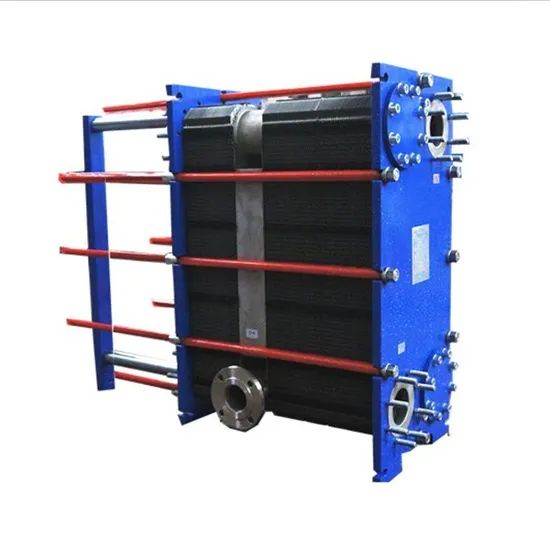

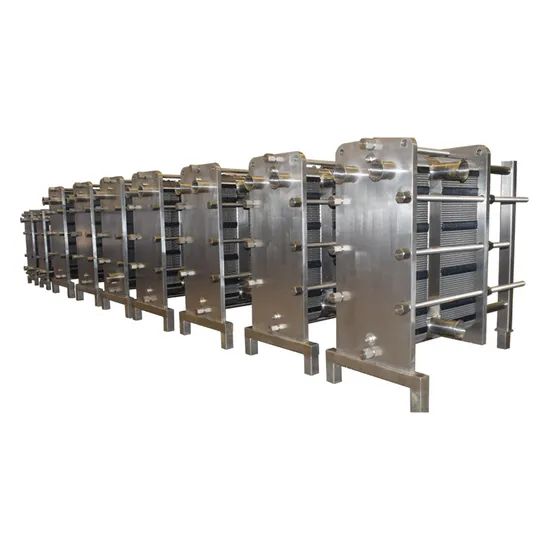

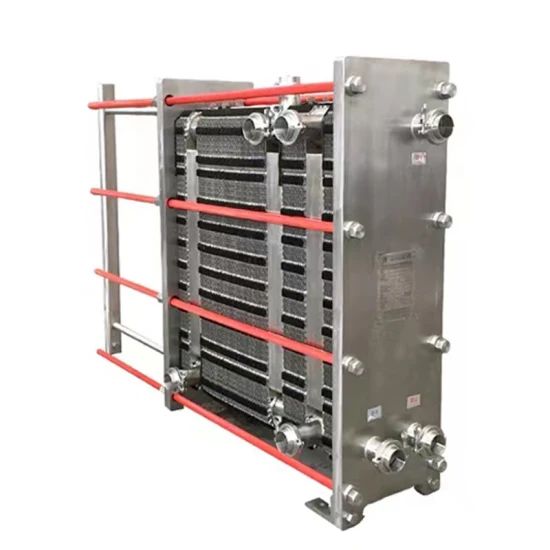

A plate heat exchanger consists of a set of corrugated metal plates with four corner holes through which two kinds of heat transfer liquid pass. The sheet metal is mounted in a frame with fixed plates on the sides and movable compression plates, and is clamped with clamping bolts. A sealing gasket is provided on the plate to seal the fluid channel and guide the fluid to flow alternately to the respective flow channel to form heat exchange. The flow rate, physical properties, pressure drop, and temperature difference of the fluid determine the number and size of the plates. The corrugated plate not only increases the turbulence level, but also forms many supporting points, which are sufficient to withstand the pressure difference between the media. The metal plate and movable plate compaction plate are suspended from the upper guide bar and positioned by the lower guide bar, while the rod end is fixed on the support column.

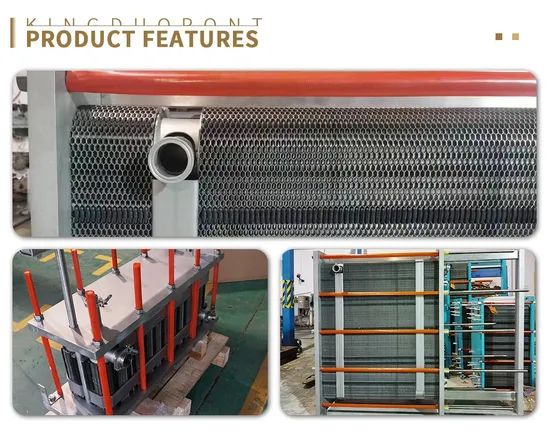

Features:
1.Plate heat exchanger is made of polymer synthetic fiber by special process, with high moisture permeability, good air tightness, tear resistance, aging resistance and other characteristics;
2.The energy saving effect of the plate heat exchanger products has reached the advanced level abroad, with long service life and good temperature conductivity. It is suitable for the areas with large indoor and outdoor temperature difference and small humidity difference;
3.Plate heat exchanger can be configured according to the requirements of users heating, refrigeration, humidification, purification, noise reduction and other different functional sections;
4.Plate heat exchangers are usually made of stainless steel (SUS 304, SUS316), titanium alloy brazed at high temperature in vacuum, or combined with seal ring bolt lock;
5.Plate heat exchanger forms a compact plate heat exchanger capable of withstanding continuous high temperature and high pressure operation;
Application Area:
1.Refrigeration: used as a condenser and evaporator;
2.Hvac: intermediate heat exchangers used with boilers, intermediate heat exchangers in high-rise buildings, etc;
3.Chemical industry: soda ash industry, synthetic ammonia, alcohol fermentation, resin synthesis cooling, etc;
4.Metallurgy industry: aluminate mother liquor heating or cooling, steelmaking process cooling, etc;
5.Machinery industry: all kinds of quenching liquid cooling, reducer lubricating oil cooling, etc;
6.Power industry: high voltage transformer oil cooling, generator bearing oil cooling, etc;
7.Paper industry: bleaching process heat recovery, heating wash slurry, etc;
8.Textile industry: alkali solution cooling viscose silk, boiling nitrocelluget cooling, etc;
9.Food industry: juice sterilization cooling, animal and vegetable oil heating cooling, etc;
10.Grease process: soap - based normal pressure drying, heating or cooling liquid for various processes;
11.Central heating: Thermal power plant waste heat district heating, heating bath water;
12.Others: petroleum, medicine, ships, seawater desalination, geothermal utilization.
