Multi Sensor Inspection System Screw Type Tractor Combined Sonar and Ladar
1 Set
$80,0001 Set
$40,000Product information
High-quality Multi Sensor Inspection System Screw Type Tractor Combined Sonar and Ladar supplied by Wuhan Easy-Sight Technology Co., Ltd.. Bulk wholesale pricing ranges from $40,000 to $80,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Depth Of Water:
10 Meters
Production Capacity:
1000 Sets Per Month
HS Code:
8525803100
Pipeline Diameter:
Above DN600
Lens Materia:
Anti-Scratch Sapphire Glass
Configuration:
Can Equipped with Sonar
Trademark:
Easy-Sight
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Depth Of Water:
10 Meters
Production Capacity:
1000 Sets Per Month
HS Code:
8525803100
Pipeline Diameter:
Above DN600
Lens Materia:
Anti-Scratch Sapphire Glass
Configuration:
Can Equipped with Sonar
Trademark:
Easy-Sight
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Transport Package:
Packed with Wooden Case
Camera Lens Angle:
Pan/Tilt
Port Of Loading:
Shanghai Port.
Specification:
Standard cable length: 320m
Working Condition:
Water or Mud
Origin:
Wuhan
Model NO.:
X5-HR4
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-11-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
252
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port.
Certificates:
Others
Product descriptions from the supplier

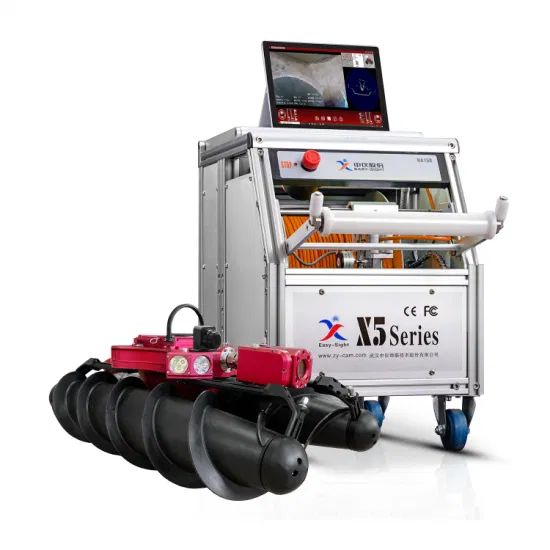

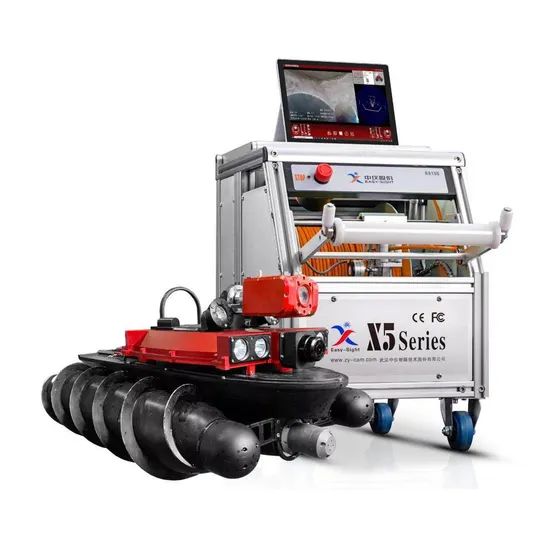

Multi Sensor Inspection System Screw Type Tractor Combined Sonar and Ladar
(X5-HR4)
(X5-HR4)
Wuhan Easy-Sight Technology Co., Ltd, found in Nov 2000, in Wuhan, Hubei province, China, is a leading producer of pipe cleaning, inspection and rehabilitation equipment. In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.
Our main products include pipe periscope (Quickview), CCTV inspection robots, pipe sonar system, sonar-CCTV system, push rod camera, video jetting nozzle, UV curing rehabilitation system, 3D manhole scanner, GIS data management system and so on.
The company adheres to the implementation of ISO's quality management system and continuously improves the quality of employees and products. Easy-Sight, as an intelligent pipeline solution supplier, has got approval of ISO9001, ISO14001, OHSA18001 and other management system certifications, such as CCTV inspection robots and pipe periscope have obtained FCC certification, CE certification.
PC, tablet and mobile phone can be used as Controller, with built-in PIPECCTV video collection software and PIPESONAR sonar imaging analysis and report software; Parameters such as CPU/ memory/storage capacity/screen size can be choosed freely.

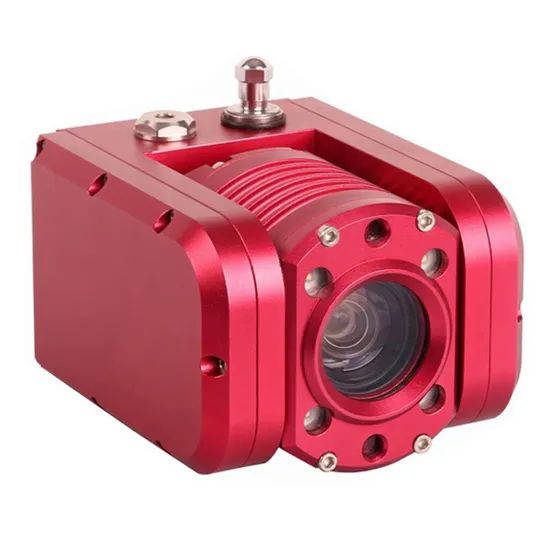

| Protection class | IP68, suitable for water depth of 10m, airtight protection, built-in air pressure sensor and pressure indicator light; |
| Operating temperature | -10ºC~50ºC; |
| Rotation of the lens | electric rotation, infinite rotation of 360 degrees in radial direction, 2*135 degrees in vertical, one-button repositioning; |
| Lighting | 4X3W floodlight LED |
| Zoom | auto focus, or manual adjustment, 10x optical zoom |
| Laser | used to measure crack width |
| Viewpoint indicator | used to indicate the clock direction of the current inspection object |
| Imaging system | color 1/3 ", 4 million pixels (2592*1520) CMOS, viewing Angle of 6.7°-68°, sensitivity 0.1lux; |
| Size | 155mm*95*90mm |
| 10 |

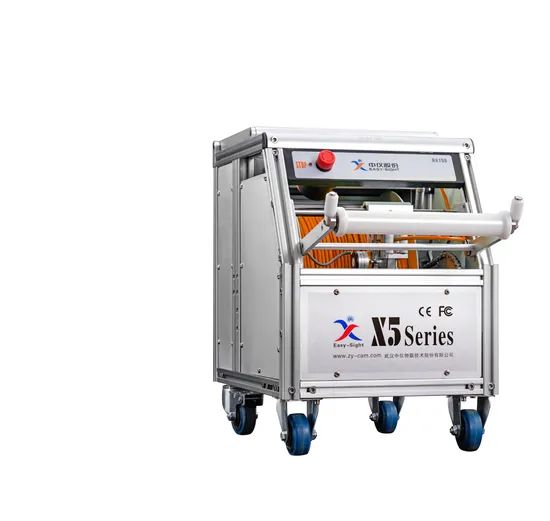

| Cable length | 320 meters standard cables |
| Cable specification | 2 core Cable,diameter 7mm , 300kg kevlar wire-drawing resistance, imported polyurethane sheath, Waterproof, anti - wear, acid and alkali resistance, corrosion resistance |
| manual speed adjustment, matching drum speed | |
| Automatic wiring | ensure the regular distribution of cables on the cable reel in the process of winding and laying out wires |
| Counting | high precision encoder, counting resolution of 1mm |
| Interface | wireless interface and network interface |
| Compatible with X5-H series cable reel | |
| Protection | IP63, dust proof, splash proof |
| Suitable for pipe diameter | above 600mm |
| Cable length | standard 320m |
| Power supply | battery /AC220V |
| Battery life | 1-2 hours |

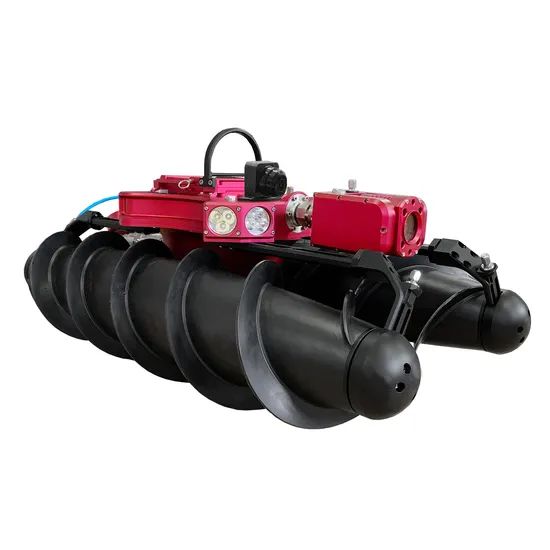

| Video: | 200W pixel color HD, 10x zoom, 360° horizontal and 180° vertical |
| Rear view | 200W pixels |
| Light | the front 4 groups and the back 1 group of LED lights |
| Weight | 15kg |
| Still water speed | 0.5m/s |
| Sensor | positioning sensor system, pipeline deformation inspection system, sonar inspection (optional) |
| Size | total length: 485mm, diameter: 70mm |
| Material | aluminum alloy shell |
| Waterproof | IP68 |
| Operating temperature | 0~40ºC |
| Storage temperature | -20~70ºC |
| Weight in air | 2.7kg |
| Acoustic frequency | 1MHz |
| Beam width | 1.1deg (-3db), conical beam |
| Range resolution (0.125m range) | 0.5mm |
| Maximum applicable pipe diameter | 6000mm |
| Transmitting pulse width | 4~20us |
| Receiving bandwidth | 500KHz |
| Power supply | 48V dc |
1.Light
PC control: use laptop (tablet) as a host to control crawler;
2.Fast
Efficient detection: quick assembly on site, time-saving and efficient;
Quick assembly: fast data transmission with no need to connect cable;
3.Good
Good synchronization: synchronization display of the before and after video screens;
4.HD highlight: high definition camera with highlight combination light source;
Convenient
5.Stable performance: the whole machine is waterproof and explosion-proof;
Little effort with no worries : easy to disassemble, and master control has zero failure;
1.After -service:We firmly believe that depending on the abundant strength, advanced equipment, perfect detection method, stable technology and outstanding professionals as well as our good faith and excellent service, we will certainly bring you satisfactory returns.
2.Technical help:Wuhan easy-sight Technology Co., Ltd provides pipeline detection,maintenance, repair and technical services, which focused on providing efficient and environmentally friendly drainage network solutions.
3.Warranty policy: The warranty time is 12 months counting from the date on which the commodity arrives at the port of destination, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, or customers can return it back ,we will maintain it well.
4.Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
5.Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare parts with competitive price.
6.Language: We have a professional sales team who are good at English to ensure zero communication barriers.
7.Detailed Operational Manual &Training CD in English Version will be offered. We also provide free training if you worried operation matters, welcome you visit our factory, our professional technicians will teach you how to use the machine in correct way.
8.OEM order is welcomed , and we can print the customer brand logo on the product free of charge.
Q: What's the package?
A: We have standard plywood packing case. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
