Multi-Stage Garbage Truck Hydraulic Cylinder for Foresty Machine
1 Piece
$501 Piece
$200Product information
High-quality Multi-Stage Garbage Truck Hydraulic Cylinder for Foresty Machine supplied by XIAMEN ROCA IMP.& EXP. CO., LTD.. Bulk wholesale pricing ranges from $50 to $200 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000000
Work Pressure:
16-20MPa
Specification:
3kg
Material:
45#Steel
Package Gross Weight:
5.000kg
Package Size:
50.00cm * 5.00cm * 5.00cm
HS Code:
8412210000
MOQ:
According to Requirements
Specifications
Production Capacity:
1000000
Work Pressure:
16-20MPa
Specification:
3kg
Material:
45#Steel
Package Gross Weight:
5.000kg
Package Size:
50.00cm * 5.00cm * 5.00cm
HS Code:
8412210000
MOQ:
According to Requirements
Raw Material:
Carbon Steel, Alloy Steel, 27 Simn, 45#, 20#, etc
Product Name:
Custom Hydraulic Cylinder
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Origin:
Fujian, China
Surface Treatment:
Hard Chrome/Nitrided/Tempered/Hardened/Quenched
Working Medium:
Hydraulic Oil
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Work Temperature:
Normal Temperature
Seal:
Parker, Merkel, Hallite, Kaden, Nok etc
Structure:
Piston Type
Transport Package:
Plywood Case
Transport Pakcage:
Plywood Pallet
Color:
Primer Paint, Middle Paint, Finish Paint
Trademark:
RA
Model No.:
Ra40-25/180
Adjusted Form:
Regulated Type
Acting Way:
Single Acting
Acting Type:
Single Acting/Double Acting
Working Method:
Straight Trip
Model NO.:
Truck hydraulic cylinder
Port Of Loading:
XIAMEN,SHANGHAI
OEM/ODM:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-07-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
XIAMEN,SHANGHAI
Certificates:
FDA Operator No.D374353, Test Report EN14683 2014
Product descriptions from the supplier
Product Description
| ITEM | FEATURES |
| Material | Carbon Steel,Alloy Steel,Stainless Steel,27SiMn,SAE1045(45#),SAE1020(20#),16Mn(Q345B),Bronze Parts, etc. |
| Honed Tube | 40-300mm, Cold Drawn, Heat Treatment, Honing, Rolling, Forging |
| Piston Rod | 30-280mm, Ground & Polished, Plated Nickel or Hard Chrome or Ceramic |
| Seal Kit | 1. Parker, Merkel, Hallite, NOK, Trelleborg, Kaden, China Made, etc. 2. Suitable for different working condition and requirements. |
| Technology | Parker,Custom Hoist, Hyco,HYVA, Meiller
SAT,DAT
|
| Mounting Type | Pin-eye/Flange/Trunnion/Ball mount/Screw Thread, etc. FC, FE, FEE, FSE,TPIN |
Specification
| Bore Size | 40mm/Customize Request |
| Rod Size | 25mm/Customize Request |
| Stroke | 180mm/Customize Request |
| Working Medium | Hydraulic Oil |
| Working Pressure | 16-20MPa |
| Temperature Range | -20°C to +100°C |
| Painting | 1. High Quality Paint 2. Sandblasting, Primer Paint, Middle Paint, Finish paint 3. Color according to customer demands |
Detailed Photos
Production Process
Warehouse Overview
Product Applications
Excavator is the most widely used construction machinery.
The shock load, harsh working environment, precision movement control require high standards on excavator cylinders.
ROCA guarantees excavator cylinder high performance of abrasion resistance and operation stability in any harsh condition has and gains recognition from every solid customer with good quality at a lower cost.
Roca manufactures full-size excavator cylinders for mini excavators to largeexcavators.
The shock load, harsh working environment, precision movement control require high standards on excavator cylinders.
ROCA guarantees excavator cylinder high performance of abrasion resistance and operation stability in any harsh condition has and gains recognition from every solid customer with good quality at a lower cost.
Roca manufactures full-size excavator cylinders for mini excavators to largeexcavators.
Zijin Mining Group Co., Ltd. is a sizable multinational mining group performing most competitively in Chinese mining industry. ROCA locate in the same Zilin Mining output area, as the mining cylinder plant that grew up in the mining industry, we repair and reman a lot of mining haul truck cylinder. For a decade ROCA has been focused on the production of various types of imported mine-used off-highway trucks & mining trucks.Our cylinders are mainly applied to world-famous brands such as Cat, Komatsu, Hitachi, BELAZ, and other famous international brands.

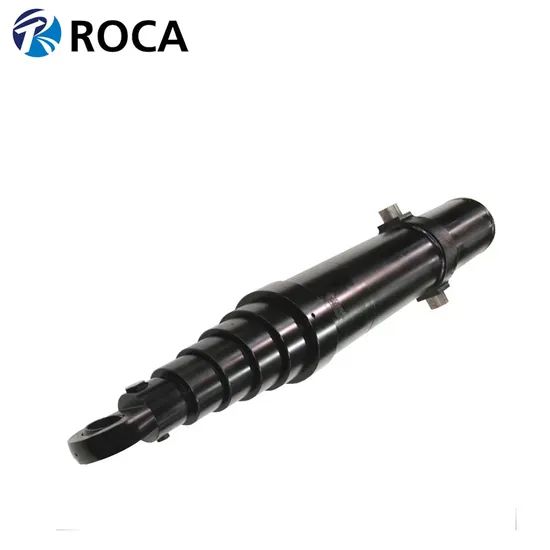

Single-Acting Telescopic Cylinders
This type of cylinder applies hydraulic pressure in one direction only and the return of the telescopic stages is by load such as a truck-trailer.
ROCA single-acting multistage hoists are used widely throughout the transport sector, where they are used in tip trucks servicing agriculture, earthmoving, construction, food processing applications.
This type of cylinder applies hydraulic pressure in one direction only and the return of the telescopic stages is by load such as a truck-trailer.
ROCA single-acting multistage hoists are used widely throughout the transport sector, where they are used in tip trucks servicing agriculture, earthmoving, construction, food processing applications.
Double-Acting Telescopic Cylinder
This type of cylinder is constructed with porting to both the annular and full bore area so hydraulic pressure can be applied to both surfaces and the cylinder stages can move in multiple directions without the need of an outside force, such as gravity.ROCA double-acting multi-stage cylinders are used in a wide variety of applications across many industries where space restrictions prohibit the use of a rod cylinder and require a compact telescopic cylinder design.
This type of cylinder is constructed with porting to both the annular and full bore area so hydraulic pressure can be applied to both surfaces and the cylinder stages can move in multiple directions without the need of an outside force, such as gravity.ROCA double-acting multi-stage cylinders are used in a wide variety of applications across many industries where space restrictions prohibit the use of a rod cylinder and require a compact telescopic cylinder design.
There are a wide range of products in the cylinder industry and having a specialist working on behalf of the customer is very important. With our years of experience, our business is positioned to provide prompt service, value and long lasting customer relationships.We work toward getting you better products and better service with competitive price.
Company Profile
Xiamen Roca is a comprehensive manufacturing enterprise engaged in hydraulic cylinders, excavator attachment, metal casting, hydraulic components with certification approval to meet custom or OEM requirement.
ROCA owned factory offers customer effective-cost product with quality assurance. With its professional and experienced R&D team, ROCA Hydraulic devotes itself to research and develop to optimize products applied in construction, mining, waster management, forestry, agriculture, etc.
1. Rainbow Hydraulic parts factory focus on the high quality hydraulic cylinder. Our products are widely used in, refuse and recycling, construction, mining, material handling, agriculture, and every specific industry.
2. GS Machinery foundry produces industrial metal castings include Hydraulic piston pump parts, Valve parts, Construction, Mining Machinery Parts, and Auto Parts.
We accept OEM orders, and especially capable of developing and producing single/double-acting telescopic cylinder for dump truck/trailer, roll-off hoist equipment application.
For more than 10 years, ROCA have provided end users with reliable high quality hydraulic products, which has saved user costs and maximized engineering benefits.
Roca R&D team works with customer to ensure their goal become reality, and their products are the best quality. With our in place best-in-class development group that offers unprecedented service and support.
FAQ
Q1.Do you have MOQ?
Depending on different ideas, Can be negotiated. The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee, How much is it?
For the delivery fee, many samples are being requested to be sent, so we must get the delivery fee.
If you tell me to use the appointed Express, you will give me your express account or you will pay according to the Express.
If you do not request, I will choose a cheap one in China.
Q3.How about the after sale service?
1) We will always keep the quality the same as the buyer's samples and if there is something with the quality, we will make compensation for our customers.
2) We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery.
3) We will trace the goods from the production to selling, we will solve the problems in the selling for our customers.
Q4.When can I get a price?
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our factory.
