Multifunctional 3 Side Sealing with Gusset Plastic Bag Double Feeding Zipper Pouch Making Machine
1 Piece
$50,0001 Piece
$70,000Product information
High-quality Multifunctional 3 Side Sealing with Gusset Plastic Bag Double Feeding Zipper Pouch Making Machine supplied by Wuxi Shengkun Machinery Co., Ltd.. Bulk wholesale pricing ranges from $50,000 to $70,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Package Size:
118.00cm * 213.00cm * 218.00cm
Specification:
17500× 3000× 2600mm
Mechanical Highest Beat:
180 Strokes / Min
Temperature Of The Heating Block Number:
22PCS
Voltage:
380V
Specifications
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Package Size:
118.00cm * 213.00cm * 218.00cm
Specification:
17500× 3000× 2600mm
Mechanical Highest Beat:
180 Strokes / Min
Temperature Of The Heating Block Number:
22PCS
Voltage:
380V
The Maximum Width:
580mm
HS Code:
8477800000
Total Power:
Around 70kw
Machine Type:
Bag Forming Machine
Product Line:
Bag Making Machine
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Layer:
Double
Trade Term:
FOB, CIF, CFR, EXW
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Speed:
High
Origin:
Jiangsu, China
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Bag Dimensions:
Length: 400 mm
Type:
Plastic Bag Making Machine
Trademark:
SK
Model NO.:
SK-600E
Port Of Loading:
Shanghai Port
Model:
Sk-600e
Payment Methods:
Support payments in USD
Seals Mode:
Trilateral Seals
Transport Package:
Wooden Pallet, Rust Proof Bag
Continuous Rolled:
Yes
Maximum Roll Size:
φ 900 × 1250 mm
Max Discharge Line Speed:
≤ 40 M / Min
Positioning Accuracy:
≤±0.5mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-09-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier

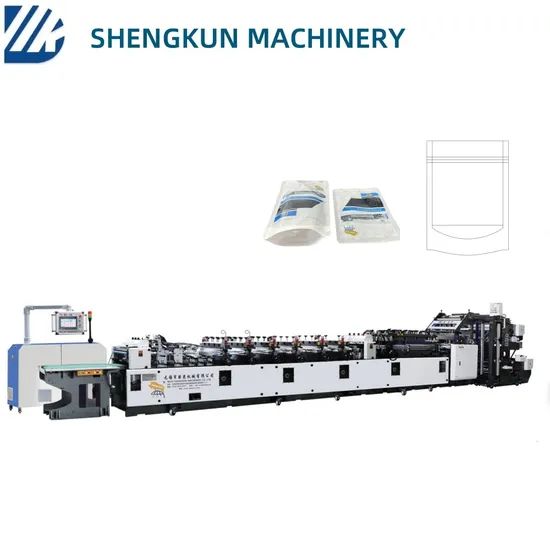

Three-side sealing double stand up automatic zipper bag making machine
This unit is meticulously crafted and put together, offering a sleek design and logical build. It runs smoothly with minimal sound, includes easy-to-use zipper tuning, delivers precise cutting for stand-up pouches, and maintains a fast production rate. Equipped with PLC and four-servo drive systems along with computer-managed temperature regulation, it significantly cuts energy use. The primary unwinding and dual gusset feed systems use consistent tension control, guaranteeing steady material flow and exact gusset cutting. The mid-section tension floating roller uses dynamic adjustment, reducing vertical movement during feeding and providing reliable tension management. The cross-sealing and curved bottom hot knife for stand-up bags offer outstanding seal alignment and performance consistency.
| Bag type | Max. Output | Working speed |
| Three-Side Seal Pouch | 6pcs(based on actual size) | 180 strokes/min |
| Three-Side Seal Zipper Pouch | Single zipper,doube zipper(2pcs),customized 4pcs | |
| Connected Stand-Up Pouch | 1pc | |
| Single Stand-Up Pouch (with/without zipper) | 1pc | |
| Double Stand-Up Pouch (with/without zipper) | 2pcs | |
| Four-Side Seal Pouch | optional | |
| Special-Shaped Pouch | optional |
| Model | SK-600E Frame type,Main motor servo |
| Machine features | Three-side sealing,double zipper,double upright , upright piece ,moving knife double cutter bag making machine,double feeding |
| Main electrical configuration | Traction four servo motors with Panasonic PLC, the main drive AC servo motor, thermostat 22Road , unwinding constant tension |
| Control System Model | Panasonic PLC composite film bag making machine speed control system |
| Suitable substrates | Multilayer co-extruded plastic films composed of BOPP, C0PP, PET, PVC, nylon, and various other materials, aluminum-based composite films, paper and plastic bonded films, and aluminum foil laminated films |
| Mechanical highest Beat | 180 strokes / min, Limited bag length 150mm,depending on material) |
| Maximum discharge line speed | ≤ 40 m / min ( depending on material ) |
| Bag dimensions | Length: 400 mm , exceeding this length delivery achieved using times ( up to 6 times to send ) |
| The maximum width | 580mm |
| Maximum roll size | Φ 900 × 1250 mm ( diameter × width ) |
| Positioning accuracy | ≤±0.5mm |
| Number of sealing knife | vertical chain using 2 sets of upper and lower heating,cooling down |
| 4 groups of the upper and lower longitudinal sealing using heat , cooling down Broaden 2 sides to 100 mm | |
| 5groups of the upper and lower transverse seal using heating , cooling down 2 groups(Hot knife 3 groups point hot 2 groups) | |
| Transverse ultrasonic welding zipper closure | |
| Temperature of the heating block number | 22pcs |
| Temperature range | 0~300ºC |
| Total power | Around 70kw(just power on the actual use of power is generally around 40kw, while holding general power of about 35kw) |
| Dimensions | about 17500×3000×2600mm ( L × W × H ) |
| Machine weight | Around 8800 KG |
| Wall thickness | 8mm ( Shanghai Baosteel ) |
| Color | black grey body, white cover, part black , nickel , chrome |
