Multifunctional Computer Controlled 3 Side Sealing with Gusset Pouch Double Feeding Zipper Plastic Tea Bag Pouch Making Machine
1 Piece
$70,0001 Piece
$50,000Product information
High-quality Multifunctional Computer Controlled 3 Side Sealing with Gusset Pouch Double Feeding Zipper Plastic Tea Bag Pouch Making Machine supplied by Wuxi Shengkun Machinery Co., Ltd.. Bulk wholesale pricing ranges from $50,000 to $70,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Package Size:
118.00cm * 213.00cm * 218.00cm
Specification:
17500× 3000× 2600mm
Mechanical Highest Beat:
180 Strokes / Min
Temperature Of The Heating Block Number:
22PCS
Voltage:
380V
Specifications
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Package Size:
118.00cm * 213.00cm * 218.00cm
Specification:
17500× 3000× 2600mm
Mechanical Highest Beat:
180 Strokes / Min
Temperature Of The Heating Block Number:
22PCS
Voltage:
380V
The Maximum Width:
580mm
HS Code:
8477800000
Total Power:
Around 70kw
Machine Type:
Bag Forming Machine
Product Line:
Bag Making Machine
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Layer:
Double
Trade Term:
FOB, CIF, CFR, EXW
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Speed:
High
Origin:
Jiangsu, China
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Bag Dimensions:
Length: 400 mm
Type:
Plastic Bag Making Machine
Trademark:
SK
Port Of Loading:
Shanghai Port
Model:
Sk-600e
Payment Methods:
Support payments in USD
Seals Mode:
Trilateral Seals
Transport Package:
Wooden Pallet, Rust Proof Bag
Continuous Rolled:
Yes
Maximum Roll Size:
Φ 900 × 1250 mm
Max Discharge Line Speed:
≤ 40 M / Min
Positioning Accuracy:
≤±0.5mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-09-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier

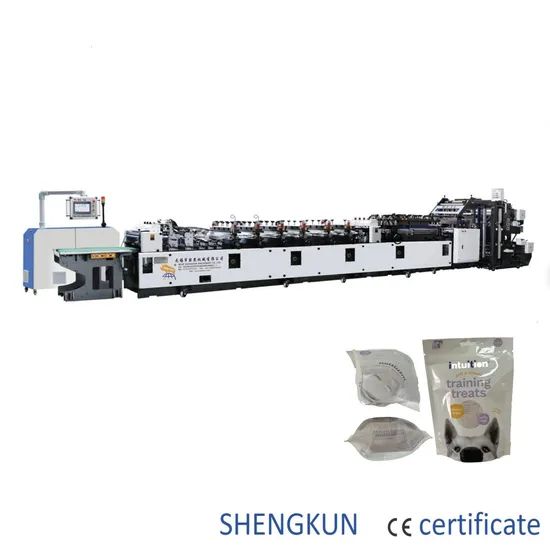

Three-side sealing double stand up automatic zipper bag making machine
This machine is excellently processed and assembled, with an aesthetically pleasing appearance and rational structure. The whole machine operates stably with low noise, features convenient zipper adjustment, accurate punching for stand-up bags, and high operating speed. It adopts PLC with four-servo traction control and computer-centralized temperature control, reducing power consumption. The main unwinding and dual stand-up gusset feeding utilize constant tension control, ensuring stable material feeding and accurate gusset punching. The mid-section tension floating roller adopts a dynamic compensation mode, minimizing vertical fluctuations during material feeding and achieving stable mid-section tension control. The transverse sealing and curved bottom hot knife for stand-up bags demonstrate excellent impression overlap consistency and stability.
| Bag type | Max. Output | Working speed |
| Three-Side Seal Pouch | 6pcs(based on actual size) | 180 strokes/min |
| Three-Side Seal Zipper Pouch | Single zipper,doube zipper(2pcs),customized 4pcs | |
| Connected Stand-Up Pouch | 1pc | |
| Single Stand-Up Pouch (with/without zipper) | 1pc | |
| Double Stand-Up Pouch (with/without zipper) | 2pcs | |
| Four-Side Seal Pouch | optional | |
| Special-Shaped Pouch | optional |
| Model | SK-600E Frame type,Main motor servo |
| Machine features | Three-side sealing,double zipper,double upright , upright piece ,moving knife double cutter bag making machine,double feeding |
| Main electrical configuration | Traction four servo motors with Panasonic PLC, the main drive AC servo motor, thermostat 22Road , unwinding constant tension |
| Control System Model | Panasonic PLC composite film bag making machine speed control system |
| Suitable substrates | BOPP, C0PP, PET, PVC, nylon and other plastic composite thin-film multilayer co-extruded film , aluminum composite film , paper-plastic film , aluminum foil composite film |
| Mechanical highest Beat | 180 strokes / min, Limited bag length 150mm,depending on material) |
| Maximum discharge line speed | ≤ 40 m / min ( depending on material ) |
| Bag dimensions | Length: 400 mm , exceeding this length delivery achieved using times ( up to 6 times to send ) |
| The maximum width | 580mm |
| Maximum roll size | Φ 900 × 1250 mm ( diameter × width ) |
| Positioning accuracy | ≤±0.5mm |
| Number of sealing knife | vertical chain using 2 sets of upper and lower heating,cooling down |
| 4 groups of the upper and lower longitudinal sealing using heat , cooling downBroaden 2 sides to 100 mm | |
| 5groups of the upper and lower transverse seal using heating , cooling down 2 groups(Hot knife 3 groups point hot 2 groups) | |
| Transverse ultrasonic welding zipper closure | |
| Temperature of the heating block number | 22pcs |
| Temperature range | 0~300ºC |
| Total power | Around 70kw(just power on the actual use of power is generally around 40kw, while holding general power of about 35kw) |
| Dimensions | about 17500×3000×2600mm ( L × W × H ) |
| Machine weight | Around 8800 KG |
| Wall thickness | 8mm ( Shanghai Baosteel ) |
| Color | black grey body, white cover, part black , nickel , chrome |
