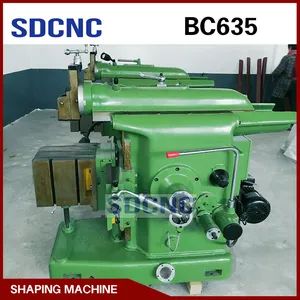

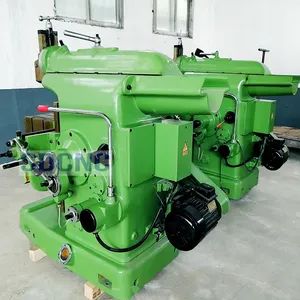

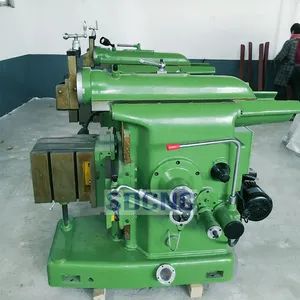

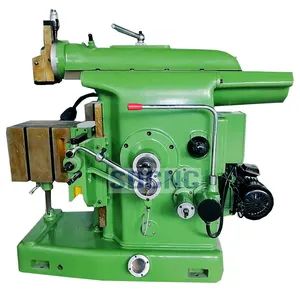

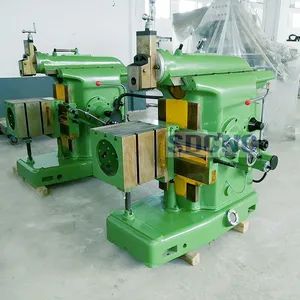

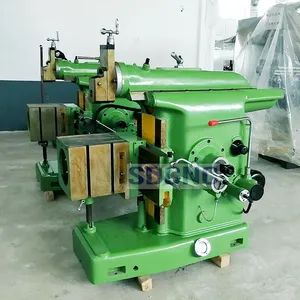

Multifunctional Hydraulic Metal Shaping Machine Bc635
Piece
Negotiable
Product information
High-quality Multifunctional Hydraulic Metal Shaping Machine Bc635 supplied by Shandong Shanshu Cnc Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
1200.000kg
Maximum RAM Travel:
170mm
Package Size:
1800.00cm * 1400.00cm * 1700.00cm
Specification:
1800x1400x1700
Maximum Shaping Length:
350mm
Controlling Mode:
Artificial
Model NO.:
BC635
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Package Gross Weight:
1200.000kg
Maximum RAM Travel:
170mm
Package Size:
1800.00cm * 1400.00cm * 1700.00cm
Specification:
1800x1400x1700
Maximum Shaping Length:
350mm
Controlling Mode:
Artificial
Model NO.:
BC635
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR
Certification:
GS, CE, ISO 9001
Precision:
High Precision
Payment Term:
LC, T/T
Condition:
New
Name:
Planer Shaper Machine
Port Of Loading:
Qingdao Port
Trademark:
SDCNC
Origin:
Shandong China
Keyword:
Shaper Machine
Type:
Shaping Machine
Shaping Machine Type:
Small Type
Payment Methods:
Support payments in USD
Transport Package:
Wood Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-09-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
Business license, CE Certificate, ISO Certificate, SGS Certificate, Trademarks Certificates, TUV Certificate
Product descriptions from the supplier
The main features of the B635A head planer are:
1: The table of the planer can rotate the left and right angles, and the worktable has a moving structure of lateral
and lifting; it is used to plan the inclined plane, thereby expanding the scope of use.
2: The feed system of the planer adopts a cam mechanism to adjust the feed rate. It is very convenient to change
the amount of the cutter.
3: The planer is equipped with an overload safety mechanism in the movement system. When the operation is
inadvertent or affected by external force and the cutting overload, the knife slips on its own, and the non-destructive
parts ensure the normal operation of the machine.
4: The ram and the bed rails, as well as the gears with speed and the main sliding guide surface, are lubricated by
the oil pumped by the oil pump.
5: The planer is equipped with a brake parking mechanism, so the speed is changing. It is not necessary to turn off
the power when starting the machine and stopping.
| Specifications | Units | B635 |
| Maximum shaping length | mm | 350 |
| Maximum distance from ram bottom to table surface | mm | 330 |
| Maximum moving distance of the working table(level) | mm | 400 |
| Maximum moving distance of the working table(vertical) | mm | 270 |
| Since the plane bed leading surface extending the maximum distance | mm | 550 |
| Maximum ram travel | mm | 170 |
| Table rotary angle (without vice) | ±90° | |
| Table rotary angle (with vice) | ±55° | |
| Maximum tool carrier travel | mm | 110 |
| Number of ram reciprocating per minute | NO/min | 32, 50, 80, 125, |
| Gear move one tooth (vertical) | mm | 0.18 |
| Gear move one tooth (level) | mm | 0.21 |
| Gear move four tooth (vertical) | mm | 0.73 |
| Gear move four tooth (level) | mm | 0.84 |
| Main motor power | KW r/min |
1.5 1400 |
| Overall dimensions (L*W*H) | mm | 1530*930*1370 |
| N/G.W | kg | 1000/1200 |
