Municipal Project Monitoring Multi-Functional Modbus RS485 Radar Liquid Level Ultrasonic Flowmeter for Manhole
2-49 Set
$2,41550-499 Set
$2,385500 Set
$2,355Product information
High-quality Municipal Project Monitoring Multi-Functional Modbus RS485 Radar Liquid Level Ultrasonic Flowmeter for Manhole supplied by Shenzhen StarWSN Science & Technology Co., Ltd.. Bulk wholesale pricing ranges from $2,355 to $2,415 per Set with a minimum order of 2 Set. Inquiry for latest prices.
Package Gross Weight:
10.000kg
Production Capacity:
1000PCS/Month
Specification:
35*30*18
Package Size:
40.00cm * 40.00cm * 30.00cm
Lead Time:
7 days (1 - 10 Sets)To be negotiated ( > 10 Sets)
HS Code:
9032890000
Certification:
CE, RoHS
Transport Package:
Carton Box
Specifications
Package Gross Weight:
10.000kg
Production Capacity:
1000PCS/Month
Specification:
35*30*18
Package Size:
40.00cm * 40.00cm * 30.00cm
Lead Time:
7 days (1 - 10 Sets)To be negotiated ( > 10 Sets)
HS Code:
9032890000
Certification:
CE, RoHS
Transport Package:
Carton Box
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Measurement Object:
Closed Pipeline
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Measuring Principle:
Electrical Principles
Trade Term:
FOB, CIF, CFR, EXW
Function 1:
Flow Rate Detector
Function 3:
Flow Rate Meter
Funciton 2:
Flow Rate Monitor
Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Application:
Manhole,Pipeline
Size:
Radar
Sensor:
Radar
Measurement Principle:
Radar Ultrasonic
Model NO.:
SR500-L-Y0-LGD
Port Of Loading:
Shenzhen Port
Payment Methods:
Support payments in USD
Type:
Ultrasonic Flow Meter
Measuring Media:
Water
Main Application:
Water
Accuracy:
±1%Fs
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-05-31
Annual Revenue Amount:
Not specified
Numbers Of Employees:
37
Preferred Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
ISO45001:2018, ISO9001:2015, ISO14001
Product descriptions from the supplier
SONA2024 2.2.1

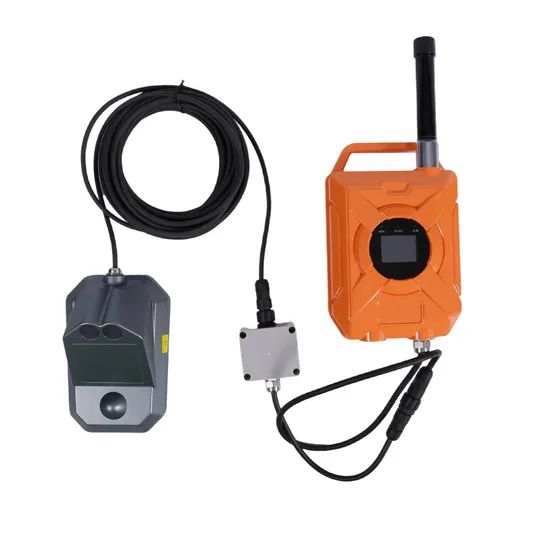

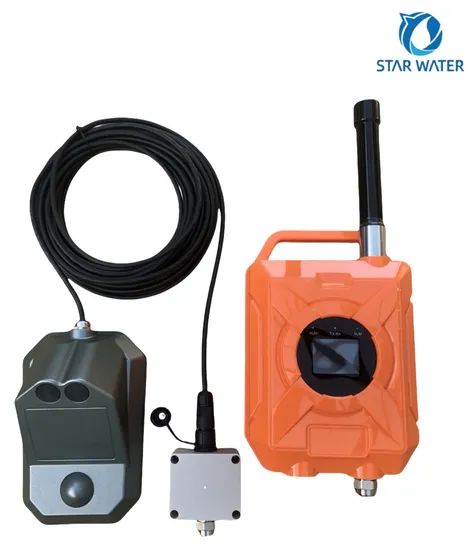

Ultrasonic Radar Water Flow and Level Monitoring Instrument
The device featuring battery-powered, ultra-low power consumption, IP68-rated and wireless communication. Suitable for monitoring sites with no power supply availability and in harsh environments (e.g., pipeline or manholes), and it can be measured for both full-pipe and non-full-pipe.
Users can view real-time monitoring data via the device's high-definition LCD screen, while the wireless communication capability enables remote data monitoring through a cloud-based platform. Operating on battery power, the device features easy installation, extended battery lifespan, and stable operation.
Users can view real-time monitoring data via the device's high-definition LCD screen, while the wireless communication capability enables remote data monitoring through a cloud-based platform. Operating on battery power, the device features easy installation, extended battery lifespan, and stable operation.
Features
1. Wide range of application scenarios
2. Supports real-time alerting and remote device configuration
3. Ultra-low power consumption, extended battery lifespan
4. Protection class IP68, waterproof and damp-proof
5. High sensitivity and strong anti-interference capability
6. The system features automatic switching between millimeter-wave radar Doppler and ultrasonic Doppler flow measurement modes, adapting to diverse complex application scenarios including both full-pipe and non-full-pipe conditions
7. Effectively reduces the impact of sediment accumulation, debris, and other factors on the equipment, thereby reducing maintenance frequency.
Functions
1. Data sampling
The device is capable of automatically collecting flow velocity, water level and flow rate, periodically transmitting the data to the flow monitoring system platform via wireless communication,with additional device status reporting including battery level, system parameters, and signal strength.
2. Parameter configuration
Parameter configurations can be deployed according to operational requirements. For specific data fields, refer to the "Configuration Data" section in Appendix
3. Remote operation and maintenance
The device can be integrated with a remote O&M platform, enabling remote operation and maintenance of the device with full-process status monitoring, ensure the device uninterrupted normal operation
The device is capable of automatically collecting flow velocity, water level and flow rate, periodically transmitting the data to the flow monitoring system platform via wireless communication,with additional device status reporting including battery level, system parameters, and signal strength.
2. Parameter configuration
Parameter configurations can be deployed according to operational requirements. For specific data fields, refer to the "Configuration Data" section in Appendix
3. Remote operation and maintenance
The device can be integrated with a remote O&M platform, enabling remote operation and maintenance of the device with full-process status monitoring, ensure the device uninterrupted normal operation
Technical Specification
(Custom configurations available upon request.)
Model | SR500-L-Y0-LGD | Transmission interval | 300-65535s |
Measurement principle | Radar, Ultrasonic | Sampling interval | 60-65535s |
Measurement accurate | ±1%FS | Protection grade | IP68 |
Battery lifespan | ≥3 years | Data storage | 128Mbit |
Battery capacity | 76AH | Parameter configuration | Platform and bluetooth configuration |
Communication mode | 4G, LoRaWAN, NB-IOT | Data transmission | Offline Recovery & Data Retransmission |
Communication protocol | MQTT | Wake up method | Smart & non-contact wake up |
Application

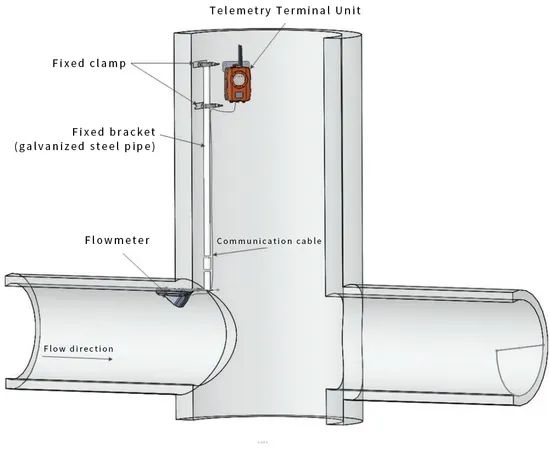

Available for the inspection well,manholes or pipeline.
Company Profile
Application
Certifications
Packaging & Shipping
FAQ
Q: What is the lead time for orders?
A: Our standard models are dispatched within a swift 15–30 days, while our customized units, tailored to your specific needs, require a careful crafting process of 30–45 days to ensure perfection.
Q: Do you provide after-sales service overseas?
A: Certainly! We have strategically partnered with service centers in key regions to offer you unparalleled after-sales support, ensuring your satisfaction no matter where you are.
Q: Can I request a customized order?
A: Absolutely! We pride ourselves on offering comprehensive OEM and ODM services to bring your unique vision to life.
Q: What documents do you provide for export?
A: We provide a comprehensive suite of export documents, including the Commercial Invoice, Packing List, Bill of Lading, COC, and more, ensuring a smooth and hassle-free export process.
Q: How do I place an order?
A: To place an order, simply get in touch with us via email or phone to receive a personalized quote. Once you're satisfied, confirm your order with a Purchase Order (PO) and we'll take care of the rest.
A: Our standard models are dispatched within a swift 15–30 days, while our customized units, tailored to your specific needs, require a careful crafting process of 30–45 days to ensure perfection.
Q: Do you provide after-sales service overseas?
A: Certainly! We have strategically partnered with service centers in key regions to offer you unparalleled after-sales support, ensuring your satisfaction no matter where you are.
Q: Can I request a customized order?
A: Absolutely! We pride ourselves on offering comprehensive OEM and ODM services to bring your unique vision to life.
Q: What documents do you provide for export?
A: We provide a comprehensive suite of export documents, including the Commercial Invoice, Packing List, Bill of Lading, COC, and more, ensuring a smooth and hassle-free export process.
Q: How do I place an order?
A: To place an order, simply get in touch with us via email or phone to receive a personalized quote. Once you're satisfied, confirm your order with a Purchase Order (PO) and we'll take care of the rest.
