Natural Gas Heating High Furnace Grid Casting Machine
Piece
Negotiable
Product information
High-quality Natural Gas Heating High Furnace Grid Casting Machine supplied by Better Technology Group Limited. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Machining Tolerance:
+/-0.10mm
Power Of Lead Scrap Motor:
0.4kw
Compressed Air Pressure:
0.4~0.6MPa
Lead Furnace Capacity:
0.9t
Motor:
1.5kw
Mould:
1.6kw*2 Sets = 3.2kw
Weight:
1.85t
Capacity:
12-17 Panels/Min
Specifications
Machining Tolerance:
+/-0.10mm
Power Of Lead Scrap Motor:
0.4kw
Compressed Air Pressure:
0.4~0.6MPa
Lead Furnace Capacity:
0.9t
Motor:
1.5kw
Mould:
1.6kw*2 Sets = 3.2kw
Weight:
1.85t
Capacity:
12-17 Panels/Min
Power Supply:
380V +/- 10%
Specification:
4600mm*1200mm*3150mm
Cooling Water Volume:
5-6 M3
Total Power:
9.7kw
Lead Ladle:
900W*4 Set= 3.6kw
Model NO.:
BETTER
Trademark:
Better
Origin:
China
Surface Roughness:
Customized
Surface Treatment:
Customized
Trade Term:
FOB, EXW, CFR, CIF
Certification:
ISO 9001:2008
Payment Term:
LC, T/T, Western Union
Casting Metal:
Lead Alloy
Air Exhaust Amount:
Not Less Than 0.3m3/Min
Transport Package:
Over Sea Export Standard
Cooling Water:
Pipe Diameter:15mm and Outlet Pipe:25mm
Casting Form Usage Count:
Semi-permanent
Grid Range:
W*L*T=(100~180)*(250~385)*(1~5)mm
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-08-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
shanghai
Certificates:
Honor and Qualification, Technical Strength
Product descriptions from the supplier

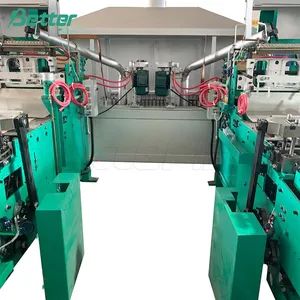

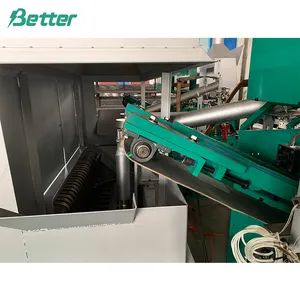

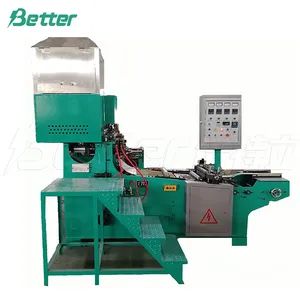

High Furnace Grid Casting Machine (Natural Gas Heating)
This Grid Casting system supports various lead alloys, offering high output and consistent product standards. Equipped with cutting-edge technology and ongoing improvements, it reduces energy consumption and features simple operation and upkeep.
The primary motor uses a foreign-made inverter for smooth, uninterrupted speed control with continuous frequency adjustment. Mold opening and closing, along with the lead liquid delivery, utilize high-grade pneumatic components.
The lead supply system features precise volume regulation. Design is straightforward. The lead valve spool withstands elevated temperatures and offers prolonged operational durability, making it simple to replace.
The horizontal pull rod design ensures smooth machine operation and minimizes vibration, thereby decreasing the need for manual mold spraying and boosting output efficiency.
4. Lead scrap recycling device can be optional, which can lower the labor strength.
Specification:
| Mould | 1.6KW*2 sets=3.2kw |
| Power for lead scrap motor | 0.4kw |
| Total Power | 9.7KW |
| Grid Range | W*L*T=(100~180)*(250~385)*(1~5)mm |
| Power Supply | 380V±10% |
| Cooling Water | Pipe Diameter: 15mm and outlet pipe: 25mm |
| Compressed air pressure | 0.4~0.6Mpa |
| Weight | 1.85T |
| Lead Ladle | 900W*4 sets=3.6KW |
| Motor | 1.5KW |
| Lead furnace capacity | 0.9T |
| Air exhaust amount | Not less than 0.3m³/min |
| Cooling water volume | 5~6 m3 |
| Production Capacity | 12~17 panels/min |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
|
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Better Tech Group Limited stands as a leading comprehensive supplier in the global battery industry. It manages one overseas production facility, two domestic facilities, and delivers full-service packages for battery manufacturing, lithium-ion energy storage systems, and lead-acid battery solutions. Over 10 years, the company has strongly supported markets in BRICS nations and Belt and Road Initiative countries. Today, its operations span approximately 120 countries and regions across the globe. The organization remains dedicated to its core vision: Making Made-in-China a global beauty.
Better Technology Group Limited maintains ISO9001 accreditation for quality management and possesses approximately 100 patents, software copyrights, and registered trademarks. The firm has earned designations including "National High-tech Enterprise," "Fujian Province Technology Little Giant," "Fujian Province Key Listed Reserve Enterprise," "Xiamen City Key Listed Reserve Enterprise," "Xiamen City New High-Tech Enterprise," and "Xiamen City Outstanding Export Branded Enterprise." It has formed long-term partnerships with multiple Fortune 500 corporations and engages in robust collaboration with leading Chinese academic institutions through integrated industry-university-research initiatives. Through substantial investment in research and development, innovation, and quality assurance, the company has maintained steady year-on-year increases in revenue output.
