Neoden In12c CE Certification SMT Reflow Oven Automatic with Precise Temp Control for PCB Assembly
1 Piece
$7,999Product information
High-quality Neoden In12c CE Certification SMT Reflow Oven Automatic with Precise Temp Control for PCB Assembly supplied by Zhejiang NeoDen Technology Co., Ltd.. Bulk wholesale pricing is $7,999 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
PCB Temperature Deviation:
+/-2 Degree
Temperature Accuracy:
1 Degree
After Sales Service:
1 Year
Warranty:
12 Months
Specification:
2300*650*1280mm
Heat Up Time:
30 Min
Max. PCB Width:
350mm
Max. Sodering Height:
35mm (Including PCB Thickness)
Specifications
PCB Temperature Deviation:
+/-2 Degree
Temperature Accuracy:
1 Degree
After Sales Service:
1 Year
Warranty:
12 Months
Specification:
2300*650*1280mm
Heat Up Time:
30 Min
Max. PCB Width:
350mm
Max. Sodering Height:
35mm (Including PCB Thickness)
Chain Speed:
50-600mm/ Min
Production Capacity::
50sets/M
HS Code:
84798962
Automatic Grade:
Automatic
Transmission:
Chain Drive
Trade Term:
FOB, EXW, CFR, CIF, FCA
Transport Package:
Fumigation Free Wooden Case
Model NO.:
IN12C
Certification:
ISO, CE
Reflow Oven:
In12c
Trademark:
NeoDen
Condition:
New
Temperature Range:
Room Temperature- 300 Degree
Port Of Loading:
SHANGHAI
Port::
Shanghai, China
Payment Term:
T/T, PayPal, Western Union
Payment Terms::
T/T, Paypal
Heating Zone:
Upper6/ Down6
Installation:
Vertical
Origin:
Zhejiang, Cn
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-07-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, FCA
Port Of Loading:
SHANGHAI
Certificates:
ISO 14064, ISO 20000, ISO 9000, QC 080000, ISO 9001
Product descriptions from the supplier
Product Description

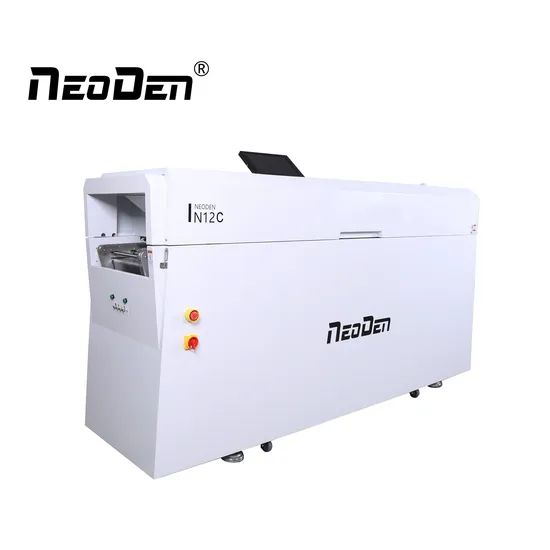

NeoDen IN12C is a new environmentally friendly, stable performance intelligent automatic orbital reflow soldering. This reflow solder adopts the exclusive patented design of "even temperature heating plate" design, with excellent soldering performance; with 12 temperature zones compact design, lightweight and compact; to achieve intelligent temperature control, with high-sensitivity temperature sensor, with stable temperature in the furnace, the characteristics of small horizontal temperature difference; while using Japan imported hot air motor bearings and Switzerland imported Heating wire, durable and stable performance. And through the CE certification, to provide authoritative quality assurance.
Feature

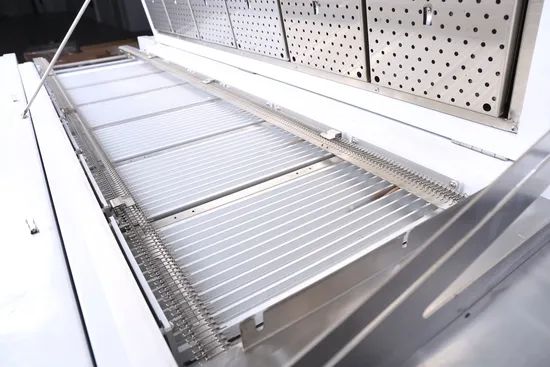

1. Maintenance-free: the net chain type track is made of stainless steel, no matter how long it is not used, it can be turned on and used; the traditional carbon steel chain will rust if it is not used for a long time, and the daily use also needs to be matched with an oil pot to add high-temperature lubricating oil, which has high daily use cost and high requirements for operators.
2. Permanent service life: traditional carbon steel chain-shaped each section has four riveted points, long time use riveted points are easy to loosen. Net chain type track each section of the integrated molding without any riveting points.
3. The width adjustment mechanism is simple and easy to use, and the front and rear ends are equipped with anti-accident handles, which can be used at any time to prevent abnormalities in the track.
4. Built-in welding fume filtration system, effective filtration of harmful gases, beautiful appearance and environmental protection, more in line with the use of high-end environment.
5. 40 working files can be stored.
6. Up to 4 real-time temperature curves can be displayed.
7. Lightweight, miniaturization, professional industrial design, flexible application scenarios, more user friendly.
8. Concealed screen design is convenient for transportation, easy to use, beautiful and generous.
9. The control system uses imported chips, temperature control accuracy of ± 0.5%
10. The speed of heating and cooling zones is adjustable, easily cope with a variety of welding needs.
Product Parameters
| Model | NeoDen IN12 |
| Heating Zone Quantity | Upper6 / Down6 |

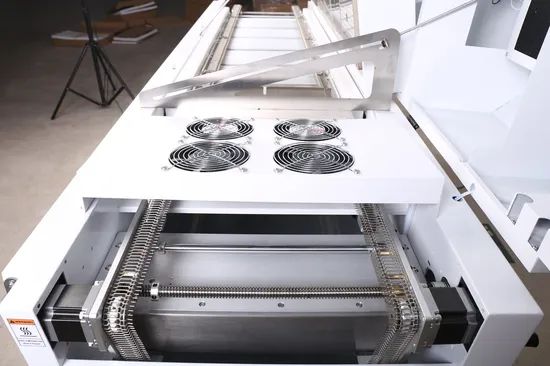

| Cooling Fan | Upper4 |
| Controller | VGUS Microcomputer |
| Transmission | Mesh Chain Drive |
| Heating Type | Nichrome Wire & Aluminum Alloy Heating |
| Conveyor Speed | 50~600 mm/min |
| Temperature Range | Room temperature~300ºC |
| Temperature Accuracy | 1ºC |
| PCB Temperature Deviation | ±2ºC |
| Max Soldering Width (PCB Width) | 350mm |
| Length Process Chamber | 1354mm |
| Heat-up Time | 30 min |
| Max Soldering Height (mm) | 35mm (includes PCB thickness) |
| Operation Direction | left→right |
| Electricity Supply | AC 220v/single phase |
| Starting Power | 2.4kw~4.8kw (adjustable) |
| Typical Working Power | approx. 2kw(1.5mm fiberglass PCB ) |
| Machine Size | L2300mm×W650mm×H1280mm |
| Packing Size | L2420mm×W730mm×H1430mm |
| Net Weight | 300KGS |
| Gross Weight | 383KGS |
Detailed Photos
Company Profile
About NEODEN
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one-stop SMT equipment.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
