New 12V 24V 36V 48V 100A MPPT Solar Charge Controller Solar Panel Charger Controllers with WiFi Control
1 Piece
$15.441 Piece
$58.77Product information
High-quality New 12V 24V 36V 48V 100A MPPT Solar Charge Controller Solar Panel Charger Controllers with WiFi Control supplied by NINGBO KEMAPOWER ELECTRONICS CO., LTD.. Bulk wholesale pricing ranges from $15.44 to $58.77 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Rated Voltage:
12/24/36/48V
Specification:
12/24V 20-60A and 12/24/36/48V 30-100A
Production Capacity:
50000PCS/Year
HS Code:
9032899090
Color:
Black
Application:
Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller
Trade Term:
FOB, EXW, CFR, CIF
Origin:
Foshan, China
Specifications
Rated Voltage:
12/24/36/48V
Specification:
12/24V 20-60A and 12/24/36/48V 30-100A
Production Capacity:
50000PCS/Year
HS Code:
9032899090
Color:
Black
Application:
Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller
Trade Term:
FOB, EXW, CFR, CIF
Origin:
Foshan, China
Certification:
ISO, CB, CE
Trademark:
KEMAPOWER
Payment Term:
LC, T/T, Western Union
Model NO.:
MPPT-R
Condition:
New
Port Of Loading:
Ningbo, China
Transport Package:
Safety Packing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-03-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Ningbo, China
Certificates:
CE, certificate, COC, EMC, GBT28001:2011, IEC, ISO, ISO14001:2004, ISO9001:2008, SGS, TUV, UL
Product descriptions from the supplier

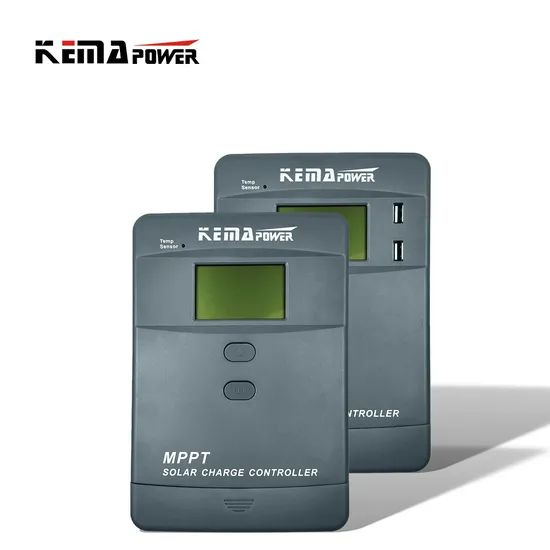

MPPT Solar Charge Controller
MPPT-R
MPPT-R
KEY FEATURES
- MPPT solar charge controller 12/24V 20-60A and 12/24/36/48V 30-100A
- Common Positive, Max PV input 60/75/150V, efficiency >99%

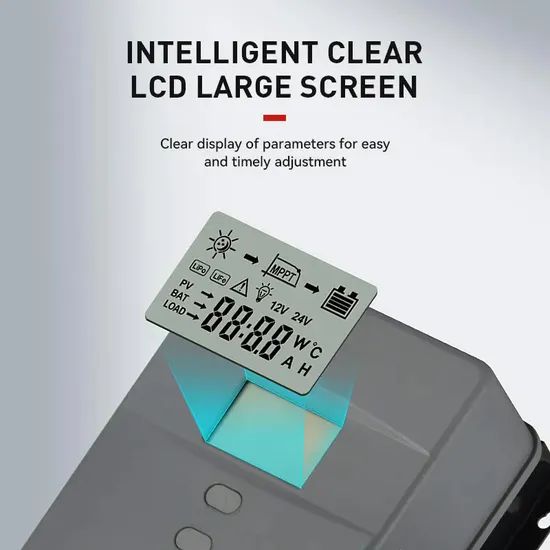

- LCD display for PV Bat Load parameter setup and working status
- Multi-stages charging mode, Bluk, Absorption, Float, Equalization, CV
- GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, customization
- With Temperature Compensation and current limiting charging
- With Lithium battery activation Function
- Internal Bluetooth or External WIFI Communication optional
- 2*2A/5V USB port for 12/24V 20-40A controller
TECHNICAL SPECIFICATIONS
| Model | MPPT2420R | MPPT2430R | MPPT2440R | MPPT2450R | MPPT2460R | MPPT4830R | MPPT4840R | MPPT4850R | MPPT4860R | MPPT4880R | MPPT48100R | |
| System voltage | 12 / 24V Auto | 12 / 24 / 48V Auto (36V Manual set ) | ||||||||||
| Rated charging current | 20A | 30A | 40A | 50A | 60A | 30A | 40A | 50A | 60A | 80A | 100A | |
| Max PV VOC | <60V | <75V | <100V | <150V | ||||||||
| Max PV Input Power | 12V | 260W | 390W | 520W | 650W | 780W | 390W | 520W | 650W | 780W | 1040W | 1300W |
| 24V | 52W | 780W | 1040W | 1300W | 1560W | 780W | 1040W | 1300W | 1560W | 2080W | 2600W | |
| 36V | / | / | / | / | / | 1170W | 1560W | 1950W | 2340W | 3120W | 3900W | |
| 48V | / | / | / | / | / | 1560W | 2080W | 2600W | 3120W | 4160W | 5200W | |
| Battery type | GEL, Sealed, Flooded, LiFePO4,Li(NiCoMn)O2, customization | |||||||||||
| Equalize charge** | Maintenance-freelead-acid battery : 14.6V; GEL:NO; Lead-acid Flooded battery : 14.8V | |||||||||||
| Absorption charge** | Maintenance-freelead-acid battery :14.4V; GEL:14.2V ; Lead-acid Flooded battery:14.6V | |||||||||||
| Float charge** | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery : 13.8V | |||||||||||
| Low voltage disconnection** | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 10.8V | |||||||||||
| Low voltage reconnection** | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 12.6V | |||||||||||
| High voltage disconnection** | Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 16V | |||||||||||
| Lithium battery activation | YES | |||||||||||
| Light control voltage | 5V / 10V / 15V / 20V | |||||||||||
| Temperature compensation coefficient | -4mV/ºC/2V (25ºC) | |||||||||||
| No load consumption | <50mA(24V); <35mA(48V) | |||||||||||
| DC output voltage | Same as battery voltage | |||||||||||
| DC output current | 20A | 30A | 40A | 50A | 60A | 30A | 40A | 50A | 60A | 80A | 100A | |
| Load control mode | 24hrs work, light control, light and timing control, timing control, reverse light control | |||||||||||
| Protection | PV Reverse Connection, BAT Reverse Connection, BAT Over/Low Voltage, Over Load | |||||||||||
| LCD Display | Day or Night; Charge status; System VDC; Bat type/Vdc/Charge/dscharge Amp/Ah/ºC/%; Load on/off ; Bat/PV/Load parameters setup; Error Code | |||||||||||
| Human interface | LCD with backlight, 2 buttons | |||||||||||
| Cooling mode | Natural | Fan | Natural | Fan | ||||||||
| Wiring | High current copper terminal≤25mm²(3AWG) | |||||||||||
| Working temperature | -20 ~ +55 ºC | |||||||||||
| Storage temperature | -30 ~ +80 ºC | |||||||||||
| Humidity | ≤90%, nocondensation | |||||||||||
| Protection class | IP30 | |||||||||||
| USB Charger | 2A/5V USB*2 | NO | NO | NO | NO | |||||||
| Internal bluetooth | Optional | |||||||||||
| External bluetooth | Optional | |||||||||||
| External WiFi | NO | Optional | NO | Optional | ||||||||
| RS485 | Optional | |||||||||||
| Product size mm | 123*178*50 | 132*195*60 | 144*818*70 | 190*260*95 | 144*218*80 | 190*260*110 | 212*294*120 | |||||
| PCS / CTN | 30 | 20 | 12 | 6 | 12 | 6 | 6 | |||||
| CTN KG | 19.5 | 17.5 | 17.5 | 13.7 | 19 | 15.2 | 18.4 | |||||
| CTN mm | 410*390*300 | 420*340*295 | 495*405*310 | 445*445*330 | 550*410*390 | 495*445*330 | 505*480*350 | |||||
| ** Remark | The preceding parameters are 12V system and the temperature is 25'C. 24V system 2x; 36V system 3x; 48V system 4x. | |||||||||||
PRODUCT DISPLAY
MPPT-R 20-40A
MPPT-R 50-60A
1. Day or night
2. Charge status
3. Battery capacity
4. Battery type
5. Warning
6. Load on/off
7. System voltage
8. PV parameter
9. BAT parameter
10. Load parameter
11. Parameters unit
12.Parameters unit
13. Parameters display
2. Charge status
3. Battery capacity
4. Battery type
5. Warning
6. Load on/off
7. System voltage
8. PV parameter
9. BAT parameter
10. Load parameter
11. Parameters unit
12.Parameters unit
13. Parameters display
