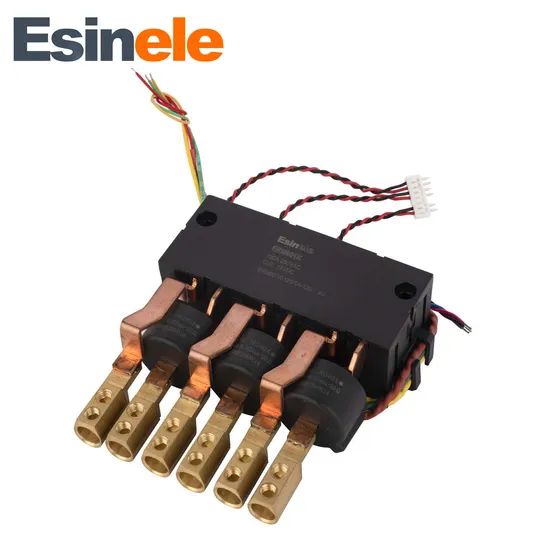

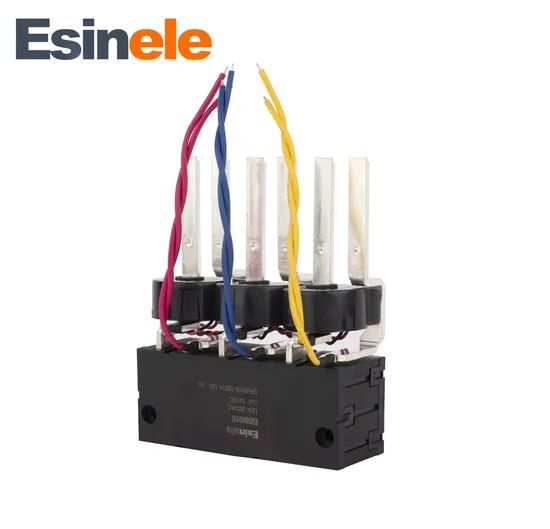

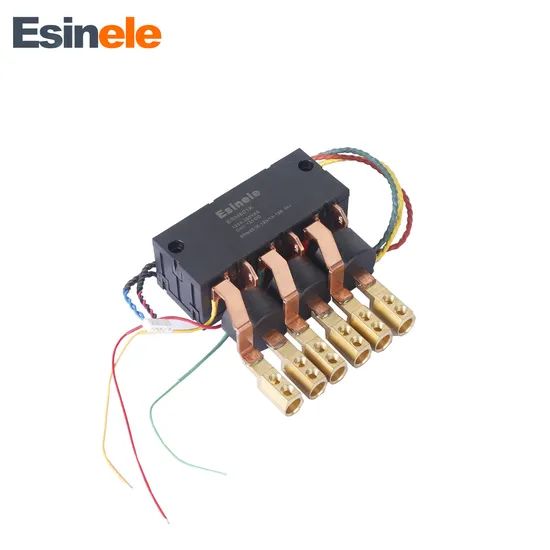

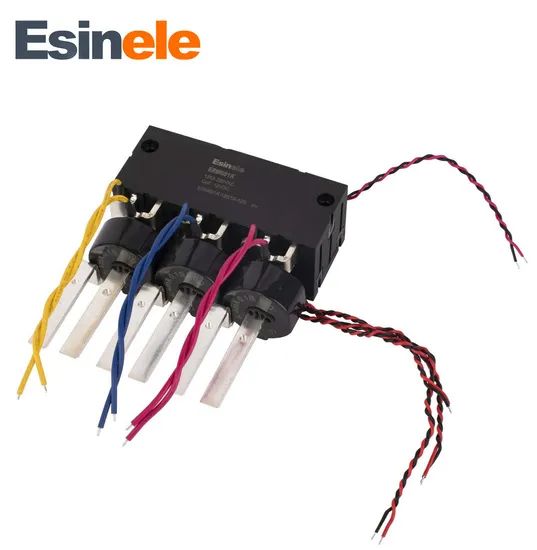

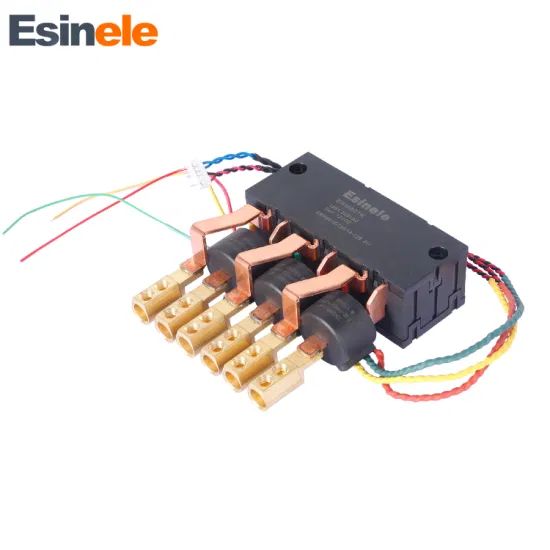

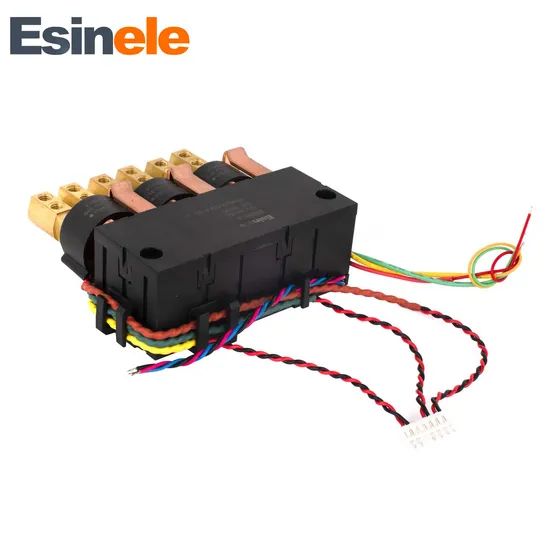

New Design Erm601K 120A General Purpose Miniature Latching Relay for Smart Meters
50 Piece
$1550 Piece
$8Product information
High-quality New Design Erm601K 120A General Purpose Miniature Latching Relay for Smart Meters supplied by YUEQING EASTING TRADING CO.,LTD.. Bulk wholesale pricing ranges from $8 to $15 per Piece with a minimum order of 50 Piece. Inquiry for latest prices.
Package Gross Weight:
1.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000000/Year
Switching Current:
120A
Contact Form:
1A
Number Of Pole:
2
Phase:
3
HS Code:
8536411090
Specifications
Package Gross Weight:
1.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000000/Year
Switching Current:
120A
Contact Form:
1A
Number Of Pole:
2
Phase:
3
HS Code:
8536411090
Specification:
98*40.8*36 mm
Electricity Type:
Ac
Contact Material:
Agsno2
Transport Package:
Box, Carton
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Model NO.:
ERM601K
Type:
Electric Parameter Relay
Action Principle:
Electromagnetic Type
Trademark:
Esinele
Trade Term:
FOB, CFR, EXW, CIF
Load:
High Power Relay
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Size:
Miniature
Port Of Loading:
Ningbo Port, Shanghai Port
Protective Characteristics:
Sealed Relay
Coil Type:
Single Coil and Double Coil Optional
Payment Methods:
Support payments in USD
Origin:
Zhejiang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, EXW, CIF
Port Of Loading:
Ningbo Port, Shanghai Port
Product descriptions from the supplier
ERM601K
Characteristic:
120A three set of contacts switching capability.
Apply to state grid 3-phase meter in China.
Only impulse excitation needed, both for single and double coil.
Low power consumption, small in size
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
Outline dimensions:(98x 40.8 x36) mm
Characteristic:
120A three set of contacts switching capability.
Apply to state grid 3-phase meter in China.
Only impulse excitation needed, both for single and double coil.
Low power consumption, small in size
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
Outline dimensions:(98x 40.8 x36) mm
ERM601K
Characteristic:
Characteristic:
80A three set of contacts switching capability.
Apply to state grid 3-phase meter in China.
Only impulse excitation needed, both for single and double coil.
Low power consumption, small in size
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
IEC62055-31 UC2 compliant
Outline dimensions:(98x 40.8 x36) mm
Apply to state grid 3-phase meter in China.
Only impulse excitation needed, both for single and double coil.
Low power consumption, small in size
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
IEC62055-31 UC2 compliant
Outline dimensions:(98x 40.8 x36) mm
| Contact Specification | |
| Dimensions(mm) | 117×52×28mm |
| Contact Form | 3A |
| Contact Material | Silver Alloy |
| Max Switching Current(Anti-load) | 120A |
| Max Switching Voltage | 250V AC |
| Max Switching Power | 3000W/30000V A |
| Wight350 | 320g |
| Coil Specification | |||||
| Rated Coil Voltage | 9VDC | 12VDC | 24VDC | 48VDC | |
| Rated Coil Voltage | Single Coil (±10%Ω) |
32 | 57 | 230 | 920 |
| Double Coil (±10%Ω) |
16 | 29 | 115 | 460 | |
| Power Consumption | Single Coil 2.5W;Double Coil 5W | ||||
| Pick-up Voltage | ≤75% Rated Coil Voltage | ||||
| Drop-out Voltage | ≤75% Rated Coil Voltage | ||||
| Max. Applicable Voltage | ≤120% Rated Coil Voltage | ||||
| Pick-up Time(At Rated Voltage) | ≤50ms | ||||
| Drop-out Time(At Rated Voltage) | ≤50ms | ||||
| Bounce Time | ≤2ms | ||||
| Characteristics | ||
| Ambient Temp | -40~+70ºC | |
| Ambient Humidity | ≤75% Annually average | |
| Anti-vibration | 10~55Hz, 0.5mm (Double Amplitude) | |
| Anti-shock | 98m/s2 , 11ms | |
| R.H. | 45%~85% | |
| Contact Resistance | ≤2.0mΩ (1A/6VDC) | |
| Insulation Resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between Contacts | 4000VAC 50/60Hz(1 Minute) |
| Between Contact & Coil | 6000VAC 50/60Hz(1 Minute) | |
| Life | Electrical Life | ≥1×104 OPS |
| Mechanical Life | ≥5×105OPS | |
| External Diagram |
 |
| Wiring Diagram |
 |
Latching Relay
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
