Nfpa 701 Part 2 Flame Propagation Test Machine Price Low Color Grey Display LCD Trademark AI Origin China Language English
Piece
Negotiable
Product information
High-quality Nfpa 701 Part 2 Flame Propagation Test Machine Price Low Color Grey Display LCD Trademark AI Origin China Language English supplied by Chongqing Advanced Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Flow Meter Range:
0 ~ 66cc/Min
Power Supply:
220V, 50Hz, 110W
Flame Height:
280±12 mm
Production Capacity:
30 Sets/Month
HS Code:
9031809090
Trademark:
AI
Weight:
About 110kg
OEM Service:
Available
Specifications
Flow Meter Range:
0 ~ 66cc/Min
Power Supply:
220V, 50Hz, 110W
Flame Height:
280±12 mm
Production Capacity:
30 Sets/Month
HS Code:
9031809090
Trademark:
AI
Weight:
About 110kg
OEM Service:
Available
Origin:
China
Burner Size:
Diameter 9.5 mm, Length 100 mm
Language:
English
Trade Term:
FOB, CIF, CFR, EXW
Color:
Grey
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Display:
LCD
Size Of Chamber:
Length 500 X Width 500 X Height 2420mm
Price:
Low
Model NO.:
NFPA 701 Flame Propagation Test Machine
Test Standard:
Nfpa 701 Method 2
Transport Package:
Plywood Case
Port Of Loading:
Shanghai Port
Specification:
Stainless steel
Applicating:
Textiles and Films Testing
Control:
Touch Screen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
EMC test port for bunched cable test, EMC Test Report for Halogen Test, EMC Test Report for Somke Density, LVD Test Report of Bunched Cable Heat Release Test System, LVD Test Report of Cable Smoke Density Tester, LVD Test report of Halogen,pH and Conductivity Tester
Product descriptions from the supplier
Description
NFPA 701 for fire-retardant fabric and film material combustion test, published by the National Fire Protection Association.The standards are widely used in the United States, for public curtains and other hanging fabrics, which not water resistant fabric.

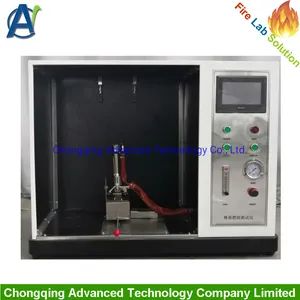

This Flame Propagation Tester is made according to the US Fire Department NFPA 701 method.It is suitable for single or multiple layers of fabric panel for gram more heavily than 700g / m2 (21od/yd2) fabrics, and polyethylene-coated fabric etc.
Standard:
NFPA NFPA 701: 2004,2010 Edition Test Method 2
Main Features
1, Dimensions: length 500 X width 500 X height 2420mm .
2, Burner size: diameter 9.5 mm + 1.5, -0 mm, length 100 ± 10 mm.
3, Weight: 110kg.
4, Flow meter range: 0 ~ 66cc/min.
5, Stainless steel cabinet structur.
6, Stainless steel wire is supplied with Flame Propagation Tester .

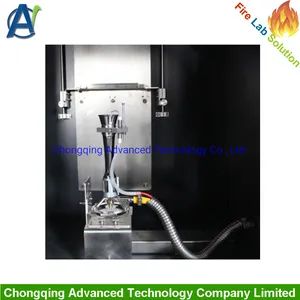

7, The Flame Propagation Tester uses imported Bunsen burner conforms to ASTM D 5025 standard.
8, Theflame angle of imported Bunsen burner is 25°.
9, Automatic ignition and extinguished mode.
10, Needle valve control the flame height
11, Timer range: 0-99s±0.1 seconds
12, Operating pressure of the burner: 17.5 kPa ± 2.0 kPa
13, Operating gas flow rate: 113 L/hr ± 3 L/hr
14, Flame height: 280±12 mm.
15, Open box structure.
16, Calcium silicate board cabinet, stainless steel exterior package.
17, Merkel Burner: Burner for heat 10,500 Btu/Hour.
18, Gas release and burning time is set automatically 20 seconds.
19, Standard sample clip
20, Power: 220V, 50Hz, 110W
Test Method 1 vs Test Method 2... What's the difference?
Test Method 1 applies to materials with a density less than or equal to 700/b/m². Items that fall within this category would be draperies/curtains or other fabrics used as window treatments. They are single layer fabrics. It is usually single-layer fabrics. The exception to this is when more than one layer is fastened together by sewing or other mechanical means.
Test Method 2 applies to plastic films, vinyl-coated fabric such as blackout linings, or lined curtains that have a vinyl coating. Decorative materials other than fabrics fall within this category. fabrics with or without reinforcement or a backing that is used as decoration inside a building must also pass Test 2. This also includes permanent enclosures for building under construction. Of course awnings, plastic tarps, tents, banners or membrane structures must meet the Test 2 requirements. These items cannot be tested to Test 1, only Test 2. If you aren't sure, please contact the NFPA or visit their website. The information is quite extensive and detailed. The purpose of this article was to give the reader a look into the fire certifications that apply to fire retardant/ flame retardancy of plastic sheeting.
Factory Show
Customer Feedback
Germany
USA
Transporation
FAQ
1.What's the delivery time?About 30 days .
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
