Nylon Polyamide Plastic Granules Extruder PA Single Screw Plastic Extrusion Line Extruder
1 Piece
$16,8001 Piece
$15,700Product information
High-quality Nylon Polyamide Plastic Granules Extruder PA Single Screw Plastic Extrusion Line Extruder supplied by Suzhou Polywell Engineering Plastics Co., Ltd.. Bulk wholesale pricing ranges from $15,700 to $16,800 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Power:
15-20kw
Production Capacity:
20 Sets Per Month
Specification:
60mm/70mm/80mm
HS Code:
8477209000
Weight:
900-1000kg
Strip Shape:
All Kinds of Shape
Speed:
Around 8-14cm/Min
Automation:
Automatic
Specifications
Power:
15-20kw
Production Capacity:
20 Sets Per Month
Specification:
60mm/70mm/80mm
HS Code:
8477209000
Weight:
900-1000kg
Strip Shape:
All Kinds of Shape
Speed:
Around 8-14cm/Min
Automation:
Automatic
Screw Channel Structure:
Deep Screw
Exhaust:
Don't Exhaust
Plastic Forming Method:
Extrusion
Product Type:
Extrusion Molding Machine
Trade Term:
FOB, EXW, CFR, CIF
Usage:
General Plastics, Engineering Plastics
Computerized:
Non-Computerized
Engagement System:
Non-Intermeshing
Feeding Mode:
One Feed
Plastic Processed:
PA66-GF
Model NO.:
PW-60/70/80
Transport Package:
Plywood Case
Material:
Polyamide, Glass Fiber
Trademark:
Polywell
Type:
Profile Extruder
Assembly Structure:
Separate Type Extruder
Port Of Loading:
Shanghai Port, Zhangjiagang Port
Screw:
Single-Screw
Payment Term:
T/T, PayPal, Western Union
Plastic Properties:
Thermoplastic Plastics
Origin:
Zhangjiagang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Shanghai Port, Zhangjiagang Port
Certificates:
Audited Supplier, CE certificate, EMC, Identification Report for Transport of Goods, MD
Product descriptions from the supplier
Nylon Polyamide66 Plastic Granules Extruder PVC Single Screw Extrusion Line Extrusion Machine

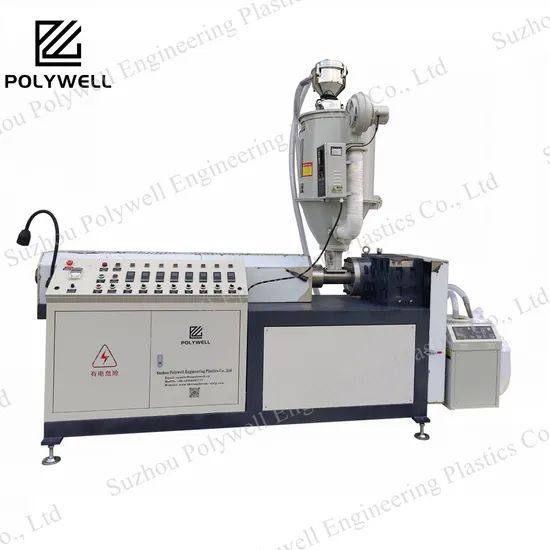

Product Introduction:
Automatic PA profiles extruding machine is for the production of polyamide thermal break profiles, which used in aluminum windows and doors.
Many customer use thermal break aluminum profile to do windows and doors to keep the heat from being affected by cold air, then make use of energy saving.
We provide high quality PA profiles extruding machine along with various molds and raw material-PA66GF25 granules, and also the subsequent technical assistance. This machine includes raw material auto feeding machine, hopper dryer, main engine, frequency converter and gearbox.
Processing Technique:
Nylon material → drying → heating → extrusion → stereotype → finished product
This equipment is assembled with precision fittings such as bi-metal screw, screw barrel, imported frequency converter, imported temperature control meter and high-precision gear box. It is an excellent equipment for producing PA66 nylon extruding Profile.
Parameters of Single Screw Extrusion Extruder
Why use polyamide strip as thermal barrier function?
1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminium profile window, door, curtain and walls.
2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product.
Application of polyamide strip:
1. Used for thermal break aluminum window, door, curtain and walls.
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving.
Our advantage:
Our Service
Before sales
1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information
During manufacturing
1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents
After Sales
1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support

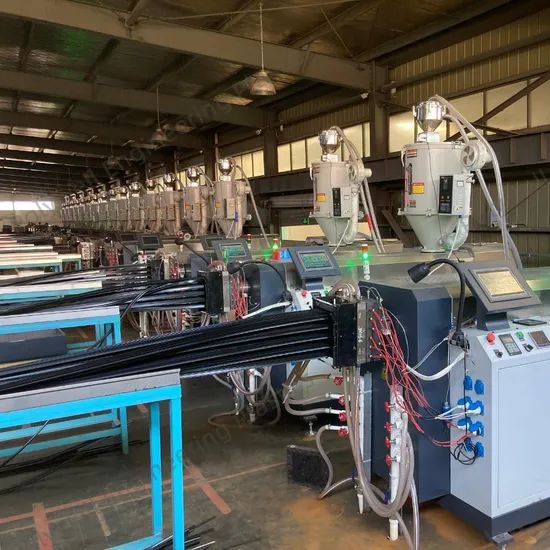

Our Factory
Our company is located in the city of Zhangjiagang, Jiangsu Province, China. Covering an area of 1, 580 Square Meters, near the beautiful Chanjiang River. We are close neighbor to national only inland river free trade zone, also a short distance from the economic hinterlands, such as Shanghai, Suzhou, Wuxi, Changzhou, Nantong, Nanjing, etc. With good location, mature economic environment, convenient modern communication, developed water and land transportation, we have been making research and development for special material of PA66 thermal insulation strip since 2006. PA66 GF25 is our main product, including plastic granules, thermal barrier strips, etc.
Please feel free to contact us if you have any questions.
Address: Jinfeng Town, Zhangjiagang City, Jiangsu Province, China.
Product Introduction:
Automatic PA profiles extruding machine is for the production of polyamide thermal break profiles, which used in aluminum windows and doors.
Many customer use thermal break aluminum profile to do windows and doors to keep the heat from being affected by cold air, then make use of energy saving.
We provide high quality PA profiles extruding machine along with various molds and raw material-PA66GF25 granules, and also the subsequent technical assistance. This machine includes raw material auto feeding machine, hopper dryer, main engine, frequency converter and gearbox.
Processing Technique:
Nylon material → drying → heating → extrusion → stereotype → finished product
This equipment is assembled with precision fittings such as bi-metal screw, screw barrel, imported frequency converter, imported temperature control meter and high-precision gear box. It is an excellent equipment for producing PA66 nylon extruding Profile.
- The main part of machinery adopts high-quality cemented carbide screw to ensure the high plasticization of PA66+GF25. The main engine is energy-saving and the speed is stable. The speed of the main and auxiliary machines can be synchronized.
- The die head is made according to German advanced technology, with short runner and no dead angle. The surface of the heat insulating strip is bright, with accurate tolerance and high strength.
- Using imported temperature control meter, one meter controls one temperature control system to control the temperature accuracy to ±1C°.
- Operating floor: stainless steel strip placement slot. Adjustable length 6 meters
- Winding machine: The torque motor control system is used to adjust the winding tension. 500 meters or 1000 meters per roll.
- The barrel is heated by stainless steel heater, withstanding 400 V.
- The professional dryer makes the material and the hot air convect evenly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.
Parameters of Single Screw Extrusion Extruder
| Model | Capacity | Screw diameter | Power | Voltage | Loading of Dryer |
| PW-S60 | 18-25kg/h | 60mm | 8kw | 380V | 75kg |
| PW-S70 | 20-35kg/h | 70mm | 16kw | 380V | 100kg |
| PW-S80 | 20-60kg/h | 80mm | 25kw | 380V | 150kg |
| Material | PA66GF25 |
| Production Speed | 8-14 cm/min |
| Max Output | 60-80 kg/h |
| Power | 380V, 50Hz or customized |
| Water | RO water or Tap water |
Why use polyamide strip as thermal barrier function?
1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminium profile window, door, curtain and walls.
2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product.
Application of polyamide strip:
1. Used for thermal break aluminum window, door, curtain and walls.
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving.
Our advantage:
- We can make good quality strips moulds, including the complicated moulds.
- We can supply the whole produce line, including raw material, Parallel twin-screw granulator and the Extruding machine of thermal barrier strip.
Our Service
Before sales
1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information
During manufacturing
1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents
After Sales
1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support
Our Factory
Our company is located in the city of Zhangjiagang, Jiangsu Province, China. Covering an area of 1, 580 Square Meters, near the beautiful Chanjiang River. We are close neighbor to national only inland river free trade zone, also a short distance from the economic hinterlands, such as Shanghai, Suzhou, Wuxi, Changzhou, Nantong, Nanjing, etc. With good location, mature economic environment, convenient modern communication, developed water and land transportation, we have been making research and development for special material of PA66 thermal insulation strip since 2006. PA66 GF25 is our main product, including plastic granules, thermal barrier strips, etc.
Please feel free to contact us if you have any questions.
Address: Jinfeng Town, Zhangjiagang City, Jiangsu Province, China.
