Product information
High-quality Oil Centralized Lubrication System Cooler. Origin China Type Oil Pump Drive Electric Model NO. GLCQ Trademark dajing HS Code supplied by Qidong Dajing Lubrication Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
HS Code:
8413502090
Origin:
China
Flow Rate:
Constant Pump
Drive:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
GLCQ
Performance:
High Pressure
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Specifications
HS Code:
8413502090
Origin:
China
Flow Rate:
Constant Pump
Drive:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
GLCQ
Performance:
High Pressure
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Type:
Oil Pump
Transport Package:
Plywood
Port Of Loading:
Shanghai Port
Trademark:
dajing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-08-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
19
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
bureau veritas, bureau veritas certification china
Product descriptions from the supplier
GLCQ, GLLQ tubular oil cooler
Applicable to oil centralised lubrication system as a cooler.
use cold water flow in a copper pipe to take away the heat produced by the friction,ensure machines running well,and prolong the machine life.

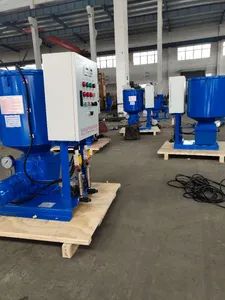

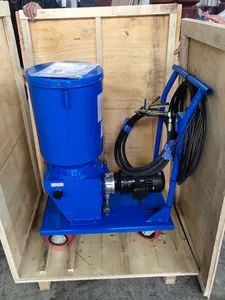

DRB-P electric grease lubrication pump
used to supply grease both in 40 Mpa pressure dual linecentralized lubrication system and single line centralized lubrication system. Widely used for medium/large equipment in metallurgy, mining, chemical, power plant, building materials, sugaring, and building industry.
Features
1.high pressure electric lubrication pump.
2.Tank is fitted with Oil level automatic alarm device.
3.Operating pressure is adjustable in the nominal pressure range with Double overload protection
4.Full automatic control and monitor the whole lubrication system when fitted with electric control panel.
Lubricants: grease with penetration of no less than 220(25°C,150g) 1/10mm and lubricant oils with viscosity of no less than N68.
Temperature: from -20°C to 80°C
Applicable to oil centralised lubrication system as a cooler.
use cold water flow in a copper pipe to take away the heat produced by the friction,ensure machines running well,and prolong the machine life.
| model | Nominal pressure MPa |
Nominal cooler surface m2 | performance | ||||||||||||||
| viscosity | Oil letin temp | Water letin temp | Oil temp down | Pressure lost MPa |
Oil:water | kcal/m2.h.ºC |
|||||||||||
| ºC | Oil side | Water side | |||||||||||||||
| GLCQ1 | 0.63 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | - | - | - | ≤N100 | 55 ±1 |
≤30 | ≥8 | ≤0.1 | ≤0.05 | 1:1 | >300 |
| GLCQ2 | 1.3 | 1.7 | 2.1 | 2.6 | 3 | 3.6 | - | - | |||||||||
| GLCQ3 | 1 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||||
| GLCQ4 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 27 | |||||||||
| GLCQ5 | 1.6 | 30 | 34 | 37 | 41 | 44 | 47 | 50 | 54 | ||||||||
| GLCQ6 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | |||||||||
| GLLQ3 | 0.63 | 4 | 5 | 6 | 7 | - | - | - | - | ≤N460 | 50 ±1 |
1:1.5 | >200 | ||||
| GLLQ4 | 12 | 16 | 20 | 24 | 28 | - | - | - | |||||||||
| GLLQ5 | 35 | 40 | 45 | 50 | 60 | - | - | - | |||||||||
| GLLQ6 | 1 | 80 | 100 | 120 | - | - | - | - | - | ||||||||
| GLLQ7 | 160 | 200 | - | - | - | - | - | - | |||||||||
used to supply grease both in 40 Mpa pressure dual linecentralized lubrication system and single line centralized lubrication system. Widely used for medium/large equipment in metallurgy, mining, chemical, power plant, building materials, sugaring, and building industry.
Features
1.high pressure electric lubrication pump.
2.Tank is fitted with Oil level automatic alarm device.
3.Operating pressure is adjustable in the nominal pressure range with Double overload protection
4.Full automatic control and monitor the whole lubrication system when fitted with electric control panel.
| model | nominal pressure | flow rate | tank | motor | voltage | temp ºC | weight |
| DRB1-P120Z | 40MPa | 120ml/min | 30L | 0.37KW | 380V | 0~80 | 56kg |
| DRB2-P120Z | 0.75KW | -20~80 | 64kg | ||||
| DRB3-P120Z | 60L | 0.37KW | 0~80 | 60kg | |||
| DRB4-P120Z | 0.75KW | -20~80 | 68kg | ||||
| DRB5-P235Z | 235ml/min | 30L | 1.5KW | 0~80 | 70kg | ||
| DRB6-P235Z | 60L | 74kg | |||||
| DRB7-P235Z | 100L | 82kg | |||||
| DRB8-P365Z | 365ml/min | 60L | 74kg | ||||
| DRB9-P365Z | 100L | 82kg |
Lubricants: grease with penetration of no less than 220(25°C,150g) 1/10mm and lubricant oils with viscosity of no less than N68.
Temperature: from -20°C to 80°C
