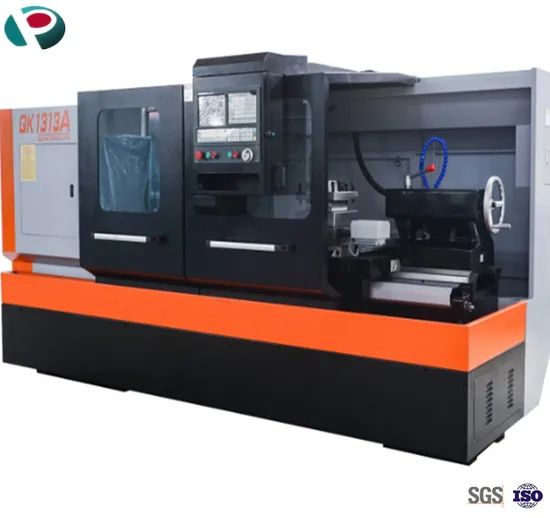

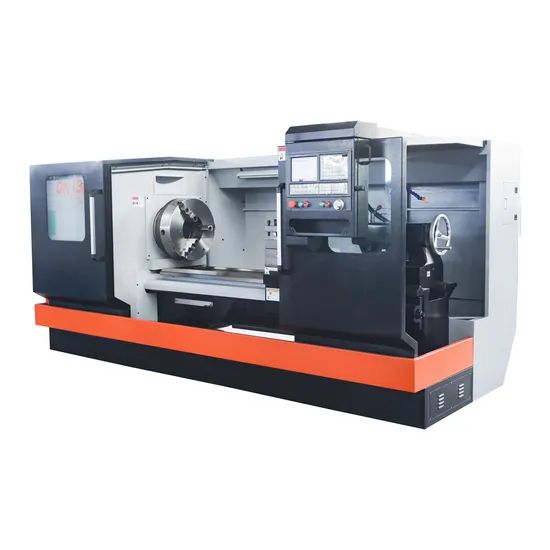

Oil Country Lathe Machine/Pipe Threading Cutting Lathe Machine Qk1313
1 Piece
$35,0001 Piece
$13,500Product information
High-quality Oil Country Lathe Machine/Pipe Threading Cutting Lathe Machine Qk1313 supplied by Zibo Jepps Trading Co., Ltd.. Bulk wholesale pricing ranges from $13,500 to $35,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
100pieces/Year
Max .Processing Pipe Diameter:
130
Hole Through Spindle:
135
Max. Swing Over Carriage:
340
Specification:
3400*1600*1700
Package Size:
460.00cm * 215.00cm * 208.00cm
Max. Swing Over Bed:
500
Package Gross Weight:
5000.000kg
Specifications
Production Capacity:
100pieces/Year
Max .Processing Pipe Diameter:
130
Hole Through Spindle:
135
Max. Swing Over Carriage:
340
Specification:
3400*1600*1700
Package Size:
460.00cm * 215.00cm * 208.00cm
Max. Swing Over Bed:
500
Package Gross Weight:
5000.000kg
HS Code:
84581100
Controlling Mode:
Artificial
Origin:
China
Processing Accessory:
Chuck CNC Lathe
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Power Source:
Electric
Trade Term:
FOB, CIF, EXW, CFR
Setting Mode:
Floor-type
Certification:
GS, CE, RoHS
Precision:
High Precision
Type:
Horizontal Lathe
Guide Rail:
Inclined Guide Rail
Trademark:
Jepps
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Condition:
New
Transport Package:
Non-Fumigating Wooden Box
Port Of Loading:
Qingdao Port
Model NO.:
Qk1313
Automatic Grade:
Semiautomatic
Tool Holder:
Single-tool Holder CNC Lathe
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Qingdao Port
Certificates:
Attestation, Authentication, Certificates, ISO 9001 Certificate of Lighting
Product descriptions from the supplier
Product Description
Features dual-speed adjustment, broad speed control, enabling efficient high-speed threading while delivering superior cutting performance and minimal operational noise
The machine base forms a single, solid foundation, significantly enhancing the machine's structural stability. The guide rail surface boasts a broad width and has undergone high-frequency quenching followed by precise grinding.
3. Quenching precision grinding gears and high-quality bearings to ensure low noise and good sound quality of the machine tool.
The spindle housing features robust external cooling and lubrication systems, effectively lowering spindle heat while ensuring both internal hygiene and consistent lubrication.
The X and Z axes are powered by precision ball screws, pre-tensioned and secured, with the nut carrier forming a single, unified component.
The large 4-position vertical electric turret significantly boosts processing speed and enhances the accuracy of internal thread machining in fine turning operations.
The machine base forms a single, solid foundation, significantly enhancing the machine's structural stability. The guide rail surface boasts a broad width and has undergone high-frequency quenching followed by precise grinding.
3. Quenching precision grinding gears and high-quality bearings to ensure low noise and good sound quality of the machine tool.
The spindle housing features robust external cooling and lubrication systems, effectively lowering spindle heat while ensuring both internal hygiene and consistent lubrication.
The X and Z axes are powered by precision ball screws, pre-tensioned and secured, with the nut carrier forming a single, unified component.
The large 4-position vertical electric turret significantly boosts processing speed and enhances the accuracy of internal thread machining in fine turning operations.
| Main Techinical specifications | технические характеристики | Unit | QK1313A | QK1316A | QK1319A | QK1322A | QK1325A | QK1327A | QK1330A | QK1335A | QK1344A | QK1352A | |
| Capacities | Swing over bed | Макс. диаметр над станиной | mm | 630 | 630 | 630 | 630 | 800 | 800 | 800 | 1000 | 1000 | 1250 |
| Swing over carriage | Макс. диаметр над суппортом | mm | 340 | 340 | 340 | 340 | 520 | 520 | 520 | 610 | 610 | 860 | |
| Tube outside diameter | Диапазон диаметров шпинделя для трубы | mm | 30-127 | 30-158 | 50-198 | 50-220 | 50-250 | 60-275 | 100-295 | 150-350 | 270-430 | 300-510 | |
| Max.length of workpiece | Максимальная длинна обработки | mm | 1500,2000,3000,5000 | ||||||||||
| Max.lengthof turning | Эффективная длина обработки | mm | 1350,1850,2800,4850 | ||||||||||
| Span of guideway | Расстояние между направляющими | mm | 460 | 460 | 460 | 550 | 550 | 600 | 600 | 755 | 755 | 1100 | |
| Max. load of Lathe bed | Максимальная нагрузка | KG | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 6000 | 6000 | 6000 | |
| Quenching hardness | Твердость при закалке направляющего | HRC | ≤HRC55 | ||||||||||
| Spindle | Spindle bore(dia) | Диаметр отверстия в шпинделе | mm | Ф130 | Ф160 | Ф200 | Ф225 | Ф255 | Ф280 | Ф300 | Ф355 | Ф440 | Ф520 |
| Mode of spindle speed | Режим частоты вращения шпинделя | three gears variable frequency/stepless speed regulation | |||||||||||
| Range of spindle speed | Частота вращения шпинделя | r/min | 10-800 | 10-600 | 10-450 | 10-300 | 10-300 | 10-300 | 10-300 | 10-260 | 10-260 | 10-260 | |
| Power of main motor | Мощность двигателя шпинделя | KW | 11 | 11 | 11 | 11 | 15 | 18.5 | 22 | 22 | 22 | 30 | |
| Size of chuck | патрон | Φ400/3 jaw | Φ400/3 | Φ520/4 | Φ520/4 | Φ630/4 | Φ630/4 | Φ630/4 | Φ800/4 | φ1000/4 | φ1000/4 | ||
| Feed motion | Minimum feed X/Z | Минимальное смещение по оси X / Z | mm | 0.001/ 0.001 | |||||||||
| Rapid speeds of X/Z | Направление движется быстроX/Z | mm/min | 3000/5000 | ||||||||||
| of X-axis | Перемещение по оси Х | mm | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 600 | |
| of Z-axis | Перемещение по осиZ | mm | 1350/2850 | ||||||||||
| Turret | Turret type | револьверная головка | V4 240 | V4 240 | V4 240 | V4 240 | V4 280 | V4 280 | V4 280 | V4 300 | V4 300 | V4 300 | |
| Section of tool shank | Размер инструментов | mm | 32×32 | 32×32 | 32×32 | 32×32 | 32×32 | 32×32 | 32×32 | 40×40 | 40×40 | 40×40 | |
| Turret indexing time | Время индексации держателя | s | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 4 | 4 | 4 | |
| Lndexing repeatability | Точность повторного позиционирования | mm | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | |
| Tailstock | Diameter of tailstock quill | Диаметр пиноли задней бабки | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 140 | 140 | 140 |
| Travel of tailstock quill | Ход пиноли | mm | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | |
| Taper hole of tailstock quill | Конус пиноли | Morse | Morse 5 | Morse 5 | Morse 5 | Morse 5 | Morse 5 | Morse 5 | Morse 6 | Morse 6 | Morse 6 | Morse 6 | |
| CNCSystem | CNC System | Система ЧПУ | 980TC3GSK980TC3(Standard Configuration) Optional:SINUMERIK 808D /FANUC Oi-TF | ||||||||||
| X-axis motortorque | Серводвигатель оси X | N.m | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 22 | 22 | 22 | |
| Z-axis motortorque | Серводвигатель осиZ | N.m | 15 | 15 | 15 | 15 | 22 | 22 | 22 | 30 | 30 | 30 | |
| Workpiece accuracy | Точность обработки заготовки | IT6~7 | IT6~7 | IT6~7 | IT6~7 | IT6~7 | IT6~7 | IT6~7 | IT6~7 | IT6~7 | IT6~7 | ||
| Packing size | Length(L) | Длина | mm | 3700/4600 | 3700/4600 | 3700/4600 | 4000/4800 | 4500/5600 | 4500/5500 | 4600/5800 | 5100/6200 | 5200/6200 | 5300/6400 |
| Width(W)/package | Ширина | mm | 2000/2150 | 2020/2200 | 2050/2250 | 2080/2250 | 2100/2250 | 2100/2260 | 2100/2260 | 2200/2280 | 2200/2280 | 22800/2350 | |
| Height(H)/package | Высота | mm | 1900/2080 | 1950/2100 | 1980/2150 | 2000/2150 | 2060/2180 | 2150/2200 | 2170/2250 | 2200/2270 | 2200/2270 | 2280/2370 | |
| Net weight/Gross weight | Вес | kg | 4500/5000 | 4700/5400 | 4800/5600 | 5500/5900 | 6500/7300 | 7700/8600 | 8300/8900 | 11000/11800 | 11600/12400 | 12800/13700 | |
| The text, pictures and technical parameters in the product samples are subject to change without prior notice |
|||||||||||||
