Oil Filter Tube Forming Coil Winding Core Rolling Machine
1-2 Set
$15,2003 Set
$14,200Product information
High-quality Oil Filter Tube Forming Coil Winding Core Rolling Machine supplied by BOBO Machine Co., Ltd.. Bulk wholesale pricing ranges from $14,200 to $15,200 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Speed:
0-10m/Min
Package Size:
270.00cm * 80.00cm * 136.00cm
Specification:
2700*800*1360mm
Dimension:
2700*800*1360mm
Motor Total Power:
4.0kw
Host Weight:
900
Trademark:
BOBO
Origin:
China
Specifications
Production Speed:
0-10m/Min
Package Size:
270.00cm * 80.00cm * 136.00cm
Specification:
2700*800*1360mm
Dimension:
2700*800*1360mm
Motor Total Power:
4.0kw
Host Weight:
900
Trademark:
BOBO
Origin:
China
Trade Term:
FOB, CIF, DDP
Applicable Material:
Galvanized Strip Steel,Tinning, Carbon Steel
Payment Term:
LC, T/T, PayPal, Western Union
Cutting Mode:
Mechamical Rolling Shear Cutting
Seams Way:
Outside Tube
Port Of Loading:
Shanghai Port
Applicable Product:
Spin on Filter Products, Various Water Filter Elem
Transport Package:
Wooden Case
Model NO.:
ZJY-1
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-03-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
16
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, DDP
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
SONA2024 2.2.1
Product Description

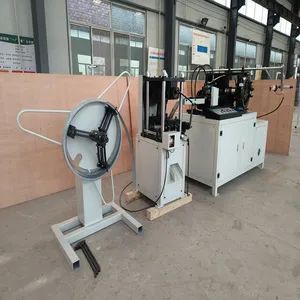

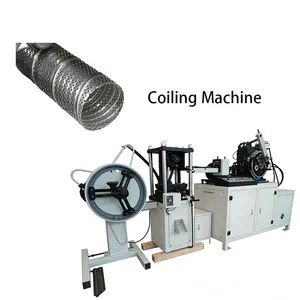

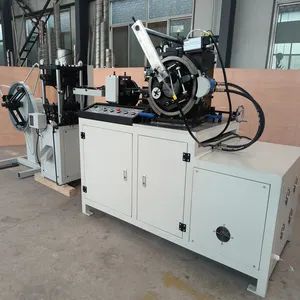

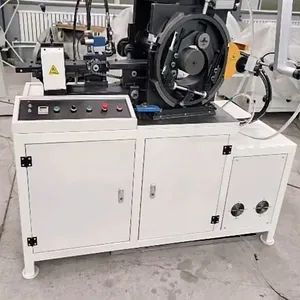

Oil Filter Coiling Machine
This filter/oil pipe net rolling and rounding machine comes in three models with varying strip thickness, width and diameter ranges, catering to the production of internal support mesh pipes for spin-on filters, water filter elements and wire wound filter elements. Adopting mechanical rolling shear cutting and outside tube seams way, it is compatible with galvanized steel strip, tinplate and carbon steel; the Small Type, equipped with a 4.0 KW hydraulic drive system, achieves a production speed of 0-10 m/min, with overall dimensions of 2700×800×1360 mm and a host weight of 900 kg, ensuring efficient and stable processing of filter and oil pipe components.
Specification
No | I(mm) | II(mm) | III(mm) | |
1 | Thickness of strip | 0.3 | 0.4-0.6 | 0.4-0.7 |
2 | Strip width | 38 | 45 | 68 |
3 | Diameter range | Φ30-60 | Φ50-130 | Φ80-350 |
4 | Motor total power | 4.0KW | ||
5 | Production speed | 0-10m/min | ||
6 | Dimension | 2700*800*1360mm | ||
7 | Host weight | 900 | ||
8 | Cutting mode | Mechamical rolling shear cutting | ||
9 | Seams way | Outside tube | ||
10 | Applicable material | Galvanized strip steel,Tinning, carbon steel | ||
11 | Applicable product | Spin on filter products, various water filter elements, wire wound filter elements,internalsupport network pipes | ||
Feature
*The pipe forming is realized by precision roller sets, and the seam locking is finished via a mechanical interlocking structure for tight and stable joints.
*The hydraulic drive system is equipped with imported seals and pressure sensors, featuring stable power output and adjustable production speed from 0 to 10 m/min.
*The mechanical rolling shear cutting unit adopts hardened alloy blades, ensuring neat cuts without burrs and easy replacement for continuous high-efficiency production.
Application

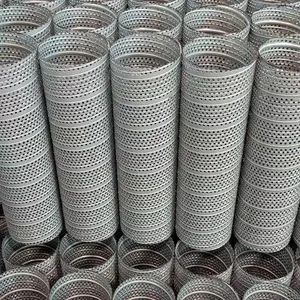

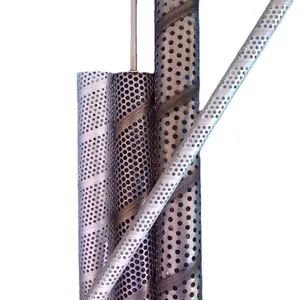

The Oil Filter Coiling Machine is widely applied in the production of internal support mesh pipes for spin-on filters, water filter elements, and wire wound filter elements. Compatible with galvanized steel strip, tinplate, and carbon steel, it caters to diverse manufacturing needs in industries such as automotive filtration, water treatment equipment, and industrial fluid purification. Whether for mass-producing standard filter components or customizing mesh pipes within its specified strip thickness, width, and diameter ranges, this machine ensures efficient, stable, and high-quality processing, making it an indispensable asset for filter manufacturers seeking reliable pipe-forming solutions.
