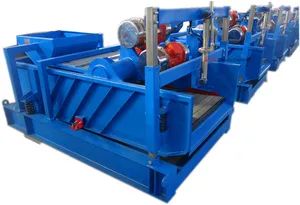

Oilfield API Drilling Fluid Shale Shaker Origin China Material Steel Mesh Shape Wave HS Code 84748090 Model NO. Hunter Layer Double Layer
Piece
Negotiable
Product information
High-quality Oilfield API Drilling Fluid Shale Shaker Origin China Material Steel Mesh Shape Wave HS Code 84748090 Model NO. Hunter Layer Double Layer supplied by Aipu Solid Control Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Sieve Mesh Number:
20-160
Electrical System:
220~460V, 50/60Hz, 3pH
Production Capacity::
500 Set/ Year
HS Code:
84748090
Specification:
API, ISO
Trademark:
Aipu Solids control
3rd Part Inspection:
Available Upon Request
Origin:
China
Specifications
Sieve Mesh Number:
20-160
Electrical System:
220~460V, 50/60Hz, 3pH
Production Capacity::
500 Set/ Year
HS Code:
84748090
Specification:
API, ISO
Trademark:
Aipu Solids control
3rd Part Inspection:
Available Upon Request
Origin:
China
Name Plate:
Customizable
Layer:
Double Layer
Shipment:
Effected by Us or Buyer
Power Type:
Electric
Explosion:
Explosion Proof Exd Bt II
Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, CIP, CPT, Others, FCA
Commissioning:
Free or Depend on Actual Project
Color:
Green, White, Red, Black, Blue, Yellow, etc.
Model NO.:
Hunter
Certification:
ISO, API
Payment Terms::
L/C, T/T, Western Union
Payment Term:
LC, T/T, D/P, Western Union
Transmission System:
Mechanical/Hydraulic
Type:
Petroleum Drilling Tool & Accessory
Transport Package:
Sea Worthy
Port::
Shanghai, China
Material:
Steel
Mesh Shape:
Wave
Usage:
Well Drilling Machinery, Solids Control Equipment
Port Of Loading:
Xi'anXingangShanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-04-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, CIP, CPT, Others, FCA
Port Of Loading:
Xi'anXingangShanghai
Certificates:
HSE, ISO 14001, OHSAS/ OHSMS 18001, QHSE, ISO 9001
Product descriptions from the supplier
Product Description
Solids control shaker Application: Onshore and offshore well oil and gas drilling, CBM, HDD, pilling, waste management, etc. Mainly used as first stage solids control also can be combined with desander or desilter cones. In short, shale shaker is suitable for various drilling mud process
Issues affecting its performance:Drilling depth, drilling fluid property, ground condition, general drilling conditions, screen selection, etc.
Main structure: Including base frame, support frame, feeding box, vibration beam, vibration motor, starter, jack screw, shaker screen, and so on
Installation: Usually shale shaker will be put on first mud tank. There will be locking block help user confirm distance and position. There will be an opening same size with shaker basket on tank top for clean fluid follow into tank. The mud tank should be put on clean and flat ground decrease ambient effect on shaker performance. During delivery we won't install screen on shaker to prevent any damage on screen. And the shipping bracket will be locked until operation. Please refer to user manual for correct installation
Legal operation: Remove shipping bracket before operation. Don't repair/move shaker/even uninstall vibration motor during its running. Operate and maintain shaker according to instructions
Maintenance: Maintain vibration motor regularly according to warnings on vibrator, such as feeding lubrication oil. Check and inspect shaker screen during shaker running repair or replace screens timely. Every stop requests cleaning on shaker screen for longer service life. Inspect and maintain shaker regularly according to plan will lead best performance of shaker
Warning: During operation there may be mud loss or screen block we need to adjust the shaker deck angle but not too low or too high. Furthermore, supervise shaker regularly to ensure correct selection on shaker screen at different drilling period
If the shaker don't shake as designed tracking there may be problem on vibration motor wires. Such as, one set motor is running or installation direction is wrong. Please turn off power and inspect lines correct the mistake
Shale shaker specification
Issues affecting its performance:Drilling depth, drilling fluid property, ground condition, general drilling conditions, screen selection, etc.
Main structure: Including base frame, support frame, feeding box, vibration beam, vibration motor, starter, jack screw, shaker screen, and so on
Installation: Usually shale shaker will be put on first mud tank. There will be locking block help user confirm distance and position. There will be an opening same size with shaker basket on tank top for clean fluid follow into tank. The mud tank should be put on clean and flat ground decrease ambient effect on shaker performance. During delivery we won't install screen on shaker to prevent any damage on screen. And the shipping bracket will be locked until operation. Please refer to user manual for correct installation
Legal operation: Remove shipping bracket before operation. Don't repair/move shaker/even uninstall vibration motor during its running. Operate and maintain shaker according to instructions
Maintenance: Maintain vibration motor regularly according to warnings on vibrator, such as feeding lubrication oil. Check and inspect shaker screen during shaker running repair or replace screens timely. Every stop requests cleaning on shaker screen for longer service life. Inspect and maintain shaker regularly according to plan will lead best performance of shaker
Warning: During operation there may be mud loss or screen block we need to adjust the shaker deck angle but not too low or too high. Furthermore, supervise shaker regularly to ensure correct selection on shaker screen at different drilling period
If the shaker don't shake as designed tracking there may be problem on vibration motor wires. Such as, one set motor is running or installation direction is wrong. Please turn off power and inspect lines correct the mistake
Shale shaker specification
| Model | Hunter M-2 | Hunter M-3 | Hunter M-4 | Hunter C- 3 | Hunter C-4 | Hunter D-3 | Hunter D-4 | Hunter D3B |
| Vibration | Linear | BEM | ||||||
| Motor | 1.3kw x 2 | 1.72kw x 2 | 1.94kw x 2 | 1.72kw x 2 | 1.92kw x 2 | 1.72kw x 2 | 1.94kw x 2 | 1.94+1.0kw |
| Strength | >5G | >6G | >6.5G | >6G | >6.5G | >6G | >6.5G | >6.5G |
| Amplitude | Dboule amplitude 5~6mm | |||||||
| Capacity | 60m³/h | 110m³/h | 130m³/h | 120m³/h | 150m³/h | 120m³/h | 140m³/h | 140m³/h |
| Angle | -1~+5° (Adjustable) | |||||||
| Power | 220V~460V, 50/60Hz, 3Ph | |||||||
| Remark | Dual tandem or triple tandem shaker available | |||||||
