Oilfield Equipment Drilling Equipment Drilling Tool Power Tool
Set
Negotiable
Product information
High-quality Oilfield Equipment Drilling Equipment Drilling Tool Power Tool supplied by Orient Energy & Technologies Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Output:
2000
Production Capacity:
2000 Joint/Year
Specification:
43mm~340mm
Customs Code:
8431431000
HS Code:
8431431000
Operation Pressure:
Atmospheric Pressure
Transport Package:
Bubble Warp, Iron Frame Fix
Origin:
China
Specifications
Output:
2000
Production Capacity:
2000 Joint/Year
Specification:
43mm~340mm
Customs Code:
8431431000
HS Code:
8431431000
Operation Pressure:
Atmospheric Pressure
Transport Package:
Bubble Warp, Iron Frame Fix
Origin:
China
Typical Applications:
Directional Well, Horizontal Well, and So on.
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Trademark:
Orient Energy
Surface Treatment:
Polishing
Material:
Stainless Steel
Wear Parts:
Stator, Bearing Assembly, Dump Valve
Port Of Loading:
Tianjin Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-05-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
248
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
CE
Product descriptions from the supplier

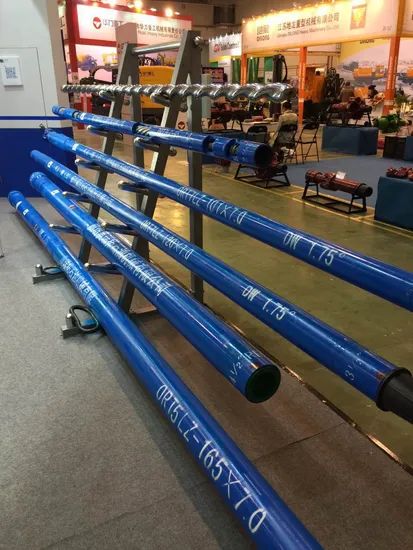

| Orient Energy Downhole Motor Power Section Specification | ||||||||||||||||||||||||
| Model Size | ModelNumber | Lobes | Stages | Stator | FlowRateRange | SpeedRange | Rotation | NBR | NBR-HR | HoleSizeRange | Thread Connections |
|||||||||||||
| OverallLength | ContourLength | Rubber Cut Back |
Operation Torque |
OperationPressure Diff | MaxTorque | MaxPressure Diff | MaxPower | Operation Torque |
OperationPressure Diff | MaxTorque | MaxPressure Diff | MaxPower | ||||||||||||
| in | mm | in(mm) | in(mm) | in(mm) | gpm(lpm) | rpm | rev/gal(rev/liter) | ft-lb(Nm) | psi(kPa) | ft-lb(Nm) | psi(kPa) | HP(kW) | ft-lb(Nm) | psi(kPa) | ft-lb(Nm) | psi(kPa) | HP(kW) | in | mm | Box-Up | Box-Down | |||
| 1-11/16 | 43 | 3LZ-43-3.4 | 3:4 | 3.4 | 39(1000) | 32(808) | 4(96) | 3-8(12-30) | 94-234 | 29.59(7.816) | 41(55) | 509(3512) | 61(83) | 764(5268) | 1(1) | 49(66) | 764(5268) | 73(99) | 1146(7902) | 3(2) | 1-7/8 - 3 | 48-76 | M27×2 | M27×2 |
| 4LZ-43-3.4 | 4:5 | 3.4 | 39(1000) | 32(808) | 4(96) | 3-8(12-30) | 77-193 | 24.39(6.442) | 49(67) | 509(3512) | 74(101) | 764(5268) | 1(1) | 59(80) | 764(5268) | 89(120) | 1146(7902) | 3(2) | ||||||
| 4LZ-43-4.0 | 4:5 | 4.0 | 39(1000) | 32(808) | 4(96) | 3-8(12-30) | 93-232 | 29.26(7.73) | 49(66) | 599(4132) | 73(99) | 899(6198) | 3(2) | 58(79) | 899(6198) | 88(119) | 1348(9297) | 3(2) | ||||||
| 4LZ-43-4.1 | 4:5 | 4.1 | 59(1500) | 51(1308) | 4(96) | 14-26(52-100) | 251-483 | 18.29(4.831) | 80(108) | 614(4235) | 119(162) | 921(6353) | 7(5) | 96(130) | 921(6353) | 144(195) | 1382(9530) | 9(7) | ||||||
| 4LZ-43-5.5DF | 4:5 | 5.5 | 59(1500) | 51(1308) | 4(96) | 14-26(52-100) | 335-644 | 24.39(6.442) | 80(109) | 824(5682) | 121(164) | 1236(8523) | 9(7) | 97(131) | 1236(8523) | 145(197) | 1854(12785) | 12(9) | ||||||
| 5LZ-43-4.0 | 5:6 | 4.0 | 68(1720) | 57(1440) | 6(140) | 21-40(80-150) | 307-576 | 14.52(3.837) | 98(133) | 599(4132) | 148(200) | 899(6198) | 11(8) | 118(160) | 899(6198) | 177(240) | 1348(9297) | 13(10) | ||||||
| 5LZ-43-5.6DF | 5:6 | 5.6 | 98(2500) | 87(2200) | 6(150) | 21-40(80-150) | 291-545 | 13.75(3.632) | 145(196) | 839(5785) | 217(294) | 1259(8678) | 15(11) | 173(235) | 1259(8678) | 260(353) | 1888(13017) | 17(13) | ||||||
| 2-1/8 | 54 | 4LZ-54-4.8 | 4:5 | 4.8 | 77(1950) | 68(1720) | 5(115) | 29-66(110-250) | 294-668 | 10.11(2.672) | 169(229) | 719(4958) | 254(344) | 1079(7437) | 21(16) | 203(275) | 1079(7437) | 305(413) | 1618(11156) | 25(19) | 2-3/8 - 3-1/2 | 60-89 | M33×2 | M33×2 |
| 4LZ-54-4.8DF | 4:5 | 4.8 | 77(1950) | 68(1720) | 5(115) | 29-66(110-250) | 305-693 | 10.49(2.77) | 163(221) | 719(4958) | 245(332) | 1079(7437) | 21(16) | 195(265) | 1079(7437) | 294(398) | 1618(11156) | 25(19) | ||||||
| 5LZ-54-3.5 | 5:6 | 3.5 | 68(1730) | 57(1450) | 6(140) | 29-66(110-250) | 226-513 | 7.77(2.053) | 160(217) | 524(3616) | 240(326) | 787(5424) | 16(12) | 192(260) | 787(5424) | 288(390) | 1180(8136) | 19(14) | ||||||
| 5LZ-54-3.5DF | 5:6 | 3.5 | 68(1730) | 57(1450) | 6(140) | 29-66(110-250) | 234-532 | 8.06(2.129) | 155(210) | 524(3616) | 232(315) | 787(5424) | 16(12) | 186(252) | 787(5424) | 279(378) | 1180(8136) | 19(14) | ||||||
| 2-3/8 | 60 | 5LZ-60-5.0 | 5:6 | 5.0 | 83(2100) | 71(1800) | 6(150) | 29-66(110-250) | 239-543 | 8.22(2.171) | 217(294) | 749(5165) | 325(441) | 1124(7748) | 23(17) | 260(353) | 1124(7748) | 391(530) | 1686(11622) | 27(20) | 2-7/8 - 3-9/16 | 73-90 | 11/2TBG | 11/2TBG |
| 2-1/2 | 65 | 4LZ-65-3.6 | 4:5 | 3.6 | 69(1750) | 56(1432) | 6(159) | 29-66(110-250) | 205-466 | 7.06(1.865) | 181(246) | 539(3719) | 272(369) | 809(5579) | 16(12) | 218(295) | 809(5579) | 327(443) | 1214(8369) | 19(14) | 2-7/8 - 3-9/16 | 73-90 | 11/2TBG | 11/2TBG |
| 2-7/8 | 73 | 4LZ-73-3.2DF | 4:5 | 3.2 | 69(1750) | 56(1432) | 6(159) | 29-90(110-340) | 136-419 | 4.66(1.232) | 244(331) | 480(3306) | 367(497) | 719(4959) | 20(15) | 293(397) | 719(4959) | 440(596) | 1079(7439) | 23(17) | 3-1/8 - 4-3/8 | 79-111 | 11/2TBG | 11/2TBG |
| 4LZ-73-3.5 | 4:5 | 3.5 | 76(1920) | 69(1750) | 3(85) | 29-90(110-340) | 129-398 | 4.43(1.171) | 281(381) | 524(3616) | 422(572) | 787(5424) | 21(16) | 337(457) | 787(5424) | 506(686) | 1180(8136) | 25(19) | ||||||
| 4LZ-73-3.9DF | 4:5 | 3.9 | 91(2300) | 77(1945) | 7(177.5) | 29-90(110-340) | 144-444 | 4.94(1.306) | 281(381) | 584(4029) | 422(572) | 877(6044) | 24(18) | 337(457) | 877(6044) | 506(686) | 1315(9066) | 28(21) | ||||||
| 4LZ-73-4.1DF | 4:5 | 4.1 | 91(2300) | 77(1945) | 7(177.5) | 29-90(110-340) | 147-453 | 5.05(1.333) | 289(392) | 614(4235) | 434(588) | 921(6353) | 25(19) | 347(470) | 921(6353) | 520(705) | 1382(9530) | 30(22) | ||||||
| 4LZ-73-4.3DF | 4:5 | 4.3 | 91(2300) | 77(1945) | 7(177.5) | 29-90(110-340) | 136-419 | 4.66(1.232) | 328(445) | 644(4442) | 493(668) | 966(6663) | 27(20) | 394(534) | 966(6663) | 591(801) | 1450(9995) | 31(23) | ||||||
| 5LZ-73-2.9 | 5:6 | 2.9 | 76(1920) | 69(1750) | 3(85) | 29-90(110-340) | 78-242 | 2.7(0.712) | 383(519) | 435(2996) | 575(779) | 652(4494) | 17(13) | 460(623) | 652(4494) | 690(935) | 978(6741) | 21(16) | ||||||
| 5LZ-73-4.1DF | 5:6 | 4.1 | 91(2300) | 77(1945) | 7(177.5) | 29-90(110-340) | 126-388 | 4.32(1.141) | 338(458) | 614(4235) | 507(687) | 921(6353) | 25(19) | 406(550) | 921(6353) | 609(825) | 1382(9530) | 30(22) | ||||||
| 5LZ-73-2.6DF | 5:6 | 2.6 | 118(3000) | 105(2668) | 7(166) | 61-119(230-450) | 90-176 | 1.48(0.391) | 625(847) | 390(2686) | 937(1271) | 584(4029) | 21(16) | 749(1016) | 584(4029) | 1124(1524) | 877(6044) | 25(19) | ||||||
| 5LZ-73-2.6DF | 5:6 | 2.6 | 118(3000) | 105(2668) | 7(166) | 61-119(230-450) | 78-153 | 1.29(0.341) | 717(972) | 390(2686) | 1075(1458) | 584(4029) | 21(16) | 860(1166) | 584(4029) | 1290(1749) | 877(6044) | 25(19) | ||||||
| 5LZ-73-5.0DF | 5:6 | 5.0 | 118(3000) | 105(2668) | 7(166) | 90-169(340-640) | 254-478 | 2.83(0.747) | 629(853) | 749(5165) | 944(1280) | 1124(7748) | 58(43) | 755(1024) | 1124(7748) | 1133(1536) | 1686(11622) | 68(51) | ||||||
| 6LZ-73-3.1DF | 6:7 | 3.1 | 76(1920) | 69(1750) | 3(85) | 61-119(230-450) | 151-295 | 2.48(0.656) | 444(602) | 464(3202) | 666(903) | 697(4803) | 25(19) | 533(722) | 697(4803) | 799(1083) | 1045(7205) | 30(22) | ||||||
| 7LZ-73-2.9 | 7:8 | 2.9 | 76(1920) | 69(1750) | 3(85) | 61-119(230-450) | 141-275 | 2.31(0.611) | 446(605) | 435(2996) | 670(908) | 652(4494) | 23(17) | 535(726) | 652(4494) | 803(1089) | 978(6741) | 28(21) | ||||||
| 7LZ-73-3.1 | 7:8 | 3.1 | 76(1920) | 69(1750) | 3(85) | 61-119(230-450) | 176-344 | 2.9(0.765) | 381(516) | 464(3202) | 571(774) | 697(4803) | 25(19) | 457(619) | 697(4803) | 685(929) | 1045(7205) | 30(22) | ||||||
| 7LZ-73-3.1DF | 7:8 | 3.1 | 76(1920) | 69(1750) | 3(85) | 61-119(230-450) | 142-278 | 2.34(0.618) | 471(639) | 464(3202) | 707(959) | 697(4803) | 25(19) | 566(767) | 697(4803) | 849(1151) | 1045(7205) | 30(22) | ||||||
| 7LZ-73-4.4 | 7:8 | 4.4 | 76(1920) | 69(1750) | 3(85) | 61-119(230-450) | 244-477 | 4.02(1.061) | 389(528) | 659(4545) | 584(792) | 989(6818) | 35(26) | 468(634) | 989(6818) | 701(951) | 1483(10227) | 43(32) | ||||||
| 7LZ-73-4.4DF | 7:8 | 4.4 | 76(1920) | 69(1750) | 3(85) | 61-119(230-450) | 252-494 | 4.15(1.097) | 377(511) | 659(4545) | 566(767) | 989(6818) | 35(26) | 452(613) | 989(6818) | 679(920) | 1483(10227) | 43(32) | ||||||
| 3-1/8 | 80 | 5LZ-80-3.0 | 5:6 | 3.0 | 79(1995) | 71(1801) | 4(97) | 79-140(300-530) | 191-337 | 2.4(0.635) | 444(602) | 449(3099) | 666(903) | 674(4649) | 28(21) | 533(722) | 674(4649) | 799(1083) | 1012(6974) | 34(25) | 3-3/4 - 4-3/4 | 95-121 | 23/8REG | 23/8REG |
| 7LZ-80-6.3 | 7:8 | 6.3 | 164(4154) | 157(4000) | 3(77) | 79-140(300-530) | 151-266 | 1.9(0.502) | 1180(1600) | 944(6508) | 1770(2400) | 1416(9762) | 60(45) | 1416(1920) | 1416(9762) | 2124(2880) | 2124(14643) | 71(53) | ||||||
| 3-1/2 | 89 | 5LZ-89-6.7DF | 5:6 | 6.7 | 163(4150) | 157(4000) | 3(75) | 29-111(110-420) | 53-202 | 1.82(0.482) | 1306(1771) | 1004(6921) | 1960(2657) | 1506(10382) | 50(37) | 1567(2125) | 1506(10382) | 2351(3188) | 2259(15573) | 60(45) | 4-1/2 - 5-7/8 | 114-149 | 23/8REG | 23/8REG |
| 7LZ-89-3.9DF | 7:8 | 3.9 | 118(3000) | 110(2800) | 4(100) | 95-143(360-540) | 126-189 | 1.32(0.35) | 1046(1418) | 584(4029) | 1569(2127) | 877(6044) | 38(28) | 1255(1702) | 877(6044) | 1883(2553) | 1315(9066) | 46(34) | ||||||
| 7LZ-89-4.2DF | 7:8 | 4.2 | 164(4154) | 157(4000) | 3(77) | 79-161(300-610) | 79-160 | 1(0.263) | 1502(2037) | 629(4339) | 2254(3056) | 944(6509) | 46(34) | 1803(2444) | 944(6509) | 2704(3666) | 1416(9764) | 55(41) | ||||||
| 7LZ-89-5.1DF | 7:8 | 4.6 | 83(2100) | 73(1850) | 5(125) | 53-74(200-280) | 145-204 | 2.75(0.727) | 595(806) | 689(4752) | 892(1209) | 1034(7128) | 23(17) | 713(967) | 1034(7128) | 1070(1451) | 1551(10692) | 28(21) | ||||||
| 7LZ-89-5.7DF | 7:8 | 5.7 | 107(2720) | 89(2270) | 9(225) | 53-74(200-280) | 130-182 | 2.46(0.649) | 826(1120) | 854(5888) | 1239(1680) | 1281(8832) | 28(21) | 991(1344) | 1281(8832) | 1487(2016) | 1921(13248) | 35(26) | ||||||
| 7LZ-89-6.5DF | 7:8 | 6.5 | 112(2850) | 102(2600) | 5(125) | 53-74(200-280) | 166-232 | 3.14(0.83) | 736(998) | 974(6715) | 1104(1497) | 1461(10073) | 32(24) | 884(1198) | 1461(10073) | 1325(1797) | 2192(15110) | 39(29) | ||||||
| 3-3/4 | 95 | 2LZ-102-10.1DF | 2:3 | 10.1 | 130(3300) | 120(3040) | 5(130) | 79-161(300-610) | 745-1515 | 9.4(2.483) | 383(519) | 1513(10433) | 575(779) | 2270(15650) | 110(82) | 460(623) | 2270(15650) | 690(935) | 3405(23475) | 133(99) | 4-5/8 - 5-7/8 | 118-149 | 27/8REG | 27/8REG |
| 4LZ-95-5.7 | 4:5 | 5.7 | 111(2820) | 101(2560) | 5(130) | 79-161(300-610) | 188-383 | 2.38(0.628) | 853(1156) | 854(5888) | 1279(1734) | 1281(8832) | 62(46) | 1023(1387) | 1281(8832) | 1535(2081) | 1921(13248) | 75(56) | ||||||
| 5LZ-95-3.1 | 5:6 | 3.1 | 83(2100) | 72(1840) | 5(130) | 79-161(300-610) | 123-251 | 1.56(0.411) | 709(961) | 464(3202) | 1064(1442) | 697(4803) | 34(25) | 850(1153) | 697(4803) | 1276(1730) | 1045(7205) | 40(30) | ||||||
| 5LZ-95-4.3 | 5:6 | 4.3 | 111(2820) | 101(2560) | 5(130) | 79-161(300-610) | 123-251 | 1.56(0.411) | 983(1333) | 644(4442) | 1475(2000) | 966(6663) | 47(35) | 1180(1600) | 966(6663) | 1770(2400) | 1450(9995) | 56(42) | ||||||
| 5LZ-95-6.6 | 5:6 | 6.6 | 165(4200) | 155(3940) | 5(130) | 79-161(300-610) | 123-251 | 1.56(0.411) | 1509(2046) | 989(6818) | 2264(3069) | 1483(10227) | 72(54) | 1811(2455) | 1483(10227) | 2717(3683) | 2225(15341) | 87(65) | ||||||
| 7LZ-95-3.1 | 7:8 | 3.1 | 83(2100) | 72(1840) | 5(130) | 79-161(300-610) | 104-211 | 1.31(0.346) | 841(1140) | 464(3202) | 1261(1710) | 697(4803) | 34(25) | 1009(1368) | 697(4803) | 1514(2052) | 1045(7205) | 40(30) | ||||||
| 7LZ-95-4.3 | 7:8 | 4.3 | 111(2820) | 101(2560) | 5(130) | 79-161(300-610) | 104-211 | 1.31(0.346) | 1166(1581) | 644(4442) | 1750(2372) | 966(6663) | 47(35) | 1399(1897) | 966(6663) | 2099(2846) | 1450(9995) | 56(42) | ||||||
| 7LZ-95-4.3DF | 7:8 | 4.3 | 111(2820) | 101(2560) | 5(130) | 79-161(300-610) | 107-218 | 1.36(0.358) | 1128(1529) | 644(4442) | 1692(2294) | 966(6663) | 47(35) | 1353(1835) | 966(6663) | 2031(2753) | 1450(9995) | 56(42) | ||||||
| 4-1/32 | 102 | 5LZ-102-3.2DF | 5:6 | 3.2 | 83(2100) | 75(1900) | 4(100) | 79-161(300-610) | 146-296 | 1.84(0.486) | 618(838) | 480(3306) | 927(1257) | 719(4959) | 35(26) | 742(1006) | 719(4959) | 1113(1509) | 1079(7439) | 42(31) | 4-3/4 - 5-7/8 | 121-149 | 27/8REG | 27/8REG |
| 4-1/8 | 106 | 7LZ-106-5.9 | 7:8 | 5.9 | 150(3800) | 139(3540) | 5(130) | 79-190(300-720) | 96-230 | 1.21(0.32) | 1730(2345) | 884(6095) | 2595(3518) | 1326(9143) | 75(56) | 2076(2814) | 1326(9143) | 3113(4221) | 1989(13715) | 91(68) | 4-3/4 - 5-7/8 | 121-149 | 27/8REG | 27/8REG |
| 4-3/4 | 120 | 4LZ-120-4.7 | 4:5 | 4.7 | 130(3300) | 120(3040) | 5(130) | 100-251(380-950) | 96-239 | 0.95(0.252) | 1752(2375) | 704(4855) | 2628(3563) | 1056(7283) | 79(59) | 2102(2850) | 1056(7283) | 3153(4275) | 1585(10925) | 95(71) | 5-7/8 - 7-7/8 | 149-200 | 31/2REG | 31/2REG |
| 4LZ-120-5.5DF | 4:5 | 5.5 | 130(3300) | 120(3040) | 5(130) | 100-251(380-950) | 149-373 | 1.49(0.393) | 1314(1782) | 824(5682) | 1972(2673) | 1236(8523) | 94(70) | 1577(2138) | 1236(8523) | 2365(3207) | 1854(12785) | 113(84) | ||||||
| 5LZ-120-4.2 | 5:6 | 4.2 | 130(3300) | 120(3040) | 5(130) | 100-251(380-950) | 81-202 | 0.81(0.213) | 1851(2510) | 629(4339) | 2777(3765) | 944(6509) | 71(53) | 2222(3012) | 944(6509) | 3332(4518) | 1416(9764) | 86(64) | ||||||
| 5LZ-120-4.2DH | 5:6 | 4.2 | 157(4000) | 147(3740) | 5(130) | 100-251(380-950) | 72-181 | 0.72(0.19) | 2600(3525) | 944(6508) | 3900(5288) | 1416(9762) | 90(67) | 3900(5288) | 1416(9762) | 5851(7932) | 2124(14643) | 134(100) | ||||||
| 5LZ-120-5.2 | 5:6 | 5.2 | 157(4000) | 147(3740) | 5(130) | 100-251(380-950) | 81-202 | 0.81(0.213) | 2292(3107) | 779(5372) | 3438(4661) | 1169(8058) | 89(66) | 2750(3728) | 1169(8058) | 4125(5592) | 1753(12087) | 106(79) | ||||||
| 5LZ-120-5.5DF | 5:6 | 5.5 | 197(5000) | 189(4800) | 4(100) | 100-251(380-950) | 94-236 | 0.94(0.248) | 2081(2821) | 824(5682) | 3122(4232) | 1236(8523) | 94(70) | 2497(3385) | 1236(8523) | 3746(5078) | 1854(12785) | 113(84) | ||||||
| 7LZ-120-3.8 | 7:8 | 3.8 | 187(4750) | 173(4400) | 7(175) | 151-349(570-1320) | 77-178 | 0.51(0.135) | 2641(3581) | 569(3925) | 3962(5372) | 854(5888) | 90(67) | 3169(4297) | 854(5888) | 4755(6446) | 1281(8832) | 107(80) | ||||||
| 7LZ-120-3.8DH | 7:8 | 3.8 | 187(4750) | 173(4400) | 7(175) | 151-349(570-1320) | 77-178 | 0.51(0.135) | 3301(4476) | 854(5888) | 4952(6714) | 1281(8832) | 111(83) | 3962(5371) | 1281(8832) | 5943(8057) | 1921(13248) | 134(100) | ||||||
| 7LZ-120-4.0 | 7:8 | 4.0 | 130(3300) | 120(3040) | 5(130) | 151-349(570-1320) | 97-226 | 0.65(0.171) | 2196(2977) | 599(4132) | 3294(4466) | 899(6198) | 94(70) | 2635(3572) | 899(6198) | 3952(5358) | 1348(9297) | 114(85) | ||||||
| 7LZ-120-4.3 | 7:8 | 4.3 | 211(5350) | 197(5000) | 7(175) | 151-349(570-1320) | 63-145 | 0.42(0.11) | 3688(5000) | 644(4442) | 5532(7500) | 966(6663) | 102(76) | 4426(6000) | 966(6663) | 6638(9000) | 1450(9995) | 122(91) | ||||||
| 7LZ-120-6.3 | 7:8 | 6.3 | 211(5350) | 197(5000) | 7(175) | 151-349(570-1320) | 91-210 | 0.6(0.159) | 3726(5051) | 944(6508) | 5589(7577) | 1416(9762) | 149(111) | 4471(6061) | 1416(9762) | 6706(9092) | 2124(14643) | 178(133) | ||||||
| 5 | 127 | 2LZ-127-6.9 | 2:3 | 6.9 | 157(4000) | 147(3740) | 5(130) | 100-251(380-950) | 162-406 | 1.62(0.427) | 1519(2059) | 1034(7128) | 2278(3089) | 1551(10692) | 118(88) | 1823(2471) | 1551(10692) | 2734(3707) | 2326(16038) | 141(105) | 5-7/8 - 7-7/8 | 149-200 | 31/2REG | 31/2REG |
| 2LZ-127-11.4DF | 2:3 | 11.4 | 197(5000) | 189(4800) | 4(100) | 100-251(380-950) | 382-955 | 3.8(1.005) | 1066(1445) | 1708(11776) | 1599(2168) | 2562(17664) | 194(145) | 1279(1734) | 2562(17664) | 1918(2601) | 3843(26496) | 232(173) | ||||||
| 2LZ-127-11.4DF | 2:3 | 11.4 | 197(5000) | 189(4800) | 4(100) | 100-251(380-950) | 325-813 | 3.24(0.856) | 1251(1696) | 1708(11776) | 1876(2544) | 2562(17664) | 193(144) | 1501(2035) | 2562(17664) | 2252(3053) | 3843(26496) | 232(173) | ||||||
| 3LZ-127-3.8DF | 3:4 | 3.8 | 130(3300) | 120(3040) | 5(130) | 100-251(380-950) | 111-276 | 1.1(0.291) | 1228(1665) | 569(3925) | 1843(2498) | 854(5888) | 64(48) | 1474(1998) | 854(5888) | 2211(2997) | 1281(8832) | 78(58) | ||||||
| 7LZ-127-2.7 | 7:8 | 2.7 | 130(3300) | 120(3040) | 5(130) | 151-349(570-1320) | 64-149 | 0.43(0.113) | 2236(3031) | 405(2789) | 3354(4547) | 607(4184) | 63(47) | 2683(3637) | 607(4184) | 4024(5456) | 910(6276) | 76(57) | ||||||
| 7LZ-127-2.8 | 7:8 | 2.8 | 130(3300) | 120(3040) | 5(130) | 151-349(570-1320) | 56-131 | 0.37(0.099) | 2658(3604) | 419(2892) | 3987(5406) | 629(4338) | 66(49) | 3190(4325) | 629(4338) | 4786(6488) | 944(6507) | 79(59) | ||||||
| 7LZ-127-3.3 | 7:8 | 3.3 | 157(4000) | 147(3740) | 5(130) | 151-349(570-1320) | 64-149 | 0.43(0.113) | 2732(3704) | 494(3409) | 4098(5556) | 742(5114) | 78(58) | 3279(4445) | 742(5114) | 4918(6668) | 1113(7671) | 93(69) | ||||||
| 7LZ-127-3.5 | 7:8 | 3.5 | 157(4000) | 147(3740) | 5(130) | 151-349(570-1320) | 56-131 | 0.37(0.099) | 3323(4505) | 524(3616) | 4985(6758) | 787(5424) | 83(62) | 3987(5406) | 787(5424) | 5981(8109) | 1180(8136) | 99(74) | ||||||
| 5-3/8 | 135 | 5LZ-135-4.5 | 5:6 | 4.5 | 150(3800) | 138(3510) | 6(145) | 211-423(800-1600) | 123-246 | 0.58(0.154) | 2749(3727) | 674(4649) | 4124(5591) | 1012(6974) | 129(96) | 3299(4472) | 1012(6974) | 4948(6708) | 1517(10461) | 154(115) | 6-3/4 - 8-3/4 | 171-222 | 41/2REG | 41/2REG |
| 7LZ-135-2.9DF | 7:8 | 2.9 | 150(3800) | 134(3400) | 8(200) | 211-423(800-1600) | 72-144 | 0.34(0.09) | 3015(4088) | 435(2996) | 4523(6132) | 652(4494) | 83(62) | 3619(4906) | 652(4494) | 5428(7359) | 978(6741) | 99(74) | 6-3/4 - 8-3/4 | 171-222 | 41/2REG | 41/2REG | ||
| 5-1/2 | 140 | 5LZ-140-5.5DF | 5:6 | 5.5 | 197(5000) | 177(4500) | 10(250) | 317-396(1200-1500) | 152-191 | 0.48(0.127) | 4083(5535) | 824(5682) | 6124(8303) | 1236(8523) | 149(111) | 4899(6642) | 1236(8523) | 7349(9963) | 1854(12785) | 178(133) | 9-7/8 - 12-1/4 | 251-311 | 65/8REG | 65/8REG |
| 7LZ-140-3.8DF | 7:8 | 3.8 | 118(3000) | 106(2700) | 6(150) | 317-396(1200-1500) | 146-183 | 0.46(0.122) | 2936(3981) | 569(3925) | 4405(5972) | 854(5888) | 102(76) | 3524(4777) | 854(5888) | 5286(7166) | 1281(8832) | 123(92) | ||||||
| 7LZ-140-4.6DF | 7:8 | 4.6 | 213(5400) | 197(5000) | 8(200) | 317-396(1200-1500) | 100-125 | 0.31(0.083) | 5195(7043) | 689(4752) | 7793(10565) | 1034(7128) | 123(92) | 6234(8452) | 1034(7128) | 9351(12678) | 1551(10692) | 149(111) | ||||||
| 7LZ-140-5.6DF | 7:8 | 5.6 | 213(5400) | 197(5000) | 8(200) | 317-396(1200-1500) | 120-150 | 0.38(0.1) | 5270(7145) | 839(5785) | 7906(10718) | 1259(8678) | 150(112) | 6324(8574) | 1259(8678) | 9486(12861) | 1888(13017) | 181(135) | ||||||
| 6-1/2 | 165 | 1LZ-165-1.1 | 1:2 | 1.1 | 83(2110) | 54(1365) | 15(372.5) | 301-600(1140-2270) | 295-588 | 0.98(0.259) | 398(540) | 165(1136) | 597(810) | 247(1704) | 44(33) | 478(648) | 247(1704) | 717(972) | 371(2556) | 54(40) | 8-3/8 - 9-7/8 | 213-251 | 41/2REG | 41/2REG |
| 5LZ-165-5.1 | 5:6 | 5.1 | 181(4600) | 168(4270) | 6(165) | 301-600(1140-2270) | 132-263 | 0.44(0.116) | 4124(5591) | 764(5268) | 6186(8387) | 1146(7902) | 207(154) | 4949(6709) | 1146(7902) | 7423(10064) | 1719(11853) | 248(185) | ||||||
| 7LZ-165-3.2 | 7:8 | 3.2 | 211(5350) | 198(5040) | 6(155) | 301-600(1140-2270) | 49-98 | 0.16(0.043) | 6921(9383) | 480(3306) | 10382(14075) | 719(4959) | 129(96) | 8305(11260) | 719(4959) | 12458(16890) | 1079(7439) | 156(116) | ||||||
| 7LZ-165-4.7 | 7:8 | 4.7 | 211(5350) | 198(5040) | 6(155) | 301-600(1140-2270) | 73-145 | 0.24(0.064) | 6861(9302) | 704(4855) | 10292(13953) | 1056(7283) | 189(141) | 8233(11162) | 1056(7283) | 12350(16743) | 1585(10925) | 227(169) | ||||||
| 7LZ-165-4.7 | 7:8 | 4.7 | 211(5350) | 198(5040) | 6(155) | 301-600(1140-2270) | 79-157 | 0.26(0.069) | 6362(8625) | 704(4855) | 9543(12938) | 1056(7283) | 190(142) | 7634(10350) | 1056(7283) | 11451(15525) | 1585(10925) | 228(170) | ||||||
| 7LZ-165-4.7DH | 7:8 | 4.7 | 181(4600) | 168(4270) | 6(165) | 301-600(1140-2270) | 95-188 | 0.31(0.083) | 6627(8985) | 1056(7283) | 9941(13478) | 1585(10925) | 237(177) | 7953(10782) | 1585(10925) | 11929(16173) | 2377(16388) | 284(212) | ||||||
| 7LZ-165-5.6 | 7:8 | 5.6 | 211(5350) | 198(5040) | 6(155) | 301-600(1140-2270) | 88-175 | 0.29(0.077) | 6812(9236) | 839(5785) | 10219(13854) | 1259(8678) | 227(169) | 8175(11083) | 1259(8678) | 12263(16625) | 1888(13017) | 272(203) | ||||||
| 7LZ-165-5.6 | 7:8 | 5.6 | 211(5350) | 198(5040) | 6(155) | 301-600(1140-2270) | 95-188 | 0.31(0.083) | 6317(8564) | 839(5785) | 9475(12846) | 1259(8678) | 227(169) | 7580(10277) | 1259(8678) | 11371(15416) | 1888(13017) | 271(202) | ||||||
| 6-3/4 | 172 | 2LZ-172-9.4DF | 2:3 | 9.4 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 380-756 | 1.26(0.333) | 2651(3594) | 1408(9710) | 3976(5391) | 2113(14565) | 382(285) | 3181(4313) | 2113(14565) | 4772(6470) | 3169(21848) | 457(341) | 8-3/8 - 9-7/8 | 213-251 | 41/2REG | 41/2REG |
| 2LZ-172-11.7DF | 2:3 | 11.7 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 589-1174 | 1.96(0.517) | 2127(2884) | 1753(12086) | 3191(4326) | 2629(18129) | 476(355) | 2553(3461) | 2629(18129) | 3830(5192) | 3944(27194) | 571(426) | ||||||
| 4LZ-172-6.7 | 4:5 | 6.7 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 138-275 | 0.46(0.121) | 5208(7061) | 1004(6921) | 7813(10592) | 1506(10382) | 272(203) | 6250(8473) | 1506(10382) | 9375(12710) | 2259(15573) | 327(244) | ||||||
| 4LZ-172-10.3 | 4:5 | 10.3 | 247(6280) | 228(5800) | 9(240) | 301-600(1140-2270) | 182-363 | 0.61(0.16) | 6039(8188) | 1543(10640) | 9059(12282) | 2315(15960) | 417(311) | 7248(9826) | 2315(15960) | 10871(14739) | 3472(23940) | 502(374) | ||||||
| 5LZ-172-5.6DH | 5:6 | 5.6 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 104-207 | 0.34(0.091) | 7204(9767) | 1259(8677) | 10807(14651) | 1888(13016) | 284(212) | 8645(11720) | 1888(13016) | 12967(17580) | 2832(19524) | 341(254) | ||||||
| 5LZ-172-6.2 | 5:6 | 6.2 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 112-222 | 0.37(0.098) | 5964(8086) | 929(6405) | 8946(12129) | 1394(9608) | 252(188) | 7157(9703) | 1394(9608) | 10736(14555) | 2090(14412) | 303(226) | ||||||
| 5LZ-172-6.2DH | 5:6 | 6.2 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 114-227 | 0.38(0.1) | 7285(9877) | 1393(9607) | 10928(14816) | 2090(14411) | 315(235) | 8742(11852) | 2090(14411) | 13113(17778) | 3135(21617) | 378(282) | ||||||
| 5LZ-172-6.4DF | 5:6 | 6.4 | 247(6280) | 228(5800) | 9(240) | 301-600(1140-2270) | 121-241 | 0.4(0.106) | 5649(7659) | 959(6611) | 8474(11489) | 1438(9917) | 259(193) | 6779(9191) | 1438(9917) | 10169(13787) | 2158(14876) | 311(232) | ||||||
| 5LZ-172-7.1 | 5:6 | 7.1 | 247(6280) | 228(5800) | 9(240) | 301-600(1140-2270) | 112-222 | 0.37(0.098) | 6830(9260) | 1064(7334) | 10245(13890) | 1596(11001) | 288(215) | 8196(11112) | 1596(11001) | 12294(16668) | 2393(16502) | 346(258) | ||||||
| 7LZ-172-3.0DH | 7:8 | 3.0 | 118(3000) | 109(2760) | 5(120) | 301-600(1140-2270) | 83-166 | 0.28(0.073) | 4833(6553) | 674(4649) | 7251(9830) | 1012(6974) | 153(114) | 5800(7864) | 1012(6974) | 8701(11796) | 1517(10461) | 184(137) | ||||||
| 7LZ-172-3.2 | 7:8 | 3.2 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 42-84 | 0.14(0.037) | 8082(10957) | 480(3306) | 12123(16436) | 719(4959) | 129(96) | 9698(13148) | 719(4959) | 14547(19722) | 1079(7439) | 156(116) | ||||||
| 7LZ-172-4.0 | 7:8 | 4.0 | 181(4600) | 168(4270) | 6(165) | 301-600(1140-2270) | 79-157 | 0.26(0.069) | 5415(7341) | 599(4132) | 8122(11012) | 899(6198) | 162(121) | 6498(8809) | 899(6198) | 9747(13214) | 1348(9297) | 194(145) | ||||||
| 7LZ-172-4.0DH | 7:8 | 4.0 | 197(5000) | 189(4800) | 4(100) | 301-600(1140-2270) | 65-129 | 0.22(0.057) | 8205(11124) | 899(6198) | 12308(16686) | 1348(9297) | 201(150) | 9846(13349) | 1348(9297) | 14770(20024) | 2023(13946) | 241(180) | ||||||
| 7LZ-172-4.0DH | 7:8 | 4.0 | 197(5000) | 189(4800) | 4(100) | 301-600(1140-2270) | 57-114 | 0.19(0.05) | 9472(12841) | 899(6198) | 14208(19262) | 1348(9297) | 205(153) | 11366(15409) | 1348(9297) | 17049(23114) | 2023(13946) | 247(184) | ||||||
| 7LZ-172-4.3 | 7:8 | 4.3 | 197(5000) | 181(4600) | 8(200) | 301-600(1140-2270) | 73-145 | 0.24(0.064) | 6278(8511) | 644(4442) | 9417(12767) | 966(6663) | 173(129) | 7533(10213) | 966(6663) | 11300(15320) | 1450(9995) | 208(155) | ||||||
| 7LZ-172-4.3DH | 7:8 | 4.3 | 197(5000) | 181(4600) | 8(200) | 301-600(1140-2270) | 79-157 | 0.26(0.069) | 7276(9864) | 966(6663) | 10914(14796) | 1450(9995) | 217(162) | 8731(11837) | 1450(9995) | 13097(17756) | 2175(14993) | 261(195) | ||||||
| 7LZ-172-4.7 | 7:8 | 4.7 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 73-145 | 0.24(0.064) | 6861(9302) | 704(4855) | 10292(13953) | 1056(7283) | 189(141) | 8233(11162) | 1056(7283) | 12350(16743) | 1585(10925) | 227(169) | ||||||
| 7LZ-172-4.7 | 7:8 | 4.7 | 181(4600) | 168(4270) | 6(165) | 301-600(1140-2270) | 95-188 | 0.31(0.083) | 5302(7188) | 704(4855) | 7953(10782) | 1056(7283) | 190(142) | 6363(8626) | 1056(7283) | 9544(12939) | 1585(10925) | 228(170) | ||||||
| 7LZ-172-4.7DH | 7:8 | 4.7 | 181(4600) | 168(4270) | 6(165) | 301-600(1140-2270) | 95-188 | 0.31(0.083) | 6627(8985) | 1056(7283) | 9941(13478) | 1585(10925) | 237(177) | 7953(10782) | 1585(10925) | 11929(16173) | 2377(16388) | 284(212) | ||||||
| 7LZ-172-4.9 | 7:8 | 4.9 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 65-129 | 0.22(0.057) | 8044(10905) | 734(5062) | 12066(16358) | 1101(7593) | 197(147) | 9652(13086) | 1101(7593) | 14478(19629) | 1652(11390) | 237(177) | ||||||
| 7LZ-172-5.0 | 7:8 | 5.0 | 197(5000) | 181(4600) | 8(200) | 301-600(1140-2270) | 83-166 | 0.28(0.073) | 6405(8684) | 749(5165) | 9608(13026) | 1124(7748) | 202(151) | 7687(10421) | 1124(7748) | 11530(15632) | 1686(11622) | 243(181) | ||||||
| 7LZ-172-5.0DH | 7:8 | 5.0 | 197(5000) | 181(4600) | 8(200) | 301-600(1140-2270) | 83-166 | 0.28(0.073) | 8007(10855) | 1124(7748) | 12010(16283) | 1686(11622) | 253(189) | 9608(13026) | 1686(11622) | 14412(19539) | 2528(17433) | 303(226) | ||||||
| 7LZ-172-5.0DH | 7:8 | 5.0 | 197(5000) | 181(4600) | 8(200) | 301-600(1140-2270) | 74-148 | 0.25(0.065) | 9021(12230) | 1124(7748) | 13531(18345) | 1686(11622) | 255(190) | 10825(14676) | 1686(11622) | 16238(22014) | 2528(17433) | 304(227) | ||||||
| 7LZ-172-5.1 | 7:8 | 5.1 | 197(5000) | 181(4600) | 8(200) | 301-600(1140-2270) | 88-175 | 0.29(0.077) | 6204(8411) | 764(5268) | 9306(12617) | 1146(7902) | 207(154) | 7445(10093) | 1146(7902) | 11167(15140) | 1719(11853) | 248(185) | ||||||
| 7LZ-172-5.1DH | 7:8 | 5.1 | 197(5000) | 181(4600) | 8(200) | 301-600(1140-2270) | 95-188 | 0.31(0.083) | 7191(9749) | 1146(7902) | 10787(14624) | 1719(11853) | 257(192) | 8629(11699) | 1719(11853) | 12944(17549) | 2579(17780) | 308(230) | ||||||
| 7LZ-172-5.1 | 7:8 | 5.1 | 230(5854) | 216(5494) | 7(180) | 301-600(1140-2270) | 71-141 | 0.23(0.062) | 7717(10462) | 764(5268) | 11575(15693) | 1146(7902) | 207(154) | 9260(12554) | 1146(7902) | 13890(18831) | 1719(11853) | 248(185) | ||||||
| 7LZ-172-5.5 | 7:8 | 5.5 | 213(5400) | 197(5000) | 8(200) | 301-600(1140-2270) | 83-166 | 0.28(0.073) | 7046(9552) | 824(5682) | 10568(14328) | 1236(8523) | 223(166) | 8454(11462) | 1236(8523) | 12682(17193) | 1854(12785) | 267(199) | ||||||
| 7LZ-172-5.5 | 7:8 | 5.5 | 213(5400) | 197(5000) | 8(200) | 301-600(1140-2270) | 83-166 | 0.28(0.073) | 7046(9552) | 824(5682) | 10568(14328) | 1236(8523) | 223(166) | 8454(11462) | 1236(8523) | 12682(17193) | 1854(12785) | 267(199) | ||||||
| 7LZ-172-5.6 | 7:8 | 5.6 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 88-175 | 0.29(0.077) | 6812(9236) | 839(5785) | 10219(13854) | 1259(8678) | 227(169) | 8175(11083) | 1259(8678) | 12263(16625) | 1888(13017) | 272(203) | ||||||
| 7LZ-172-6.3 | 7:8 | 6.3 | 247(6280) | 228(5800) | 9(240) | 301-600(1140-2270) | 83-166 | 0.28(0.073) | 8071(10942) | 944(6508) | 12106(16413) | 1416(9762) | 255(190) | 9685(13130) | 1416(9762) | 14527(19695) | 2124(14643) | 306(228) | ||||||
| 7LZ-172-6.4 | 7:8 | 6.4 | 247(6280) | 228(5800) | 9(240) | 301-600(1140-2270) | 88-175 | 0.29(0.077) | 7786(10556) | 959(6611) | 11679(15834) | 1438(9917) | 259(193) | 9343(12667) | 1438(9917) | 14015(19001) | 2158(14876) | 311(232) | ||||||
| 9LZ-172-8.3DF | 9:10 | 8.3 | 311(7900) | 295(7500) | 8(200) | 301-600(1140-2270) | 79-157 | 0.26(0.069) | 11296(15315) | 1244(8574) | 16945(22973) | 1865(12861) | 338(252) | 13556(18378) | 1865(12861) | 20333(27567) | 2798(19292) | 405(302) | ||||||
| 7-1/4 | 185 | 5LZ-185-5.6 | 5:6 | 5.6 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 90-179 | 0.3(0.079) | 6697(9079) | 839(5785) | 10045(13619) | 1259(8678) | 228(170) | 8036(10895) | 1259(8678) | 12055(16343) | 1888(13017) | 274(204) | 8-3/4 - 9-7/8 | 222-251 | 51/2REG | 65/8REG |
| 6LZ-185-3.8DF | 6:7 | 3.8 | 169(4300) | 157(4000) | 6(150) | 301-600(1140-2270) | 79-157 | 0.26(0.069) | 5182(7026) | 569(3925) | 7774(10539) | 854(5888) | 156(116) | 6219(8431) | 854(5888) | 9328(12647) | 1281(8832) | 186(139) | ||||||
| 6LZ-185-4.8 | 6:7 | 4.8 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 60-120 | 0.2(0.053) | 8502(11526) | 719(4958) | 12752(17289) | 1079(7437) | 194(145) | 10202(13831) | 1079(7437) | 15303(20747) | 1618(11156) | 233(174) | ||||||
| 7LZ-185-3.2 | 7:8 | 3.2 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 42-84 | 0.14(0.037) | 8082(10957) | 480(3306) | 12123(16436) | 719(4959) | 129(96) | 9698(13148) | 719(4959) | 14547(19722) | 1079(7439) | 156(116) | ||||||
| 7LZ-185-3.3DF | 7:8 | 5.6 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 74-148 | 0.25(0.065) | 8142(11038) | 839(5785) | 12212(16557) | 1259(8678) | 229(171) | 9770(13246) | 1259(8678) | 14655(19869) | 1888(13017) | 275(205) | ||||||
| 7LZ-185-4.9 | 7:8 | 4.9 | 213(5400) | 200(5070) | 6(165) | 301-600(1140-2270) | 65-129 | 0.22(0.057) | 8044(10905) | 734(5062) | 12066(16358) | 1101(7593) | 197(147) | 9652(13086) | 1101(7593) | 14478(19629) | 1652(11390) | 237(177) | ||||||
| 7-3/4 | 197 | 2LZ-197-6.9DF | 2:3 | 6.9 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 432-975 | 1.08(0.286) | 2267(3073) | 1034(7128) | 3400(4610) | 1551(10692) | 421(314) | 2720(3688) | 1551(10692) | 4080(5532) | 2326(16038) | 506(377) | 9-7/8 - 12-1/4 | 251-311 | 65/8REG | 65/8REG |
| 5LZ-197-5.6 | 5:6 | 5.6 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 107-242 | 0.27(0.071) | 7442(10089) | 839(5785) | 11163(15134) | 1259(8678) | 343(256) | 8930(12107) | 1259(8678) | 13396(18161) | 1888(13017) | 412(307) | ||||||
| 6LZ-197-4.8 | 6:7 | 4.8 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 72-164 | 0.18(0.048) | 9359(12689) | 719(4958) | 14039(19034) | 1079(7437) | 292(218) | 11231(15227) | 1079(7437) | 16848(22841) | 1618(11156) | 351(262) | ||||||
| 6LZ-197-4.8DH | 6:7 | 4.8 | 213(5400) | 197(5000) | 8(200) | 634-793(2400-3000) | 115-144 | 0.18(0.048) | 11699(15861) | 1079(7438) | 17549(23792) | 1618(11157) | 320(239) | 14039(19033) | 1618(11157) | 21058(28550) | 2427(16736) | 385(287) | ||||||
| 8 | 203 | 4LZ-203-5.6 | 4:5 | 5.6 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 106-239 | 0.26(0.07) | 7470(10127) | 839(5785) | 11205(15191) | 1259(8678) | 339(253) | 8963(12152) | 1259(8678) | 13445(18228) | 1888(13017) | 408(304) | 9-7/8 - 12-1/4 | 251-311 | 65/8REG | 65/8REG |
| 4LZ-203-6.1DH | 4:5 | 6.1 | 244(6200) | 232(5900) | 6(150) | 399-901(1510-3410) | 97-218 | 0.24(0.064) | 11181(15158) | 1371(9452) | 16771(22737) | 2056(14178) | 464(346) | 13417(18190) | 2056(14178) | 20125(27285) | 3085(21267) | 557(415) | ||||||
| 5LZ-203-3.0 | 5:6 | 3.0 | 119(3020) | 107(2720) | 6(150) | 399-901(1510-3410) | 92-208 | 0.23(0.061) | 4592(6225) | 449(3099) | 6888(9338) | 674(4649) | 182(136) | 5510(7470) | 674(4649) | 8265(11205) | 1012(6974) | 219(163) | ||||||
| 5LZ-203-5.6 | 5:6 | 5.6 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 92-208 | 0.23(0.061) | 8570(11619) | 839(5785) | 12856(17429) | 1259(8678) | 339(253) | 10284(13943) | 1259(8678) | 15427(20915) | 1888(13017) | 408(304) | ||||||
| 6LZ-203-4.8 | 6:7 | 4.8 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 69-157 | 0.17(0.046) | 9740(13205) | 719(4958) | 14610(19808) | 1079(7437) | 291(217) | 11688(15846) | 1079(7437) | 17532(23769) | 1618(11156) | 350(261) | ||||||
| 7LZ-203-4.1 | 7:8 | 4.1 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 62-140 | 0.16(0.041) | 9383(12721) | 614(4235) | 14075(19082) | 921(6353) | 251(187) | 11259(15265) | 921(6353) | 16890(22898) | 1382(9530) | 300(224) | ||||||
| 7LZ-203-3.8DH | 7:8 | 3.8 | 197(5000) | 181(4600) | 8(200) | 399-901(1510-3410) | 62-140 | 0.16(0.041) | 10871(14738) | 854(5888) | 16306(22107) | 1281(8832) | 290(216) | 13045(17686) | 1281(8832) | 19568(26529) | 1921(13248) | 347(259) | ||||||
| 7LZ-203-4.2 | 7:8 | 4.2 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 56-126 | 0.14(0.037) | 10714(14526) | 629(4339) | 16072(21789) | 944(6509) | 257(192) | 12857(17431) | 944(6509) | 19286(26147) | 1416(9764) | 308(230) | ||||||
| 7LZ-203-4.2DH | 7:8 | 4.2 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 56-126 | 0.14(0.037) | 13393(18158) | 944(6508) | 20090(27237) | 1416(9762) | 322(240) | 16072(21790) | 1416(9762) | 24108(32685) | 2124(14643) | 386(288) | ||||||
| 8-1/2 | 216 | 5LZ-216-5.6DF | 5:6 | 5.6 | 213(5400) | 197(5000) | 8(200) | 528-1057(2000-4000) | 104-208 | 0.2(0.052) | 10154(13766) | 839(5785) | 15231(20649) | 1259(8678) | 402(300) | 12184(16519) | 1259(8678) | 18277(24779) | 1888(13017) | 483(360) | 12-1/4 - 15-1/2 | 311-394 | 65/8REG | 65/8REG |
| 6LZ-216-4.8 | 6:7 | 4.8 | 213(5400) | 197(5000) | 8(200) | 449-1001(1700-3790) | 63-140 | 0.14(0.037) | 12229(16580) | 719(4958) | 18344(24870) | 1079(7437) | 326(243) | 14675(19896) | 1079(7437) | 22013(29844) | 1618(11156) | 392(292) | ||||||
| 6LZ-216-4.8DF | 6:7 | 4.8 | 213(5400) | 197(5000) | 8(200) | 399-901(1510-3410) | 60-136 | 0.15(0.04) | 11383(15433) | 719(4958) | 17075(23150) | 1079(7437) | 295(220) | 13660(18520) | 1079(7437) | 20491(27780) | 1618(11156) | 354(264) | ||||||
| 7LZ-216-4.2DF | 7:8 | 4.2 | 213(5400) | 197(5010) | 8(195) | 399-901(1510-3410) | 51-116 | 0.13(0.034) | 11709(15874) | 629(4339) | 17563(23811) | 944(6509) | 259(193) | 14051(19049) | 944(6509) | 21076(28574) | 1416(9764) | 310(231) | ||||||
| 9 | 228 | 5LZ-228-4.2 | 5:6 | 4.2 | 213(5400) | 197(5010) | 8(195) | 600-1199(2270-4540) | 77-154 | 0.13(0.034) | 11731(15904) | 629(4339) | 17596(23856) | 944(6509) | 343(256) | 14077(19085) | 944(6509) | 21116(28628) | 1416(9764) | 413(308) | 12-1/4 - 15-1/2 | 311-394 | 65/8REG | 75/8REG |
| 5LZ-228-5.6DF | 5:6 | 5.6 | 213(5400) | 197(5010) | 8(195) | 600-1199(2270-4540) | 107-213 | 0.18(0.047) | 11265(15273) | 839(5785) | 16898(22910) | 1259(8678) | 457(341) | 13519(18328) | 1259(8678) | 20278(27492) | 1888(13017) | 548(409) | ||||||
| 6LZ-228-4.8 | 6:7 | 4.8 | 213(5400) | 197(5010) | 8(195) | 600-1199(2270-4540) | 79-159 | 0.13(0.035) | 12870(17449) | 719(4958) | 19306(26174) | 1079(7437) | 390(291) | 15445(20939) | 1079(7437) | 23167(31409) | 1618(11156) | 468(349) | ||||||
| 7LZ-228-4.2 | 7:8 | 4.2 | 213(5400) | 197(5010) | 8(195) | 600-1199(2270-4540) | 61-123 | 0.1(0.027) | 14782(20041) | 629(4339) | 22174(30062) | 944(6509) | 346(258) | 17739(24049) | 944(6509) | 26608(36074) | 1416(9764) | 416(310) | ||||||
| 7LZ-228-4.2DF | 7:8 | 4.2 | 213(5400) | 197(5010) | 8(195) | 600-1199(2270-4540) | 70-141 | 0.12(0.031) | 12922(17519) | 629(4339) | 19383(26279) | 944(6509) | 347(259) | 15507(21023) | 944(6509) | 23260(31535) | 1416(9764) | 416(310) | ||||||
| 9-5/8 | 244 | 5LZ-244-4.2 | 5:6 | 4.2 | 213(5400) | 199(5047) | 7(176.5) | 600-1199(2270-4540) | 77-154 | 0.13(0.034) | 11731(15904) | 629(4339) | 17596(23856) | 944(6509) | 343(256) | 14077(19085) | 944(6509) | 21116(28628) | 1416(9764) | 413(308) | 12-1/4 - 17-1/2 | 311-445 | 65/8REG | 75/8REG |
| 6LZ-244-4.8 | 6:7 | 4.8 | 213(5400) | 199(5047) | 7(176.5) | 600-1199(2270-4540) | 79-159 | 0.13(0.035) | 12870(17449) | 719(4958) | 19306(26174) | 1079(7437) | 390(291) | 15445(20939) | 1079(7437) | 23167(31409) | 1618(11156) | 468(349) | ||||||
| 7LZ-244-4.2 | 7:8 | 4.2 | 213(5400) | 199(5047) | 7(176.5) | 600-1199(2270-4540) | 61-123 | 0.1(0.027) | 14782(20041) | 629(4339) | 22174(30062) | 944(6509) | 346(258) | 17739(24049) | 944(6509) | 26608(36074) | 1416(9764) | 416(310) | ||||||
| 7LZ-244-4.3DH | 7:8 | 4.3 | 217(5500) | 201(5100) | 8(200) | 600-1199(2270-4540) | 64-127 | 0.11(0.028) | 18060(24485) | 966(6663) | 27091(36728) | 1450(9995) | 437(326) | 21672(29382) | 1450(9995) | 32508(44073) | 2175(14993) | 524(391) | ||||||
| 7LZ-244-4.9DF | 7:8 | 4.9 | 213(5400) | 199(5047) | 7(176.5) | 600-1199(2270-4540) | 75-150 | 0.12(0.033) | 13809(18722) | 734(5062) | 20714(28083) | 1101(7593) | 394(294) | 16571(22466) | 1101(7593) | 24856(33699) | 1652(11390) | 473(353) | ||||||
| 7LZ-244-6.1 | 7:8 | 6.1 | 263(6688) | 243(6168) | 10(260) | 600-1199(2270-4540) | 75-150 | 0.12(0.033) | 17373(23554) | 914(6301) | 26060(35331) | 1371(9452) | 496(370) | 20848(28265) | 1371(9452) | 31273(42398) | 2056(14178) | 595(444) | ||||||
| 9LZ-244-7.2DF | 9:10 | 7.2 | 315(8000) | 295(7500) | 10(250) | 600-1199(2270-4540) | 73-145 | 0.12(0.032) | 21033(28516) | 1079(7438) | 31550(42774) | 1618(11157) | 581(433) | 25240(34219) | 1618(11157) | 37860(51329) | 2427(16736) | 697(520) | ||||||
| 11-1/4 | 286 | 4LZ-286-5.0 | 4:5 | 5.0 | 213(5400) | 195(4956) | 9(222) | 600-1199(2270-4540) | 73-145 | 0.12(0.032) | 14742(19987) | 749(5165) | 22114(29981) | 1124(7748) | 406(303) | 17691(23984) | 1124(7748) | 26536(35976) | 1686(11622) | 488(364) | 14-3/4 - 26 | 375-660 | 75/8REG | 75/8REG |
| 7LZ-286-5.8DF | 7:8 | 5.8 | 213(5400) | 192(4870) | 10(265) | 600-1199(2270-4540) | 59-118 | 0.1(0.026) | 20956(28411) | 869(5991) | 31434(42617) | 1303(8987) | 471(351) | 25147(34093) | 1303(8987) | 37721(51140) | 1955(13481) | 565(421) | ||||||
| 9LZ-286-4.2 | 9:10 | 4.2 | 213(5400) | 199(5042) | 7(179) | 600-1199(2270-4540) | 39-77 | 0.06(0.017) | 23203(31457) | 629(4339) | 34804(47186) | 944(6509) | 341(254) | 27843(37748) | 944(6509) | 41764(56622) | 1416(9764) | 408(304) | ||||||
| 13LZ-286-4.0DF | 13:14 | 4.0 | 213(5400) | 197(5000) | 8(200) | 600-1199(2270-4540) | 27-54 | 0.05(0.012) | 31287(42417) | 599(4132) | 46931(63626) | 899(6198) | 322(240) | 37544(50900) | 899(6198) | 56316(76350) | 1348(9297) | 386(288) | ||||||
| 13-3/8 | 340 | 9LZ-340-3.4 | 9:10 | 3.4 | 177(4500) | 161(4100) | 8(200) | 399-901(1510-3410) | 14-31 | 0.03(0.009) | 34562(46857) | 509(3512) | 51843(70286) | 764(5268) | 204(152) | 41474(56228) | 764(5268) | 62211(84342) | 1146(7902) | 245(183) | ||||
| 14LZ-340-2.9 | 14:15 | 2.9 | 177(4500) | 161(4100) | 8(200) | 399-901(1510-3410) | 32-72 | 0.08(0.021) | 13255(17971) | 435(2996) | 19883(26957) | 652(4494) | 182(136) | 15906(21565) | 652(4494) | 23860(32348) | 978(6741) | 219(163) | ||||||
| 14LZ-340-3.5 | 14:15 | 3.5 | 177(4500) | 161(4100) | 8(200) | 399-901(1510-3410) | 36-82 | 0.09(0.024) | 13445(18228) | 524(3616) | 20167(27342) | 787(5424) | 211(157) | 16134(21874) | 787(5424) | 24201(32811) | 1180(8136) | 252(188) | ||||||
Product Description
Our downhole mud motor is a high-performance Positive Displacement Motor (PDM) designed to deliver superior torque and consistent rotation to the drill bit in the most demanding drilling conditions. It converts hydraulic energy from drilling fluid into mechanical power, enabling efficient drilling through tough formations. Engineered with an emphasis on efficiency, durability, and reliability, this tool provides high torque output, a wide flow rate range, stable operation and long service life, ensuring you achieve deeper and faster penetration with minimal downtime.
Developed by a team with strong R&D capabilities, all major components of the mud motor (except industrial adhesives) are designed and manufactured in-house for maximum quality control. We are a professional manufacturer integrating research & development, design, and production, The whole tool — spanning the power unit to the bearing components — functions as a unified, finely tuned system. This in-house control enables us to tailor the motor precisely to each client’s specifications and drive ongoing design enhancements. We can easilymodify or tailor our product line based on your requirements, offering custom sizes, power sections, or connection types as needed. This flexibility, combined with rigorous testing and material selection, translates to a mud motor that outperforms others in its class.
In summary, the Mud Motor offers exceptional drilling efficiency and longevity. Its robust build and premium materials(high-strength alloy steels, cutting-edge elastomers) guarantee durable performance under intense pressure and harsh, abrasive fluids over long operational periods. Opt for this mud motor to cut down drilling duration and lower upkeep expenses, backed by our company’s continuous technological advancement and dedicated support.
Certifications
We understand that quality and compliance are paramount in the drilling industry. Our downhole mud motors come with all the necessary certifications and documentation to meet international standards and client requirements:
- API Certification - Manufactured in accordance with API Spec 7-1 and API Q1 quality systems for drilling tools. (The motor design and threading meet API specifications to ensure compatibility and safety.)
- ISO Quality Certification - Certified to ISO 9001 Quality Management System standards, reflecting our commitment to consistent quality and continual improvement. (Environmental and Safety management certifications such as ISO 14001/ISO 45001 are also attained, underscoring our comprehensive compliance.)
- CNPC Approval - Registered as an approved supplier to China National Petroleum Corporation (CNPC) for drilling equipment. (This recognizes our product's quality in oilfield operations and allows use in CNPC projects.)
- Third-Party Test Reports - Our mud motors are independently tested and verified. For instance, SGS inspection reports confirm material properties and performance specs. We provide any third-party quality or performance test reports upon request, ensuring transparency.
- Additional Certificates - National High-Tech Enterpriseindustry recognitions and additional accolades (such as being a member of the Chinese Society of Trenchless Technology) strongly reflect our robust research capabilities and superior product quality. Every compliance document and related paperwork (including conformity certificates and mill test reports) will accompany the product.
Application Scenarios
Our downhole mud motors are versatileand suitable for various drilling sectors and operational conditions. Key areas of performance and adoption include oil, gas, coal, and HDD, with additional benefits observed in other drilling environments where mud motors deliver significant advantages:
- Oil & Gas Drilling: Ideal for directional and horizontal drilling in oil and natural gas wells. Mud motors are extensively used in onshore and offshore drilling to increase the Rate of Penetration (ROP) in hard rock and to steer wells directionally. For example, our motors are widely utilized in oilfield directional drilling BHAscapable of cutting through bent and horizontal well segments. Designed to supply the necessary power and rotational rate for PDC and rock bits, they perform reliably under extreme pressure and temperature conditions, enabling smooth access to underground reservoirs.
- Coal Mining & Methane Drainage:Engineered for coalbed methane (CBM) drilling and mine degasification applications. Our mud motors enable precise directional drilling within coal layers to facilitate gas release, target high-gas content seams, and reduce underground pressure. Leading Chinese energy firms trust our motors as dependable solutions incoal-field drilling projects. The motors' robust construction and resistance to dirty, abrasive drilling fluids render them ideal for the harsh environments typical in coal formations. With accurate directional control, they assist in reaching intended coal layers and improve either natural gas extraction or underground operation safety.
- Horizontal Directional Drilling (HDD)/Trenchless:A preferred solution for installing pipelines and utilities beneath roads, rivers, and dense cities. Within horizontal directional drilling systems, a mud motor located in the drill bit greatly enhances penetration through tough rock or gravel formations without the need for digging. This component isrobust enough for HDD operationsEnables consistent bit rotation and precise path direction over extended distances. The integrated sealed bearing and power unit maintains dependable operation when used with common HDD fluid circulation systems. Whether crossing rivers or installing utility lines, the mud motor enhances trenchless project outcomes by tackling complex ground conditions.
- Geothermal and Water Well Drilling: Applicable in high-temperature geothermal drilling and deep water-well drilling where rotary steerable systems might not be feasible. Mud motors have proven to be valuable in geothermal energy exploration, as they can operate in hot downhole environments and drill directional geothermal wells to tap steam reservoirs
Engineered with heat-resistant elastomers and sealing components, our motor delivers strong torque necessary to penetrate volcanic bedrock. In water well and geothermal applications, mud-powered drilling reduces operation duration and supports precise directional placement—such as reaching several aquifers or thermal zones from one wellsite. As a result, these motors play a key role in advancing sustainable geothermal energy initiatives byfacilitating complex well trajectories
- Other Industries: The downhole mud motor's use is not limited to the above. It also finds uses in mineral exploration, geotechnical drilling, and tunnelingin scenarios demanding consistent rotation below ground. Whether it's probing mineral deposits using targeted core drilling or constructing drainage and relief wells, a mud motor delivers significant advantages. By supplying rotational power directly at the drill point, it minimizes strain on the drill pipe and surface machinery, improving both safety and operational efficiency across diverse drilling applications.(If your industry or project involves drilling, chances are a mud motor can improve it. Feel free to consult us on any specialized application.)
FAQ
We’ve gathered frequent inquiries about mud motor usage, acquisition, and technical aid. For any further concerns, feel free to reach out—we’re always ready to assist.
- Q: Does this product support customization?
A: Yes. We offer full customization of the mud motorto fulfill your unique requirements. Our technical specialists can tailor the motor’s design (including length, power core, connection style, elastomer composition, and more) to match varying drilling fluids, torque demands, or wellbore conditions. Fundamentally, we can reconfigure the unit for increased torque, varied fluid throughput, greater heat resistance, or bespoke threading options. Thanks to our internal research and production capabilities, we handle bespoke projects with speed and precision. (Every part except adhesives is produced in-house, enabling full customization.) Prior to manufacturing, we collaborate with you to lock in the exact parameters and guarantee the motor aligns perfectly with your field objectives.
- Q: What payment terms do you accept?
A: We accept a variety of international payment terms to facilitate smooth transactions. Common options include Telegraphic Transfer (T/T), Letter of Credit (L/C), as well as others like D/P or D/A. Typically, we require a 30% T/T upfront and 70% due prior to dispatch, though adjustments can be made depending on order volume and client financial standing. Additionally, we can flexibly adjust terms to suit your needs.Western Union or other e-paymentfor minor quantities when required. Payment conditions will be explicitly defined in the agreement and the proforma invoice. We aim to offer adaptable arrangements without compromising trust or protection for either side.
- Q: What shipping and customs documentation do you provide?
A: We handle all logistics to ensure the product reaches you hassle-free. Each mud motor is packaged in a sturdy export crate or reinforced iron frame to protect it during transit. We provide a full set of shipping documents, including the Commercial Invoice, Packing List, and Bill of Lading (or Air Waybill) as standard. Additionally, we can supply a Certificate of Origin and any required customs clearance documents (e.g. CNPC approval letter, embassy certifications) if your country or project needs them. The product's HS code is 8431431000, which we will note in the invoice for smooth customs processing. We also include copies of all relevant certificates (API, ISO) and a factory inspection/test reportalong with the delivery, ensuring quality confirmation for both customs clearance and your internal files. Our logistics support will provide real-time tracking updates and handle all shipping questions until the motor arrives.
- Q: What maintenance is required for the mud motor?
A: Routine maintenance is very important to extend the mud motor's life. Under proper use, a mud motor can run for approximately 100 to 200 hours before needing routine maintenance(such as checks and refurbishment). It's advised to examine the motor’s drive unit and bearing components following every significant task or when operation nears ~150 hours. Service requires taking the motor apart toclean and check the rotor, stator, bearings, and seals, and replacing any worn parts (like the stator elastomer or bearings). We provide a Maintenance Manualcomplete instructions for motor upkeep, plus a list of essential spare components to stock. We’re ready to offer hands-on training or technical help—actually, we can help design a maintenance plan or establish a service hub for your downhole motors should you operate a fleet. Sticking to the scheduled checks and employing clean drilling fluid will keep the motor operating at its best throughout its entire lifespan.
- Q: What is the warranty on this product?
A: We stand behind the quality of our mud motors. Oilfield Equipment comes with a comprehensive warranty that covers manufacturing defects and premature failures. Typically, we offer a 10-month warranty from the date of dispatch, which also equates to a certain number of operational hours (for example, net drilling of 100 hours within 10 monthsis assured). This indicates that should the motor malfunction from a defect in materials or construction during the warranty timeframe (when used under typical conditions and with routine care), we will supply complimentary spare components or, if needed, replace the entire unit. Furthermore, we guarantee thestator rubber bonding and rotor hardfacingfor a set timeframe and will address all valid requests quickly. We value post-purchase care—going beyond the standard warranty, our technical experts assist with diagnosing problems, and we maintain an extensive inventory of replacement components (power modules, bearings, seals, and more) to meet your needs. Our aim is to keep your drilling activities efficient and uninterrupted.
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.4/5
0 Reviews
Company Verification
0/4
Profile Completeness
67%
Avg. Product Score
0/5
Responsiveness
0%
Certification
CE
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import Power Tools from China?
You can contact verified China supplier Orient Energy & Technologies Co., Ltd. through platforms like Freshdi.com to purchase Oilfield Equipment Drilling Equipment Drilling Tool Power Tool. For direct inquiries, please contact Ms. MengJie, the company’s representative. The supplier has a 3.4-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for Oilfield Equipment Drilling Equipment Drilling Tool Power Tool?
For Oilfield Equipment Drilling Equipment Drilling Tool Power Tool, Orient Energy & Technologies Co., Ltd. accepts LC, T/T, D/P, PayPal, Western Union, Small-amount payment as the preferred payment method, the trade term is FOB, CIF, CFR, EXW, and shipments are typically arranged from port Tianjin Port, ensuring secure and timely international delivery.
What is the current price of Oilfield Equipment Drilling Equipment Drilling Tool Power Tool?
The supplier Orient Energy & Technologies Co., Ltd. offers Oilfield Equipment Drilling Equipment Drilling Tool Power Tool at negotiation.
What are the specifications of Oilfield Equipment Drilling Equipment Drilling Tool Power Tool from China?
Oilfield Equipment Drilling Equipment Drilling Tool Power Tool is sourced from China and meets international export standards. Key specifications include: Customs Code: 8431431000, Output: 2000, HS Code: 8431431000, Transport Package: Bubble Warp, Iron Frame Fix, Typical Applications: Directional Well, Horizontal Well, and So on., Wear Parts: Stator, Bearing Assembly, Dump Valve, Trade Term: FOB, CIF, CFR, EXW, Payment Term: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
You are viewing details for Oilfield Equipment Drilling Equipment Drilling Tool Power Tool. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
Negotiable
Min. order: Negotiable
Ms. MengJie
Year Established: 2002-05-17
Visit Store
