Oily Slude Drying System & Drying Equipment
1 Set
$20,0001 Set
$199,800Product information
High-quality Oily Slude Drying System & Drying Equipment supplied by Shanghai Yiqi Pharmaceutical Machinery Group Company Limited. Bulk wholesale pricing ranges from $20,000 to $199,800 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
30units/Year
HS Code:
8433909090
Sprayer:
Air-Flowing Type
Operation Pressure:
Atmospheric Dryer
Operational Method:
Continuous
Flow:
Contra-Flow
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, FCA, EXW
Specification:
GMP, CE, CUSTOMIZED
Specifications
Production Capacity:
30units/Year
HS Code:
8433909090
Sprayer:
Air-Flowing Type
Operation Pressure:
Atmospheric Dryer
Operational Method:
Continuous
Flow:
Contra-Flow
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, FCA, EXW
Specification:
GMP, CE, CUSTOMIZED
Type Of Atomization:
Gas Atomization
Structure:
Hollow Blade Dryer
Drying Medium:
Inactive Gas
Payment Term:
LC, T/T, PayPal, Western Union
Type Of Flow:
Parallel Flow
Appearance Of Dried Sample:
Pastes
Model NO.:
QJ
Trademark:
SYQ
Origin:
Shanghai
Port Of Loading:
Shanghai Port, Guangzhou Port, Ningbo Port
Material Status:
Slurry, Mud, Paste
Transport Package:
Strong Export Packaging Carton for Export
Heating Mode:
Transmission
Drying Equipment For Chemical Industry:
for Drying Paste, Particle, Powder, Slurry.
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2008-06-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, FCA, EXW
Port Of Loading:
Shanghai Port, Guangzhou Port, Ningbo Port
Certificates:
CE Approved Machinery
Product descriptions from the supplier
Applicablefor drying or cooling of paste, particle, powder and slurry state of material.
Performs the process of drying, cooling, heating, sterilizing, reacting and combustion under low temperature
Special stirring and heating transferring blade, makes high heat transferring efficiency, and provides self-cleaning function
Special chock shaped stirring and heat transferring blade has high heating efficiency and self-cleaning function of the heating transferring surface

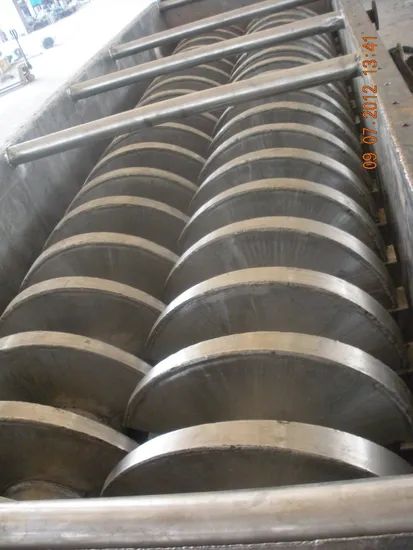

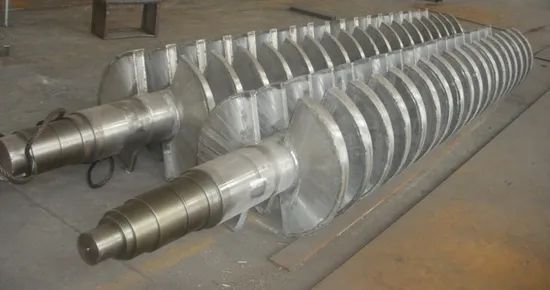

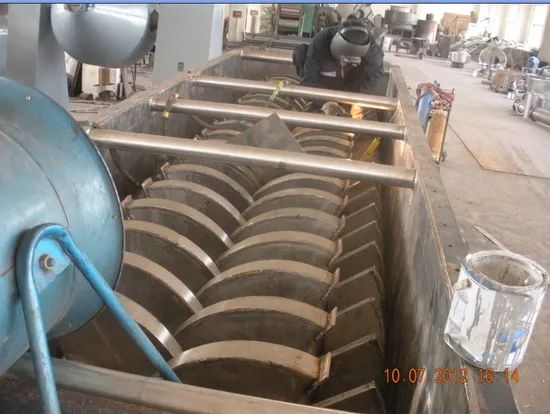

Hollow chock shaped blades are concentrated on the hollow shaft
Heat media flows through blade from hollow shaft
Heat transferring area in the effective volume is very high
Temperature range of heating media is -40 to 320°C
It might be steam or liquid state, such as steam and thermal oil
Indirect heating, there's no heat carried out by air
Heat is utilized for drying the material except lost of heat insulation layers
Surface of chock shaped blade has self-cleaning function
Relative movements of product particles and chocked shaped surface might clean the material attached to chock shaped surface, so to keep the cleanliness of heat transferring surface during working

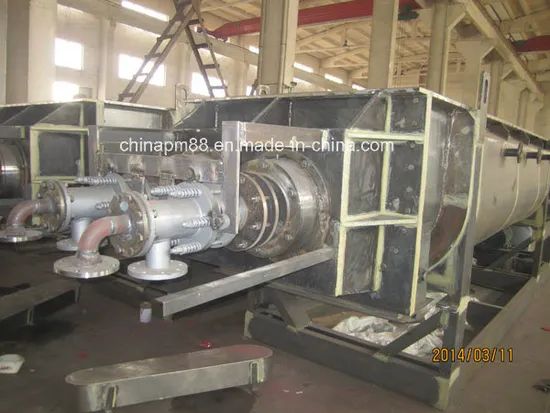

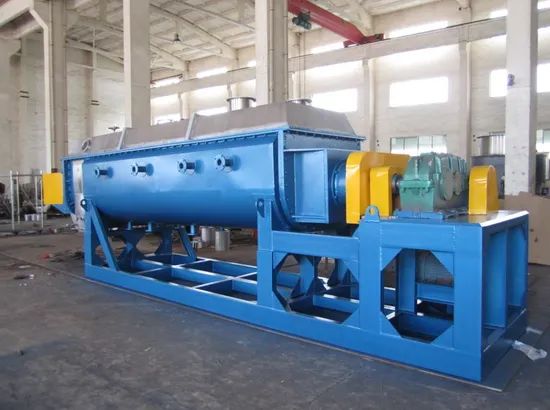

Shell of hollow blade dryer is Ω shape
2 or 4-piece of hollow stirring shaft are usually equipped in the shell
To avoid any leakage of material, there're sealed terminal cover and top cover with the shell
Heat transferring media flow through the rotation connector, jacket's shell and hollow stirring shaft
Ensures best transferring effect, hollow stirring shaft adopts different interior structure in accordance with different heating media.
Performs the process of drying, cooling, heating, sterilizing, reacting and combustion under low temperature
Special stirring and heating transferring blade, makes high heat transferring efficiency, and provides self-cleaning function
Special chock shaped stirring and heat transferring blade has high heating efficiency and self-cleaning function of the heating transferring surface
Hollow chock shaped blades are concentrated on the hollow shaft
Heat media flows through blade from hollow shaft
Heat transferring area in the effective volume is very high
Temperature range of heating media is -40 to 320°C
It might be steam or liquid state, such as steam and thermal oil
Indirect heating, there's no heat carried out by air
Heat is utilized for drying the material except lost of heat insulation layers
Surface of chock shaped blade has self-cleaning function
Relative movements of product particles and chocked shaped surface might clean the material attached to chock shaped surface, so to keep the cleanliness of heat transferring surface during working
Shell of hollow blade dryer is Ω shape
2 or 4-piece of hollow stirring shaft are usually equipped in the shell
To avoid any leakage of material, there're sealed terminal cover and top cover with the shell
Heat transferring media flow through the rotation connector, jacket's shell and hollow stirring shaft
Ensures best transferring effect, hollow stirring shaft adopts different interior structure in accordance with different heating media.
No. |
Name | Qty | Material | Remark |
| 1 | Principle axis | 2 | assembly | |
| 2 | Blade | 2 | SUS304 | |
| 3 | Mainframe below body | 1 | assembly | QJ-41 |
| 4 | Mainframe upper body | 1 | assembly | QJ-41 |
| 5 | Padding foundation | 4 | assembly | |
| 6 | Padding cover | 4 | assembly | |
| 7 | Bearing pedestal | 4 | assembly | |
| 8 | Master gear | 2 | 45 | |
| 9 | Transmission motor | 1 | assembly | 37 KW |
| 10 | Gear reducer | 1 | assembly | ZSY280-90 |
| 11 | Transmission driving wheel | 2 | HT200 | |
| 12 | Rotating joint | 2 | assembly | |
| 13 | Spillway slab | 1 | SUS304 | |
| 14 | SRZ steam radiator | 80m2 | A3 | |
| 15 | Control cabinet | 1 | assembly |
