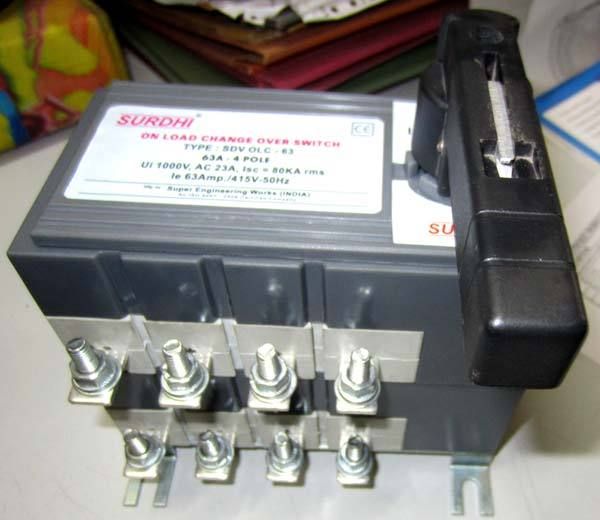

On Load Changeover Switches Utilization Category Ac23 Operation Type Manually Operated Handle Arrangement Single Handel Switch Frame Design Side By Side For
Negotiable
Product information
High-quality On Load Changeover Switches Utilization Category Ac23 Operation Type Manually Operated Handle Arrangement Single Handel Switch Frame Design Side By Side For supplied by Super Engineering Works. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Utilization Category:
Ac23
Switch Function:
Changeover Between Two Supply Sources While Under Load
Auxiliary Contact Type:
Co Type For Position Signalization Or Pre-break Control
Size Standardization:
Compaq Standardized Size Range 63a To 630a
Applications:
Control And Disconnection Of Distribution Feeders And Motor Loads
Environmental Protection:
Enclosed Housing To Avoid Dust Ingress
Electrical Life:
High Electrical And Mechanical Life
Standards Compliance:
Is 13947 - Part 3, Iec 947 - 3, Iec 664
Specifications
Utilization Category:
Ac23
Switch Function:
Changeover Between Two Supply Sources While Under Load
Auxiliary Contact Type:
Co Type For Position Signalization Or Pre-break Control
Size Standardization:
Compaq Standardized Size Range 63a To 630a
Applications:
Control And Disconnection Of Distribution Feeders And Motor Loads
Environmental Protection:
Enclosed Housing To Avoid Dust Ingress
Electrical Life:
High Electrical And Mechanical Life
Standards Compliance:
Is 13947 - Part 3, Iec 947 - 3, Iec 664
Load Reversibility:
Load And Line Reversibility
Operation Type:
Manually Operated
Additional Features:
Provision Of Phase Separators, Add-on Auxiliary Switch, Door Interlock, Padlock Facility, Silver Plated Current Carrying Parts, Bolt Holders On Terminals For Easy Cable/bus Bar Termination, Flexibility For Supply Termination
Mechanical Feature:
Quick Made And Quick Break Mechanism
Switch Frame Design:
Side By Side For 63a-630a
Handle Arrangement:
Single Handel
Operating Positions:
Three Stable Positions (i, O, Ii)
Trade Term:
To be discussed
Payment Term:
To be discussed
Contact System:
Two Independent Circuits With Circuit Closing And Circuit Ii Opening
Thermal And Dynamic Strength:
Withstands Rated Fused Short Circuit Current Level Of 80 Ka Rms
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2014
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Made using premium material, the On Load Changeover Switches, which we offer, is manufactured under the guidance of Quality Experts. We are amidst the dependable Manufacturers and Exporters of the On Load Changeover Switches from Delhi. We provide these On Load Changeover Switches at economical rates.
Functions
Surdhi are manually controlled On Load change over Switches. They Operate as changeover, giving three stable position (I, 0 & II) and help in Change over from one supply source to another.
General Characteristic
The ideal conception in Quick Cubic Change over Switches incorporate the following
Advantages :
Changeover Switches are manufactured from Surdhi moulded case on load changeover switches with single handel arrangement. The switch frames are side by side for 63A-630A. The whole range is manually operated.
Conformity
Applications
Functions
Surdhi are manually controlled On Load change over Switches. They Operate as changeover, giving three stable position (I, 0 & II) and help in Change over from one supply source to another.
General Characteristic
The ideal conception in Quick Cubic Change over Switches incorporate the following
Advantages :
- Three stable position (I, O &II) and possible changeover from one to the other while functioning.
- Circuits I and II open (Neutral Position)
- Circuit close and circuit II open (Transformer supply "On"and generator supply "Off")
- Circuit I open and circuit II close generator supply "On"and transformer supply "Off"
- Safely of division : Clearly apparent operation.
- High thermal and dynamic strength to withstand rated fused short circuit current level 80 KA rms.
- Is a switching control of two independent circuits (Circuit closing / Circuit II opening and vice versa).
- Is rated for AC23 A utilization category
Changeover Switches are manufactured from Surdhi moulded case on load changeover switches with single handel arrangement. The switch frames are side by side for 63A-630A. The whole range is manually operated.
Conformity
- IS 13947 - Parts 3
- IEC 947 - 3, IEC 664
Applications
- The Surdhi Quick Cubi... changeover switches are especially designed for control and disconnection of all kinds of circuits distribution feeders/motors loads.
- By mean of manual operation, changeover performs circuit switching and are mainly used as a switching / control of two independent circuit (Circuit closing / circuit II opening and vice versa).
- Compact size, Quick made & Quick Break mechanism.
- High electrical & mechanical life.
- Enclosed housing to avoid dust ingress.
- Load and Line reversibility."
- Provision of Phase separators, add-on auxiliary-switch.
- Door Interlock and padlock facility.
- Silver Plated Current carrying Parts.
- Bolt Holders installed on terminals for Easy Cables / Bus Part Termination.
- Flexibility for termination of supply.
- Compaq standardized size Range 63A- 630A as compared to leading indigenous makes. So, it saves panel space of cost.
