Share on

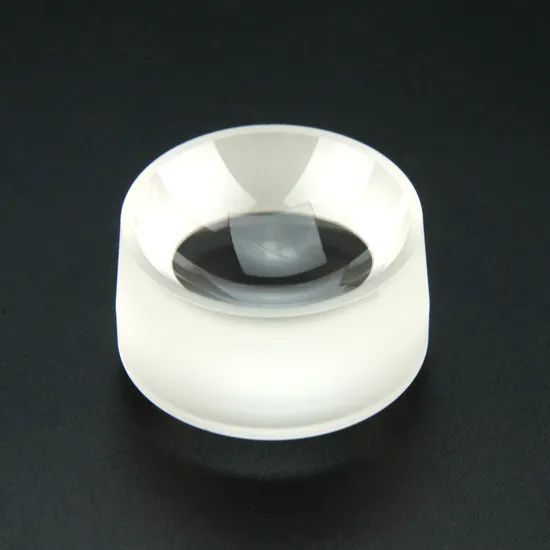

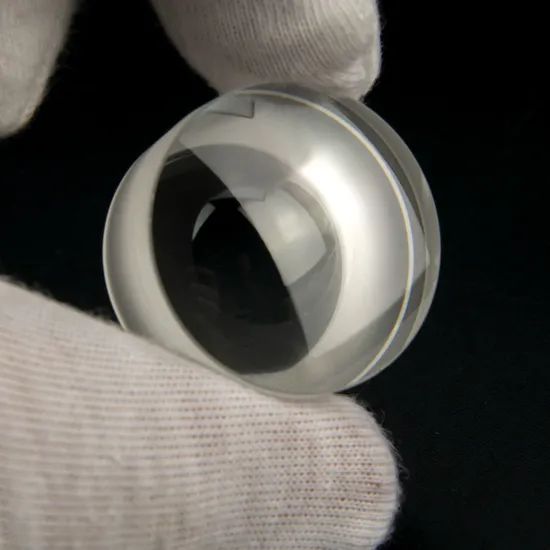

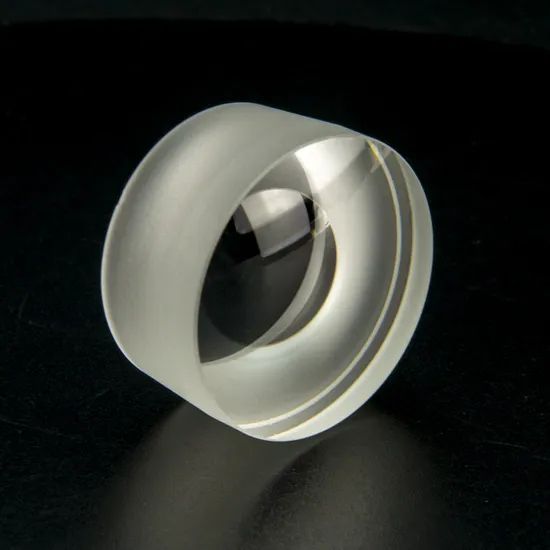

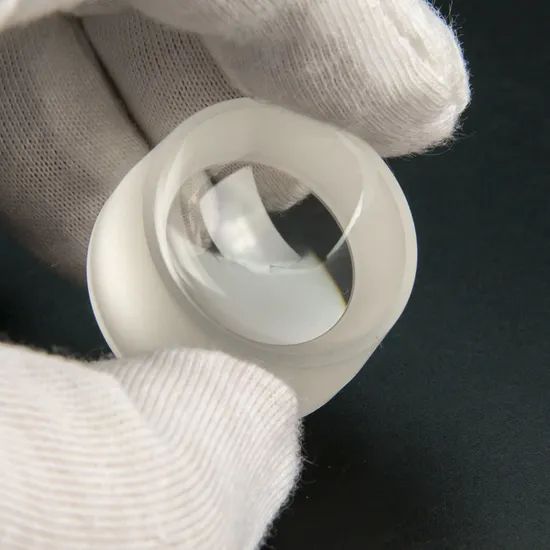

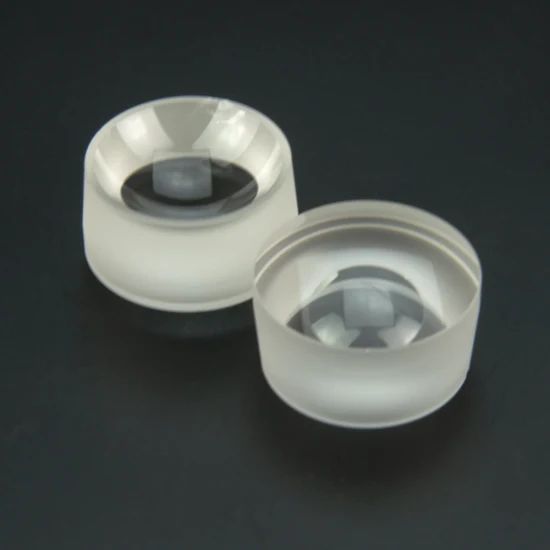

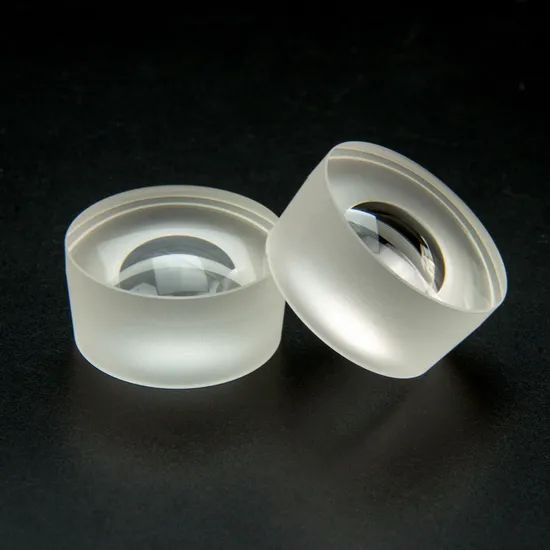

Optical Spheric Concave-Convex Lens Projector Camera Lenses Infrared Lens
Piece
Negotiable
Product information
High-quality Optical Spheric Concave-Convex Lens Projector Camera Lenses Infrared Lens supplied by Fujian Allwin Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Diameter Tolerance:
0/-0.1
Production Capacity:
200000PCS/Month
Eccentricity:
3′
Scratch/Dig:
60/40
Designed Wavelength:
632.8nm
Transmittance:
90%-95%
HS Code:
9001909090
Focal Length Tolerance:
< ± 1%
Specifications
Diameter Tolerance:
0/-0.1
Production Capacity:
200000PCS/Month
Eccentricity:
3′
Scratch/Dig:
60/40
Designed Wavelength:
632.8nm
Transmittance:
90%-95%
HS Code:
9001909090
Focal Length Tolerance:
< ± 1%
Clear Aperture:
>90%
Model NO.:
AW295
Transport Package:
Air Cushion Wrapped Carton Packaging.
Coating Coating:
Ar or Bbar
Lenses Color:
Clear
Trademark:
Coating: Ar or Bbar
Type:
Convex Lens
Dimensions:
Customized
Specification:
Customized
Customized:
Customized
Shape:
Cylindrical Shaped Lens
Trade Term:
FOB, EXW, CFR, CIF, CIP
Origin:
Fuzhou Fujian China
Payment Term:
LC, T/T, Western Union
Usage:
Lighting, Medical, Optical, Photography
Material:
Optical Glass
Certification:
RoHS, ISO9001, CE
Thickness Tolerance:
Thickness Tolerance ± 0.1
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-01-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, CIP
Port Of Loading:
Not specified
Product descriptions from the supplier
Here provide all kinds of customized optical lens which according to your drawings, sample products or detailed requirements. Any inquiry please feel free to contact us, thanks!
|
Size
|
Φ1.0~7mm
|
Φ8.0~20mm
|
Φ20.0~40mm
|
Φ40.0~60mm
|
|
PV
|
0.2um
|
0.3um
|
0.5um
|
<1um
|
|
Eccentricity
|
<=3um
|
<=5um
|
<=5um
|
<=8um
|
|
Center Thickness Tolerance
|
±0.015mm
|
±0.020mm
|
±0.025mm
|
±0.050mm
|
|
Diameter Tolerance
|
±0.015mm
|
±0.015mm
|
±0.015mm
|
±0.030mm
|
|
Surface Quality
|
40/20
|
|||
|
Surface Roughness
|
>20nm
|
|||
|
RMS
|
According to the optical system
|
|||
|
Material
|
CDGM, NHG, customer Requirements
|
|||
A sphere is defined by a single radius of curvature. Aspheric Lens have at least one aspherical surface. Optical engineers generally think of aspheric surfaces as aspheric, rotationally symmetric surfaces. The radius of curvature of the aspheric surface varies gradually from the center of the lens to the edge.
The surface profiles of aspheric lenses are not a portion of a sphere or cylinder. Their curvature radius varies with the central axis. Aspheric lenses have unique advantages over spherical lenses. For example, they can improve optical quality, reduce optical components and design costs. They are widely used in optical instruments, images and optoelectronics industries, such as digital cameras, CD players and high-end microscopic instruments.
Difference between aspheric lenses & spherical lenses:
Aspheric Lenses: Advantages & Disadvantages In a nutshell, aspheric lenses have the following advantages:
They provide a thinner profile
They are lightweight and comfortable
They could be fit into most frames so you have a wide choice of styles
They have a more natural and pleasing appearance
They don't make your eyes look too big or too small
They provide a better peripheral vision by eliminating distortion
Cylindrical lens is used to correct astigmatism in the optical system, and, in rangefinders, to produce astigmatism, stretching a point of light into a line. It is usually used in barcode scanners, objective systems and other optical systems.
Feature:
Applications:
Q1:Can you send me free samples or Can i have an sample order ?
A: Yes, We accept sample orders, and we're also willing to send you free sample to test and check its quality . if we don't have the item in stock , then you could place an sample order.
Q2: How many days can i get my package after placing order?
A: If the order needs customized also the quantity is big. it will take around 10-30 wroking days to produce then shipping.
Q3: OEM services available?
A: Sure, please send us your design paper on platform to confirm more details information.
Q4:We have a commercial project,Can you help me offer an optical design solution ?
A:Yes, we have professional experts who are engaged in optical design for more than 25 years , please send us more detail of your project,we will supply our most suitable solutions for you.
Q5: What shipping methods do you have?
A: For small quanities or sample could by express such as: Fedex, UPS, DHL, EMS, etc. Large scale quantity in your demands:by sea/train ,or by air.In your requests.
1 . Correcting Astigmatism
One of the main applications of cylindrical lenses is in ophthalmology, specifically, to correct astigmatic vision. When a person presents astigmatic vision, it is usually the result of a corneal deformation. An astigmatic cornea will have different focal points at different axes. It is then possible to use a cylindrical lens to change the focal point of one of the axes to overlap the second one.
2 . Laser Line Scanning
This is a technique that is used to capture the shape of a 3D object into a digital copy. It is particularly useful in manufacturing, prototyping, landscaping, and architecture. This scanning technique measures the deformation of a straight line created by a cylindrical lens when it is incident into a non-flat surface. By using cameras and triangulation, it is possible to measure the changes in the shape of our laser line and therefore estimate the shape of the object that we are measuring. If you would like to learn more about Laser Line Scanning please leave a comment.
3. Laser Scanning Microscopy
They are usually used in combination with acousto-optic deflectors, where the focal point of a variable lens (the acousto-optical elements) can change its position laterally without the use of movable parts. The cylindrical lens corrects the image and helps focus the light spot onto the correct plane for laser scanning microscopy.
