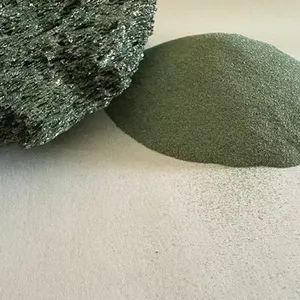

Oxidation Resistance High Purity High Thermal Conductivity Green Silicon Carbide
1-9 Ton
$88010-24 Ton
$75025 Ton
$580Product information
High-quality Oxidation Resistance High Purity High Thermal Conductivity Green Silicon Carbide supplied by Henan Yumo New Materials Co., Ltd.. Bulk wholesale pricing ranges from $580 to $880 per Ton with a minimum order of 1 Ton. Inquiry for latest prices.
MOQ (Minimum Order Quantity):
1 Ton, or Negotiable
Production Capacity:
10000tons/Month
Transport Package:
25kg/PP Bag, Then 40 Bags in One Ton Bag
HS Code:
2849200000
Lead Time:
7-15 Days for Standard Sizes
Origin:
China
Specification:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Specifications
MOQ (Minimum Order Quantity):
1 Ton, or Negotiable
Production Capacity:
10000tons/Month
Transport Package:
25kg/PP Bag, Then 40 Bags in One Ton Bag
HS Code:
2849200000
Lead Time:
7-15 Days for Standard Sizes
Origin:
China
Specification:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Common Name:

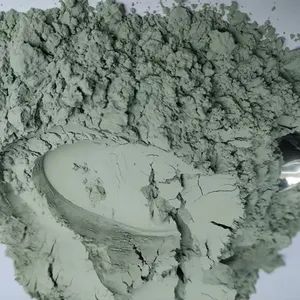

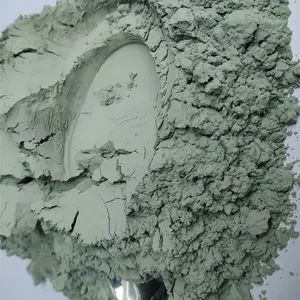

Green Silicon Carbide Micropowder, Green Sic Fine
Payment Term:
LC, T/T
Port Of Loading:
Qingdao Port
Chemical Formula:
Sic
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-12-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
SGS Certification
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
High Thermal Conductivity Green Silicon Carbide
Henan Yumo New Materials develops a high-thermal-conductivity green silicon carbide, a next-generation ceramic engineered to address the thermal limitations faced in contemporary electronics and high-temperature applications. By employing extreme-temperature sintering, precise grain boundary manipulation, and a refined raw material composition, the material enhances the natural heat transfer capability of green silicon carbide, positioning it as a superior solution for heat spreaders, melting vessels, kiln components, and semiconductor components—ensuring stable and dependable performance in high-power systems.
Specification
Core features and advantages | |||
Property | YUMO HC-SiC (High Thermal Conductivity Green SiC) | Regular Reaction-Bonded SiC | Core Value/Benefit |
Ultra-high Thermal Conductivity | ≥ 150 W/(m·K) (at room temperature, up to 270 W/(m·K), comparable to aluminum) | 80 - 120 W/(m·K) | Rapid heat conduction, effectively reducing hot spot temperature and enhancing device performance, reliability, and lifespan. |
High Conductivity & High Strength | Flexural strength ≥ 450 MPa | 300 - 400 MPa | Robust structure, load-bearing and pressure-resistant; suitable as heat dissipation component or structural part under high mechanical loads. |
Excellent Thermal Stability | Low thermal expansion coefficient (4.5×10-6/K); excellent thermal shock resistance | Higher thermal expansion coefficient; average thermal shock resistance | Resistant to rapid cooling/heating without cracking; adapts to frequent start-stop cycles and temperature cycling of power devices. |
High Insulation & Dielectric Properties | Volume resistivity > 10¹² Ω·cm; low dielectric constant | Significant volume resistivity fluctuation | Integrated insulation and heat dissipation; can be directly used as circuit substrate or insulating heat dissipation baseplate, simplifying device structure. |
Lightweight | Density: 3.10 - 3.15 g/cm³ | Density: 3.05 - 3.10 g/cm³ | Much lighter than metal heat dissipation materials like copper and aluminum, facilitating lightweight equipment design. |
Main application areas | ||
Application Area | Typical Product Form | Value Proposition |
Power electronics packaging & thermal management | Heat sink (substrate), thermal slug, insulating frame | Ideal for IGBT, MOSFET, laser diode (LD), and LED assemblies. Superior dielectric properties and heat dissipation effectively substitute alumina (Al2O3) and aluminum nitride (AlN), delivering the best cost-efficiency and markedly lowering junction heat. |
Key consumables for semiconductor manufacturing | Wafer heating disc, paddle, process chamber liner | Acts as essential support material in silicon and SiC semiconductor epitaxial growth, diffusion, and annealing operations. Delivers consistent thermal distribution, withstands elevated temperatures, and prevents wafer surface contamination, thereby maintaining high semiconductor production efficiency. |
High-end specialty smelting & chemical processing | Crucible, boat, guide rail, nozzle | Ideal for refining pure metals, growing crystals like sapphire, and enabling chemical vapor deposition. Its ability to withstand corrosion, resist wear, and transfer heat quickly maintains consistent operation and extends durability. |
High-temperature kilns & energy-saving technology | Kiln furniture (rollers, saggers, burners) | Ideal for processing lithium battery components and manufacturing electronic ceramic parts. Superior heat transfer reduces energy consumption (through quicker temperature changes), robust mechanical properties allow it to support weight without bending, and resistance to thermal stress handles abrupt cooling cycles. |
Advanced lithography & laser systems | Lithography wafer stage, laser mirror substrate | Provides extremely high thermal and dimensional stability, ensuring nanometer-level positioning accuracy and optical precision even under thermal disturbances. |
Product Technical Specifications | ||
Parameter Category | Henan Yumo (YUMO) High Thermal Conductivity Grade Standard | Test Method/Remarks |
Thermal Conductivity | ≥ 150 W/(m·K) (Ultra-high conductivity grade ≥200 W/(m·K) available) | Laser Flash Method (ASTM E1461) |
Flexural Strength | ≥ 450 MPa | Three-Point Bending Method (GB/T 6569) |
Volume Resistivity | > 10¹² Ω·cm | High Resistance Meter (GB/T 31838) |
Coefficient of Thermal Expansion | (4.5 ± 0.5) × 10-6 /K (RT - 1000℃) | Thermomechanical Analyzer (TMA) |
Chemical Purity | SiC: ≥ 99.95% | GD-MS / XRF |
Free Si: ≤ 0.05% | ||
Free C: ≤ 0.05% | ||
Total metal impurities: <100 ppm | ||
Bulk Density | 3.10 - 3.15 g/cm³ | Archimedes Method |
Machinability | Can be CNC machined per technical drawings | CNC Machining |
Precision ground finish available: flatness <1 μm, roughness Ra<0.01 μm | ||
Technical Implementation: How to Achieve High Thermal Conductivity?
Raw material ultrapurity: Utilizing ultra-high purity submicron silicon carbide powder (>99.95%) significantly reduces phonon scattering centers such as lattice oxygen and metallic impurities.
Advanced sintering methods using pressureless sintering (PLS) or hot isostatic pressing (HIP) yield a finely structured, uniform material approaching theoretical density, leading to clear grain interfaces and minimal phonon scattering.
Through targeted addition of sintering promoters and exact process management, a grain boundary region with superior thermal conduction is developed, leading to enhanced total thermal performance.
Precision machining: Providing end-to-end manufacturing capabilities from raw materials to high-precision finished parts, ensuring low thermal resistance contact during device assembly.
Why Choose Henan YUMO?
Our advanced thermal conductivity materials match or exceed critical metrics (thermal conductivity, strength) found in top global brands, offering you a superior, locally manufactured alternative.
Application-Oriented Development: We develop product series targeting two core areas: power electronics heat dissipation and semiconductor manufacturing, offering the most suitable solutions.
One-Stop Service: From material formulation and sintering to precision machining, we provide integrated services to ensure consistent product performance and protect your design privacy.
Our materials engineering experts work closely with your design group, engaging early in the thermal planning stage to refine the heat management structure for maximum efficiency.
Recommended Related Products Display
Company Profile
Henan Yumo New Materials Co., Ltd. excels in producing premium abrasive and refractory products, focusing on white fused alumina, brown fused alumina, and silicon carbide. Across three state-of-the-art facilities covering more than 10,000 square meters, the firm runs several automated manufacturing systems and achieves a monthly output of 10,000 metric tons.
Yumo leverages a workforce of more than 50 skilled technicians and a state-of-the-art lab to enforce rigorous quality assurance at every stage of production. Its extensive portfolio covers particle dimensions ranging from large abrasives to fine micro powders (FEPA grades F8-F2000, P12-P8000), meeting varied industry needs in refractory materials, cutting tools, surface finishing, and fine polishing operations.
Yumo's solutions serve key sectors including metal fabrication, automotive manufacturing, aerospace engineering, and electronic assembly, reaching customers in Europe, North America, Asia, and the Middle East. Guided by the core values of "Quality First, Service Foremost," the business delivers dependable materials and tailored offerings to clients worldwide. By investing in ongoing innovation and environmentally responsible operations, Yumo reinforces its reputation as a dependable ally in the international abrasives sector.
Certifications
Packaging & Shipping
Wecanprovide1MT/25Kgwovenplasticbagsand 25Kgpaperbags.Andtonbagpackaging.
Allofourabrasiveproductsarecarefullyprocessed duringstorageandtransportationtomaintaintheir qualityintheiroriginalstate.
Allofourabrasiveproductsarecarefullyprocessed duringstorageandtransportationtomaintaintheir qualityintheiroriginalstate.
FAQ
High-impact FAQ
Q: How do you prevent batch variations that disrupt production?
Yumo's Edge: Al real-time laser QC +100% SEM shape scan Result: 99.98% identical grains (vs. industry 95-98%)
Proof: Zero client line stoppages since 2022
Yumo's Edge: Al real-time laser QC +100% SEM shape scan Result: 99.98% identical grains (vs. industry 95-98%)
Proof: Zero client line stoppages since 2022
Q: Can you handle urgent orders during raw material shortages?
Yumo's Edge: Owned mines +30,000-ton strategic reserve
Result: 98.6% on-time rate (industry avg: 82%)
Proof: Shipped 500-ton to Germany during Suez blockage
Yumo's Edge: Owned mines +30,000-ton strategic reserve
Result: 98.6% on-time rate (industry avg: 82%)
Proof: Shipped 500-ton to Germany during Suez blockage
Q: Do you just ship products, or optimize our process?
Yumo's Edge: Free application labs +PhD engineers on call
Result: 32% avg. cost reduction (e.g., Schaeffler cut coolant use 40%)
Proof: Client ROI report within 30 days
Yumo's Edge: Free application labs +PhD engineers on call
Result: 32% avg. cost reduction (e.g., Schaeffler cut coolant use 40%)
Proof: Client ROI report within 30 days
Q: Why pay slightly more upfront?
Yumo's Edge: 2.3x longer life→30% less changeover downtime 18% energy savings →$0.80/kg true cost reduction
Proof: Toyota Boshoku saved $220K/year switching to Yumo
Yumo's Edge: 2.3x longer life→30% less changeover downtime 18% energy savings →$0.80/kg true cost reduction
Proof: Toyota Boshoku saved $220K/year switching to Yumo
