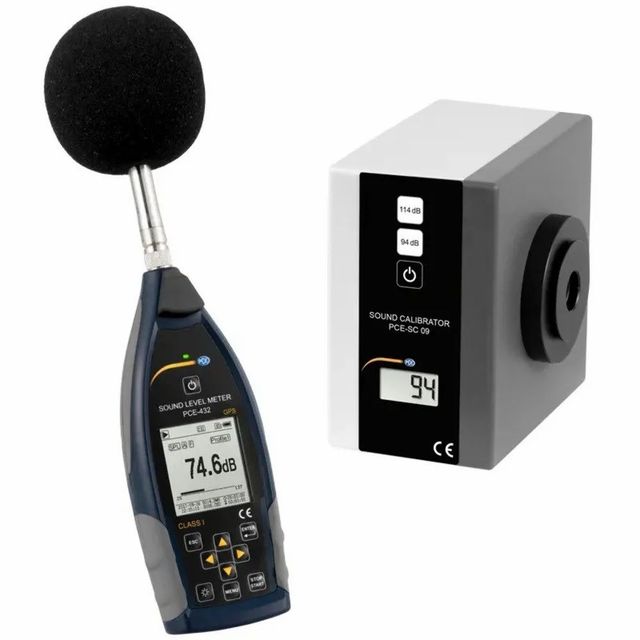

PCE INSTRUMENTS Class 1 Sound Level Meter PCE-432-SC 09 with Calibrator
1 Piece
$4,077.15Product information
High-quality PCE INSTRUMENTS Class 1 Sound Level Meter PCE-432-SC 09 with Calibrator supplied by Dhanbad Lab Instruments India Private Limited. Bulk wholesale pricing is $4,077.15 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Data Logging Interval:
1 S ... 24 H (adjustable)
Octave Band Filter Range:
1/1 Octave Band Filter: 8 Hz ... 16 Khz, 1/3 Octave Band Filter: 6.3 Hz ... 20 Khz
Microphone:
1/2" Microphone Class: 1, Sensitivity: 40 Mv/pa, Frequency Range: 3 Hz ... 20 Khz, Connection: Tnc, Power Supply: Iccp Standard
Display:
160 X 160 Pixel Lcd With Backlight, 160 x 160 pixel LCD with backlight
Measuring Range:
22 ... 136 Db(a), 22 ... 136 db(A)
Ad Converter:
24 Bit
Frequency Range:
3 Hz ... 20 Khz
Memory:
4 Gb Micro Sd Card

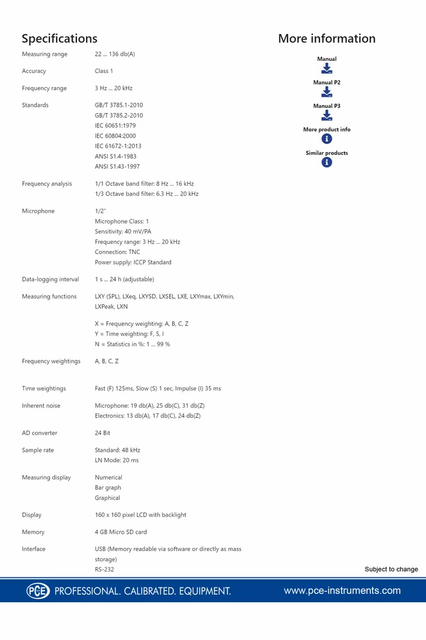

Specifications
Data Logging Interval:
1 S ... 24 H (adjustable)
Octave Band Filter Range:
1/1 Octave Band Filter: 8 Hz ... 16 Khz, 1/3 Octave Band Filter: 6.3 Hz ... 20 Khz
Microphone:
1/2" Microphone Class: 1, Sensitivity: 40 Mv/pa, Frequency Range: 3 Hz ... 20 Khz, Connection: Tnc, Power Supply: Iccp Standard
Display:
160 X 160 Pixel Lcd With Backlight, 160 x 160 pixel LCD with backlight
Measuring Range:
22 ... 136 Db(a), 22 ... 136 db(A)
Ad Converter:
24 Bit
Frequency Range:
3 Hz ... 20 Khz
Memory:
4 Gb Micro Sd Card
Power Supply:
4 x 1.5 V AA Batteries 12 V / 1 A Power plug 5 V / 1 A USB
Frequency Weightings:
A, B, C, Z
Accuracy:
Class 1
Time Weightings:
Fast (f) 125ms, Slow (s) 1 Sec, Impulse (i) 35 Ms
Standards:
Gb/t 3785.1-2010, Gb/t 3785.2-2010, Iec 60651:1979, Iec 60804:2000, Iec 61672-1:2013, Ansi S1.4-1983, Ansi S1.43-1997
Measuring Functions:
Lxy (spl), Lxeq, Lxysd, Lxsel, Lxe, Lxymax, Lxymin, Lxpeak, Lxn
Inherent Noise:
Microphone: 19 Db(a), 25 Db(c), 31 Db(z), Electronics: 13 Db(a), 17 Db(c), 24 Db(z)
Measuring Display:
Numerical, Bar Graph, Graphical
Brand:
PCE INSTRUMENTS
Model Name/Number:
PCE-432-SC 09
Sample Rate:
Standard: 48 Khz, Ln Mode: 20 Ms
Trade Term:
To be discussed
Payment Term:
To be discussed
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2020
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier

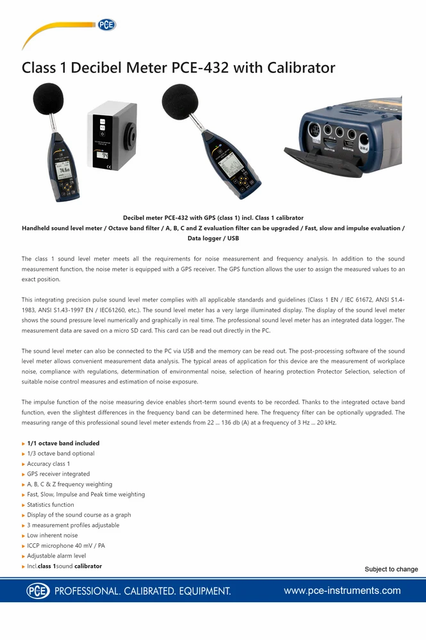

Handheld Sound Level Meter with GPS (class 1) incl. Class 1 calibrator
Octave band filter / A, B, C and Z evaluation filter can be upgraded / Fast, slow and impulse evaluation / Data logger / USB
The Class 1 Sound Level Meter meets all the requirements for noise measurement and frequency analysis. In addition to the sound measurement function, the Sound Level Meter is equipped with a GPS receiver. The GPS function allows the user to assign the measured values to an exact position.
This integrating precision pulse Sound Level Meter complies with all applicable standards and guidelines (Class 1 EN / IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN / IEC61260, etc.). The Sound Level Meter has a very large illuminated display. The display of the Sound Level Meter shows the sound pressure level numerically and graphically in real time. The professional Sound Level Meter has an integrated data logger. The measurement data are saved on a micro SD card. This card can be read out directly on the PC.
SPECIFICATION:
Octave band filter / A, B, C and Z evaluation filter can be upgraded / Fast, slow and impulse evaluation / Data logger / USB
The Class 1 Sound Level Meter meets all the requirements for noise measurement and frequency analysis. In addition to the sound measurement function, the Sound Level Meter is equipped with a GPS receiver. The GPS function allows the user to assign the measured values to an exact position.
This integrating precision pulse Sound Level Meter complies with all applicable standards and guidelines (Class 1 EN / IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN / IEC61260, etc.). The Sound Level Meter has a very large illuminated display. The display of the Sound Level Meter shows the sound pressure level numerically and graphically in real time. The professional Sound Level Meter has an integrated data logger. The measurement data are saved on a micro SD card. This card can be read out directly on the PC.
SPECIFICATION:
|
Measuring range |
22 ... 136 db(A) |
|
Accuracy |
Class 1 |
|
Frequency range |
3 Hz ... 20 kHz |
|
Standards |
GB/T 3785.1-2010 |
|
Frequency analysis |
1/1 Octave band filter: 8 Hz ... 16 kHz |
|
Microphone |
1/2" |
|
Data-logging interval |
1 s ... 24 h (adjustable) |
|
Measuring functions |
LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
|
X = Frequency weighting: A, B, C, Z |
|
|
Frequency weightings |
A, B, C, Z |
|
Time weightings |
Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms |
|
Inherent noise |
Microphone: 19 db(A), 25 db(C), 31 db(Z) |
|
AD converter |
24 Bit |
|
Sample rate |
Standard: 48 kHz |
|
Measuring display |
Numerical |
|
Display |
160 x 160 pixel LCD with backlight |
|
Memory |
4 GB Micro SD card |
|
|
|
|
|
|
|
|
