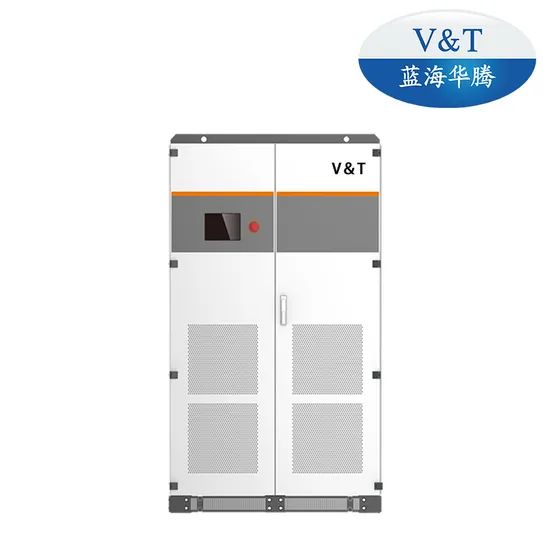

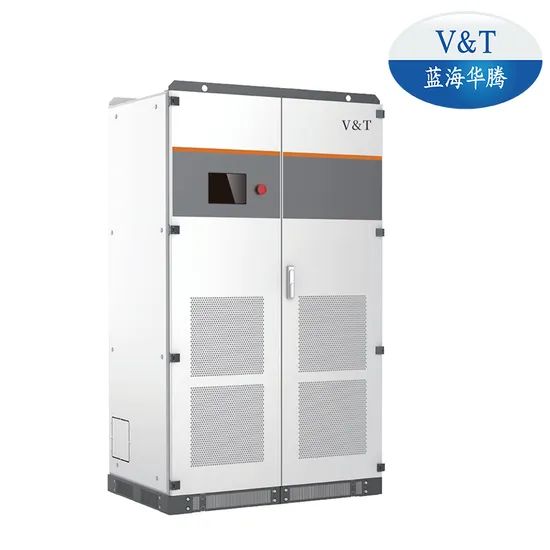

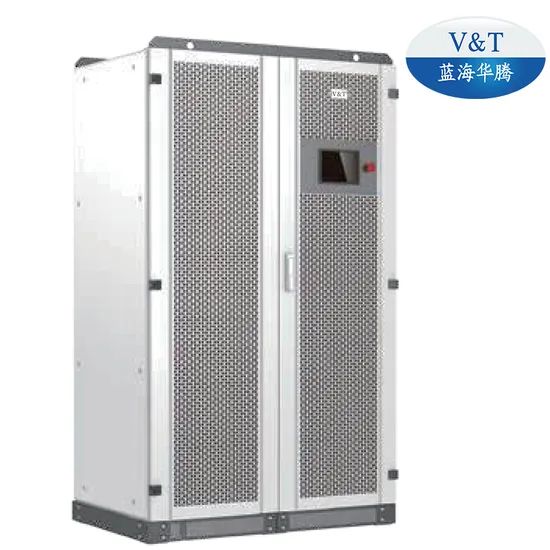

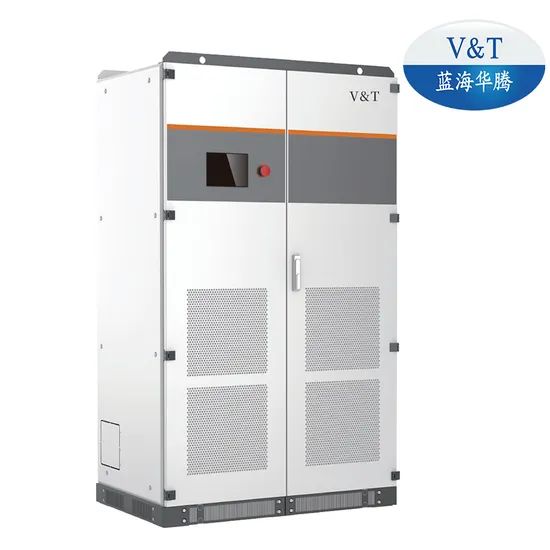

PCS 630kw Power Conversion System (Without transformer) Solar Energy Storage System
1 Piece
$501 Piece
$999Product information
High-quality PCS 630kw Power Conversion System (Without transformer) Solar Energy Storage System supplied by Shenzhen V&T Technologies Co., Ltd.. Bulk wholesale pricing ranges from $50 to $999 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Max.Output Current:
1000A
Battery Max. Current:
1179A
Specification:
1200*800*2050(W*D*H)
PF:
1lagging~1leading(Settable)
AC Connection:
3W+PE
Rated Voltage:
400V
Battery Voltage Range:
600~900V
Output Power:
630kw
Specifications
Max.Output Current:
1000A
Battery Max. Current:
1179A
Specification:
1200*800*2050(W*D*H)
PF:
1lagging~1leading(Settable)
AC Connection:
3W+PE
Rated Voltage:
400V
Battery Voltage Range:
600~900V
Output Power:
630kw
Rated Current:
909A
Max.Efficiency:
98.7%
Thdi:
<3%
Certification:
CE
Origin:
China
Trade Term:
EXW
Type:
PCS
Port Of Loading:
Shenzhen Port
Power Source:
Solar Power, Wind Power
Payment Term:
T/T, D/P
Brand:
V&T
Trademark:
V&T
Model NO.:
VTE-630K-CP
Transport Package:
Wood
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-02-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
327
Preferred Payment Term:
T/T, D/P
Preferred Trade Term:
EXW
Port Of Loading:
Shenzhen Port
Certificates:
ISO14001, ISO45001:2018, Others, ISO9001:2015
Product descriptions from the supplier
Friendly&Flexible
Wide battery voltage range, support multiple battery access
Reactive power, active power adjustable
Off-grid cold start function, support multi-machine parallel function
Intelligent&Efficient
Highest power density, maximum efficiency of 98.7%
Low power consumption fan, with intelligent temperature control system
With grid-connected charging and discharging off-grid independent inverter function
Safe&Reliable
High performance DSP, optimized control circuit design, high reliable system
Patented control detection algorithm to ensure equipment failure diagnose
AC/DC dual backup for auxiliary power supply
| Model | VTE-500K-CP | VTE-630K-CP |
| DC(battery) | ||
| Voltage range(V) | 600V-900V | |
| Max. current (A) | 935KW | 1179KW |
| AC(on-grid) | ||
| Max output power(KVA) | 550A | 693A |
| Rate output power(KW) | 500KW | 630KW |
| Rated voltage(V) | 400V | |
| Voltage range(V) | 320V-460V | |
| Rated current(A) | 722A | 909A |
| Max. output current (A) | 800A | 1000A |
| Rated frequency (HZ) | 50/60HZ | |
| Frequency range(HZ) | 45-55/55-65HZ | |
| THDI | <3% | |
| Power factor | 1lagging-1leading(settable) | |
| AC connection | 3W+PE | |
| Rated voltage(V) | 400v |
| THDU | <1%linear<5%Nonlinear |
| Rated frequency(HZ) | 50/60HZ |
| Overload capacity | 110%long-term |
| General data | |
| Max.efficiency | 98.7% |
| Ingress protection | IP21 |
| Noise emission(DB) | <70DB |
| Operating temperature | -30~+55ºC |
| Cooling | Forced air |
| Relative humidity | 0~95%non-condensing |
| Altitude | 5000m(>3000De rating) |
| Dimension W*D*H (MM) | 1200*800*2050mm |
| Weight(KG) | 950KG |
| Transformer | No |
| Self-consumption(W) | <10W |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485, TCP/IP |
| Certificates | IEC/EN62109-1/-2,IEC/EN62477-1, IEC/EN 61000-6-2, IEC/EN61000-6-4,CGC |
