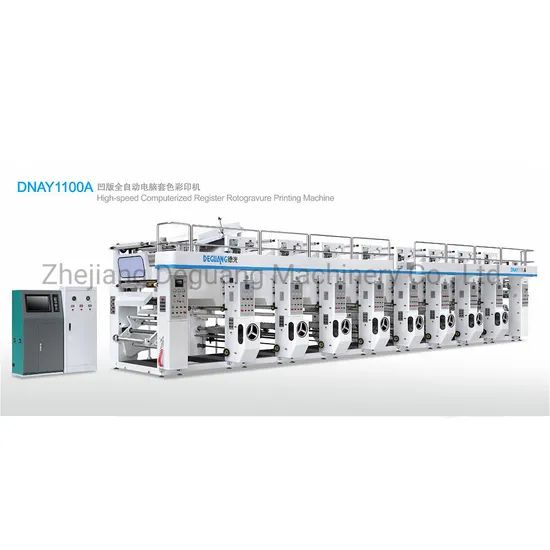

PE Film 8 Color Rotogravure Printing Machine with CE Certificate
1 set
$10,0001 set
$60,000Product information
High-quality PE Film 8 Color Rotogravure Printing Machine with CE Certificate supplied by Zhejiang Deguang Machinery Co., Ltd.. Bulk wholesale pricing ranges from $10,000 to $60,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Print Cylinder Diameter:
100-350mm
Web Width:
1100mm
Production Capacity:
30sets/Month
Rolling Material Diameter:
600mm
HS Code:
8443170090
Automatic Grade:
Automatic
Origin:
China, Ruian
Arrangement Position Of Color Groups:
Combined Gravure Press
Specifications
Print Cylinder Diameter:
100-350mm
Web Width:
1100mm
Production Capacity:
30sets/Month
Rolling Material Diameter:
600mm
HS Code:
8443170090
Automatic Grade:
Automatic
Origin:
China, Ruian
Arrangement Position Of Color Groups:
Combined Gravure Press
Model NO.:
DNAY1100A
Trademark:
Deguang
System Supported:
Dge, Keisai
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, CFR, CIF, EXW
Applicable Material:
Film, Paper, Plastic
Usage:
Flexible Packaging Gravure Printing Machine
Style:
Intaglio Printing Press
Payment Term:
LC, T/T, Western Union, Money Gram
Printing Speed:
Max. 130m/Min.
Color & Page:
Multi-Colour Printing Press
Condition:
NEW
Port Of Loading:
Ningbo
Structure:
Rotary Printing Press
Specification:
SGS, CE
Transport Package:
Standard Export Packing
Feeding Mode:
Web Gravure Printing Machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2008-05-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Ningbo
Certificates:
CE for Laminating machine, CE for Rotogravure printing machine, CE for Slitting machine
Product descriptions from the supplier
About us:
We founded in 1987. we are the first manufacturer and supplier mainly for making rotogravure printing machine
in Zhejiang province of China and specializes in plastic soft packing rotogravure printing machine for more than
30 years with good quality and reputation and favorable price.
Main specifications:
DNAY800/1100A model rotogravure printing machine are applicable for BOPP, PET, PVC, PE and combined film and paper with the same properties
1). The main motor of rotogravure printing machine adopts frequency inverter to adjust the speed;
2). The unwinding and rewinding of rotogravure printing press adopts shaft, don't stop the machine, more efficiency;
3)The unwinding shelf of machine adopts magnetic powder tension control and the rewinding shelf adopt torque motor;
4). The pressing roller and traction pressing roller of film printing machine adopts dual cylinder;
5). The scraper adopts dual cylinder, moves horizontally, and adopts motor rotation to make the cam move;
6). The vertical registration adopts clutch. The manual horizontal adjustment amount is 30mm;
7). Plastic film rotogravure printing machine adopt dual fans installed on the board and the air-circulation and heat-recycle device;
8). The material-protecting roller is of high precision, with its surface processed specially, and the roller can be adjusted horizontally;
9). The chassis adopts combined type to increase the stability of the machine;
Main Technical Parameters: (the specification is based on 6 colors)
Detailed pictures for this model:
PLC system:
Samples after printed by this model:
Wide Use:
Our workshop for Gravure printing machine:
Our certificates:
Our customers:
Contacts:
Mr. Joe(export department)
Deguang Machinery (Manufacturer & Trading)
NO.501, West Wangdong Road, Shangwang Street, Rui'an, Zhejiang, China
deguangmachine.en.made-in-china.com
We founded in 1987. we are the first manufacturer and supplier mainly for making rotogravure printing machine
in Zhejiang province of China and specializes in plastic soft packing rotogravure printing machine for more than
30 years with good quality and reputation and favorable price.
Main specifications:
DNAY800/1100A model rotogravure printing machine are applicable for BOPP, PET, PVC, PE and combined film and paper with the same properties
1). The main motor of rotogravure printing machine adopts frequency inverter to adjust the speed;
2). The unwinding and rewinding of rotogravure printing press adopts shaft, don't stop the machine, more efficiency;
3)The unwinding shelf of machine adopts magnetic powder tension control and the rewinding shelf adopt torque motor;
4). The pressing roller and traction pressing roller of film printing machine adopts dual cylinder;
5). The scraper adopts dual cylinder, moves horizontally, and adopts motor rotation to make the cam move;
6). The vertical registration adopts clutch. The manual horizontal adjustment amount is 30mm;
7). Plastic film rotogravure printing machine adopt dual fans installed on the board and the air-circulation and heat-recycle device;
8). The material-protecting roller is of high precision, with its surface processed specially, and the roller can be adjusted horizontally;
9). The chassis adopts combined type to increase the stability of the machine;
Main Technical Parameters: (the specification is based on 6 colors)
| Model | DNAY800A | DNAY1100A |
| Suitable material | bopp pvc pe pet etc plastic film, paper, aluminum foil etc. | |
| Printing width | 420-800mm | 720-1100mm |
| Guiding roller width | 830mm | 1130mm |
| Mechanical speed | 150m/min | 150m/min |
| Printing speed | 120~130m/min | 120~130m/min |
| Printing cylinder dia | 100-350mm | 100-350mm |
| Printing cylinder Cross adjustable | 30mm | 30mm |
| Unwinding dia | 600mm | 600mm |
| Rewinding dia | 600mm | 600mm |
| Registration accuracy | <± 0.1mm | < ± 0.1mm |
| Pressing printing strength | 360kg | 360kg |
| Drying method | Electric heating or Hot air heating | Electric heating or Hot air heating |
| Total power | 180KW | 190KW |
| Weight | 15000kg | 16000kg |
| Dimension | 11350*3000*3000mm | 11350*3300*3000mm |
| Working voltage | 3 phase 380V±5%, 50Hz or Customized | |

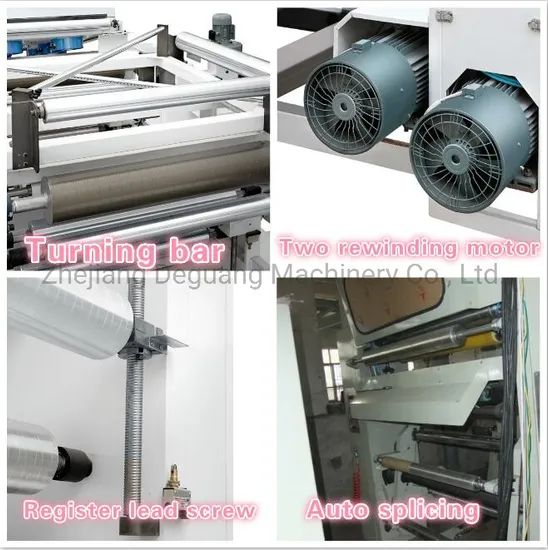

Detailed pictures for this model:

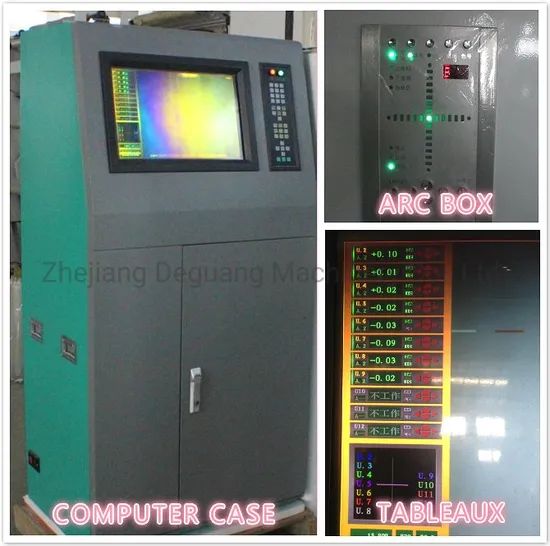

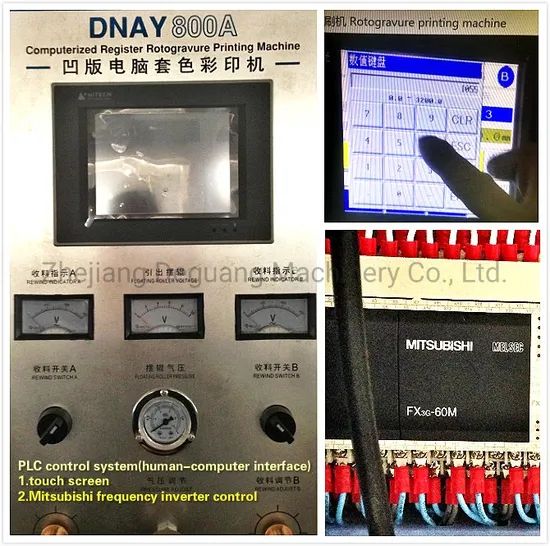

PLC system:
