PE PP PVC PA Plastic Conduit Pipe Making Machine/Single Wall Corrugated Tube Extruder Machinery
Set
Negotiable
Product information
High-quality PE PP PVC PA Plastic Conduit Pipe Making Machine/Single Wall Corrugated Tube Extruder Machinery supplied by Qingdao Zhaoxing Extruder Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
10 Sets Per Month
Package Gross Weight:
10000.000kg
Package Size:
1200.00cm * 230.00cm * 200.00cm
Voltage:
380V or Customized
Pipe Range:
6-50mm
HS Code:
8477209000
Electric Parts:
ABB, Omron, Schneider
Automation:
Automatic
Specifications
Production Capacity:
10 Sets Per Month
Package Gross Weight:
10000.000kg
Package Size:
1200.00cm * 230.00cm * 200.00cm
Voltage:
380V or Customized
Pipe Range:
6-50mm
HS Code:
8477209000
Electric Parts:
ABB, Omron, Schneider
Automation:
Automatic
Cutting Mode:
Automatic Cutting
Feeding Unit:
Automatic Feeding
Wingding Mode:
Automatic Winding
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Pipe Type:
Corrugated Pipe
Model NO.:
Corrugated Pipe Production Line
Specification:
Customized
Customized:
Customized
Trade Term:
FOB
Certification:
ISO9001:2008
Forming Mode:
Module Forming
Condition:
New
Transport Package:
Nude or Wooden Cases
After Sales Service:
One Year
Control Mode:
PLC Control
Extruder Type:
Single Screw Extruder
Screw No.:
Single-screw
Payment Methods:
Support payments in USD
Payment Term:
To be discussed
Cooling Method:
Water Cooling
Trademark:
Zhaoxing
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2011-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Product descriptions from the supplier
Basic Info.

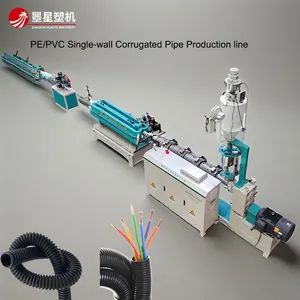

Our Single Wall corrugated pipe machine consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment,Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipes in high speed.
We developed the mahcine on the basis of traditional structure, and give new designing on the forming table, we adopt SJ45, SJ65,SJ90,SJ120 to produce different range pipe diameter. This machine can be used to produce single-wall or one wall corrugated pipe of PE, PP, PVC, EVA as well as PA corrugated pipes.
Applications for single wall corrugated pipe extrusion line:
Finished pipes produced by our line have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine, etc. The following are some specific application for your reference:
1) This machine can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA.
2) Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...
3) Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
Company Profile
Our Single Wall corrugated pipe machine consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment,Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipes in high speed.
We developed the mahcine on the basis of traditional structure, and give new designing on the forming table, we adopt SJ45, SJ65,SJ90,SJ120 to produce different range pipe diameter. This machine can be used to produce single-wall or one wall corrugated pipe of PE, PP, PVC, EVA as well as PA corrugated pipes.
Applications for single wall corrugated pipe extrusion line:
Finished pipes produced by our line have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine, etc. The following are some specific application for your reference:
1) This machine can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA.
2) Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...
3) Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
| SPECIFICATIONS FOR OUR MAIN MODELS | ||||
| Model | ZXRJ-50/70 | ZXRJ-50 | ZXRJ-25 | ZXRJ-10 |
| Model of extruder | SJ65×33 | SJ65×33 | SJ45×30 | SJ30×30 |
| Quantity of mold blocks | 70 | 50 | 42 | 42 |
| Total Power | 67KW | 65KW | 50KW | 45KW |
| Pipe size | φ16~50 | φ16~50 | Φ8~20 | Φ6~10 |
| Max. speed | 17m/min | 14m/min | 12m/min | 10m/min |
| Compulsory devices | ||||
| 1 | Automatic Vacuum feeding machine | 1 set | ||
| 2 | High efficiency single screw extruder | 1 set | ||
| 3 | Pipe die head | 1set | ||
| 4 | Forming Mold | 1 set or several sets | ||
| 5 | Forming Machine | 1 set | ||
| 6 | hauling off machine | 1 set | ||
| 7 | Pipe Punching Machine | 1 set | ||
| 8 | Pipe Coiler | 1 set | ||
| 9 | Electrical cabinet(ABB,Omron,RKC etc) | 1 set | ||
| 10 | Spare parts | Standard suite | ||
| Payment & delivery | ||||
| 1 | Payment terms | T/T, 30% Deposit, 70% balance payment before shipment | ||
| 2 | Delivery time | 45 days | ||
| 3 | Packing method | Wooden cases/pallets with stretching films | ||
