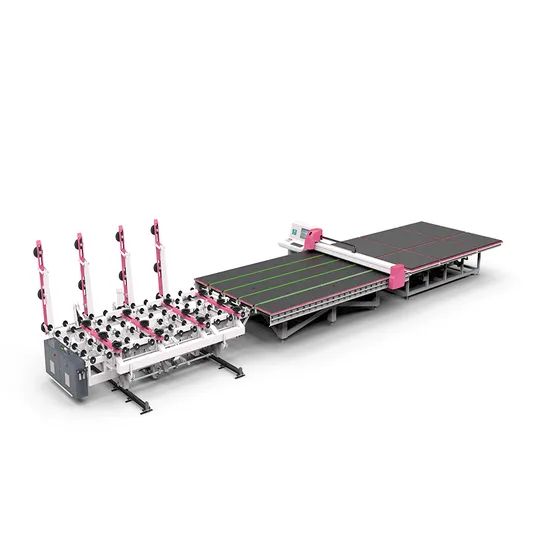

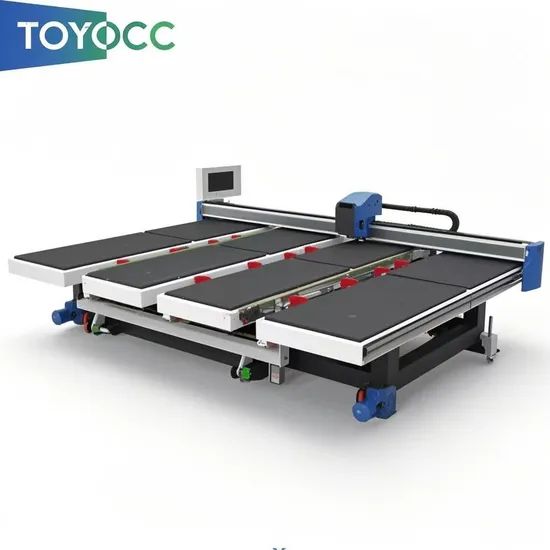

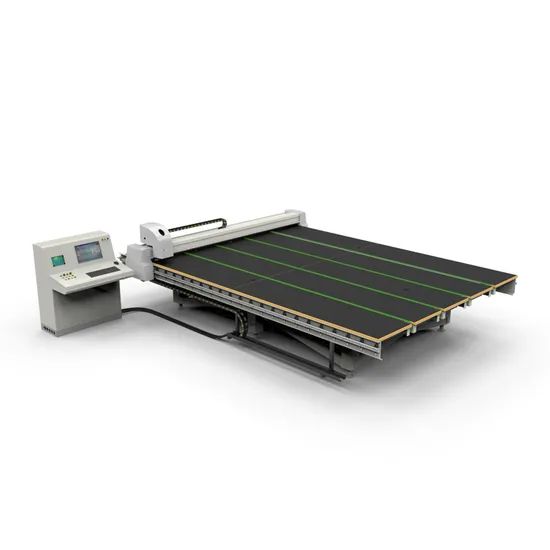

PLC - Controlled Glass Sheet Cutter Origin China Trademark toyocc Control System PLC HS Code 8428909090 Specification

Machinery Specification

1. Equipment Systems
   • The machine consists of a main frame, running system, transfer system, vacuum adsorption system, mechanical turning system, high and low pressure control system, and program control system. These systems work in harmony to ensure the efficient operation of the glass loading process.
2. Mechanical Components
   • Turning Wheel Chain: High - precision reinforced type, providing reliable and stable turning motion.
   • Transfer Idler Wheel: Made of PU, ensuring smooth transfer of glass.
   • Vacuum Suction Cup: Features a double - absorption structure for stronger grip on glass.
   • Transfer/Turning Motor: Taiwan CPG motor, known for its high performance and durability.
   • Vacuum Pump: PUXU (Sino - Germany), delivering efficient vacuum generation.
3. Electric Elements
   • PLC Controller: Inovance, providing accurate and reliable control of the machine's operations.
   • Transducer: Inovance, enabling smooth speed regulation.
   • Control Cable: High - flexible shielded control cables, ensuring stable signal transmission.
   • Pneumatic Part: Taiwan Airtac and SMC, known for their quality and reliability in pneumatic applications.
4. Technical Parameters
   • Max Glass Size: 42002800; Min Glass Size: 15001500 (left side), accommodating a wide range of glass sizes.
   • Glass Thickness: 3 - 19mm, suitable for various glass thickness requirements.
   • Loading Glass Cycle: 40 - 90s (adjustable), allowing for flexible production pacing.
   • Transfer Speed: 0 - 40m/min (adjustable), enabling efficient glass transfer.
   • Max Rack Depth: 700mm, suitable for different glass rack configurations.
   • Loading Weight: 900KG, capable of handling heavy - duty glass loads.
   • Arm Quantity in One Side: 4 pieces, with a total of 8 pieces for double - arm design.
   • Vacuum Suction Cups Quantity on Each Arm: 3 pieces, providing sufficient suction power.
   • Loading Arms: Double - arm design for enhanced loading capacity.
   • Work Position: Single - position, focused on efficient single - point glass loading.
   • Power (Installation): 380V/50HZ, standard industrial power supply.
   • Installed Power: 8KW, indicating the power consumption of the machine.
   • Compressed Air: 0.3Mpa - 0.5Mpa, required for certain pneumatic operations.
   • Vacuum Pressure: -70 ~ -90Kpa, ensuring a strong vacuum for glass adsorption.
   •

2. Technical Information

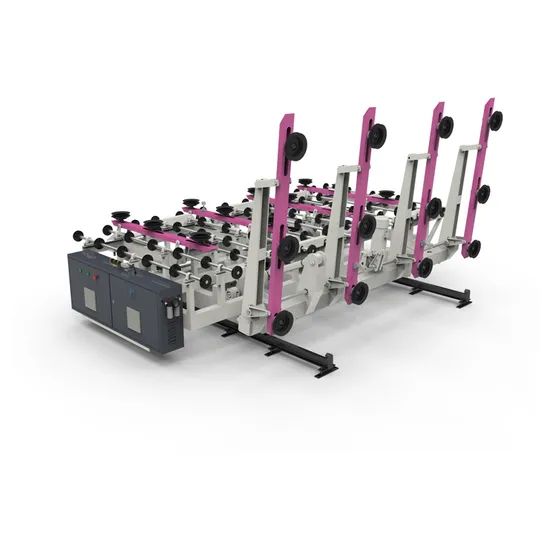

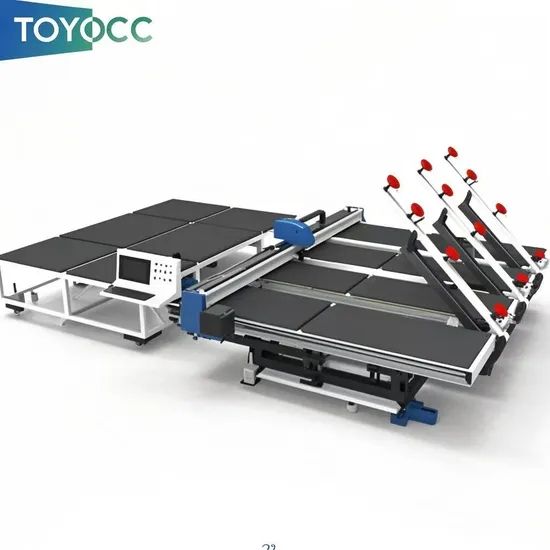

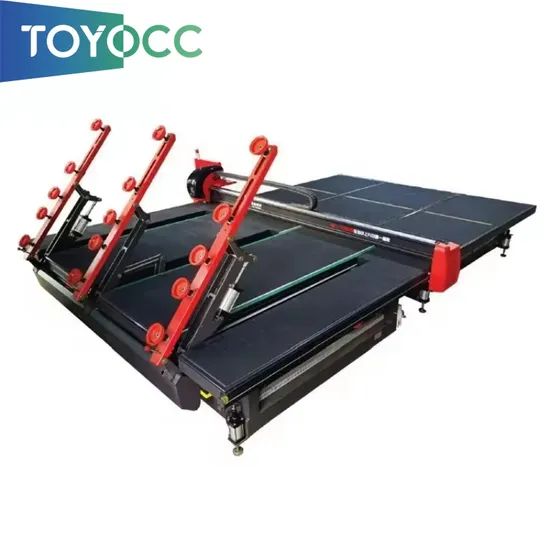

1. Main Introduction: Automatic Glass Loading Machine
   • The machine features a very sturdy frame structure, ensuring stability during operation. The reliable vacuum system is designed with a venturi vacuum device, which can prevent glass from falling in case of electricity blackouts. The loading arms are driven by an electric motor, providing smooth and precise movement. High - quality certified components are used throughout the machine to guarantee long - term reliability, easy maintenance, and ready availability of spare parts. The modular design of the machine allows for future upgrades to more stations, providing flexibility for expansion.
2. Technical Description
   • Turning Mode: Mechanical turning is employed, offering fast speed and steady operation. It can handle glass with a thickness ranging from 3 to 19 mm. The machine is assembled with a double - line turning transmission chain, ensuring the safety and reliability of the transmission process.
   • Turning Angle: Adjustable, ranging from 95 to 98 degrees, to meet different loading requirements.
   • Rack Depth: Equipped with a special connecting rod retractable mechanism, the suction cup can move forward 150mm, and the rack depth is 700mm, which can accommodate different kinds of glass racks.
   • Induction System: Two sets of photoelectric sensors are installed to ensure safe operation, detecting any potential obstacles or irregularities during the loading process.
   • Roller Bar: Features a special connecting rod retractable mechanism, ensuring the synchronous lift and safe separation of glass pieces.
   • Suction System: Introduces a double - layer suction design for strong absorption, firmly gripping the glass.
   • Suction Cup Control: Each cup has a separate air valve for control, allowing for easy and flexible selection of the number of working cups.
   • Lift and Loading System: Lifts the glass before loading to prevent damage caused by sticking.
   • Alarm System: The machine is equipped with alarm fittings and has a self - inspection system, along with red and green alarm buttons for easy status indication.
   • Operation Mode: The machine offers two control modes: automation and manual, providing flexibility for different operation scenarios.
   • Operation Screen: Features a color LCD touch - screen interface for easy operation and parameter setting.
   • Parameter Setting: The order and glass quantity of loading can be set automatically with digital information, enabling precise control over the loading process.

1. Advanced Control: Employs PLC for precise control and features a user - friendly touch - screen, ensuring stable operation. (Keywords: PLC, touch - screen, stable operation)
2. Diverse Production: Can manufacture Low - e, double - glazed, and triple - glazed glass, meeting various market demands. (Keywords: diverse glass, market demands)
3. High - quality Components: High - precision mechanical parts and renowned brand motors, pumps, and electrical components ensure durability. (Keywords: high - precision parts, renowned brands, durability)
4. Flexible Parameters: Handles various glass sizes and thicknesses, with adjustable cycle, speed, etc., and a load - bearing capacity of 900KG. (Keywords: size & thickness, adjustable parameters, load - bearing)
5. Safe & Reliable: Vacuum system prevents glass drops during power outages, and sensors and alarms ensure safety. (Keywords: anti - drop, sensors, alarms)
6. Modular Design: Facilitates future expansion and upgrades. (Keywords: modular, upgrade)
7. Efficient Suction & Handling: Double - layer suction system with controllable cups and a lifting system prevent glass damage. (Keywords: double - layer suction, controllable cups, anti - damage)
