PVC/PE/PU/Nylon Wire and Cable Extrusion Machines Trademark NEWTOPP Screw Single-Screw Warranty 12 Months HS Code
1 Set
$15,800Product information
High-quality PVC/PE/PU/Nylon Wire and Cable Extrusion Machines Trademark NEWTOPP Screw Single-Screw Warranty 12 Months HS Code supplied by Dongguan Newtopp Electrical Machinery Co., Ltd.. Bulk wholesale pricing is $15,800 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Wire Specification:
0.2-2.5
Warranty:
12 Months
Highest Wire Speed:
180m/Min
Temperature Control Segments(Boby+Head):
3+2/4+2
Power:
3kw/4kw Servo Motor or 7.HP/10HP
Highest Outoput:
5kg/H-30kg/H
Production Capacity:
6 Sets/Month
HS Code:
8479400000
Specifications
Wire Specification:
0.2-2.5
Warranty:
12 Months
Highest Wire Speed:
180m/Min
Temperature Control Segments(Boby+Head):
3+2/4+2
Power:
3kw/4kw Servo Motor or 7.HP/10HP
Highest Outoput:
5kg/H-30kg/H
Production Capacity:
6 Sets/Month
HS Code:
8479400000
Automatic Grade:
Automatic
Certification:
CCC, RoHS, ISO, CE
Specification:
CE SGS
Customized:
Customized
Origin:
Dongguan City, Guangdong Province, China
Extrusion Material:
ETFE/PTFE/FEP/PFA
Heating System:
Electric
Trade Term:
FOB, EXW
Screw Material:
Germany Hastelloy-276/USA Incnel-600/CH113
Function:
High Temperature Resistance
Screw Parameter:
L/D Radio: 28:1
Trademark:
NEWTOPP
Transport Package:
PE Film + Wooden Box
Production Name:
PVC/PE/PU/Nylon Wire and Cable Extrusion Machines
Precision:
Precision
Port Of Loading:
Shenzhen Port
Screw:
Single-Screw
Payment Term:
T/T, PayPal
Model NO.:
XJ020/025/030/040
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-07-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
88
Preferred Payment Term:
T/T, PayPal
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shenzhen Port
Certificates:
Automatic control system for full automatic chemical foaming extruder, trademark right, Twisting machine with back twist and taping, Verical single twisting machine, Vertical twisting machine
Product descriptions from the supplier
PVC/PE/PU/Nylon Wire and Cable Extrusion Machines
Main Performance Of Teflon Extruder:
1.Extrusion concentricity: above 98%, OD tolerance: within+-0.001mm
Main Performance Of Teflon Extruder:
1.Extrusion concentricity: above 98%, OD tolerance: within+-0.001mm
2.The temperature of machine is controlled within +-1°C, the wire speed of operated is 80-180/min (Difference will be base on wire specification)
3.Extrusion Wire diameter range:φ0.3mm-1.5mm, automatic control wire diameter
3.Extrusion Wire diameter range:φ0.3mm-1.5mm, automatic control wire diameter
Teflon Extruder Main constituted equipment specification and parameter:
A.300-400 full-automatic minuteness active pay-offs.
B.Full-automatic high frequency copper wire pre-heater
C.30mm Teflon main extruder
D.take out vacuum and adjust control device
E.Main control electric appliance temperature control electric box
F.Needn't Cross-eyed + allow fine adjustment Teflon handpiece (Domestic handpiece)
G.1.5 meter removable type tank
G.1.5 meter removable type tank
H.6 meter monolayer cooling tank
I.high precision horizontal type8 meter wire-storage machine
J.φ318mm dual wheel type capstan
K.φ200-300mm double-shaft take-ups
L.Shanghai OULe outer diameter measuring and control instrument
M.concave-convex diameter measuring
N.TaiWan imported high frequency Spark machine (bought-in components)
Color of machine: The color ofengine bodywill base on customer's request. The color of main control box is XJ ripple cream-gray,safety shieldcolor yellow, blanking plate colorcreamy white
Main material of machine:

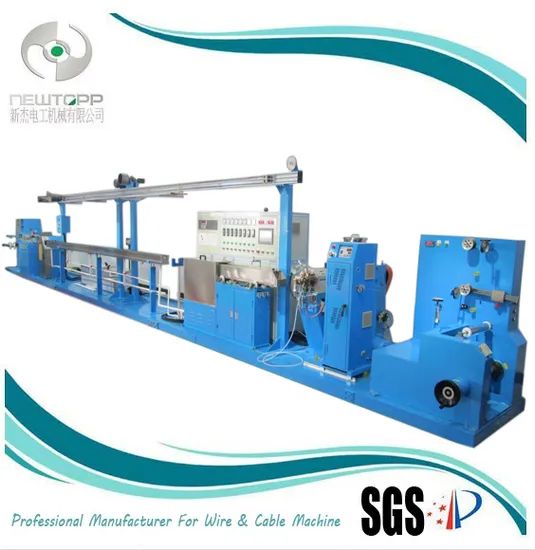

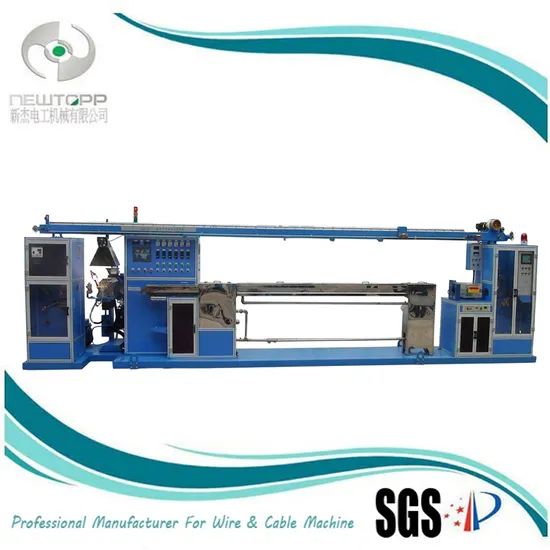

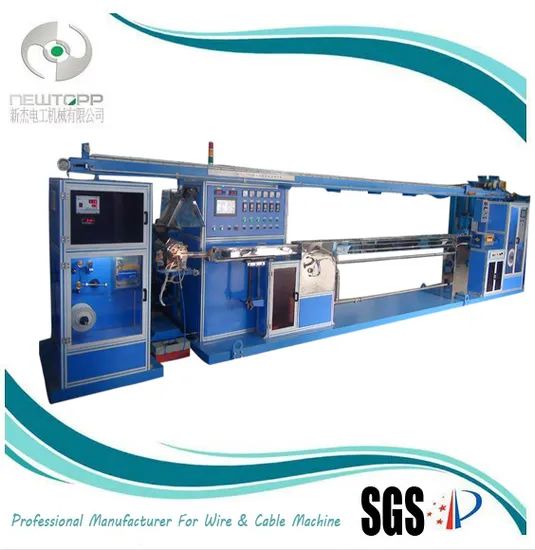

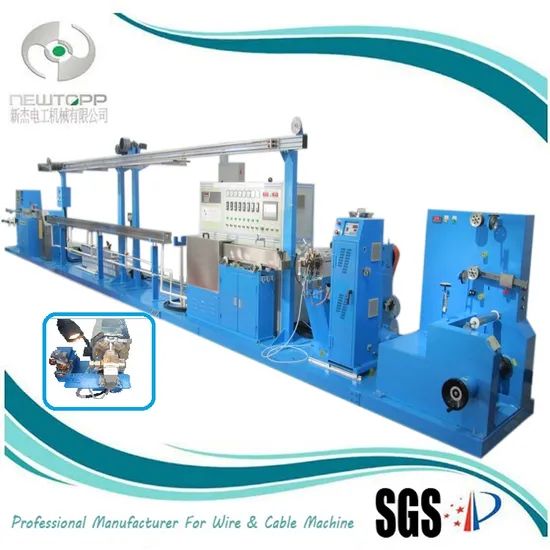

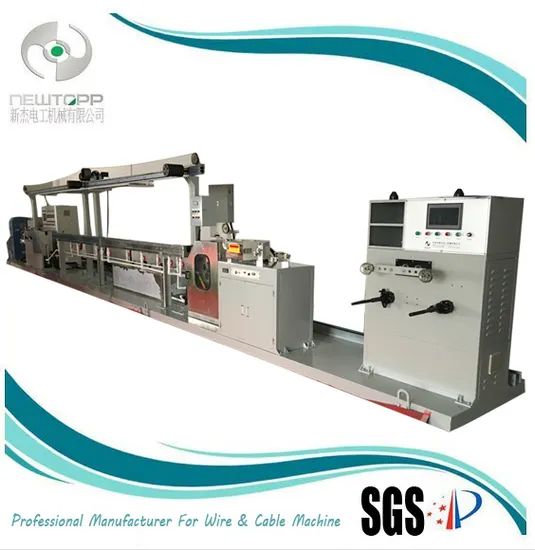

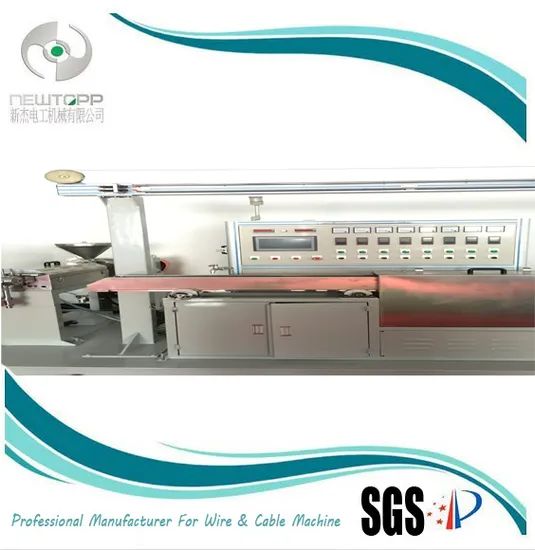

Teflon Extuder picture Show As below:
N.TaiWan imported high frequency Spark machine (bought-in components)
Color of machine: The color ofengine bodywill base on customer's request. The color of main control box is XJ ripple cream-gray,safety shieldcolor yellow, blanking plate colorcreamy white
Main material of machine:
| Bearing | Japanese bearing |
| Transmission belt | Germany's factory in China produce |
| Electric appliance | Japan/Taiwan factory in China produce |
Teflon Extuder picture Show As below:
Company Introduction(Why choose us):
1.Dongguan NewTopp Electrical Machinery Co.,ltd is a profeesional enterprise specializing in Wire&Cable equipment R&D, design and Manufacture, Located in Humen Town, Dongguan City. It has very convenient transportation because of the high-speed rail, welcome our customers come to visit our factory at any time.
2. We were founded in Year 2009 but we are famous in cable machine business line and enjoy the higher reputation, our competitors regards us as "dark horse" becuase our rapid development,we are full of passion and energy, also we keep innovating. We have 10 patented products.
3. There is almost 5000 square meter of our company, we have workers about 100. Also we have a system departments: Such asFinancial department, Engineering department,After-sales service department, Purchasing department, Production department,Sales department, Personnel department
