PVC Shoe Bend 45 degree Standard Is 4985:2000 Inner Diameter 3 inch Class 2 Pressure 0.4 Mpa Class 3 Pressure 0.6 Mpa Class 4 Pressure 0.8
1 Piece
$0.41Product information
High-quality PVC Shoe Bend 45 degree Standard Is 4985:2000 Inner Diameter 3 inch Class 2 Pressure 0.4 Mpa Class 3 Pressure 0.6 Mpa Class 4 Pressure 0.8 supplied by Star Plastics. Bulk wholesale pricing is $0.41 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Class 1 Pressure:
0.25 Mpa
Class 2 Pressure:
0.4 Mpa
Class 3 Pressure:
0.6 Mpa
Class 4 Pressure:
0.8 Mpa
Class 5 Pressure:
1.0 Mpa
Nominal Outside Diameter:
20 Mm To 225 Mm
Mean Outside Diameter Min:
20.0
Mean Outside Diameter Max:
20.3
Specifications
Class 1 Pressure:
0.25 Mpa
Class 2 Pressure:
0.4 Mpa
Class 3 Pressure:
0.6 Mpa
Class 4 Pressure:
0.8 Mpa
Class 5 Pressure:
1.0 Mpa
Nominal Outside Diameter:
20 Mm To 225 Mm
Mean Outside Diameter Min:
20.0
Mean Outside Diameter Max:
20.3
Inner Diameter:
3 inch
Applications:
Agriculture, Irrigation, Water Supply, Industrial Process Lines
Standard:
Is 4985:2000
Advantages:
Light Weight, Easy And Fast Installation, Excellent Corrosion And Chemical Resistance, High Flow Rates, Long Life, Economy
Trade Term:
To be discussed
Payment Term:
To be discussed
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2004
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Agricultural Pipes & Fittings

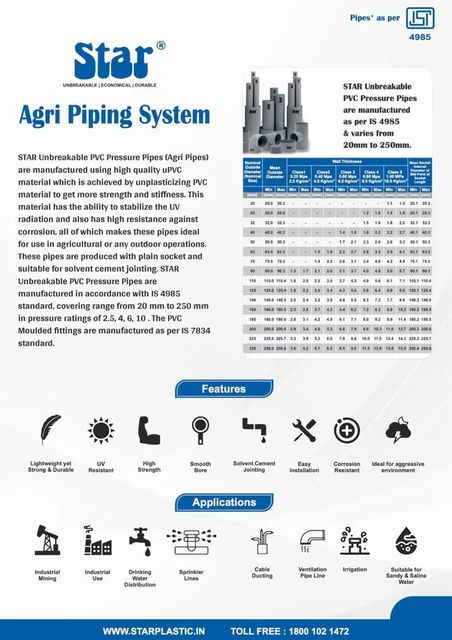

STAR offers an exhaustive range of uPVC pressure pipes & fittings. Pressure pipes are manufactured as per IS 4985:2000 standard and are available in 20 mm to 225 mm sizes in different pressure class. Varieties of moulded fittings and wide range of fabricated fittings are also available. These pipes and fittings are used for variety of applications like, agriculture, irrigation, water supply, industrial process lines etc. These pipes are superior to C.I , D.I or R.C.C pipes and offers number of advantages like light weight, easy and fast installation, excellent corrosion and chemical resistance, high flow rates, long life and economy.
Technical Specifications| Nominal Outside Diameter (Nominal Size) |
Mean Outside Diameter | Class 1 0.25 Mpa |
Class 2 0.4 Mpa |
Class 3 0.6 Mpa |
Class 4 0.8 Mpa |
Class 5 1.0 Mpa |
||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| 20 | 20.0 | 20.3 | - | - | - | - | - | - | - | - | 1.1 | 1.5 |
| 25 | 25.0 | 25.3 | - | - | - | - | - | - | 1.2 | 1.6 | 1.4 | 1.8 |
| 32 | 32.0 | 32.3 | - | - | - | - | - | - | 1.5 | 1.9 | 1.8 | 2.2 |
| 40 | 40.0 | 40.3 | - | - | - | - | 1.4 | 1.8 | 1.8 | 2.2 | 2.2 | 2.7 |
| 50 | 50.0 | 50.3 | - | - | - | - | 1.7 | 2.1 | 2.3 | 2.8 | 2.8 | 3.3 |
| 63 | 63.0 | 63.3 | - | - | 1.5 | 1.9 | 2.2 | 2.7 | 2.8 | 3.3 | 3.5 | 4.1 |
| 75 | 75.0 | 75.3 | - | - | 1.8 | 2.2 | 2.6 | 3.1 | 3.4 | 4.0 | 4.2 | 4.9 |
| 90 | 90.0 | 90.3 | 1.3 | 1.7 | 2.1 | 2.6 | 3.1 | 3.7 | 4.0 | 4.6 | 5.0 | 5.7 |
| 110 | 110.0 | 110.4 | 1.6 | 2.0 | 2.5 | 3.0 | 3.7 | 4.3 | 4.9 | 5.6 | 6.1 | 7.1 |
| 125 | 125.0 | 125.4 | 1.8 | 2.2 | 2.9 | 3.4 | 4.3 | 5.0 | 5.6 | 6.4 | 6.9 | 8.0 |
| 140 | 140.0 | 140.5 | 2.0 | 2.4 | 3.2 | 3.8 | 4.8 | 5.5 | 6.3 | 7.3 | 7.7 | 8.9 |
| 160 | 160.0 | 160.5 | 2.3 | 2.8 | 3.7 | 4.3 | 5.4 | 6.2 | 7.2 | 8.3 | 8.8 | 10.2 |
| 180 | 180.0 | 180.6 | 2.6 | 3.1 | 4.2 | 4.9 | 6.1 | 7.1 | 8.0 | 9.2 | 9.9 | 11.4 |
| 200 | 200.0 | 200.6 | 2.9 | 3.4 | 4.6 | 5.3 | 6.8 | 7.9 | 8.9 | 10.3 | 11.0 | 12.7 |
| 225 | 225.0 | 225.7 | 3.3 | 3.9 | 5.2 | 6.0 | 7.6 | 8.8 | 10.0 | 11.5 | 12.4 | 14.3 |
