Paper Machine Dewatering Ceramic Parts Condition New Certification CE HS Code 8433390000 Trademark Greatland Model NO. GLM
1 Set
$20,0001 Set
$500Product information
High-quality Paper Machine Dewatering Ceramic Parts Condition New Certification CE HS Code 8433390000 Trademark Greatland Model NO. GLM supplied by GREATLAND PULP AND PAPER TECHNOLOGY CO.,LTD. Bulk wholesale pricing ranges from $500 to $20,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
10000 Set/Year
Trimmed Width:
1092-5600mm
Paper Grammage:
13-2000GSM
Operating Speed:
5000-2000m/Min
HS Code:
8433390000
Automation:
Automatic
Certification:
CE
Customized:
Customized
Specifications
Production Capacity:
10000 Set/Year
Trimmed Width:
1092-5600mm
Paper Grammage:
13-2000GSM
Operating Speed:
5000-2000m/Min
HS Code:
8433390000
Automation:
Automatic
Certification:
CE
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Model NO.:
GLM Series
Trademark:
Greatland
Specification:
ISO CE
Payment Term:
LC, T/T
Condition:
New
Port Of Loading:
Qingdao
Transport Package:
Standard Seaworthy Package
Paper Thickness:
Thick Paper
Origin:
Weifang, Shandong, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-12-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
Qingdao
Certificates:
CE
Product descriptions from the supplier
Press suction box for Kraft Paper Machine Machine
As we know that the dewatering elements is the key component in paper machine, whose inner quality and the reasonable configuration on forming table are very important for good formation and effective dewatering, and its quality also directly affects the service life of the forming fabrics.
Design feature:
For many years, we have visited many large domestic paper mills many times, and made performance analysis & study on kinds of ceramic dewatering elements from home and abroad as well as main raw material characteristic study, thus the unique structure came into being.
Strong points:
1, Ceramic made of Al2O3 can be used as dewatering elements for the whole paper machine with speed lower than 1300m/min, and as foils when speed is less than 1200m/min, while SiC and SiN dewatering elements are design for higher speed.
2, Imported ceramic segments with Al2O3 purity more than 99.5%.
3, Imported adhesive has strong resistant to high temperature and chemical corrosion.
4, FRP main material is imported, it's technical data is up to same equality level as overseas like products.
5, Piano-key if effectively avoided by the unique dovetail structure.
6, The surface roughness after fine polishing: Ra is less than 0.4um (Al2O3); Ra is less than 0.15um(SiC, SiN)
7, Exact precision ensures the same dewatering elements are completely interchangeable.
Technical parameters:
Advanced design concept
Low friction coefficient
Stable T-bar structure
High strength glass fiber base
No piano key thanks to dovetail groove structure
Precisely machined and easy to replace
Angle can be adjusted
Low adhesive rate of pulp fiber and filler particles
Effectively protect the wire
SS304/321 stainless steel box
Different welding method and processing way are adopted for different box body
Box body flatness is smaller than 0.3mm/m2
| Material | Bulk density (g/m3) | Bending strength (Mpa) | Fracture Toughness (Mpa.M1/2) | Vickers Hardness (kg/mm2) | Thermal Conductivity (W/m*k) |
| Sub-micron Aluminium Oxide A | 3.86-3.88 | 380-420 | 5.0-6.0 | 1450-1530 | 20-25 |
| High-purity Aluminium Oxide B | 3.81-3.84 | 360-400 | 4.0-5.0 | 1350-1450 | 18-20 |

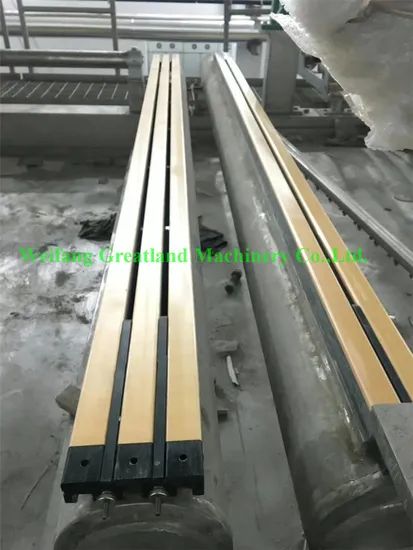

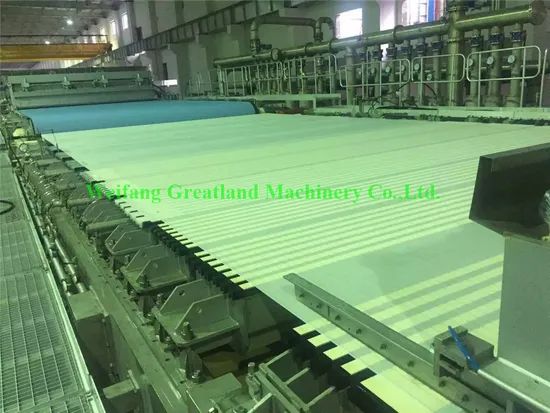

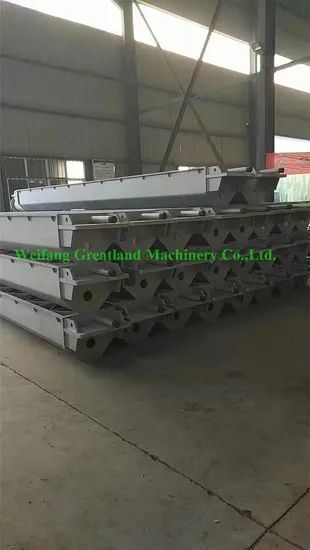

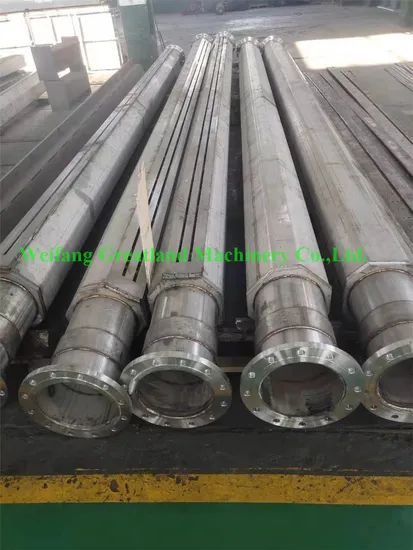

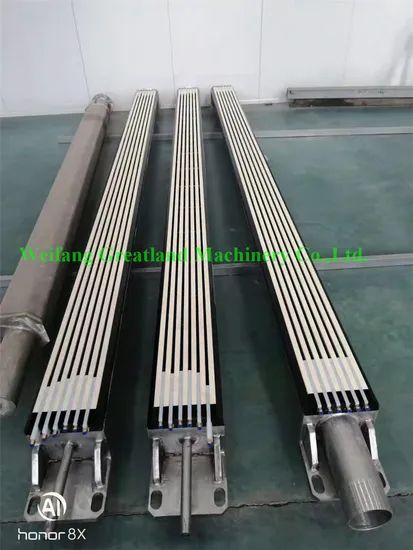

PHOTOS:
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
