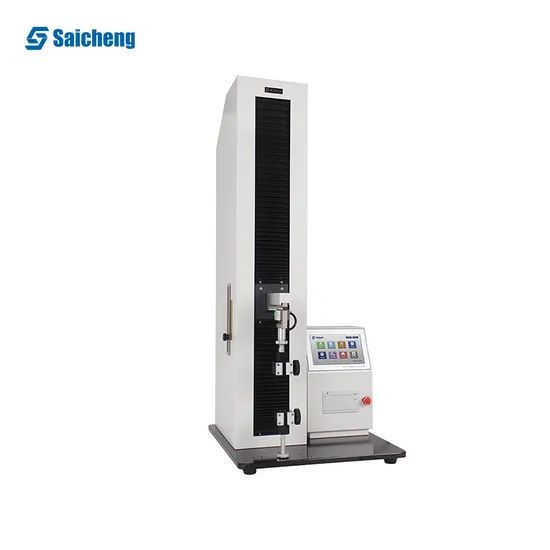

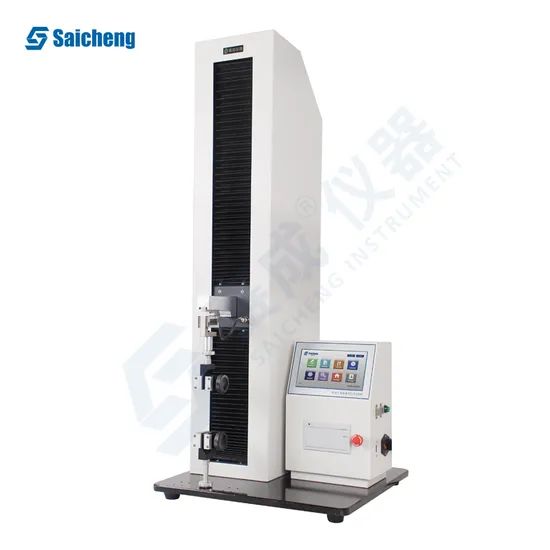

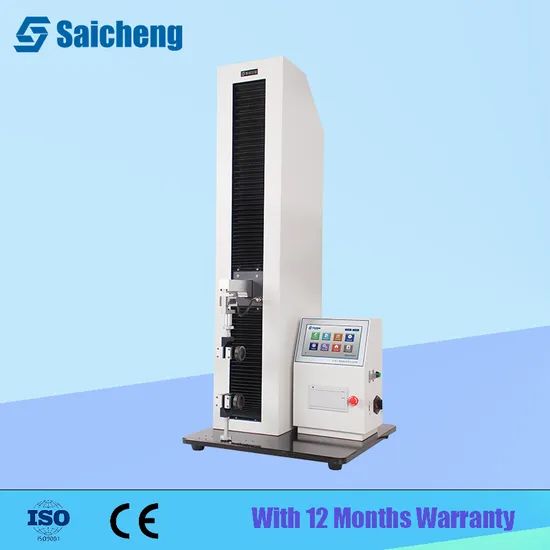

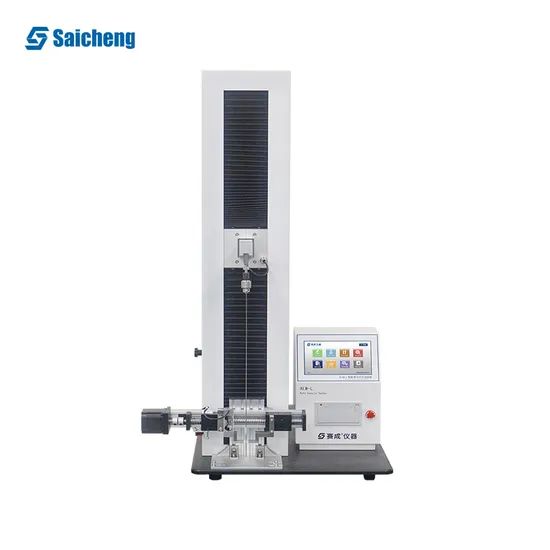

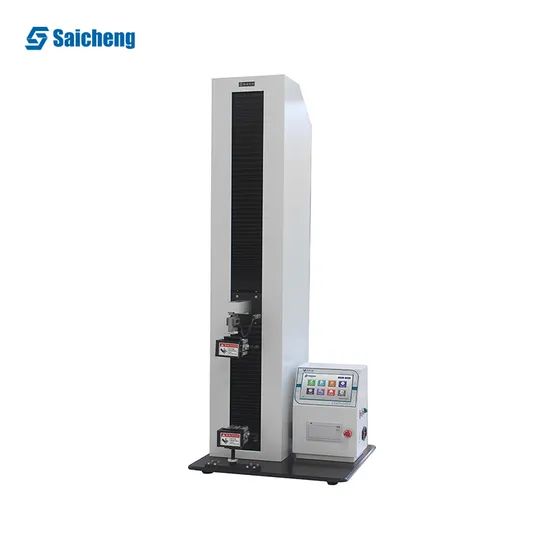

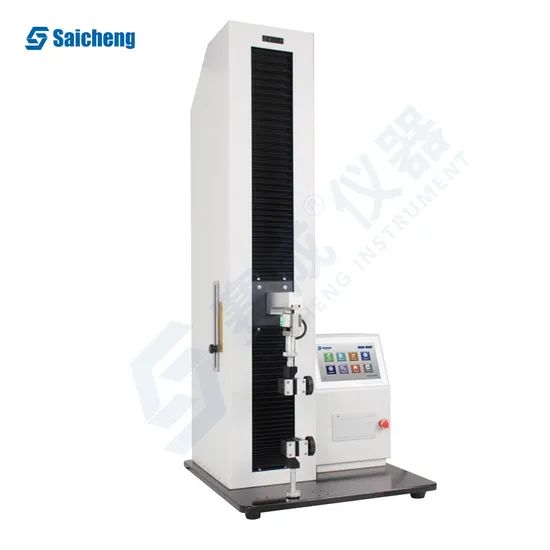

Paper Wet Tensile Testing Machine Toilet Paper Tensile Testing Machine
1 Sets
$10,0001 Sets
$3,000Product information
High-quality Paper Wet Tensile Testing Machine Toilet Paper Tensile Testing Machine supplied by Jinan Saicheng Electronic Technology Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $10,000 per Sets with a minimum order of 1 Sets. Inquiry for latest prices.
Test Speed:
0 ~ 500mm/Min (Infinitely Adjustable Speed)
Weight:
0-100Kg
Resolution:
0.0001n
Resolution Of Displacement:
0.001mm
Accuracy Grade:
0.5
Production Capacity:
10 Sets/Week
Specification:
450*450*1000 mm
Test Range:
500 N (Standard)
Specifications
Test Speed:
0 ~ 500mm/Min (Infinitely Adjustable Speed)
Weight:
0-100Kg
Resolution:
0.0001n
Resolution Of Displacement:
0.001mm
Accuracy Grade:
0.5
Production Capacity:
10 Sets/Week
Specification:
450*450*1000 mm
Test Range:
500 N (Standard)
Net Weight:
55 Kg
Max Diameter Of Workpiece:
600mm
Delivery Time:
7-15 Days
Maxcapacity:
<1000KN
Mass Scope Of Workpiece:
<900kg
Power Source:
AC 220V 50Hz
Standard:
ASTM D882
Origin:
China
Control:
Computer Control
Load Way:
Electronic Load
Trade Term:
FOB, EXW, CFR, CIF, DAP, CIP, Others
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Display:
Needle /Digital
Customized Support:
OEM
Oil Cylinder Position:
Other
Port Of Loading:
Qingdao
Brand:
Saicheng
Trademark:
Saicheng
Loading Method:
Static Load
Type:
Tensile Testing Machine
Transport Package:
Wooden Crate
Model NO.:
XLW-L
Accuracy Of Displacement:
±0.5%
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAP, CIP, Others
Port Of Loading:
Qingdao
Certificates:
ISO9001:2015
Product descriptions from the supplier
Features
★7-inch touch interface is more convenient to operate.
★Diverse modes are getting to meet various requirements.
★Equipped with advanced sensor.
★The screw driving system realizes the continuous adjustable speed.
★Intelligent configurations (limit protection, over-load protection, automatic reposition and power-down memory) ensure the safety of users and the instrument itself.
★The curve of data synchronously shows the changing trend of force value during the test.
★The records of data can be queried, audited and tracked.
★The micro-printer facilitate to get paper-data.
★Equipped with standard USB interface.
Principle
The sample is clamped between the two collets of the fixture, and the two collets make relative movement. Through the force transducer located in the movable collet and the displacement transducer built in the machine, the force change and displacement change in the test process are collected, to calculate the specimen's performance indexes of tensile, tearing, deformation rate and so on.
Standards
This test instrument conforms to many national and international standards:
GB/T 13022,GB/T 8808,GB/T 1040,GB/T 4850,GB/T 7753,GB/T 7754,GB/T 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 2790,GB/T 2791,GB/T 2792,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130
Applications
| Basic Applications | Tensile Property | Tensile Strength and Elongation Rate | Breaking Force | Tear Resistance | ||||||
| Heat Seal Strength | 90 Degree Peel Test | 180 Degree Peel Test | ||||||||
| Extended Applications(Additional Accessories Required) | Puncture Resistance Test of Hypodermic Needles in Artificial Skin | Puncture Test of Film | Puncture Test of Infusion Bag Closure | Puncture/Pullout Test of Flexible Rubber Closure | ||||||
| Opening Resistance Test of Combined Covers | Tear Test of ZD Bottle Cap | Tear Test of Oral Liquid Cap | Puncture/Pullout Test of Oral Liquid Cap | |||||||
| 90 Degree Pullout Test of Infusion Bag Closure | Pullout Test of Infusion Bag Closure | 23 Degree Pullout Test of Bottle Cap | Puncture/Pullout Test of Bottle Cap or Rubber Closure | |||||||
| 90 Degree Peel Test of Adhesive Tape | Tear Resistance Test of Adhesive Binding Pages | 90 Degree Peel Test of Water-soluble Plasters | Tear Resistance Test of Adhesives | |||||||
| Adhesive Strength Test (soft) | Adhesive Strength Test (hard) | Peel Test of Hose Closure | Removal Force of Pipe and Pipe Joint | |||||||
| Pullout Test of Makeup Brush Hair | Pullout Test of Toothbrush Hair | Tensile Strength at Break of Rope | Opening Force Test of Jelly Cups and Yogurt Cups | |||||||
| Peel Test of Cup Film | Pullout Test of Rubber Stopper | 45 Degree Peel Test of Bottle Membrane | Tensile Strength of Sealing Bag | |||||||
| Peel Test of Magnetic Core | 90 Degree Peel Test of Magnetic Cards | Tear Test of Heat Sealing Film | Separating Force of Protection Film | |||||||
| Peel Test of Release Paper | Tear Test Using Trouser Method | Unwinding Force of Adhesive Tape | Pressure Resistance of Plastic Bottle | |||||||
| 20 Degree Peel Test | 135 Degree Strip Test of Bolt | Stripping Grips of Floating Roller | Eccentric Grips | |||||||
| Japanese Sample Grips | British Sample Grips | Wide-specimen Grips | ||||||||
| Test Range | 500 N (Standard) |
| 50 N,100 N,250 N,1000 N,1500 N(Optional) | |
| Accuracy | 0.5%FS |
| Resolution | 0.0001N |
| Accuracy of Displacement | ±0.5% |
| Resolution of Displacement | 0.001mm |
| Test speed | 0 ~ 500mm/min (Infinitely adjustable speed) |
| Sample Width | 30mm (Standard) |
| 50mm (Optional) | |
| Clamping Way | Manual (Note: Pneumatic fixture sold separately) |
| Travel | 600mm |
| Dimension | 450mm (L)×450mm (B)×1000mm (H) |
| Net Weight | 55 kg |
Standard: Mainframe, micro-printer, universal fixture, specialized software, communication cable
Optional: Standard pressure rollers, test plates, sampling knives, floating roller fixtures, low-speed unwinding devices, non-standard fixtures
Jinan Saichengis a professional manufacturer founded in 2007 which focuses on producing and developing R&D of laboratory testing instruments and packaging testing devices.
Since the establishment of the company, it has provided various testing instruments and systematic solutions completely for packaging, pharmaceutical, food industry, quality inspection institution, scientific research institution, daily chemical industry. It has achieved ISO 9001 certification and is recognized as a high-tech enterprise by the national authority.
Since the establishment of the company, it has provided various testing instruments and systematic solutions completely for packaging, pharmaceutical, food industry, quality inspection institution, scientific research institution, daily chemical industry. It has achieved ISO 9001 certification and is recognized as a high-tech enterprise by the national authority.
Jinan Saicheng Instrumentadheres to independent research and development, continuous innovation, and focuses on R&D investment. The company is equipped with a high-quality, high-level R&D team. It holds complete independent intellectual property rights and is currently leading or participating in the drafting of national standards. The company has over 50 patents, including invention patents, utility model patents, and software copyrights. It has passed the evaluation for high-tech enterprises, provincial specialties, and new enterprises. Additionally, the company has obtained software enterprise and software product certifications, as well as ISO 9001 quality management system certification.
1. Strict Quality Control System
Ensuring the highest standards in every product ,our factory has a strict quality control system. Each shipment of our orders undergoes five inspection steps: materials checking, production process monitoring, finished product testing, equipment packing, and loading. When any problems arise, it's easier to resolve the issues quickly.
2. Perfect Packing and Shipping
Ensuring safe and secure delivery of our products ,the shipping department will prepare a checklist and pack the items in a wooden box. You will receive a checklist with everything we shipped. After shipping, we will provide completed loading pictures and a checklist with images of all parts.
3. High-Efficiency After-Sales Service
Ensuring prompt & effective support for our customers,we have a standardized and comprehensive after-sales service process. Our primary goal is to ensure quality in advance to minimize after-sales issues. If any problems arise, we address them with the highest efficiency, whether by sending replacements or covering repair costs.
1. Is your company a trading company or manufacturer?
We are a factory. All testing instruments are R&D and Manufactured by Saicheng with almost 20 years of experience.
2. Do you accept customized services?
Yes, of course, we can not only provide standard instruments but also customized instruments according to your requirements. Please tell us your requirements, we will try our best to meet your needs.
3. How long is your delivery time?
4. How about your warranty?
Usually, our warranty period is 12 months. During the warranty period, we can provide technical support and parts replacement. We can provide you with lifelong technical support.
5. How about the packaging of the instrument and is it protected during transportation?
Our instruments are packed in standard export wooden boxes and will not be damaged. We have delivered many test machines abroad by sea or air without damage.
NOTE:As prices vary for different products, please confirm your order after discussing with us.
