Paperboard Batten Shaping and Chamfering Machine Origin China Trademark Zhenhuan Model NO. CTJ-40120 Specification
1 Set
$42,0001 Set
$41,734Product information
High-quality Paperboard Batten Shaping and Chamfering Machine Origin China Trademark Zhenhuan Model NO. CTJ-40120 Specification supplied by Nantong Zhenhuan Trade Co., Ltd.. Bulk wholesale pricing ranges from $41,734 to $42,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
The Max. Width Of Feeding Material:
120mm
Production Capacity:
15 Sets Per Month
Diameter Of Cutter Shaft:
40mm
Feeding Speed:
6-15m/Min, Adjustable
Speed Of Cutter Shaft:
6000rpm
Model NO.:
CTJ-40120
Origin:
China
Trade Term:
FOB, CIF, CFR
Specifications
The Max. Width Of Feeding Material:
120mm
Production Capacity:
15 Sets Per Month
Diameter Of Cutter Shaft:
40mm
Feeding Speed:
6-15m/Min, Adjustable
Speed Of Cutter Shaft:
6000rpm
Model NO.:
CTJ-40120
Origin:
China
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T
Port Of Loading:
Shanghai Port
Transport Package:
Wooden Case
Trademark:
Zhenhuan
Specification:
customized
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2004-08-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
certificate, EPR
Product descriptions from the supplier

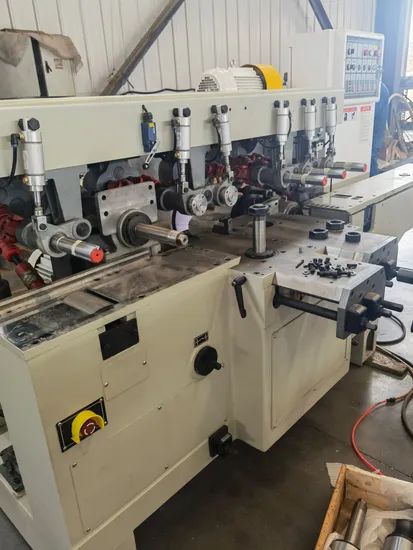

CTJ-40120 Paperboard Batten Shaping Machine
I Description
This machine is designed mainly for slitting and processing the three kinds of forming battens including the shapes of "T", dove-tail and rectangular for transformers. And also it is used to milling and chamfering four planes of a strip, and multiple slitting and chamfering functions for rectangular strips.
II Main Features
There arefour cutter shafts. Itcan process high-quality straightstripsand spacer strips. And it also canprocessmultiple slitting rectangular stripsat one time.

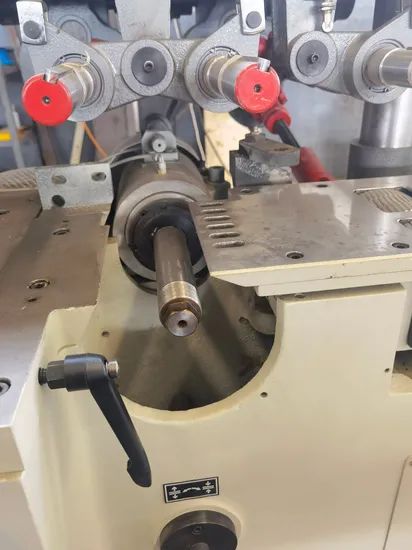

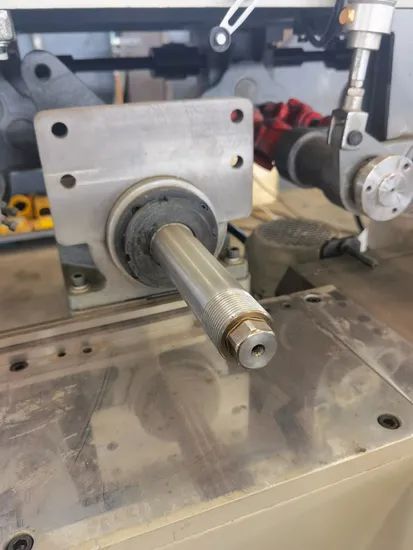

2.1 The cutter shaft,good stability, convenient adjustment, high speedwith6000 rpm. The machined surface is smooth, perfect andhighprecise.
2.2Each cutter shaft is equipped with high power, which can process the four sides of the block strip at one time.
2.3Compactstructure,shortdistance between the cutter shafts, and highprecision.
2.4 The worktable has been plated and hardened, so it is particularly wear-resistant and adapts to the requirements of processing insulating parts.
2.5The front and back of the table are equipped with two lower power rollers to make the feeding more stable and smooth, to ensure the precision of the workpiece during the processing.
III MainSpecification requirements
3.1 The size range of the chamfered section of the dovetail batten in a single processing
Material size:
L:1000-4000mm
W:12-60mm
T: 5-20mm
3.2 The size Range of rectangular batten in a single processing
- Material size:
W:6-70mm
T: 4-20mm
- Thesizerange of multiple rectangularbatten in a single processing
Material size:
L:1000-4000mm
W:Max. 120mm
T: 4-15mm
- When the thickness of the straightbattenis ≥20mm, only four-corner R arcs can be processed
- The size range ofspacer batten in a single processing:
W: 30-70mm
T: 1.5-3mm
IVMain technical data
| No. | Item | Data |
| 1 | Diameter of cutter shaft | 40mm |
| 2 | The Max. Width of feeding material | 120mm |
| 3 | Speed of cutter shaft | 6000rpm |
| 4 | Feeding speed | 6-15m/min, adjustable |
| 5 | Lifting motor power | 0.75kW |
| 6 | Feeding motor power | 3.0kW |
| 7 | Power of upper horizontal axis (processing upper ) | 4kW |
| 8 | Power of lower horizontal axis (processing lower ) | 3kW |
| 9 | Power of left vertical knife axis (processing left step and R) | 3kW |
| 10 | Power of right vertical knife axis (processing right step and R) | 3kW |
| 11 | Power of vacuum cleaner | 5.5kW |
| 12 | Pneumatic pressure | 0.25-0.5MPa |
| 13 | Compressed air | 0.1m3/ min |
| 14 | Dimension of the machine | 2900x1350x1550mm |
| 15 | The weight | About 2500kg |
| 16 | Produced strips parts width tolerance | ±0.05mm |
| 17 | Thickness of saw blade and combination blade | 2.5mm |
4.2One set of compression roller
4.3All the blades are hard alloy cutter head YG8.
4.4 It is adopted the transmission structure of universal joint so ensure the steady transmission and smooth feeding.
4.5 Regarding all blades will be rotated in 6000r/min, it should not be anycarbonization on cutting edges and also any marks on work piece surfaces.
V Main conguration
5.1 Motor: Shandong huali (local brand)
5.2 Gearbox: self-made
5.3 Bearing: NSK
5.4 Belt: customized
5.5 Main electrical parts: Simens
