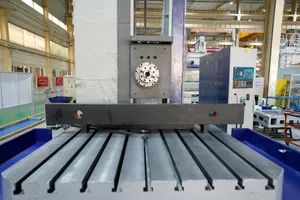

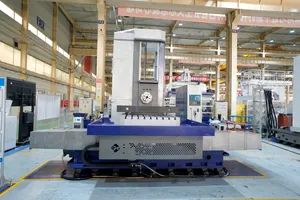

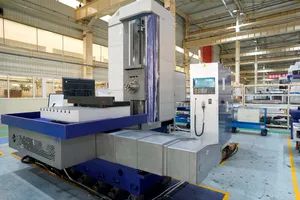

Pbc100m Horizontal Boring and Milling Machine Premium CNC Boring Machine
Piece
Negotiable
Product information
High-quality Pbc100m Horizontal Boring and Milling Machine Premium CNC Boring Machine supplied by Tongji (Dalian) International Trade Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
1.000kg
Production Capacity:
100
Workbench Dimension:
1000X1250
Max. Load Of Workbench:
5
Package Size:
5200.00cm * 6000.00cm * 4200.00cm
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Controlling Mode:
CNC
Specifications
Package Gross Weight:
1.000kg
Production Capacity:
100
Workbench Dimension:
1000X1250
Max. Load Of Workbench:
5
Package Size:
5200.00cm * 6000.00cm * 4200.00cm
Automatic Grade:
Automatic
Certification:
CE, ISO 9001
Controlling Mode:
CNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Port Of Loading:
Dalian Port
Origin:
Dalian, China
Trade Term:
FOB, CIF, CFR, EXW
Tool Type:
Fine Knife
Precision:
High Precision
Structure:
Horizontal Boring Machine
Coordinate Boring Machine Type:
Horizontal Type
Payment Term:
LC, T/T, D/P
Condition:
New
Model NO.:
PBC100m
Trademark:
SMTCL
Transport Package:
Standard Packaging or Customized
Specification:
Standard Specifications or Customized
Payment Methods:
Support payments in USD
Spindle Diameter:
Ф110
Facing Head Diameter:
Ф630
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025-04-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
28
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Dalian Port
Product descriptions from the supplier
Product Description
Specification
ltems | Unit | Horizontal Boring Machine PBC110(f)m | ||
Workbench dimension | mm | 1000x1250 | 1250x1400 | |
Max. load of workbench | T | 5 | ||
Spindle diameter | mm | 110 | ||
Facing head diameter | mm | 630 | ||
Spindle taper hole | IS0 7:24 NO.50 | |||
Tool shank specification | JT50/BT50 | |||
Spindle speed | r/min | 10-2500 | 10-2000(fm) | |
Facing head speed | r/min | 10-200 | ||
Power of main motor | kW | 17/20.4 | ||
Max. torque of spindle | Nm | 1300/1600 | ||
Transverse travel X of workbench | mm | 2000 | ||
Vertical travel Y of headstock | mm | 1500 | ||
Longitudinal travel Z of column | mm | 1200 | ||
Travel W of spindle | mm | 550 | ||
Travel U of facing head slide block | mm | 140 | ||
Workbench rotation B | ° | 0.001x360 | ||
Distance from spindle center to workbench | mm | 60-1560/30-1530 | ||
Distance from spindle nose to workbench center | mm | 350 | 487(fm) | |
Feeding speed | X,Y,Z | mm/min | 1-6000 | |
W | mm/min | 1-2000 | ||
U | mm/min | 1-1000 | ||
B | r/min | 0-1 | ||
Rapid travel | X,Y,Z | mm/min | 9 | |
W | mm/min | 2.4 | ||
U | mm/min | 2.4 | ||
B | r/min | 2 | ||
Positioning accuracy | X,Y,Z | mm | X:0.02/0.016(grating scale) YZ:0.018/0.015(grating scale) | |
W | mm | 0.02 | ||
U | mm | 0.032 | ||
B | " | 12/10(grating scale), 4x90" :6 | ||
Repositioning accuracy | X,Y,Z | mm | X:0.011 YZ:0.01 | |
W | 0.016 | |||
U | mm | 0.018 | ||
B | " | 7 | ||

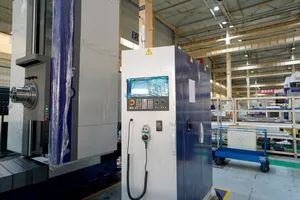

CNC system | SIEMENS 828D | |||
Machine size | mm | 5010×5950×4200 | ||
Machine tool footprint (length x width) | mm | 5800X6500 | ||
