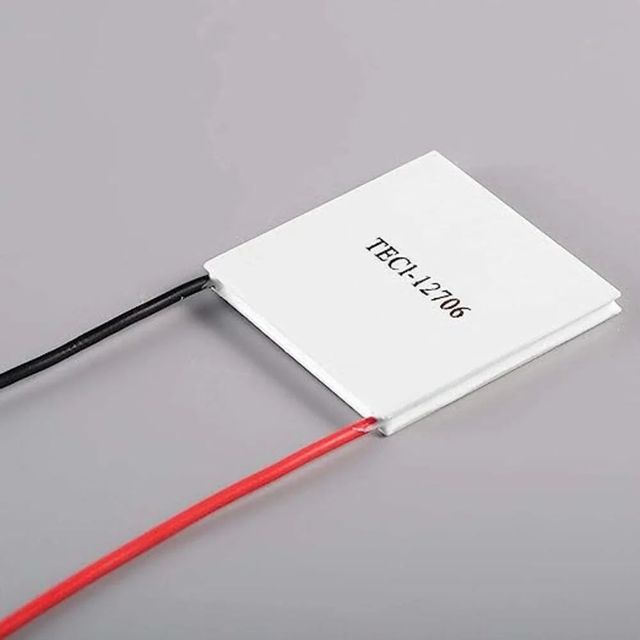

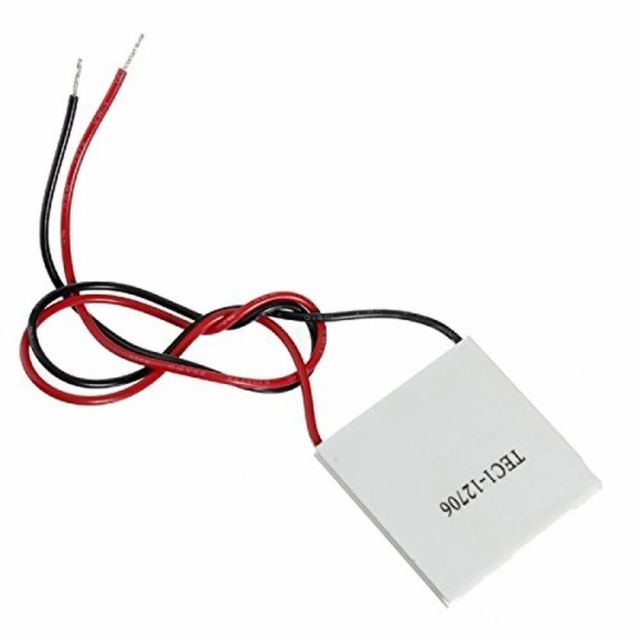

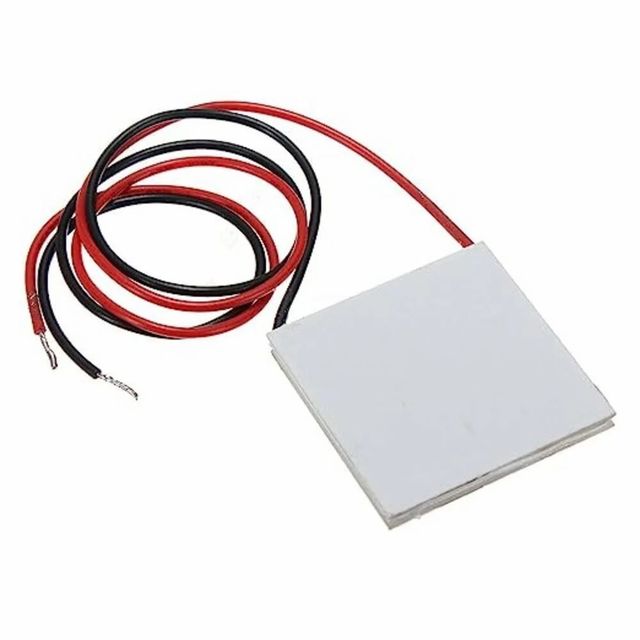

Peltier 12706 Thermoelectric Peltier Module Voltage 12V Color White Brand Tayal Failure Rate 0.2% Maximum Power 92 W Maximum Current
1 Piece
$1.54Product information
High-quality Peltier 12706 Thermoelectric Peltier Module Voltage 12V Color White Brand Tayal Failure Rate 0.2% Maximum Power 92 W Maximum Current supplied by Tayal Electronics. Bulk wholesale pricing is $1.54 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Failure Rate:
0.2%
Voltage:
12V
Operating Voltage:
12v
Maximum Temperature:
138°c
Maximum Voltage:
15.4v
Life Expectancy:
200,000 Hours
Power Cord Length:
200mm
Cooling Area:
40x40mm
Specifications
Failure Rate:
0.2%
Voltage:
12V
Operating Voltage:
12v
Maximum Temperature:
138°c
Maximum Voltage:
15.4v
Life Expectancy:
200,000 Hours
Power Cord Length:
200mm
Cooling Area:
40x40mm
Cooling Capacity:
56.2 - 96 W
Maximum Current:
6a
Maximum Power:
92 W
Application Use:
Cooling Or Heating Electronic Devices, Computer Cpus, Ccds, Portable Refrigerators, Medical Instruments
Temperature Differential Capability:
Creates Cold And Hot Sides
Usage/Application:
Industrial
Installation Requirement:
Must Be Used With A Heat Sink
Operation Method:
Reverse Polarity To Switch Between Hot And Cool Sides
Physical Characteristics:
Solid-state, Vibration-free, Noise-free
Brand:
Tayal
Model Number:
Tec1-12706
Module Type:
Thermoelectric Cooler Or Peltier Module
Trade Term:
To be discussed
Payment Term:
To be discussed
Operating Temperature Range:
Up To 138°c
Cooling Capacity:
Up To 90°c
Color:
White
Part Number:
peltier 12706
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2014
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
QUICK OVERVIEW
- Model number: TEC1-12706
- Operating Voltage: 12V
- Maximum Voltage Umax (V) : 15.4V
- Maximum Current Imax (A) : 6A
- Maximum Power: 92 W
- Maximum Temperature: 138°C
- Power Cord: 200mm COO
Product Description
Looking to cool down your DIY project or any electronic device then you are at the right product. The TEC1 12706 40×40 mm Thermoelectric Cooler 6A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40 x 40mm which very effectively cools and heats up to 90°C.
The thermoelectric cooler is also known as TEC or Peltier Module creates a temperature differential on each side. One side gets hot and the other side gets cool. They use to either warm something up or cool something down; above all, you can use either side. You can also take advantage of a temperature differential to generate electricity.
A thermoelectric cooler (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely useful in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.
Operating Tips- Max. Operating Temperature: 138 Degree C
- Do not exceed Imax or Vmax when operating a module.
- Please carry out moisture protection options (sealing) in final application use.
- Life expectancy: 200,000 hours
- Failure rate based on longtime testing: 0.2%.
Features
- Small module.
- Operable up to 138°C.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- Quality tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use with a heat sink.
Package Includes
- 1 x TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module
