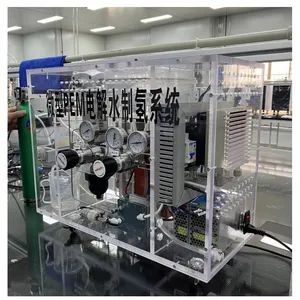

Pem Hydrogen Production System Water Electrolyzer H2 Gas Hydrogen Fuel Cell System
Piece
Negotiable
Product information
High-quality Pem Hydrogen Production System Water Electrolyzer H2 Gas Hydrogen Fuel Cell System supplied by Suzhou VMA New Energy Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Capacity:
0.5-300nm3/H
Production Capacity:
2000units/Year
Package Gross Weight:
3.500kg
Working Temperature:
40-60 Deg.C
Package Size:
40.00cm * 30.00cm * 20.00cm
Cell Rate:
4lpm
Life Time:
80000+H
HS Code:
8543300090
Specifications
Capacity:
0.5-300nm3/H
Production Capacity:
2000units/Year
Package Gross Weight:
3.500kg
Working Temperature:
40-60 Deg.C
Package Size:
40.00cm * 30.00cm * 20.00cm
Cell Rate:
4lpm
Life Time:
80000+H
HS Code:
8543300090
H2 Purity:
99.9999% (After Purification)
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Trade Term:
FOB, EXW, CFR, CIF, DAP, CIP, CPT, FCA
Purpose:
Gas Manufacturing
Parts:
Gas Tank
Usage:
Hydrogen, Oxygen
Payment Term:
LC, T/T
Noise Level:
Low
Machine Size:
Medium
Condition:
New
Trademark:
OEM/ODM/VMA
Port Of Loading:
Shanghai, Ningbo
Payment Methods:
Support payments in USD
Model NO.:
VMP-0.5-300
Transport Package:
Wooden Case for Exportation
Working Pressure:
up to 3.2MPa
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-09-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAP, CIP, CPT, FCA
Port Of Loading:
Shanghai, Ningbo
Certificates:
Patents awarded
Product descriptions from the supplier
PEM Water Electrolysis Electrolyzer Stack
Hydrogen Output: 600-3000ml/min
Hydrogen Output: 0.5-5Nm3/h
Hydrogen Output: 10-200Nm3/h
Alkaline Water Electrolysis Hydrogen Electrolyzer Stack
Utilites and Related Equipment
Water
Alkaline Hydrogen Generator will consume some DM water, normaly 1liter of DM water per Nm3 of H2.
Because the electrolysis and H2 purification process will produce some heat, so it will also need cooling water circulation to cool the gas and system.
Power
The electrolyzer stack use DC power, and normally the power supply should be 7time of the expected capacity of the Hydrogen Plant.
Instrument air
For driving instruments
Our system contains Hydrogen Generator, power supply system, PLC control system; and we can also provied auxiliary equipments such as water purifier, water chiller, air compressor, ext.
PEM Hydrogen Generator
Waranty Period
12 months from the date of successful comissioning of the equipment or 18 months from the date of equipment delivery, whichever comes first.
Testing and Process
First Step to Have One More Choice
Hydrogen Output: 600-3000ml/min
|
Model |
VMB-600ML |
VMB-900ML |
VMB-1200ML |
VMC-1500ML |
VMC-2000ML |
VMC-3000ML |
|
H2flow ml/min |
600 |
900 |
1200 |
1500 |
2000 |
3000 |
|
Current DCA |
45 |
45 |
45 |
73 |
73 |
73 |
|
Voltage DCV |
3.6-5 |
5.4-7.5 |
7.2-10 |
5.4-7.5 |
7.2-10 |
10-15 |
|
Power consumption kW·h/m3 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
|
Cell Nos. |
2 |
3 |
4 |
3 |
4 |
6 |
|
Electrode Efficiency |
80% |
80% |
80% |
80% |
80% |
80% |
|
Working Temp. ºC |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
|
Water Quality ≥MΩ·cm² |
15 |
15 |
15 |
15 |
15 |
15 |
|
Pressure (H2) |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
|
Pressure (H2O) |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
|
Dimensions mm |
96*86*36 |
96*86*40 |
96*86*42 |
124*124*45 |
124*124*48 |
124*124*54 |
|
Model |
VMD-0.5M |
VMD-1M |
VMD-2M |
VME-3M |
VME-4M |
VME-5M |
|
H2flow Nm3/h |
0.5 |
1 |
2 |
3 |
4 |
5 |
|
Current DCA |
147 |
147 |
147 |
765 |
765 |
765 |
|
Voltage DCV |
16-23 |
30-43 |
60-86 |
18-25 |
23-33 |
28-40 |
|
Power consumption kW·h/m3 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
|
Cell Nos. |
9 |
17 |
34 |
10 |
13 |
16 |
|
Electrode Efficiency |
80% |
80% |
80% |
80% |
80% |
80% |
|
Working Temp. ºC |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
|
Water Quality ≥MΩ·cm² |
15 |
15 |
15 |
15 |
15 |
15 |
|
Pressure (H2) |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
|
Pressure (H2O) |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
|
Dimensions mm |
254*141*81 |
254*141*106 |
254*141*155 |
509*284*120 |
509*284*129 |
509*284*172 |
|
Model |
VME-10M |
VMF-15M |
VMF-20M |
VMG-50M |
VMG-100M |
VMH-200M |
|
H2flow Nm3/h |
10 |
15 |
20 |
50 |
100 |
200 |
|
Current DCA |
765 |
765 |
1575 |
4725 |
4725 |
4725 |
|
Voltage DCV |
57-80 |
84-118 |
57-80 |
68-95 |
90-125 |
180-250 |
|
Power consumption kW·h/m3 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
≤4.50 |
|
Cell Nos. |
32 |
47 |
32 |
25 |
50 |
100 |
|
Electrode Efficiency |
80% |
80% |
80% |
80% |
80% |
80% |
|
Working Temp. ºC |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
|
Water Quality ≥MΩ·cm² |
15 |
15 |
15 |
15 |
15 |
15 |
|
Pressure (H2) |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
≤3.2MPa |
|
Pressure (H2O) |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
≤0.5MPa |
|
Dimensions mm |
509*284*232 |
509*284*292 |
705*396*235 |
960*530*230 |
960*530*310 |
960*530*520 |
Alkaline Water Electrolysis Hydrogen Electrolyzer Stack
|
H2 Output Capacity |
0.5-1000Nm3/h |
|
O2 Output Capacity |
0.25-500Nm3/h |
|
H2 Purity (Before Purification) |
99.8%+/-0.2 |
|
H2 Purity (After Purificaiton) |
99.9999% |
|
O2 Purity (Before Purificaiton) |
98.5%+/-0.5 |
|
H2 Dew Point |
<=-65ºC |
|
Working Load |
30-100% |
|
Working Pressure |
up to 3.2Mpa |
|
DC Power Consumption |
<=4.5Kw.h/Nm3 H2 |
|
Working Temperature |
85+/-5ºC |
Utilites and Related Equipment
Water
Alkaline Hydrogen Generator will consume some DM water, normaly 1liter of DM water per Nm3 of H2.
Because the electrolysis and H2 purification process will produce some heat, so it will also need cooling water circulation to cool the gas and system.
Power
The electrolyzer stack use DC power, and normally the power supply should be 7time of the expected capacity of the Hydrogen Plant.
Instrument air
For driving instruments
Our system contains Hydrogen Generator, power supply system, PLC control system; and we can also provied auxiliary equipments such as water purifier, water chiller, air compressor, ext.
PEM Hydrogen Generator
Key Benefits
Waranty Period
12 months from the date of successful comissioning of the equipment or 18 months from the date of equipment delivery, whichever comes first.
Testing and Process
First Step to Have One More Choice
VMA is one of very few companies that offer both the expertise and the technologies to help sectors that are difficult to reduce carbon emissions and enterprises who want to embark on green energy futures. Our green Hydrogen solutions will power a sustainable future.
Tell us about your project plans or just say hello. Whether you've got a big idea or need some inspiration with a green hydrogen plant construction project, we are here to create perfect green hydrogen plants. From concept to creation, let us inspire you.
Towards 100% New Energy, Let's Connect!
