Pet Preform Injection Moulding Machine / Machinery Plastic Fruit Shipping Box/ Crate Making Machine Injection Mold Machine
Set
Negotiable
Product information
High-quality Pet Preform Injection Moulding Machine / Machinery Plastic Fruit Shipping Box/ Crate Making Machine Injection Mold Machine supplied by Suzhou Planet Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100 Units/Year
Total Power:
50kw
HS Code:
8477101090
Capacity:
90ton to 1000ton
Automation:
Automatic
Certification:
CE, ISO9001:2008, GMP, QS
Origin:
China
Computerized:
Computerized
Specifications
Production Capacity:
100 Units/Year
Total Power:
50kw
HS Code:
8477101090
Capacity:
90ton to 1000ton
Automation:
Automatic
Certification:
CE, ISO9001:2008, GMP, QS
Origin:
China
Computerized:
Computerized
Voltage:
Customed Avaiable
Motor:
Energy Saving Pump
Trade Term:
FOB, EXW, CFR, CIF, Others
Structure:
Horizontal
Clamping Way:
Hydraulic
Type:
Injection Blow Molding
Keywords:
Injection Molding Machine
Payment Term:
LC, T/T, PayPal, Western Union
Model NO.:
P-210
Specification:
Pcs
Plastic Processed:
Pet Preform / Cap
Trademark:
Planet
Port Of Loading:
SHANGHAI PORT, NINGBO PORT
Plasticizing Way:
Screw Type
Elctric:
Siemens,Mitsubishi,etc
Material:
Stainless Steel
Plastic Type:
Thermoplastic
Transport Package:
Wooden Packaging
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-09-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, Others
Port Of Loading:
SHANGHAI PORT, NINGBO PORT
Certificates:
CE, Certificate, ISO9001, SGS
Product descriptions from the supplier
"Injection machine System from A-Z"
Planet Machinery Injection molding system includes injection molding machine, mold, robot arm, raw material feeding system, conveyor belt, chiller, air compressor, etc. Our solutions are designed for your individual needs and are composed of a wide range of product combinations.
These devices together constitute a complete and highly effective platform for collaborative work to help customers continuously improve productivity, profitability and competitiveness.
Injection machine
injection molding systems are to maximize productivity, minimize part variability and reduce maintenance to enable the lowest total cost to produce.
| MODEL | UNIT | P-200 | P-260 | P-320 | |
Injection Unit |
Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | 25 | 25 | 25 | ||
| Shot Volume | cm3 | 1016 | 1378 | 1689 | |
| Injection Weight PET | g | 1087 | 1474 | 1807 | |
| Injection Rate | g/s | 482 | 496 | 605 | |
| Injection Pressure | Mpa | 105 | 127 | 130 | |
| Screw Speed | rpm | 110 | 120 | 120 | |
Clamping Unit |
Clamping Force | kn | 2000 | 2600 | 3200 |
| Moving Plate Stroke | mm | 490 | 550 | 585 | |
| Max.Mould Height | mm | 540 | 580 | 720 | |
| Min.Mould Height | mm | 200 | 200 | 300 | |
| Tie Bars Space(W×H) | mm | 530×530 | 580×580 | 660×760 | |
| Ejector force | kn | 80 | 126 | 180 | |
| Ejector Stroke | mm | 140 | 150 | 180 | |
| Ejector Number | n | 5 | 5 | 9 | |
Others |
Max.Pump Pressure | Mpa | 16 | 16 | 16 |
| Pump Motor Power | kw | 30 | 37 | 44 | |
| Heating Power | kw | 28 | 32 | 37 | |
| (L×W×H)Size | M | 6×1.5×1.6 | 6.8×1.6×1.8 | 7.7×1.8×2 | |
| Machine Weigh | T | 7 | 8.5 | 13 | |
Injection unit
Big diameter screw and barrel, special design for PET material.
Mold clamping unit
Special design for PET preform mold, which ensure the fast clamping movement and uniformly forced of the mold.
Dynamic system
servo motor drive hydraulic system
control system
brand new HMI control system
Fast PCL execution time
High performance PC and fast I/O capability
Quick communication thought all control components. Self-adjustment and self-adaption.
Friendly user interface design.

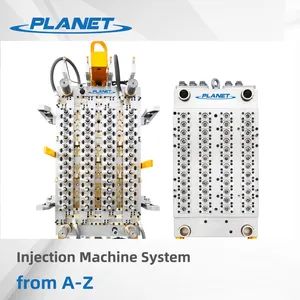

molds
The high quality mold is because we have chosen the top mold material, using world-class simulation software; world-class processing equipment.
Material and Structure 4Cr13 stainless steel plate for plastic mold, excellent anti-rust and anti-corrosion performance, plate hardness HRC35-40, aging treatment, stress relief, long-term use will not be deformed, surface grinder accuracy of 0.01mm. The mold base is used for processing all the templates in one time, ensuring the concentricity of the forming holes and the guide sleeve, and the overall mold frame has high precision.
Mold molding parts Adopting Sweden's ShengBai S136 mold steel, domestic original heat treatment and aging treatment.
Auxiliary machine
According to the characteristics of preform production, we specially customize corresponding auxiliary machines and have more experience. Auxiliary equipment includes drying system, chiller, air compressor, grinder, testing machine, and maintain long-term strategic cooperation relationship with auxiliary equipment manufacturers to ensure sufficient supply capacity and lower purchase prices.
Features:
The whole injection system is energy-saving and high production efficiency.
Small clamping unit with large shot weight, suitable for different PET preform mold requirements.
Equip with low speed and high torque hydraulic motor which is good for charging material stably and fast.
Standardized modules, easy to operate.
Wide range of adaptation,can be used to produce preforms, handles etc.
Customer value and advantage:
Complete solution
In Planet Machinery you can find complete solution for your ideal liquid packaging production, not only various packaging machinery but also production line building advisory service.
Rich industry experience
Our experienced engineer support you from bottle design, line speed selection, line setting up, installation and commssioning, onsite training, and after sales service.
Affordable price
We know it's not easy to open a new business, so we try our best to provide a quality products and service with a cost-effective price.
Fast delivery and installation
We design our machine and line in a simple and reliable way so that it's easy to install and save time on the production. Usually machine production time can up to 30days and production line up to 60days.
Q: How to solve the machine problems before they transport to customer's factory?
A: We will make 100% test in factory before we do the package, to make sure there is no big problems, also we have people to check all goods without any Omission.
Q: Because of the epidemic, how you will arrange the after-sales service?
A: We still have to send our engineer to help you install lines, and make sure your project can be finished in time.
We also can have a video call to help you on daily maintenance.
We send spares parts within 24 hours.
We can have zoom meeting or video call to discuss the project, so we will have close relationship with our clients.
Q: Finance and transportation.
A: We accept flexible payment terms, like T/T, L/C etc. If you face some difficult on finance, we are glad to help you.
We have cooperated freight company who have rich experience in sea shipping, to make sure you can get high quality shipping service with good price.
A: We accept flexible payment terms, like T/T, L/C etc. If you face some difficult on finance, we are glad to help you.
We have cooperated freight company who have rich experience in sea shipping, to make sure you can get high quality shipping service with good price.
