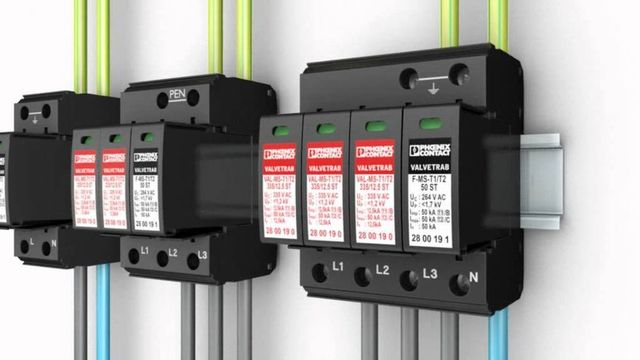

Phoenix Lightning Surge Arrester for Solar PV Protection Class Ii Response Time ≤ 25 Ns Connector Material Pa Color Light Grey Ral
1 Piece
$11Product information
High-quality Phoenix Lightning Surge Arrester for Solar PV Protection Class Ii Response Time ≤ 25 Ns Connector Material Pa Color Light Grey Ral supplied by Growtrade Corporation. Bulk wholesale pricing is $11 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Direction Of Action:
(l+)-pe & (l-)-pe & (l+)-(l-)
Rated Insulation Voltage:
1000 V Dc
Nominal Discharge Current:
15 Ka (8/20) Μs
Poles Number:
2 Pole, 1 Pole, 1pole+N
Short Circuit Current:
25 A Dc (per Mpp)
Short Circuit Current Rating:
32 A Dc (per Mpp)
Maximum Discharge Current:
40 Ka (8/20) Μs
Sealing Area Range:
5 Mm ... 13 Mm, 3x 5 Mm ... 7 Mm
Specifications
Direction Of Action:
(l+)-pe & (l-)-pe & (l+)-(l-)
Rated Insulation Voltage:
1000 V Dc
Nominal Discharge Current:
15 Ka (8/20) Μs
Poles Number:
2 Pole, 1 Pole, 1pole+N
Short Circuit Current:
25 A Dc (per Mpp)
Short Circuit Current Rating:
32 A Dc (per Mpp)
Maximum Discharge Current:
40 Ka (8/20) Μs
Sealing Area Range:
5 Mm ... 13 Mm, 3x 5 Mm ... 7 Mm
Rated Surge Voltage Resistance:
6 Kv
Rated Load Current:
80 A Dc
Open Circuit Voltage:
830 V Dc (solar Generator)
Clearance And Creepage Standards:
En 50539-11
Protection Class:
Ii
Product Type:
Installation Housing
Color:
Light Grey Ral 7035
Cable Gland Size:
M20, M25
Max Backup Fuse With Branch Wiring:
Not Required
Recommended Backup Fuse Maximum:
Not Required
Surge Protection Fault Message:
Optical
Connector Material:
Pa
Housing Material:
Polycarbonate, Glass-fiber-reinforced
Cover Material:
Polycarbonate, Transparent
Iec Test Classification:
Pv T1, Pv T2
Mounting Type:
Surface/wall Mounting
Trade Term:
To be discussed
Payment Term:
To be discussed
Classification:
Type B, Type C, Type D
Flammability Rating:
V2 (gehäuse / Deckel), V0 (steckverbinder)
Standby Power Consumption:
≤ 25 Mva
Response Time:
≤ 25 Ns
Residual Current:
≤ 25 Μa, ≤ 350 Μa
Voltage Protection Level L+ L :
≤ 3.5 Kv
Voltage Protection Level L+ / L Pe:
≤ 3.5 Kv
Residual Voltage L+ / L Pe At In:
≤ 3.5 Kv (at 15 Ka), ≤ 2.6 Kv (at 2 Ka), ≤ 2.9 Kv (at 5 Ka), ≤ 3.2 Kv (at 10 Ka), ≤ 3.7 Kv (at 20 Ka), ≤ 4.1 Kv (at 30 Ka), ≤ 4.6 Kv (at 40 Ka)
Residual Voltage L+ L At In:
≤ 3.5 Kv (at I_n), ≤ 2.6 Kv (at 2 Ka), ≤ 2.9 Kv (at 5 Ka), ≤ 3.2 Kv (at 10 Ka), ≤ 3.7 Kv (at 20 Ka), ≤ 4.1 Kv (at 30 Ka), ≤ 4.6 Kv (at 40 Ka)
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2015
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
General
Back to topPV protective circuit DC side
Back to topProtective circuit
Back to topConnection, protective circuit
| Housing material | Polycarbonate, glass-fiber-reinforced |
|---|---|
| Cover material | Polycarbonate, transparent |
| Connector material | PA |
| Flammability rating according to UL 94 | V2 (Gehäuse / Deckel) |
| V0 (Steckverbinder) | |
| Color | light grey RAL 7035 |
| Standards for cearances and creepage distances | EN 50539-11 |
| Protection class | II |
| Mounting type | Surface/Wall mounting |
| Type | Installation housing |
| Surge protection fault message | optical |
| Direction of action | (L+)-PE & (L-)-PE & (L+)-(L-) |
| Open circuit voltage UOCSTC | 830 V DC (Solar generator) |
|---|---|
| Rated surge voltage resistance Uimp | 6 kV |
| Rated insulation voltage Ui | 1000 V DC |
| Short-circuit current rating ISCPV | 32 A DC (per MPP) |
| Short-circuit current ISCSTC | 25 A DC (per MPP) |
| IEC test classification | PV T1 |
|---|---|
| PV T2 | |
| Rated load current IL | 80 A DC |
| Residual current IPE | ≤ 25 µA |
| ≤ 350 µA | |
| Standby power consumption PC | ≤ 25 mVA |
| Max. discharge current Imax (8/20) µs | 40 kA |
| Nominal discharge current In (8/20) µs | 15 kA |
| Voltage protection level Up (L+) - (L-) | ≤ 3.5 kV |
| Voltage protection level Up (L+/L-) - PE | ≤ 3.5 kV |
| Residual voltage (L+) - (L-) | ≤ 3.5 kV (at In) |
| ≤ 2.6 kV (at 2 kA) | |
| ≤ 2.9 kV (at 5 kA) | |
| ≤ 3.2 kV (at 10 kA) | |
| ≤ 3.7 kV (at 20 kA) | |
| ≤ 4.1 kV (at 30 kA) | |
| ≤ 4.6 kV (at 40 kA) | |
| Residual voltage (L+/L-) - PE | ≤ 3.5 kV (at 15 kA) |
| ≤ 2.6 kV (at 2 kA) | |
| ≤ 2.9 kV (at 5 kA) | |
| ≤ 3.2 kV (at 10 kA) | |
| ≤ 3.7 kV (at 20 kA) | |
| ≤ 4.1 kV (at 30 kA) | |
| ≤ 4.6 kV (at 40 kA) | |
| Response time tA | ≤ 25 ns |
| Max. backup fuse with branch wiring | not required |
| Recommended backup fuse maximum | not required |
| Cable gland | M20 |
|---|---|
| Sealing area | 5 mm ... 13 mm |
| Cable gland | M25 |
| Sealing area | 3x 5 mm ... 7 mm |
