Plastic Extruder Processing Machine Line for Mbbr Biofilm Carrier Profile



1. What's the MBBR means?
MBBR process is based on the basic principle of biofilm method. By adding a certain amount of suspended carrier to the reactor, the biomass and biological species in the reactor are improved, so as to improve the treatment efficiency of the reactor.Because the density of filler is close to water, it is completely mixed with water during aeration, and the environment for microbial growth is gas, liquid and solid phase.The impact and shear of carrier in water make air bubbles smaller and increase the utilization rate of oxygen.In addition, each carrier has different biological species inside and outside, some internal growth of anaerobic bacteria or aerobic bacteria, external aerobic bacteria, so that each carrier is a micro reactor, so that the nitrification and denitrification reaction exist at the same time, so as to improve the treatment effect.
2. The advantages of the MBBR Filter:Fillers are mostly made of polyethylene, polypropylene and its modified materials, polyurethane foam, etc. The proportion is close to water, mainly cylindrical and spherical, easy to hang the film, no agglomeration, no blockage, easy to remove the film.
3. The nitrogenous, anoxic and anaerobic environments were formed on the filler, and the nitrification and denitrification reactions could take place in a reactor, which had a good effect on the removal of ammonia nitrogen.
4.The sludge concentration in the reactor is high, and the general sludge concentration is 5 ~ 10 times that of the ordinary activated sludge process, which can be as high as 30 ~ 40g/L.It improves the treatment efficiency of organic matter and has strong impact load resistance.
5.There is no need to set the filler bracket in the aeration tank, which is convenient for the maintenance of the filler and the aeration device at the bottom of the tank, and can save investment and occupation area.

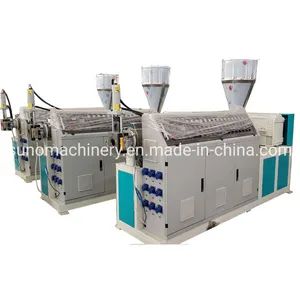

6. Plastic Extruder Processing Machine Line for MBBR Biofilm Carrier Profile adopts single-screw extruder structure, can be equipped with PLC control system, it's easy to control and operating.





Structural features:

1. Specially processed screw and barrel for the PE raw material.

2. The extruder is designed with PLC control system, which is easy to control and operating.

3. The mould can be designed as double-cavity and four-cavity extruding, to meet the different customer's requirements.






Qingdao Suno Machinery Co., Ltd is one professional plastic machinery manufacturer, which locates in Qingdao city and near to Qingdao port and Qingdao international airport. We special focus on researching, producing and providing technical service of plastic machinery and products.
Suno company has one independent research and design technician team. We always insist on quality first and continuously innovation, to provide all-directional service for the customers. Our product is mainly including kinds of plastic pipe, plastic profile, plastic sheet and board extrusion line, WPC profile and board extrusion line, PVC flooring mat production line, recycle and granulating line, and the other auxiliary machines.
Suno machinery sells well at home and abroad, we have exported to many countries, such as Russia, Uzbekistan, Kazakhstan, Ukraine, German, Italy, Turkey, Mexico, Iran, Egypt, Algeria, Ethiopia, South Africa, Mauritius, Madagascar, Saudi Arabia, India, etc.
Suno company will continue to innovation, and always with high quality products and satisfactory after-sales service, warmly welcome friends from all over the world.




1. We can supply on-line support for training and installation guiding.
2.Warranty: One year. (National standard)
3. If the problems in the parts are within the guarantee period, we will answer customers in 2 hours after answering calling or receiving the email, and we will send the new parts to customer in 7 working days.(Except for special condition of vis major)
4. We will provide easily damaged parts for 6 months for free with shipment.(See the shipping list)
5. After the warranty period, we will provide the wear parts according to their factory price.
