Plastic Extruder for Window Profile
Set
Negotiable
Product information
High-quality Plastic Extruder for Window Profile supplied by Anhui Polysen Extrusion Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Model NO.:
/
HS Code:
8477209000
Inverter:
ABB or Invt or Customerized
Production Capacity:
Around 500 Sets Per Year
Automation:
Automatic
Computerized:
Computerized
Color:
Customerized or Ral9002
Screw Channel Structure:
Deep Screw
Specifications
Model NO.:
/
HS Code:
8477209000
Inverter:
ABB or Invt or Customerized
Production Capacity:
Around 500 Sets Per Year
Automation:
Automatic
Computerized:
Computerized
Color:
Customerized or Ral9002
Screw Channel Structure:
Deep Screw
Exhaust:
Exhaust
Trade Term:
FOB, CFR, CIF, EXW
Reducer:
Integral Type
Assembly Structure:
Integral Type Extruder
Engagement System:
Intermeshing
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Feeding Mode:
One Feed
Trademark:
POLYSEN
Plastic Processed:
PVC
Extruder Type:
Plcs 65/132
Extruder Surface Treatment:
Podwer Coated
Type:
Profile Extruder
Product Type:
Profile Extrusion Molding Machine
OEM:
Provide
Transport Package:
Seaworthy Packing
Port Of Loading:
Shanghai Port
Motor:
Siemens or Customerized
Origin:
Tongling
Screw:
Twin-Screw
Specification:
W2130*L2210*H500/600 6.8 tons
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2024
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier

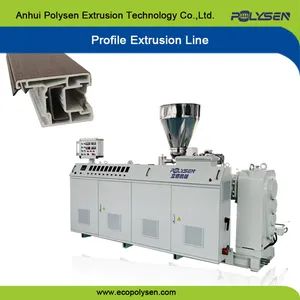

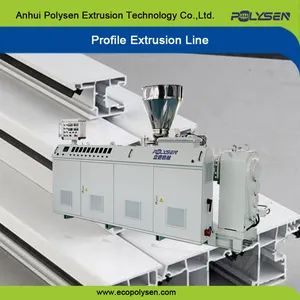

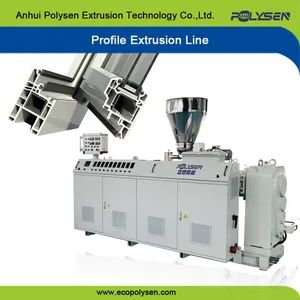

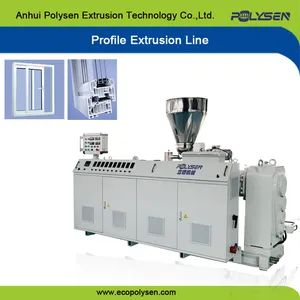

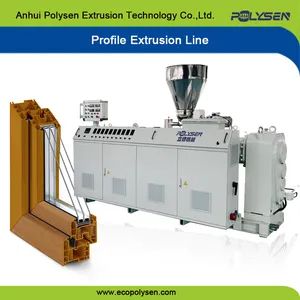

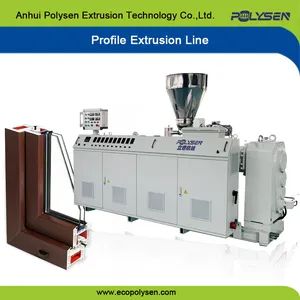

Window profile production line featuring PLCS65/132 conical twin screw extrusion, equipped with 6m or 8m calibration tables, integrated haul-off and cutting system, and automatic metering tilting table. Requires minimal staff and operates at high speed, helping you reduce costs significantly.
Calibration table offers two options. The first is a standard model featuring a #45 steel frame with powder coating. The second is entirely constructed from stainless steel.
Haul-off and cutting machines feature two distinct exterior configurations. One includes a hatchback or sliding shield door, while the other uses a solid block of PC glass for the shield.
Calibration table offers two options. The first is a standard model featuring a #45 steel frame with powder coating. The second is entirely constructed from stainless steel.
Haul-off and cutting machines feature two distinct exterior configurations. One includes a hatchback or sliding shield door, while the other uses a solid block of PC glass for the shield.
| Extruder model | PLCS35/75 | PLCS45/90 | PLCS51/105 | PLCS55/110 | PLCS65/132 |
| Main motor power(kW) | 11 | 18 | 22 | 22 | 30-37 |
| Output capacity(kg/hr) | 30-60 | 40-80 | 60-120 | 80-200 | 100-300 |
| Hauling speed (m/min) | 0-10 | 0-10 | 0-10 | 0-5 | 0-5 |
Step 1.Conical twin screw extruder
• High torque vertical gearbox;
• Siemens/DELTA original motor achieved global after service;
• ABB 510/580 inverter
•Intelligent PLC controlling system with human-friendly interface or push button control easy for operation.
• High torque vertical gearbox;
• Siemens/DELTA original motor achieved global after service;
• ABB 510/580 inverter
•Intelligent PLC controlling system with human-friendly interface or push button control easy for operation.
Step2. Extrusion Tools
• 3Cr17NiMov/Din 1.2316 material;
• Complete set include extrusion die head, calibrator and cooling tank;
• Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.
• 3Cr17NiMov/Din 1.2316 material;
• Complete set include extrusion die head, calibrator and cooling tank;
• Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.
Step 3. Vacuum calibrating table
• Include full set of vacuum and water pump;
• Length from 3m-12m;
• Independent operation panel for easy operation.
• Include full set of vacuum and water pump;
• Length from 3m-12m;
• Independent operation panel for easy operation.
Step 4. Haul off and cutting integral machine
• Upper and lower hauling-caterpillar is driven separately and speed control by frequency inverter;
• Fast change type rubber pads for easy operation;
• Install plate is adopts aluminum material;
• Compacting driving by pneumatic;
• Synchronous driving by air cylinder or servo motor control;
• New design for the outshape shield;
• More safety operation after installed force safe switch.
• Upper and lower hauling-caterpillar is driven separately and speed control by frequency inverter;
• Fast change type rubber pads for easy operation;
• Install plate is adopts aluminum material;
• Compacting driving by pneumatic;
• Synchronous driving by air cylinder or servo motor control;
• New design for the outshape shield;
• More safety operation after installed force safe switch.
Step 5. Pneumatic tilting table
• 6meter tilting table controlled by pneumatic cyclinder. more gentle and convenient for you profile collection.
• 6meter tilting table controlled by pneumatic cyclinder. more gentle and convenient for you profile collection.
