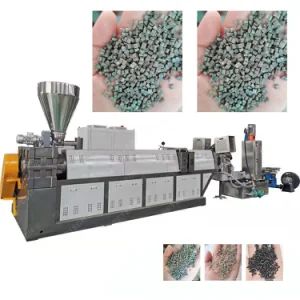

Plastic Pelletizing Machine/Recycling Granulating Machine/Plastic Granulator

Pelletizer for Granule Productions/Plastic Extruder granulator machines
Plastic Pelletizing Machine/Recycling Granulating Machine/Plastic Granulator can be used in the process of various plastic granulation particles, which can be used for PP,PE,PS,ABS,OPPand other
plastics to granulate. For several characteristics and advantages of granulator, it is particularly remarkable in the following places:
1) The screw part is carefully developed and designed, the whole machine and each part are equipped reasonably, and all the lines
are heated by three fires and one zero.
2) The screw is designed according to the characteristics of the material, so the granulator has high efficiency and speed, the
products produced have strong gloss, the particle size is full, the configuration of the whole machine is increased, and the
service life of the equipment is added. In the appearance aspect has also carried on the rationalization design, therefore has the
unique aesthetic feeling.
3) This granulator adopts reasonable design, the production volume has also been greatly improved, the finished product
performance-price ratio is higher, the maintenance time is reduced, so the maintenance cost of users is also reduced.
4) The characteristics of high output and low energy consumption are equipped with large torque reducer and motor, and the screw
is specially designed and processed. No dead angle, no iron jam, effectively improve the production capacity, enhance the plastic
plastic effect. Equipped with single exhaust double exhaust structure, full drainage, exhaust, so that the particles are more strong and full.
5) High quality electrical and driving equipment to make the granulator more safe and reliable in the process of use.

Main Features:
1. Feeding way of plastic pelletizing recycling plant: Special designed force feeder, side feeder and compactor can push the material into the extruder high efficiently. Guarantee getting good capacity of the machine
2. Gear reducer of plastic pelletizing recycling plant: The high torque, hard-surface gear reducer with water cooling circulation system ensures the line running steady, silent, and long life.
3. Barrel and screw of plastic pelletizing recycling plant: The special material (38CrMoA1A & double alloy) and hardness treatment of the screw and barrel make extruder to be good wear resistance.
4. Degassing of plastic pelletizing recycling plant: Special design for the venting can discharge the moisture and waste air
efficiently which ensure the finally plastic granules are with smooth surface, no water, no bubble, and good quality.
5. Hydraulic filter of plastic pelletizing recycling plant: Double position hydraulic filter works swift and easy to operate.
Copper ring prevents the material leakage.
6. Cutting way of plastic pelletizing recycling plant: Two type cutting way, the noodle type and water ring type makes the
customer freely to choose.
7. Special designed die of plastic pelletizing recycling plant: All die holes size are special designed due to the material
characters and our rich experience to make machines.
8. Cooling way of plastic pelletizing recycling plant: Most of the materials are cooled by water. Some like PVC are cooled by wind. e with smooth surface, no water, no bubble, and good quality.
9. Cutting way of plastic pelletizing recycling plant: pineapple cutter is for the noodle cutting way, and die face cutter for the water ring cutting way.
10. Package of the final products of plastic pelletizing recycling plant: Final products granules will be blowing into silo, which will be packaged by manual or packaging scale machine
11. Electric parts of plastic pelletizing recycling plant: Siemens, Schneider, Fuji, ABB, Mitsubishi, TECO all electric parts
customized..
