Share on
Plastic Waste Bottle Washing Line Crushing Drying Recyclable Plastic Containers Machine
Piece
Negotiable
Product information
High-quality Plastic Waste Bottle Washing Line Crushing Drying Recyclable Plastic Containers Machine supplied by Suzhou Deedo Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Model NO.:
1000
Package Gross Weight:
2600.000kg
Package Size:
2600.00cm * 1300.00cm * 1700.00cm
Model:
300-6000kg/H
Machine Material:
304 Stainless Steel
Weight:
3200kg
Production Capacity:
5 Lines Per Month
Recycling Machine Output:
500-6000kg
Specifications
Model NO.:
1000
Package Gross Weight:
2600.000kg
Package Size:
2600.00cm * 1300.00cm * 1700.00cm
Model:
300-6000kg/H
Machine Material:
304 Stainless Steel
Weight:
3200kg
Production Capacity:
5 Lines Per Month
Recycling Machine Output:
500-6000kg
Specification:
500-6000kg/h
HS Code:
84778000
Automation:
Automation
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Color:
Customized
Trademark:
DEEDO
Trade Term:
FOB, CIF, CFR
Raw Material:
Film/ Bottle/ Pipe /Bag
Gear Box:
Guomao
Certification:
ISO9001:2008, CE
Origin:
Jiangsu, Chian
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Screw:
None
Plastic Type:
PET
Control Cabniet:
PLC
Name:
Pet Bottle Recycling Washing Machine
Material:
Pet Bottles
Machine:
Pet Recycling Washing Machine
Material Processed:
Plastic Bottle
Bearing Brand:
SKF and NSK
Port Of Loading:
Shanghai Port
Motor Brand:
Siemens, ABB or Chinese Best Brand
Payment Methods:
Support payments in USD
Inverter:
Teco ABB
Quality Control:
Test Before Delivery
Transport Package:
Wood Base and Wood Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-08-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
24
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier

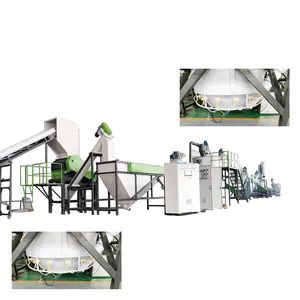

PET waste bottles flakes recycling washing machine line
1.Application for PET bottle recycling washing line:
A complete system for recycling plastic bottles includes waste sorting (automated and manual), crushing bottles into flakes, cold and hot water cleaning processes, flake dehydration and drying, elimination of dust and labels, and final packaging, among other stages.
2.Introduction
Material: carbonated beverage bottles, drinking water bottles, fruit juice bottles, oiler, tea drink bottles, etc
Finished product size: Less than 14mm or customized
Intended application: Suitable for short fiber, long fiber, sheet forms, filament yarn, PET straps, PET sheets, PET films, or bottle-to-bottle recycling.
Remark: We can customize the recycling line according to client's requirement.
3.Basic Production Process
Bale disassembly(bale opener)------Trommel screen----- Label removal(label stripper) ------ Hand-based sorting and metal extraction-----Moist crushing(crusher)-------Screw transport------Gravity based separation(floating washer)-------Screw transport------Chemical treatment for PET pellets(hot wash)-------Screw transport------Rapid friction cleaning ------- Screw transport------Floating clean tank ------- Dewatering unit--------Dry air conveying system--------Label removal device(zigzag air type)------Filling and storage chamber
1. Flakes derived from PET bottle recycling and purification processes are primarily transformed into polyester fibers, packaging tape, sheets, films, and various additional items.

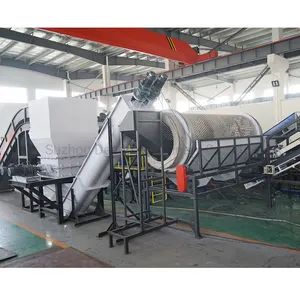

2.Efficient trommel ensures separation of materials from other debris: removal of stones, wood chips, small metals.
Material: carbonated beverage bottles, drinking water bottles, fruit juice bottles, oiler, tea drink bottles, etc
Finished product size: Less than 14mm or customized
Intended application: Suitable for short fiber, long fiber, sheet forms, filament yarn, PET straps, PET sheets, PET films, or bottle-to-bottle recycling.
Remark: We can customize the recycling line according to client's requirement.
3.Basic Production Process
Bale disassembly(bale opener)------Trommel screen----- Label removal(label stripper) ------ Hand-based sorting and metal extraction-----Moist crushing(crusher)-------Screw transport------Gravity based separation(floating washer)-------Screw transport------Chemical treatment for PET pellets(hot wash)-------Screw transport------Rapid friction cleaning ------- Screw transport------Floating clean tank ------- Dewatering unit--------Dry air conveying system--------Label removal device(zigzag air type)------Filling and storage chamber
4.Feature for PET washing line:
1. Flakes derived from PET bottle recycling and purification processes are primarily transformed into polyester fibers, packaging tape, sheets, films, and various additional items.
2.Efficient trommel ensures separation of materials from other debris: removal of stones, wood chips, small metals.
3.The label removingthis device primarily removes label sheets from PET bottle exteriors, focusing on PVC or PS labels bonded to the PET surface. Achieved via joint operation with the rotary and the fixed knives, the bottle labels are pulled apart by combining wind pressure and gravitational pull, fully detaching the label from the bottle body without compromising the bottle's structure or the neck, while minimizing waste of premium bottle material.
4.The final inspection and filtration of bottle bodies occur prior to crushing. This stage removes minor contaminants such as mixed bottles, color-mismatched containers, small label fragments, metallic residues, and waste materials that may have slipped through earlier stages, along with serving as a buffering mechanism. It plays a vital role in managing high-volume production, directly impacting the consistency and reliability of process performance. Human oversight during sorting acts as a final check and remains essential for maintaining product integrity.

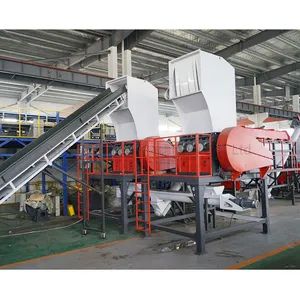

5.The crushing system adopts wear-resistant design to ensure that the system runs continuously for a long time.
6.Hot washing machineensures thorough clearance of adhesive residue, oily spots, and minor surface contaminants on bottle flakes, directly impacting the durability of downstream filtration systems and final product integrity.
7.The high-speed firction washer applies the corresponding blade striking force to different materials at a suitable rotation speed to achieve the desired cleaning effect.
8.The floating washing tank is designed for strong pressure underwater cleaning to remove residual impurities
9.Can be equipped with the corresponding centrifugal dewatering machine and hot air drying system according to the water content set by the production requirements.
10.The whole system runs automatically, with all components working in sync. It includes a predictive mechanism for potential faults to maintain operational integrity.
5.Technical Parameters:
| Model | BXA-300 | BXA-500 | BXA-1000 | BXA-2000 | BXA-3000 | BXA-5000 |
| Product capacity | 300kg /h | 500kg /h | 1000kg /h | 2000kg /h | 3000kg/h | 5000kg/h |
| Workshop(L*W*H) | 40m *4m*5m | 42m *5m*5m | 85m *5m*5m | 110m *6m*6m | 125m*6m*6.5m | 130*8m*7m |
| Needed worker | 2-3 persons | 3-4persons | 4-5persons | 5-6persons | 6-8persons | 8-10persons |
| Water supply (recycle use) |
2-3ton/h | 3-4ton/h | 4-5ton/h | 6-8ton/h | 10-12ton/h | 12-15ton/h |
| Installed power(KW) | 150-180 | 180-210 | 210-260 | 400-460 | 600-670 | 920-1200 |
| Final product quality | Moisture: max 1% Particle size: 3-12mm or customized Total impurity content:≤150PPM PH:7.5±0.5 |
|||||
6.Spec of end products---PET Flakes(Filament grade)
|
Intrinsic Viscosity (IV) (dl/g) |
0.65-0.86 (depends on raw materials) |
|
|
Melt point (ºC) |
252-260 |
|
|
Moisture |
0.5-1% |
|
|
Bulk density (kg/m3) |
280-450 |
|
|
Particle size (mm) |
3-12 |
|
|
Fraction |
1-3mm |
8-15% |
|
≤1mm |
Max. 2% |
|
|
PH Value |
7.5±0.5 |
|
|
PVC (ppm) |
Max. 30 (based on raw material & design) |
|
|
PE/PP (ppm) |
Max. 20 |
|
|
Label(ppm) |
Max. 20 |
|
|
Glue (ppm) |
Max. 20 |
|
|
Metal (ppm) |
Max. 10 |
|
|
Total impurity (ppm) |
Max. 150 |
|
7. Auxiliary equipments
8.Package and Loading
9.Why choose us
9.1.Quality Control(plastic machine):
· We have technical, engineer team design the sample machinery before enter into market
· Production QC team ensure the machine manufacturing quality
· We will running every machine after finished before shipment
· Optional choose by client running the machinery by material
9.2.Service System(plastic machine):
· Pre-sale: We given client the details technician offer, sign the sales contract etc.
· In-sales: We supply the details layout, installation instruction, technician support for the clients;
· After sales: We arrange engineer to install the machinery and training the workers for client;
· We have 24hours team to solve the after sales problem;
· We have free spare parts with the machine;
· We supply long term spare parts for every customer
· We always up date the new technology to every customer
10.Certificate
11.FAQ
YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS
1. Are you manufacturer or trading company?
Experienced producer of recycling equipment for over 15 years, offering comprehensive technical assistance, prompt and reliable support, unwavering focus on excellence, integrity, and mutually beneficial partnerships with all customers.
2. How do you assistant to install the machine on worksite?
We are experienced on turn-key project, engineer and technicians will assistant client on construction, installation, commissioning.
3. How can I get spare parts for replacement in other countries?
Blades and consumable components must be ordered directly with the machine; all other available items can be shipped via express for immediate needs or by sea within five days.
4. Can I use mark machine with different LOGO and color?
Yes, please confirm details with sales.
5. Can your customers test the machines?
Before buying and after production before leaving factory, we test machine you interested or paid with specified materials, free of charge.
If you have any need ,pls feel free to contact with us.
