Plastic Woven Bag Auto Liner Insertion Top Hemming Conversion Machine
Set
Negotiable
Product information
High-quality Plastic Woven Bag Auto Liner Insertion Top Hemming Conversion Machine supplied by Wenzhou Qianfeng Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Inner Bag Wider Than Outer Bag:
+20mm
Product Line:
1
Remarks:
11kw Air Compressor Prepared by The Customer
Folding Width:
15-30mm
Package Gross Weight:
1500.000kg
Running Power:
15kw
Lines:
2
Package Size:
200.00cm * 150.00cm * 150.00cm
Specifications
Inner Bag Wider Than Outer Bag:
+20mm
Product Line:
1
Remarks:
11kw Air Compressor Prepared by The Customer
Folding Width:
15-30mm
Package Gross Weight:
1500.000kg
Running Power:
15kw
Lines:
2
Package Size:
200.00cm * 150.00cm * 150.00cm
Production Capacity:
200sets Per Year
Voltage:
380V
3 Phase Voltage:
380V
Outer Cloth Width:
450-650mm
Frequency:
50Hz
Outer Bag Cutting Length:
600-1200mm
Installing Dimensions (Lxwxh):
6000X11500X1600mm
Specification:
6000x11500x1600mm
Gross Weight:
6700kg
Stitch Pitch:
7-12mm
HS Code:
8477800000
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Payment Term:
LC, T/T
Machine Type:
Liner Insertion Top Hemming Cutting and Sewing
Product Name:
Liner Insertion Top Hemming Machine
Speed:
Medium
Port Of Loading:
Ningbo Port
Model NO.:
QF-QTFQ-750
Trademark:
Qianfeng
Transport Package:
Seaworthy Packing
Layer:
Single
Payment Methods:
Support payments in USD
Seals Mode:
Thread Sewing
Type:
Woven Bag Making Machine
Continuous Rolled:
Yes
Origin:
Zhejiang, China
Cutting Accuracy:
±1.5mm
Inner Bag Thickness (Mm):
≥0.01mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025-02-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
72
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port
Certificates:
ISO14001, ISO45001, ISO9001
Product descriptions from the supplier
1.Fully automated cutting, inner liner inserting, bottom sewing and top hemming - processes laminated and non-laminated bags with 75-85% labor reduction versus manual operations.
This device features fully automated ultrasonic sealing, folding the woven bag's edge inward as it welds the inner film to the outer woven material in one continuous motion.

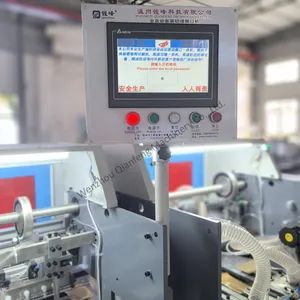

3.Precision-length control: User-friendly touchscreen and servo motor system maintains ±1.5mm accuracy on every bag.
4.Switch seamlessly between cold-cutting (laminated bags) and hot-cutting (non-laminated) in under 1 minute.
Hot cutting bonds edge seams without sticking, enabling easy bag opening, whereas cold cutting produces neat, non-fraying edges with no thermal warping—maintaining reliable results across both methods.
6.Automatic bottom sewing with dual-mode operation - choose to sew inner & outer bags together for sealed protection, or separately for replaceable liner flexibility.
Two separate, self-operating correction mechanisms work together to preserve accuracy for both the woven fabric and the inner layer, guaranteeing proper positioning, cutting down on raw material loss, and boosting overall output performance.
8.Automatic counting and stacking for seamless bag discharge.
9.Electric hoist-fed fabric roll system for effortless operation and labor reduction.
10.Handheld remote allows flexible control near the machine without touching the control panel.
This device features fully automated ultrasonic sealing, folding the woven bag's edge inward as it welds the inner film to the outer woven material in one continuous motion.
3.Precision-length control: User-friendly touchscreen and servo motor system maintains ±1.5mm accuracy on every bag.
4.Switch seamlessly between cold-cutting (laminated bags) and hot-cutting (non-laminated) in under 1 minute.
Hot cutting bonds edge seams without sticking, enabling easy bag opening, whereas cold cutting produces neat, non-fraying edges with no thermal warping—maintaining reliable results across both methods.
6.Automatic bottom sewing with dual-mode operation - choose to sew inner & outer bags together for sealed protection, or separately for replaceable liner flexibility.
Two separate, self-operating correction mechanisms work together to preserve accuracy for both the woven fabric and the inner layer, guaranteeing proper positioning, cutting down on raw material loss, and boosting overall output performance.
8.Automatic counting and stacking for seamless bag discharge.
9.Electric hoist-fed fabric roll system for effortless operation and labor reduction.
10.Handheld remote allows flexible control near the machine without touching the control panel.
| Product Name | Plastic Woven Bag Auto Liner Insertion Top Hemming Conversion Machine |
| Model No. | QF-QTFQ-750 |
| Outer Cloth Width | 450-650mm |
| Outer Bag Cutting Length | 600-1200mm |
| Inner Bag Wider than Outer Bag | +20mm |
| Inner Bag Thickness | ≥0.01mm |
| Cutting Accuracy | ±1.5mm |
| Folding Width | 15-30mm |
| Stitch Pitch | 7-12mm |
| Production Capacity | 15-20pcs/min |
| Cutting Type | Hot Cutting or Cold Cutting or Both |
| Sewing Machine Type | Single Stitch (Double Stitch for Option) |
| Weight | 7000kg approx. |
| Installation Dimensions (LxWxH) | 6000x11500x1600mm |
| Remarks | 11kw air compressor prepared by the customer |
| Learn More - Contact Us | More Products→Click Here |
Wenzhou Qianfeng Machinery Co., Ltd. operates as a fully owned branch of Wenzhou Qianfeng Technology Co., Ltd. (founded in 1997), with a strategic focus on global market growth. The company delivers highly efficient woven bag manufacturing machinery and tailored solutions to clients worldwide.Main Products
We offer advanced technology for manufacturing PP/PE woven bags, featuring a cylinder-free reel-to-reel printing system, an automated cutting and stitching line with optional features such as liner placement, top hemming, bottom edge sealing, printing, perforation, handle cutting, top folding (for valve bags), and additional配套 equipment. These systems significantly cut manual work, decrease operational expenses, boost output consistency, and increase productivity, delivering substantial financial advantages to your operations.
Market &Service
A leading high-tech manufacturer with 28 years of experience, we offer cutting-edge woven bag production technology supported by over 40 patents and ISO-standard quality. Our advanced systems are widely adopted by more than 2,000 global clients, serving key regions such as Southeast Asia, the Middle East, Central Asia, Russia, and Africa.
Q1:What types of machines does Qianfeng Machinery produce?
We design and produce advanced automatic systems for cutting and sewing woven bags, as well as printing solutions for woven sacks. Our machinery is extensively employed in creating PP/PE woven bags across sectors including farming, food processing, chemicals, and building materials.
Q2:What is your production capacity and lead time?
Production Capacity:We produce 400+machines annually.
Standard Delivery Time:around 30 days after deposit(depending on model andcustomization).
Expedited Options:Available for urgent needs (contact us for details).
Q3:Can your machines handle customized bag sizes/designs?
Yes!Our machines can be customized for:Bag dimensions (width/length adjustments)Printing colors (1-6 colors,flexographic)
Q4:What support do you provide after purchase?
Free remote installation guidance (or onsite engineer dispatch)One-year warranty+lifelong technical supportLifelong spare parts supply
