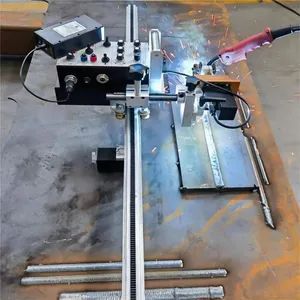

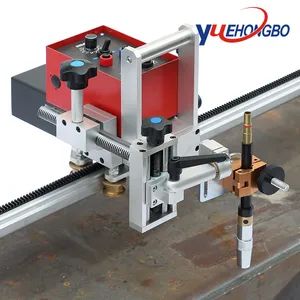

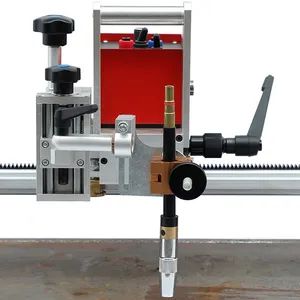

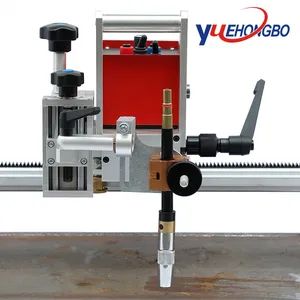

Portable Automatic 8 Orbital Welding Trolley

The KA-HE8 is a welding equipment driven by gear shifts on track. It is widely used in horizontal welding and vertical packet welding, which is especially suitable for medium thick plate welding. By adjusting the position and angle of the welding gun, corner welding, horizontal welding and superstructure can also be performed. The car body, swinging device, and control panel are integrated into one, and can be welded on the track. The track is sucking on the workpiece with powerful magnets, and it is convenient to install and disassemble.
 Features
1) KA-He8 can achieve various locations such as vertical welding, horizontal welding and horizontal welding.
2) Have a straight line swing function. Various swing parameters such as swing mode, swinging amplitude, swing speed, swing center position and left and right stay time can be adjusted.
3) Use digital to display the running speed of the car.
4) In order to prevent the emergence of the bite and insufficient welding when welding, the left and right swing stop time adjustment function is set.
5) The welded torch is automatically returned to the center of the welding channel when the welding stops.
6) Have an automatic arc collection function.
7) Have a fast return function.
8) Standard configuration provides a 1.5m long track. The rail miniaturization light movement is convenient, and it can also be connected to extend the use.





1.DC motor: the power device for the car to move. Use AC220V power supply.
2.Guide rail: Aluminum rigid guide rail, standard configuration is 1.5m, can be docked and extended for use.
3.Guide rail mounting magnet: rail fixing device. It can generate 60Kg of suction force and can be firmly adsorbed on the workpiece. Comes with a release handle for easy disassembly and movement of the track.
4.Control panel: The control center of the car, from which all actions are controlled.
5.Installation handle: trolley track wheel clutch device. During installation, twist this     handle to drive the track wheel to open. After the track wheel is stuck on the track, loosen the handle and the track wheel will automatically lock. When the handle is in the half-clutch state, the quick return function can be achieved.
6.XY slider: adjustment mechanism for welding gun position. The adjustment range in the X direction is ±20mm, and the adjustment range in the Y direction is ±20mm.
7.Swing motor: the driving device of the oscillator. It uses a high-precision DC motor with a power of 6W.
8.Welding gun clamp: the clamping device of the welding gun. The angle of the welding gun can be adjusted with an adjustment range of ±90°.



1) Welding/non -welding" switch: Enter the welding preparation status when selecting the "welding" position, and press the "start" switch for welding; press the "start" switch when the "non -welding" position is selected. Essence
(2) Start" switch: The switch is turned on and the car starts to walk. The welding "position is only walking but not welding.
(3) Stop" switch: If you press the stop switch during the trips of the car, all the actions will stop.
(4) Up Down: You can choose to walk up or down.
(5) Walking speed: The speed value is displayed in digital, the maximum walking speed is 1040mm/min, and the digital display value is 999.
(6) Switching speed adjustment knob: Rotate the swing swing speed in clockwise, the maximum value is 1520mm/min. The maximum scale is 10.
(7) swing range: The amplitude of the swing of clockwise rotation increases, and the maximum value is 20mm. The maximum scale is 10.
(8) Stop time adjustment knob: The adjustment range is 0 ~ 2S, and clockwise increases.
(9) Right stop time adjustment knob: The range is 0 ~ 2s, and clockwise increases.
(10) left right center moving: When rotating clockwise, the center will move to the right, and the center will move to the left when the clockwise rotation counterclockwise, and the maximum range of movement is ± 5mm. The maximum scale value is represented by scale value.
(11) swing choice: Use this knob to select the swing mode. There are five types of swing mode of the car. Except for the first one is the non -swing mode, the rest is as follows:
