Portable High Accuracy Built in Pump O2 CO2 Voc Gas Analyzer Used in Laboratories



Producta Specificiation



Product Overview
The SKY8000 is a handheld device for gas measurement. It serves in diverse fields such as industrial emissions, ambient air monitoring, boiler exhaust, vehicle exhaust, indoor air quality assessment, and more. This unit supports detection of 1 to 18 different gases; users can pick from 1 to 3 modules, each linked to a single pump, with a modular design enabling independent gas sampling, thus minimizing interference between detected gases.

Features a 3.5-inch HD IPS LCD display with a 150° broad viewing range, offering bilingual Chinese and English controls; includes fall detection, password lock, safety alerts, and additional safety features; optional high-temperature sensor enables gas level tracking in extreme heat and humid conditions; equipped with a high-capacity lithium battery for extended power endurance; robust body crafted from durable engineering plastics with a distinctive design
design and practical ergonomic operation.

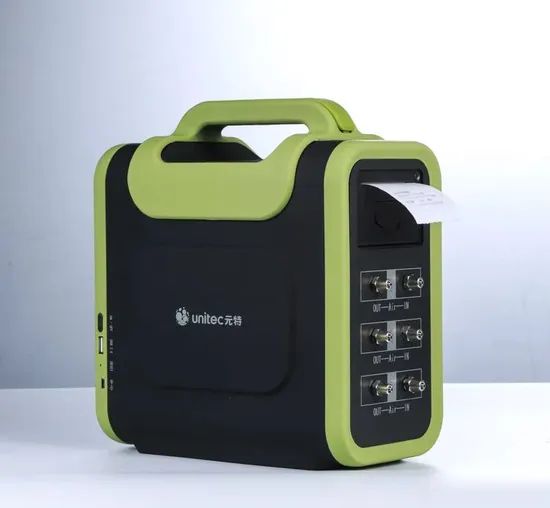

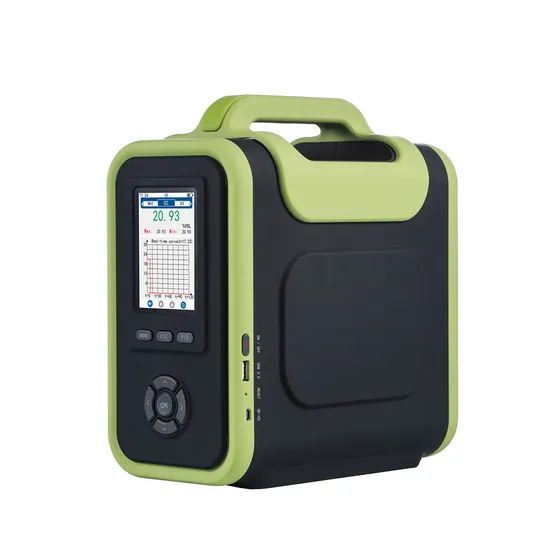

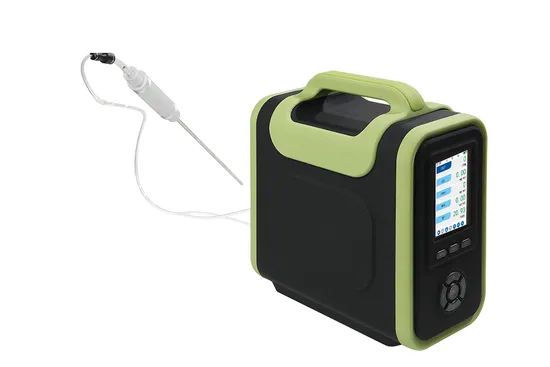

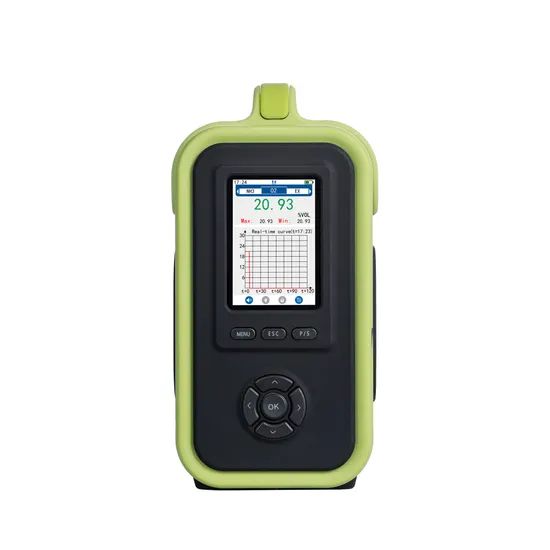

Product Pictures







Product Advantages
Exterior atmosphere, 3.5-inch high-definition color screen
The exterior atmosphere is convenient for carrying the chassis handle design.
The body is heavy and stylish, preferably aviation wear-resistant materials.
It adopts 3.5-inch high-definition color screen with high resolution and wide viewing angle.
Beautiful and user-friendly interface, a reasonably easy to use interactive way

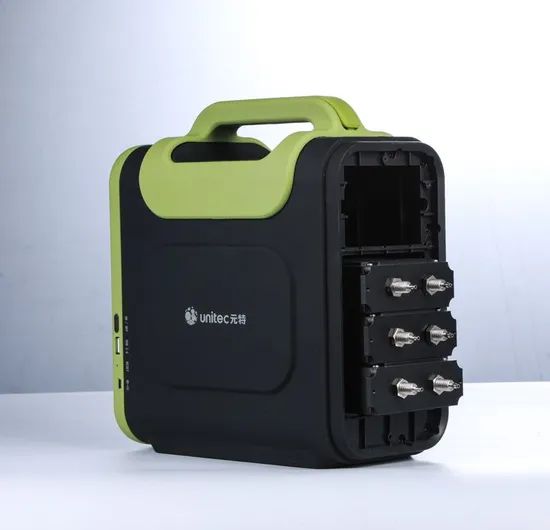

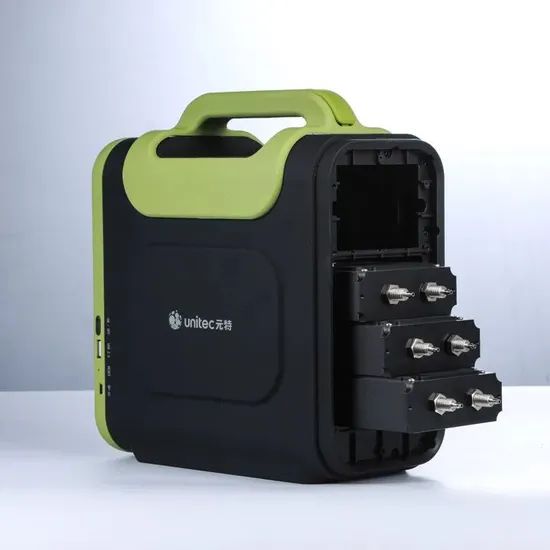

Modular internal structure
The industry's first analytical instrument with a modular internal structure and patents for relatedstructures
There are up to three detection modules inside the machine, and each module can detect up to sixgases.
The modules are independent of each other and separate from the intake air, which can effectively
avoid the cross interference of the gas to other sensors, and the detection is more accurate.

High customizability
A maximum of 18 sensors can be configured to enable real-time identification and evaluation of 18 different gases (flue gas configuration is adjustable, supporting up to 9 gas measurements at once).

Flexible, multi-pump system
The air delivery system supports up to three pumps, enabling flexible pump switching, preventing cross-gas leakage to sensors, extending sensor durability, and offering ten adjustable flow settings to adapt to varying environmental conditions while maintaining precision.

Multiple display modes coexist
Support gas concentration data display, gas concentration real-time curve display mode arbitrary switching

Data Storage
Standard 8G SD memory card, if the storage interval is set to 5 seconds, the continuous storage time can be up to seven years.
Historical data and historical curves can be viewed directly on the instrument, or historical data can be exported via a USB flash drive.
The stored data type can be divided into real-time data values, alarm values, maximum and minimum values, and can be viewed by date.

Multiple security protection
The fall alarm function allows the safety of underground workers to be upgraded (optional).
Password protection prevents non-workers from modifying menu parameters at will.
The safety alert feature allows the operator to work more comfortably.
The high and low alarm lock function allows the operator to capture sudden changes in gas concentration values.

Powerful and more user-friendly
Support PPM / mg / m3 gas unit switching, the concentration value is automatically converted by the system.
Support each channel sensor to restore factory settings.
Chinese and English freely switch display.
Timed shutdown function, intelligent settings
Sensor overload automatic protection.
Built-in thermal printer, test data for one-click printing (optional)
A built-in wireless feature enables real-time access and tracking of test results via a web interface on computers and a mobile app, along with optional security management.
Optional high temperature sampling probe for up to 1200 ° C smoke concentration (optional)

Gas

SKY8000 can detect 1-18 gases, here's some gases we can detect:



Product Application
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations




Standard accessories:
1) One User manual
2) One certificate/warranty card
3) One 32G large capacity SD card (more capacity needs to be customized)
4) One charging adapters
5) One water trap filter
6) One intake sampling probe
7) One 1000mm hose
8) One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional accessories:
1) Printer (built-in thermal printer) one
2) A set of high temperature probe





Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
