Portable Welding Dust Collector with CE and OEM Exhaust Arm 3m Motor Power 3kw Logo Customizable Color Customizable Filter Area 16.5m2
set
Negotiable
Product information
High-quality Portable Welding Dust Collector with CE and OEM Exhaust Arm 3m Motor Power 3kw Logo Customizable Color Customizable Filter Area 16.5m2 supplied by Qingdao Power Space Environmental Protection Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Compressed Air:
0.4-0.6MPa
Filter Area:
16.5m2
Filter Cartridge:
1PC
Process Capacity:
2800m3/H
Specification:
2cbm
Voltage:
3*380V/50Hz(Customizable)
Motor Power:
3kw
Exhaust Arm:
3m
Specifications
Compressed Air:
0.4-0.6MPa
Filter Area:
16.5m2
Filter Cartridge:
1PC
Process Capacity:
2800m3/H
Specification:
2cbm
Voltage:
3*380V/50Hz(Customizable)
Motor Power:
3kw
Exhaust Arm:
3m
Production Capacity:
50000sets/Year
Dimension:
680*680*1350mm
HS Code:
8421392990
Filter Efficiency:
99.9%
Filter Brand:
Ahlstrom
OperationType:
Automatic
Color:
Customizable
Logo:
Customizable
Dust Collecting Method:
Dry
Trade Term:
FOB, CIF, CFR
Type:
Filter Cartridge Dust Collector
Payment Term:
LC, T/T
Model NO.:
LW1201E-030AF
Filter Element:
Nano Flame Retardant
Medium Material:
Nano Flame Retardant Filter Element
Transport Package:
Plywood Case
Trademark:
Power Space
Origin:
Qingdao China
Port Of Loading:
Qingdao Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-05-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
42
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier
High efficiency movable dust extractor with CE from factory
The harm of welding fume
Welding has been widely used in the field of metal processing.
And the welding process produces a lot of smoke and fume.
Welding fume can irritate the eyes and respiratory system, causing coughing, eye irritation and other physiological stimuli.
It is generally believed that particles with aerodynamic force diameter less than 7 microns can enter deep lung and permanently reside in the lung, which may cause chronic lung diseases such as pneumoconiosis.
If there is no fume removal device or the fume removal effect is not good, welding fume will seriously pollute the working environment and endangers the health of workers.
Aiming at the characteristics of small smoke and fume particles, large body size and long suction duct of laser cutting machine, Qingdao Power Space specially developed LW1201 series products for welding fume extraction. This series of fume extractor is equipped with high efficiency fan, high quality nano flame retardant filter material, spark catcher, etc., and is equipped with high efficiency pulse automatic back blow cleaning system, which can effectively remove the dust blocked on the filter cartridge, make the fume extractor run for a long time and prolong the service life of the filter cartridge. More compact flow path design concept, so that the product fume extracting performance is good, small volume, low noise and high safety performance, which can help metal processing customers to better solve the problem of dust pollution in welding process.
Fume Extraction Process:
Specification:
| Model | LW1201E-022AF | LW1201E-030AF | LW1201E-030BF |
| Dimension | 680*680*1350mm | 680*680*1350mm | 680*680*1350mm |
| Process Capacity | 2000m³/h | 2800m³/h | 2800m³/h |
| Motor Power | 2.2KW | 3KW | 3KW |
| Voltage(customizable) | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Noise | <=72db<> | <=72db<> | <=72db<> |
| Filter cartridge | 1pc | 1pc | 1pc |
| Filter Area | 16.5m² | 16.5m² | 16.5m² |
| Filter Efficiency | 0.3μm;>=99.9% | 0.3μm;>=99.9% | 0.3μm;>=99.9% |
| Filter Element | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant |
| Cleaning method | Automatic | Automatic | Automatic |
| Certification | CE | CE | CE |
| Exhaust arm | 1*3m | 1*3m | 2*3m |
| Packing Volume | 2cbm | 2cbm | 2cbm |
| G.W: | 275kgs | 275kgs | 316kgs |
Main Advantages:
01.High performance fan impeller
Self-developed high-performance Fan impeller. With high negative pressure and large air flow, could effectively deal with welding fume.
02.International Famous Brand Motors
Equipped with overload and over current protection
Self-developed high-performance Fan impeller. With high negative pressure and large air flow, could effectively deal with welding fume.
02.International Famous Brand Motors
Equipped with overload and over current protection
02.High-efficiency automatic pulse blow back system
Could effectively clean the filter cartridge and prolong the service life of the filter cartridge.

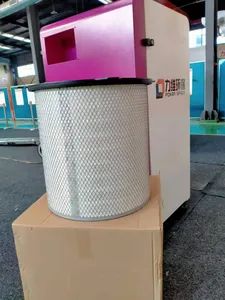

03.Imported high-quality filter element
Ahlstrom Nano flame-retardant filter . With high filtration efficiency( 0.3μm; >99.9%) and good performance.
Could effectively clean the filter cartridge and prolong the service life of the filter cartridge.
03.Imported high-quality filter element
Ahlstrom Nano flame-retardant filter . With high filtration efficiency( 0.3μm; >99.9%) and good performance.
04.Standard Brake Casters
with flexible movement and reliable fixation.
05.Strong and thick Cabinet sheet
High-quality and high-strength galvanized sheet(2mm),and the surface adopts electrostatic spraying of multi-layer anti-corrosion rust process.
07.The suction arm is external framework . Using precision slewing bearings,360 ° arbitrary rotation stop, and has large moving range. The suction hood is simulation designed,equipped with a stainless steel spark trap net.
08.Special design of air duct adopts downflow baffle structure.
It is more reasonable , the loss of wind pressure is small and dust collection efficiency is high,no escape. Drawer-type dust collector is convenient and quick to clean dust.
08.Special design of air duct adopts downflow baffle structure.
It is more reasonable , the loss of wind pressure is small and dust collection efficiency is high,no escape. Drawer-type dust collector is convenient and quick to clean dust.
Certification:
Company Profile
Qingdao Power Space Environmental Protection Co.Ltd is a manufacture of industrial laser fume ,welding and grinding extractors for more than 12years.
We have own Brand of POWERSPACE, and OEM available.
Power Space has passed the China Environmental Protection Product CCAEPI-EP certification of the Ministry of Ecology and Environmental Protection of China, ISO9001 quality management certification, ISO14001 environmental management certification, OHSAS18001 occupational health and safety management certification, and Europe CE certification.
Power Space possesses 45 national patents and 11 patents are pending.
Exhibition:
Packing&Shipping:
3 layers packing:
Layer 1:Air buble film
Layer 2:Honey Comb
Layer3:Plywood Case
Delivery time:about 15-20days after receive deposits
Port of Loading:Qingdao,China
Layer 1:Air buble film
Layer 2:Honey Comb
Layer3:Plywood Case
Delivery time:about 15-20days after receive deposits
Port of Loading:Qingdao,China
FAQ:
Q:Do you have stock products to sell?
A:Yes,we have stock with our own brand of POWER SPACE.OEM order is also acceptable.
Q:What is your minimum order quantity?
A:1 set.
Q:What certificates can offer?
A:CE, ISO
Q:What kind of payment do you accept ?
A:T/T, L/C, ****** Credit Insurance,etc
Q:What is the status of After-sale Services for customers and machines?
A:We provide on-line free technical support for whole life. Also ,if necessary, engineers available to service machinery overseas,but extra charges are needed.
Q:How many years since you have been in this field ?
A:We have been in this field for more than 12 years .We have very rich experience for designing and manufacturing the machinery.
