Post-Press Bookbinding Equipment Automated Thread Book Sewing System
1-4 Piece
$83,0005-9 Piece
$82,50010 Piece
$82,000Product information
High-quality Post-Press Bookbinding Equipment Automated Thread Book Sewing System supplied by Dongguan Haoxin Precision Machinery Co., Ltd.. Bulk wholesale pricing ranges from $82,000 to $83,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Book Thickness:
0.25-4mm
Number Of Stitches:
10
Production Capacity:
1000 Sets/Month
Max. Machine Speed:
180cyc/Min
Stitches Length:
19mm
Weight:
2500kg
Dimension:
2525*1545*1350mm
Package Size:
260.00cm * 160.00cm * 150.00cm
Specifications
Book Thickness:
0.25-4mm
Number Of Stitches:
10
Production Capacity:
1000 Sets/Month
Max. Machine Speed:
180cyc/Min
Stitches Length:
19mm
Weight:
2500kg
Dimension:
2525*1545*1350mm
Package Size:
260.00cm * 160.00cm * 150.00cm
Package Gross Weight:
2600.000kg
Max. Book Size:
320*420mm
Voltage:
380V
Standard Voltage:
380V/220V,50/60Hz,3pH
Opening Head:
4-4-Lap
Power:
4.2kw
Compressed Air:
500L/Min @6bar
Min. Book Size:
75*120mm
HS Code:
8440109000
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Specification:
HX180
Model NO.:
HX180
Trademark:
HXCP
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Shenzhen Port
Payment Methods:
Support payments in USD
Transport Package:
Wrap by Fresh Film, Packaged in Export Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-04-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
146
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
ISO9001:2015
Product descriptions from the supplier

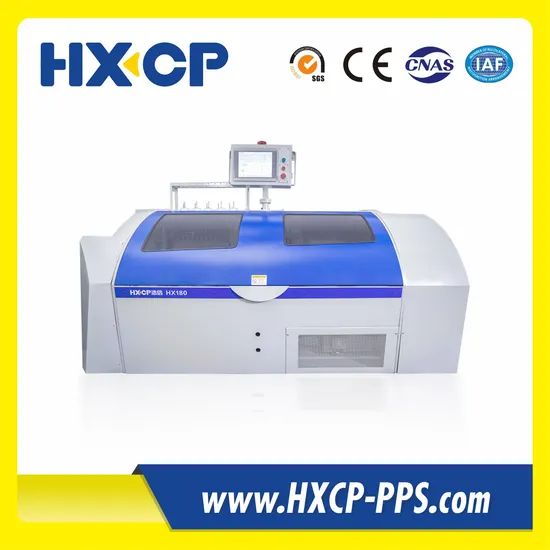

The HX180 sewing machine is a fully automatic sewing machine with powerful functions and a compact structure. It has only one safety door, and the distance between its feeding station and output station is only 1 meter. Thanks to its ergonomic design, it can be easily operated by just one operator.
It has the following technical features:

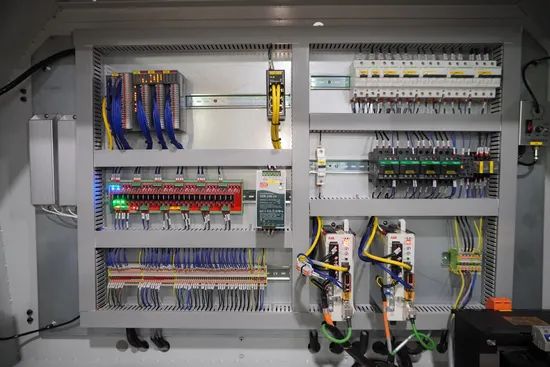

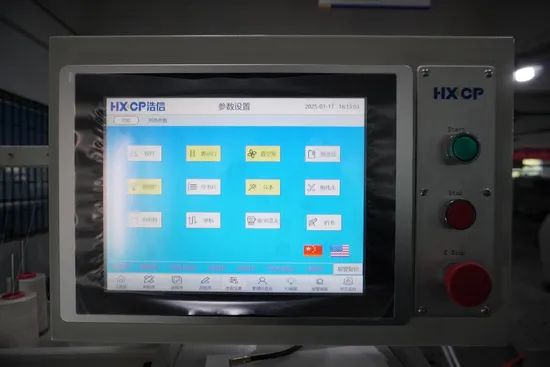

The 10-inch color touch screen combined with the PLC system can control all the functions of the machine.
The forming device can pre-process the book back of the signatures before sewing, which can effectively reduce the number of shutdowns and further improve the sewing quality.
To meet the page-turning requirements to the greatest extent, the page-turning device has three programmable vacuum page-turning heads on both the upper and lower parts and a built-in page-turning device for long and short edges.

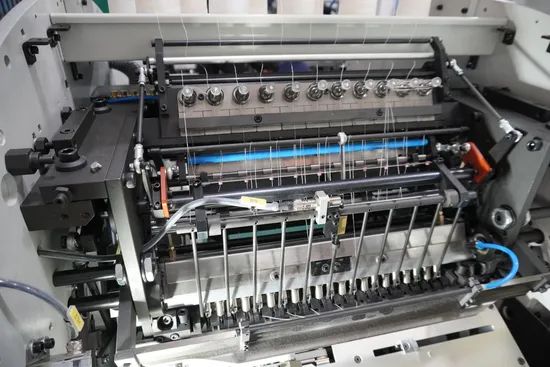

The thread needles and crochet hooks can be easily inserted into the holes punched along the spine of the signatures by the bottom needles, ensuring the highest sewing quality.
The trimmer at the book delivery device automatically trims the tail thread to approximately 10 millimeters.
It has the following technical features:
The 10-inch color touch screen combined with the PLC system can control all the functions of the machine.
The forming device can pre-process the book back of the signatures before sewing, which can effectively reduce the number of shutdowns and further improve the sewing quality.
To meet the page-turning requirements to the greatest extent, the page-turning device has three programmable vacuum page-turning heads on both the upper and lower parts and a built-in page-turning device for long and short edges.
The thread needles and crochet hooks can be easily inserted into the holes punched along the spine of the signatures by the bottom needles, ensuring the highest sewing quality.
The trimmer at the book delivery device automatically trims the tail thread to approximately 10 millimeters.
| Items | Value |
|
Model
|
HXCP HX180
|
|
Voltage
|
380V
|
|
Dimension
|
2525*1545*1350MM |
|
Weight
|
2500KG
|

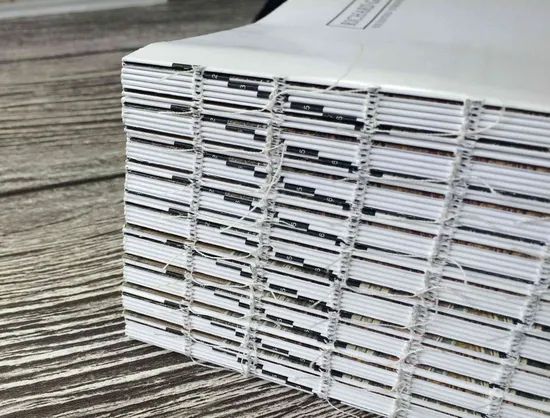

what kind of book block fitting for?
Fitting for most kinds of book block
sewn book block, perfect binding book block, board book block…
Fitting for main stream book binding line
boob block back gluing line
hardcover production line
stitching line
board book cover casing in line
book block ribbon inserting machine
sewn book block, perfect binding book block, board book block…
Fitting for main stream book binding line
boob block back gluing line
hardcover production line
stitching line
board book cover casing in line
book block ribbon inserting machine
Established in 1999, Dongguan Hao Xin Precision Machinery Co., Ltd. (HXCP Machinery)
is an innovative manufacturing enterprise, which is focusing on the post-press hardcover binding and high-quality rigid box packaging equipment and solutions' developing and producing. HXCP Machinery is located in Dongkeng Town, Dongguan City, Guangdong Province, and is accompanied with Songshan Lake Science and Technology Park.
As the leading manufacturer in the post-press and packaging industry in China, HXCP Machinery integrates developing and manufacturing in-house,nowadays, we offer four main series with more than 30 different machines, that includes:
· Folding Series: CP Combi Folding Machine and CP Buckle Folding Machine, with optional Flat Pile, Round Pile and Gantry Pallet Feeding, and all kinds of deliveries, such as Vertical Press Stack and Bundling Delivery, etc.
· Hardcover Binding Series: High Speed Case Making Machine, Hardcover Corner Rounding Machine, Paperboard Slitter, Center Board Cutter, Book Block End-sheet Lining and Back Pasting Production Line, Ribbon Inserting Machine, Elastic Band Fixing Machine, Hardcover Binding Production Line, etc.
· Board Book Making Series: Lay Flat Binding Machine, Board Paper Folding Machine, Board Book Mounting and Pasting Production Line, Board Book Cover Casing In Machine, Book Block Corner Rounding Trimmer, etc.
· Notebook Making Series: High Speed Case Making Machine, Ribbon Inserting Machine, Elastic Band Fixing Machine, Elastic Pen Loop Applying Machine, etc.
We own the experienced R&D team, and have extensive and long-standing cooperation ties with scientific institutions and academies. with the direction of 'automatic and high efficiency', adhere to the principles of 'one machine with multi-functional' to hold the R&D, now we have obtained a number of software copyrights, and a number of Appearances, Utility Models and Invention patents.
We uphold the beginner's mind - 'Believe, as expected', actively exploring innovative product technologies,allowing our customers to use the better machines and solutions, to experience the meticulous service is HXCP Machinery's profession, we will continue to pursue excellence and look forward to working with clients to achieve win-win situation. we are always full of confidence in the post-press and packaging industry to develop and create brilliant and successful!
hardcover book back feeding machine high speed sewn book block gluing book block feeder book block feeding machine sewn notebook novel signatures book core feeder story book gluing book core feeding machine sewn book back feeder
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: what's your guarantee or the warranty of the quality if we buy your machines?
A: We can offer high quality machines with 1 year guarantee and supply life-long technical supports.
Q3: when can i get my machine after l paid?
A: The delivery time is based on the exact machine you confrmed.
Q4: How can i install my machine when it arrives?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: what's your delivery time?
A: Depending on the type of machines, duration of 15 days to 60 days from the date ofcontract.
Q6: Do you have after-sales support?
A: Yes, we are happy to give advice adn we also have skilled technicians avaliable across the world, we need your machines running in order to keep your business running.
Q7: How about the spare parts?
A: After we deal down all the things. we will offer you a spare parts list for your reference.
Q8: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifcations, using top components.
Q9: what will you do if the machien is broken:
A: Our machine'waranty period is 12 months, if the brokend parts can't repaird , we cansend the beyond the warranty period, we can send the new parts replace the broken partsfor free, but you need to pay the express cost. It is beyond the waranty period, we cannegotiate to solve the problems, and we supply the technical support for the whole life ofthe equipment.
Q10: Can you be responsible for transport?
A: Yes , please tell me the destination port or address, we have rich experience intransporting.
